Ordercode: 59HC91004
Remember productRemember product

Article reflector
Product name Highbay 31 L
Weight 1.5kg

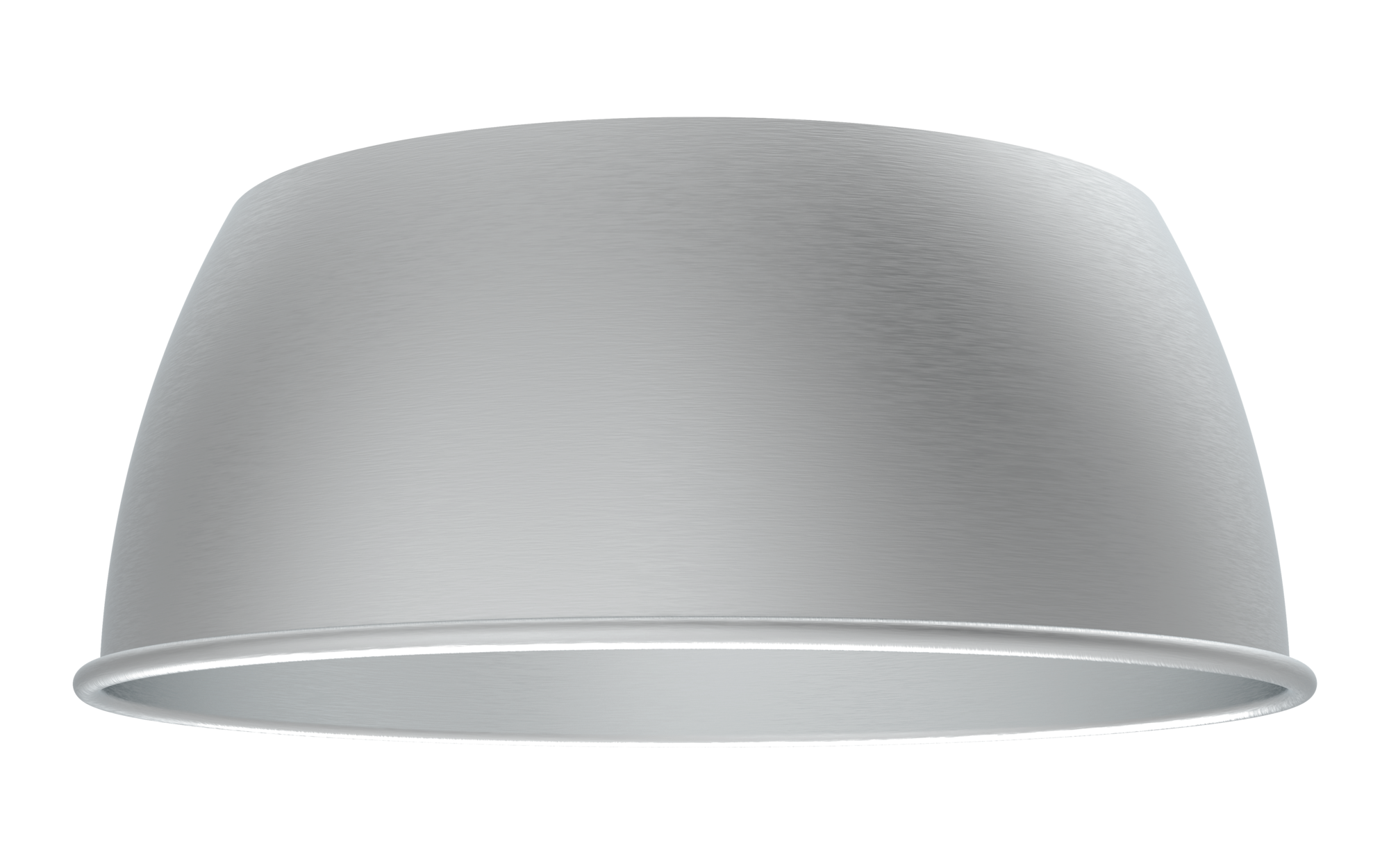

Highbay 31 L, reflector, primary light control with reflector, of aluminium, Alu-Soft, light emission: direct distribution, primary light characteristic: rotationally symmetric, installation type: surface-mounted, diameter: 590mm, height: 250mm, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

Product type reflector
Product name Highbay 31 L
Order No. 59HC91004

Light control

Beam angle

Symmetry

Light emission

UGR viewing direction along longitudinal luminaire axis

UGR viewing direction along lateral luminaire axis

Mounting

Mounting method, mounting location surface-mounted, to the luminaire
Arrangement single arrangement

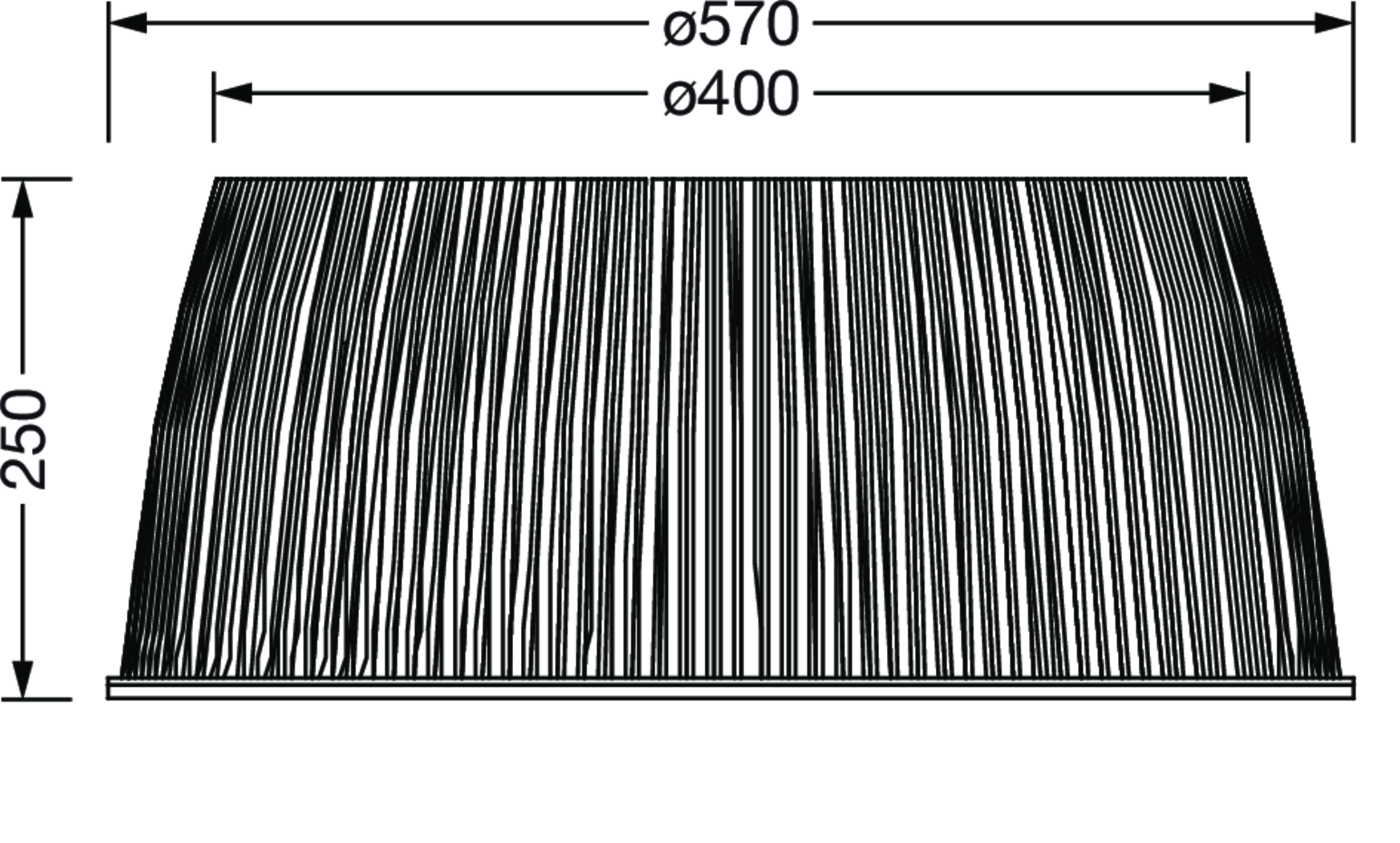

Dimensions, Weight

Diameter 590mm
Height 250mm
Weight 1.5kg

Product type
reflector

Product name
Highbay 31 L

Order No.
59HC91004

Mounting method, mounting location
surface-mounted, to the luminaire

Arrangement
single arrangement

Diameter
590mm

Height
250mm

Weight
1.5kg

Photometric report / planning data

Photometric report / planning data

HB31L
rot.sym90°,28000lm840,0/1
Ordercode: 51HC427A4MMB

reflector
ø= 590mm, aluminium, Alu-Soft, rotationally symmetric narrow to wide distribution
Ordercode: 59HC91004

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES

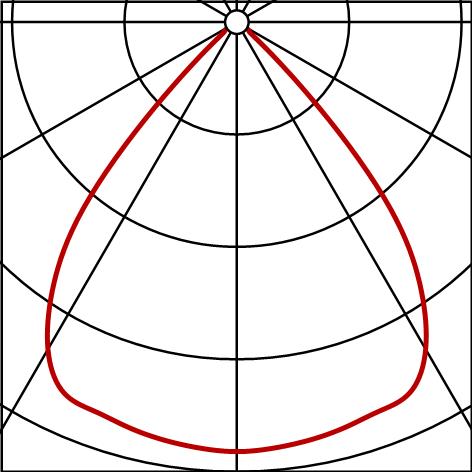

Photometric report / planning data

Photometric report / planning data

HB31L
rot.sym90°,28000lm840,DA2
Ordercode: 51HC42DA4MMB

reflector
ø= 590mm, aluminium, Alu-Soft, rotationally symmetric narrow to wide distribution
Ordercode: 59HC91004

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
