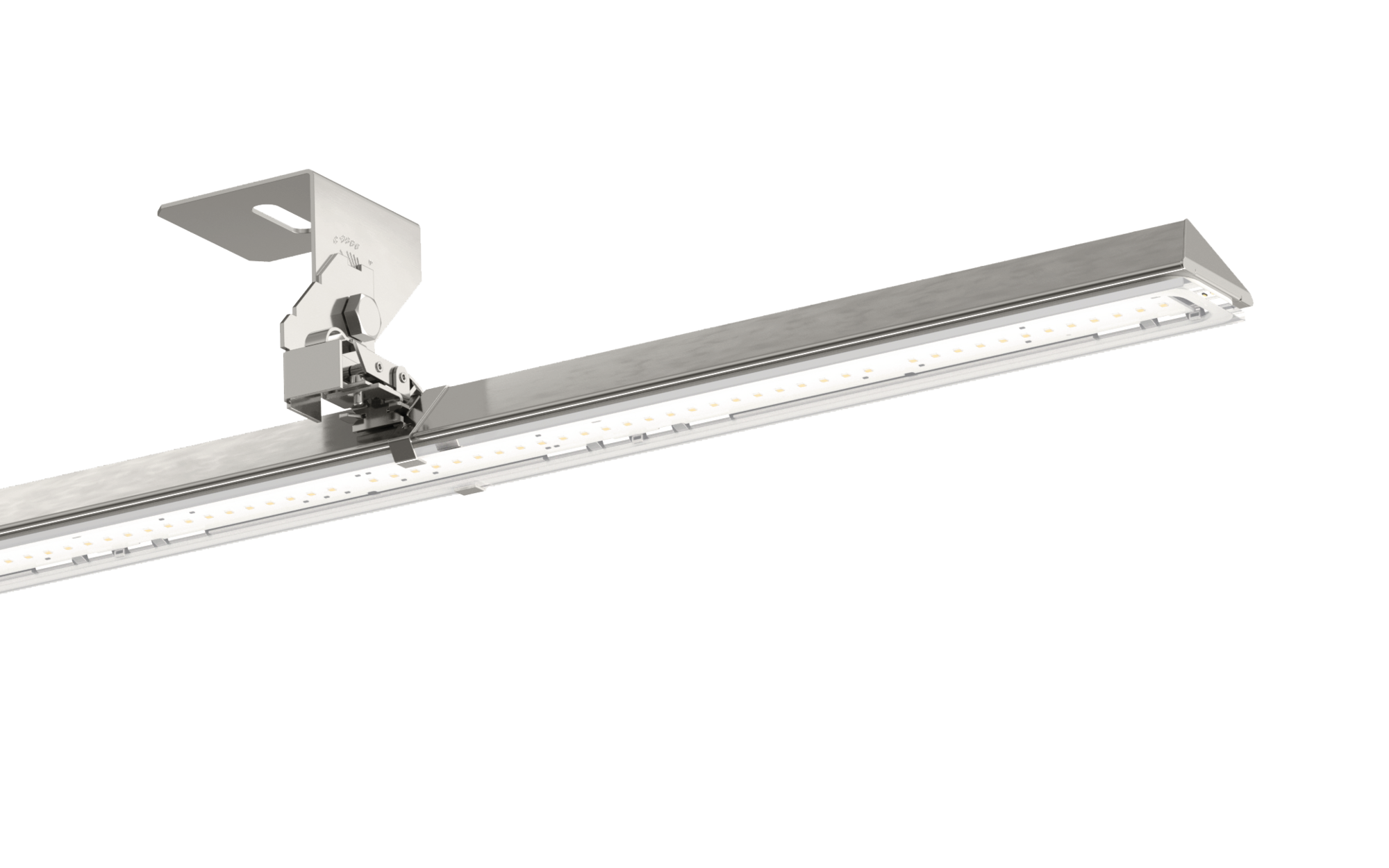

Tunnellight TL13
Innovative design for a continuous row with the best lighting values - the optimal solution for maximum visual comfort and traffic safety in the tunnel. Thanks to its innovative and extremely compact design, the continuous row luminaire offers uncomplicated installation even in challenging installation situations. The continuous trunking guarantees very even illumination for maximum visual comfort. The luminaire can be controlled via 10 StepDIM or DALI and is therefore highly compatible with different control systems. The outstanding efficiency of over 185lm/W ensures low energy consumption and minimal operating costs.
Our performance solution: Tunnellight TL 13 is our innovative tunnel luminaire with maximum efficiency, service life and flexibility
Producttypes
Tunnellight TL13
Intro to Productfamily
Data
Opis svetilka za predore
Svetlobni učinek direktna simetrična porazdelitev
Neto svetlobni tok 51600lm
Barvna temperatura 4000K; 5000K
Upravljanje DALI; 10StepDIM
Configuration & Datasheets
- each order number contains a package of: 12x luminaire head + 1x e-box; different number of luminaire heads per package on request
- please order the required number of mounting accessories for luminaire heads separately (12 sets for 12 luminaire heads); (e-box incl. mounting straps)
- please order connecting cables for individual luminaire intervals in the respective length and required number (11x cables incl. Y connector for 12 luminaire heads) separately
- please order additional connecting cable for individual interval between E-box and first luminaire head separately in the corresponding length
Results
TL 13, 10StepDIM
| Barvna temperatura | Barvni videz | Upravljanje razsvetljave | Priključna moč | Svetlobni izkoristek | Upravljanje | Masa (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 51600lm | 275W | 188lm/W | 10StepDIM | 30,1 |
TL 13, DALI
| Barvna temperatura | Barvni videz | Upravljanje razsvetljave | Priključna moč | Svetlobni izkoristek | Upravljanje | Masa (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 51600lm | 275W | 188lm/W | DALI | 30,1 |
TL 13, 10StepDIM
| Barvna temperatura | Barvni videz | Upravljanje razsvetljave | Priključna moč | Svetlobni izkoristek | Upravljanje | Masa (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 51600lm | 275W | 188lm/W | 10StepDIM | 30,1 |
TL 13, DALI
| Barvna temperatura | Barvni videz | Upravljanje razsvetljave | Priključna moč | Svetlobni izkoristek | Upravljanje | Masa (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 51600lm | 275W | 188lm/W | DALI | 30,1 |
TL 13, 10StepDIM
Oznaka za naročilo: 5WM25C802XN2GTIN (EAN): 4058352385302
| Barvna temperatura | 4000K |
|---|---|
| Barvni videz | CRI > 80 |
| Upravljanje razsvetljave | 51600lm |
| Priključna moč | 275W |
| Svetlobni izkoristek | 188lm/W |
| Upravljanje | 10StepDIM |
| Masa (kg) | 30,1 |
TL 13, DALI
Oznaka za naročilo: 5WM25CD02XN2GTIN (EAN): 4058352385340
| Barvna temperatura | 4000K |
|---|---|
| Barvni videz | CRI > 80 |
| Upravljanje razsvetljave | 51600lm |
| Priključna moč | 275W |
| Svetlobni izkoristek | 188lm/W |
| Upravljanje | DALI |
| Masa (kg) | 30,1 |
TL 13, 10StepDIM
Oznaka za naročilo: 5WM25C803XN2GTIN (EAN): 4058352385326
| Barvna temperatura | 5000K |
|---|---|
| Barvni videz | CRI > 80 |
| Upravljanje razsvetljave | 51600lm |
| Priključna moč | 275W |
| Svetlobni izkoristek | 188lm/W |
| Upravljanje | 10StepDIM |
| Masa (kg) | 30,1 |
TL 13, DALI
Oznaka za naročilo: 5WM25CD03XN2GTIN (EAN): 4058352385364
| Barvna temperatura | 5000K |
|---|---|
| Barvni videz | CRI > 80 |
| Upravljanje razsvetljave | 51600lm |
| Priključna moč | 275W |
| Svetlobni izkoristek | 188lm/W |
| Upravljanje | DALI |
| Masa (kg) | 30,1 |
Optional accessory
| Oznaka za naročilo: 5WM90GTIN (EAN): 4058352364086 | Show details |
| Oznaka za naročilo: 5WM91GTIN (EAN): 4058352346181 | Show details |
