Lunis 31
Elegance and efficiency – that is what characterizes the Lunis 31 luminaire family. The downlights are ideally suited for display workstation lighting. The aluminum housing ensures good heat dissipation and a long service life. Thanks to the quick and easy installation, the Lunis 31 is the practical solution for office and general lighting.
Our basic solution: Lunis 31 is our practical downlight as a perfect addition with high efficiency and quality
Product types

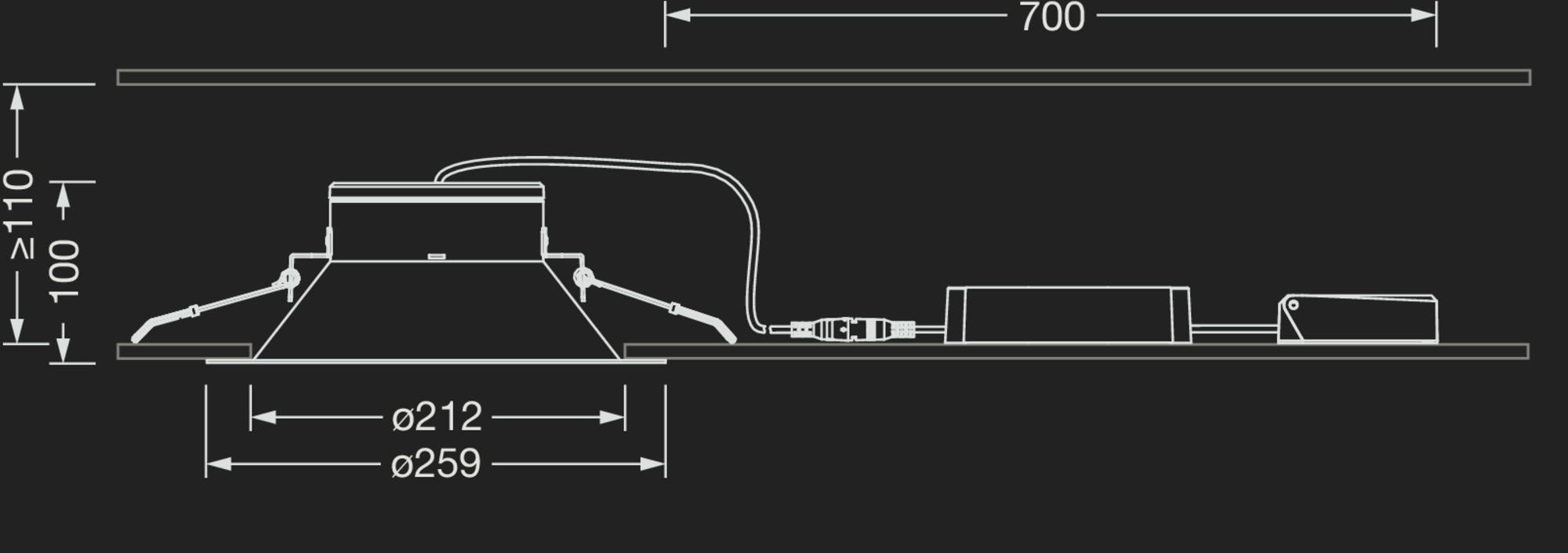

Lunis 31 XL Ø 212mm
Intro product family
Key data
Article downlight
Lighting effect direct wide distribution
Net luminous flux 2380lm to 2550lm
Colour temperature 3000K; 4000K
Control ON/OFF Multilumen; DALI 2, Multilumen
Special features
Downlight family from classic DL in two construction sizes for all classic applications
Very easy to assemble and use thanks to the low recessing depth
Ceiling cut-out DA = 162mm and 212mm, therefore also as a replacement for many Siteco downlights with conventional lamps
Suitable for office lighting with UGR ≤ 19
Configuration & data sheets
Results
Lunis 31-XL, wide distribution, Light colour 830, ON/OFF Multilumen
Order No.: 51DN16MG32B GTIN (EAN): 4069025151957
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 2500lm | 17W | 147lm/W | ON/OFF Multilumen | 0.5 | 89.40 |
Lunis 31-XL, wide distribution, Light colour 840, ON/OFF Multilumen
Order No.: 51DN16MG42B GTIN (EAN): 4069025151988
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 2550lm | 17W | 150lm/W | ON/OFF Multilumen | 0.5 | 89.40 |
Lunis 31-XL, wide distribution, Light colour 840, DALI 2, Multilumen
Order No.: 51DN16EG42B GTIN (EAN): 4069025151865
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 2550lm | 17W | 150lm/W | DALI 2, Multilumen | 0.5 | 108.00 |
Lunis 31-XL, wide distribution, Light colour 830, ON/OFF Multilumen
Order No.: 51DN15MG32B GTIN (EAN): 4069025151735
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 2400lm | 17W | 141lm/W | ON/OFF Multilumen | 0.5 | 93.80 |
Lunis 31-XL, wide distribution, Light colour 840, ON/OFF Multilumen
Order No.: 51DN15MG42B GTIN (EAN): 4069025151742
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 2500lm | 17W | 147lm/W | ON/OFF Multilumen | 0.5 | 93.80 |
Lunis 31-XL, wide distribution, Light colour 830, DALI 2, Multilumen
Order No.: 51DN15EG32B GTIN (EAN): 4069025151599
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 2380lm | 17.5W | 136lm/W | DALI 2, Multilumen | 0.6 | 112.40 |
Lunis 31-XL, wide distribution, Light colour 840, DALI 2, Multilumen
Order No.: 51DN15EG42B GTIN (EAN): 4069025151629
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 2500lm | 17.5W | 143lm/W | DALI 2, Multilumen | 0.6 | 112.40 |
Lunis 31-XL, wide distribution, Light colour 830, ON/OFF Multilumen
Order No.: 51DN16MG32BGTIN (EAN): 4069025151957
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2500lm |
| Connected load | 17W |
| Luminous efficacy | 147lm/W |
| Control | ON/OFF Multilumen |
| Wt. (kg) | 0.5 |
| Price (EUR) | 89.40 |
Lunis 31-XL, wide distribution, Light colour 840, ON/OFF Multilumen
Order No.: 51DN16MG42BGTIN (EAN): 4069025151988
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2550lm |
| Connected load | 17W |
| Luminous efficacy | 150lm/W |
| Control | ON/OFF Multilumen |
| Wt. (kg) | 0.5 |
| Price (EUR) | 89.40 |
Lunis 31-XL, wide distribution, Light colour 840, DALI 2, Multilumen
Order No.: 51DN16EG42BGTIN (EAN): 4069025151865
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2550lm |
| Connected load | 17W |
| Luminous efficacy | 150lm/W |
| Control | DALI 2, Multilumen |
| Wt. (kg) | 0.5 |
| Price (EUR) | 108.00 |
Lunis 31-XL, wide distribution, Light colour 830, ON/OFF Multilumen
Order No.: 51DN15MG32BGTIN (EAN): 4069025151735
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2400lm |
| Connected load | 17W |
| Luminous efficacy | 141lm/W |
| Control | ON/OFF Multilumen |
| Wt. (kg) | 0.5 |
| Price (EUR) | 93.80 |
Lunis 31-XL, wide distribution, Light colour 840, ON/OFF Multilumen
Order No.: 51DN15MG42BGTIN (EAN): 4069025151742
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2500lm |
| Connected load | 17W |
| Luminous efficacy | 147lm/W |
| Control | ON/OFF Multilumen |
| Wt. (kg) | 0.5 |
| Price (EUR) | 93.80 |
Lunis 31-XL, wide distribution, Light colour 830, DALI 2, Multilumen
Order No.: 51DN15EG32BGTIN (EAN): 4069025151599
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2380lm |
| Connected load | 17.5W |
| Luminous efficacy | 136lm/W |
| Control | DALI 2, Multilumen |
| Wt. (kg) | 0.6 |
| Price (EUR) | 112.40 |
Lunis 31-XL, wide distribution, Light colour 840, DALI 2, Multilumen
Order No.: 51DN15EG42BGTIN (EAN): 4069025151629
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2500lm |
| Connected load | 17.5W |
| Luminous efficacy | 143lm/W |
| Control | DALI 2, Multilumen |
| Wt. (kg) | 0.6 |
| Price (EUR) | 112.40 |
