SITECO Connect 21
SITECO Connect 21 is the comprehensive indoor control solution for all control requirements. It offers high functionality and is still easy to use. SITECO Connect 21 combines the topics of sustainability, productivity, flexibility and well-being and is aimed at the areas of application in industry, retail and offices.
SITECO Connect solution kit
Product types
SITECO Connect 21 O (DALI 1)
Intro product family
Key data
Article repeater; control unit; sensor; push button interface
Control DALI; DALI 2
Special features
Controller available as DIN rail PC
Easy commissioning: all function via commissioning software
Manual intervention: possible at any time by users
Future-proofing and flexibility: through individual addressing and grouping of luminaires and sensors
Cost efficiency: accelerating payback through sensors (daylight and motion)
Intelligence: intelligent control of luminaires depending on partition walls (e.g. sports halls, meeting rooms, etc.)
Configuration & data sheets
With SITECO Connect 21O, the complete control intelligence is combined in one device
Incl. 4 DALI lines
Per DALI line max. 200mA power supply
Per DALI line max. 64 ECG addresses
Attention: the controller is not DALI 2 certified, therefore only compatible with system sensors and push-button couplers approved by SITECO
Incl. 4 DALI lines
Per DALI line max. 200mA power supply
Per DALI line max. 64 ECG addresses
Attention: the controller is not DALI 2 certified, therefore only compatible with system sensors and push-button couplers approved by SITECO
Results

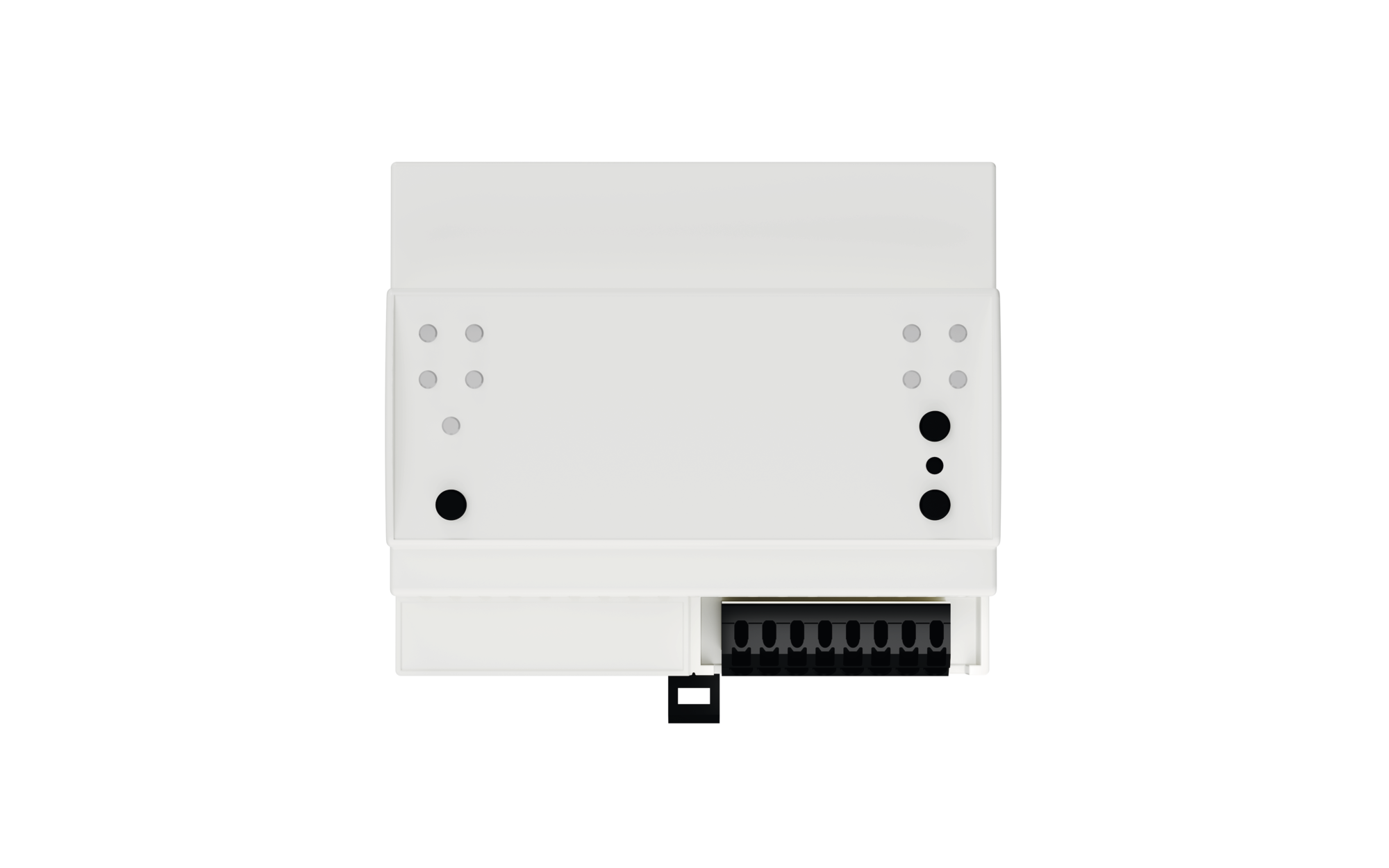

controller
Order No.: 5LZ904712 GTIN (EAN): 4008321710871
| Family | Article | Equipment | Control | Colour | Installation location | Mounting height | Application area | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| SITECO Connect 21-O | controller | master | DALI | grey | in an electrical distributor | 0.4 |
push button interface
Order No.: 5LZ904731A GTIN (EAN): 4058352580318
| Family | Article | Equipment | Control | Colour | Installation location | Mounting height | Application area | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| DALI2 | push button interface | slave | DALI 2 | grey | in the switch box | 0.1 |
repeater
Order No.: 5LZ904001A GTIN (EAN): 4069025312198
| Family | Article | Equipment | Control | Colour | Installation location | Mounting height | Application area | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| DALI2 | repeater | master | DALI 2 | grey | in an electrical distributor | 0.2 |
repeater
Order No.: 5LZ904002A GTIN (EAN): 4069025312204
| Family | Article | Equipment | Control | Colour | Installation location | Mounting height | Application area | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| DALI2 | repeater | master | DALI 2 | grey | in the luminaire | 0.1 |
light sensor D1
Order No.: 5LZ904722A GTIN (EAN): 4058352541524
| Family | Article | Equipment | Control | Colour | Installation location | Mounting height | Application area | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| SITECO Connect | light sensor D1 | slave | DALI 2 | white | to the ceiling | 4..12m | manufacturing hall | 0.1 |
light sensor D1
Order No.: 56TL1MDSD1B GTIN (EAN): 4058352542422
| Family | Article | Equipment | Control | Colour | Installation location | Mounting height | Application area | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| Licross® | light sensor D1 | slave | DALI 2 | white | to the Licross® trunking rail | 4..12m | manufacturing hall | 0.5 |
controller
Order No.: 5LZ904712GTIN (EAN): 4008321710871
| Family | SITECO Connect 21-O |
|---|---|
| Article | controller |
| Equipment | master |
| Control | DALI |
| Colour | grey |
| Installation location | in an electrical distributor |
| Mounting height | |
| Application area | |
| Wt. (kg) | 0.4 |
push button interface
Order No.: 5LZ904731AGTIN (EAN): 4058352580318
| Family | DALI2 |
|---|---|
| Article | push button interface |
| Equipment | slave |
| Control | DALI 2 |
| Colour | grey |
| Installation location | in the switch box |
| Mounting height | |
| Application area | |
| Wt. (kg) | 0.1 |
repeater
Order No.: 5LZ904001AGTIN (EAN): 4069025312198
| Family | DALI2 |
|---|---|
| Article | repeater |
| Equipment | master |
| Control | DALI 2 |
| Colour | grey |
| Installation location | in an electrical distributor |
| Mounting height | |
| Application area | |
| Wt. (kg) | 0.2 |
repeater
Order No.: 5LZ904002AGTIN (EAN): 4069025312204
| Family | DALI2 |
|---|---|
| Article | repeater |
| Equipment | master |
| Control | DALI 2 |
| Colour | grey |
| Installation location | in the luminaire |
| Mounting height | |
| Application area | |
| Wt. (kg) | 0.1 |
light sensor D1
Order No.: 5LZ904722AGTIN (EAN): 4058352541524
| Family | SITECO Connect |
|---|---|
| Article | light sensor D1 |
| Equipment | slave |
| Control | DALI 2 |
| Colour | white |
| Installation location | to the ceiling |
| Mounting height | 4..12m |
| Application area | manufacturing hall |
| Wt. (kg) | 0.1 |
light sensor D1
Order No.: 56TL1MDSD1BGTIN (EAN): 4058352542422
| Family | Licross® |
|---|---|
| Article | light sensor D1 |
| Equipment | slave |
| Control | DALI 2 |
| Colour | white |
| Installation location | to the Licross® trunking rail |
| Mounting height | 4..12m |
| Application area | manufacturing hall |
| Wt. (kg) | 0.5 |
