Tunnellight TL 33 / TL 33C / TL 33S

ProducttypesConfiguration & Datasheets

The compact luminaire with extremely minimal construction sizes and symmetric lenses for very large light point spacings of up to 18m to reduce investment costs. The low construction height offers maximum flexibility for headroom. The variant as an entrance luminaire (TL 33C) offers a special, asymmetric light distribution based on the reverse beam principle. This enables a particularly pleasant adaptation to the low level of light in the tunnel passage zone.

Our basic solution: Tunnellight TL 33 is our practical tunnel luminaire as a perfect addition with high efficiency and quality

Producttypes

Tunnellight TL 33 (transit zone)

Tunnellight TL 33C (entrance zone, asymmetric distribution)

Tunnellight TL 33S (entrance zone, symmetric distribution)

Tunnellight TL 33 (transit zone)

Intro to Productfamily

Data

Article tunnel luminaire
Lighting effect direct symmetric distribution
Net luminous flux 9450lm to 14000lm
Colour temperature 4000K; 5000K
Control DALI; 10StepDIM

Specials

LED transit zone luminaire with over 40% more light compared to a luminaire fitted with a 400W sodium vapor high-pressure discharge lamp saves luminaires and energy - environmental protection that quickly pays for itself
High-precision lighting technology with symmetric light distribution for very high uniformity with large luminaire spacing of up to 18m

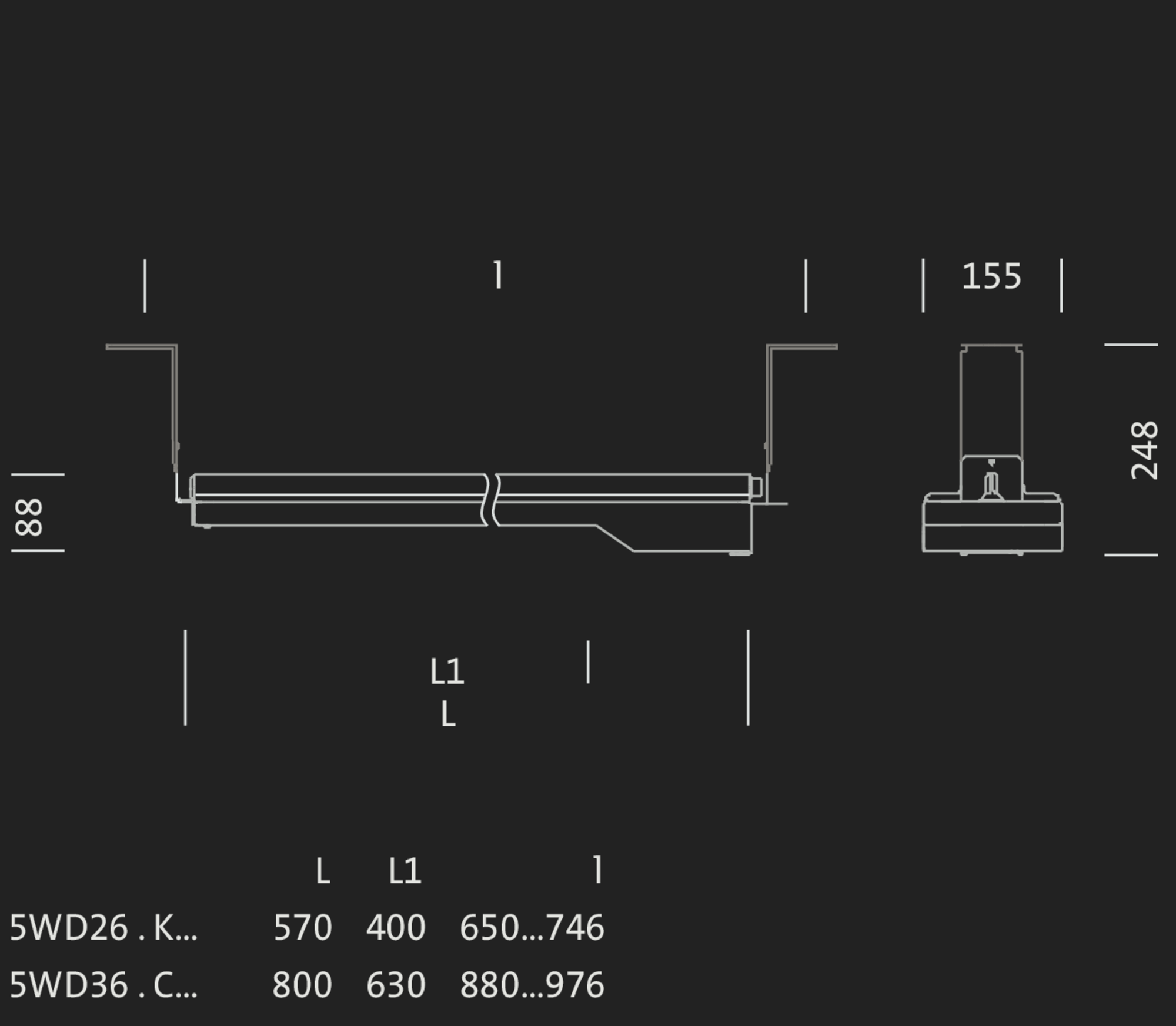

Compact luminaires with low construction height enable greater flexibility with regard to overhead clearance heights in tunnels mainly with refurbishment projects
Maintenance-saving and time-saving handling for avoidance of long tunnel closures thanks to flexible mounting principle

Configuration & Datasheets

Name addition

Colour temperature

Control

  • please order mounting accessories separately (1 set per luminaire)
  • please provide electrical connection socket on site: make: 'Wieland RST, type: 46.051.4553.1'

Results

TL 33 midi, 10StepDIM

Order No.: 5WD36C8C2SN3GTIN (EAN): 4058352305003
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 7013930lm96W146lm/W10StepDIM6.7
Show details
Tender textData sheet (PDF, full)All Downloads

TL 33 midi, DALI

Order No.: 5WD36CDC2SN3GTIN (EAN): 4058352283400
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 7013430lm92W146lm/WDALI7.4
Show details
Tender textData sheet (PDF, full)All Downloads

TL 33 midi, 10StepDIM

Order No.: 5WD36C8C3SN3GTIN (EAN): 4058352305027
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5000KCRI > 7014000lm96W146lm/W10StepDIM6.7
Show details
Tender textData sheet (PDF, full)All Downloads

TL 33 midi, DALI

Order No.: 5WD36CDC3SN3GTIN (EAN): 4058352283424
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5000KCRI > 7013510lm92W146lm/WDALI7.4
Show details
Tender textData sheet (PDF, full)All Downloads

TL 33 mini, DALI

Order No.: 5WD26CDK3SN3GTIN (EAN): 4058352282984
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5000KCRI > 709500lm67W142lm/WDALI5.0
Show details
Tender textData sheet (PDF, full)All Downloads

TL 33 mini, DALI

Order No.: 5WD26CDK2SN3GTIN (EAN): 4058352282960
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 709450lm67W141lm/WDALI5.0
Show details
Tender textData sheet (PDF, full)All Downloads

TL 33 midi, 10StepDIM

Order No.: 5WD36C8C2SN3GTIN (EAN): 4058352305003

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux13930lm
Connected load96W
Luminous efficacy146lm/W
Control10StepDIM
Wt. (kg)6.7
Show details

TL 33 midi, DALI

Order No.: 5WD36CDC2SN3GTIN (EAN): 4058352283400

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux13430lm
Connected load92W
Luminous efficacy146lm/W
ControlDALI
Wt. (kg)7.4
Show details

TL 33 midi, 10StepDIM

Order No.: 5WD36C8C3SN3GTIN (EAN): 4058352305027

Colour temperature5000K
Colour renderingCRI > 70
Luminous flux14000lm
Connected load96W
Luminous efficacy146lm/W
Control10StepDIM
Wt. (kg)6.7
Show details

TL 33 midi, DALI

Order No.: 5WD36CDC3SN3GTIN (EAN): 4058352283424

Colour temperature5000K
Colour renderingCRI > 70
Luminous flux13510lm
Connected load92W
Luminous efficacy146lm/W
ControlDALI
Wt. (kg)7.4
Show details

TL 33 mini, DALI

Order No.: 5WD26CDK3SN3GTIN (EAN): 4058352282984

Colour temperature5000K
Colour renderingCRI > 70
Luminous flux9500lm
Connected load67W
Luminous efficacy142lm/W
ControlDALI
Wt. (kg)5.0
Show details

TL 33 mini, DALI

Order No.: 5WD26CDK2SN3GTIN (EAN): 4058352282960

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux9450lm
Connected load67W
Luminous efficacy141lm/W
ControlDALI
Wt. (kg)5.0
Show details

Mandatory accessory

Articlefixing bracket, stainless steel 1.4404 (AISI316)PU2 pcs.Wt. (kg)0.5Order No.: 5WD95GTIN (EAN): 4058352276112Show details
