Tunnellight TL 33 / TL 33C / TL 33S

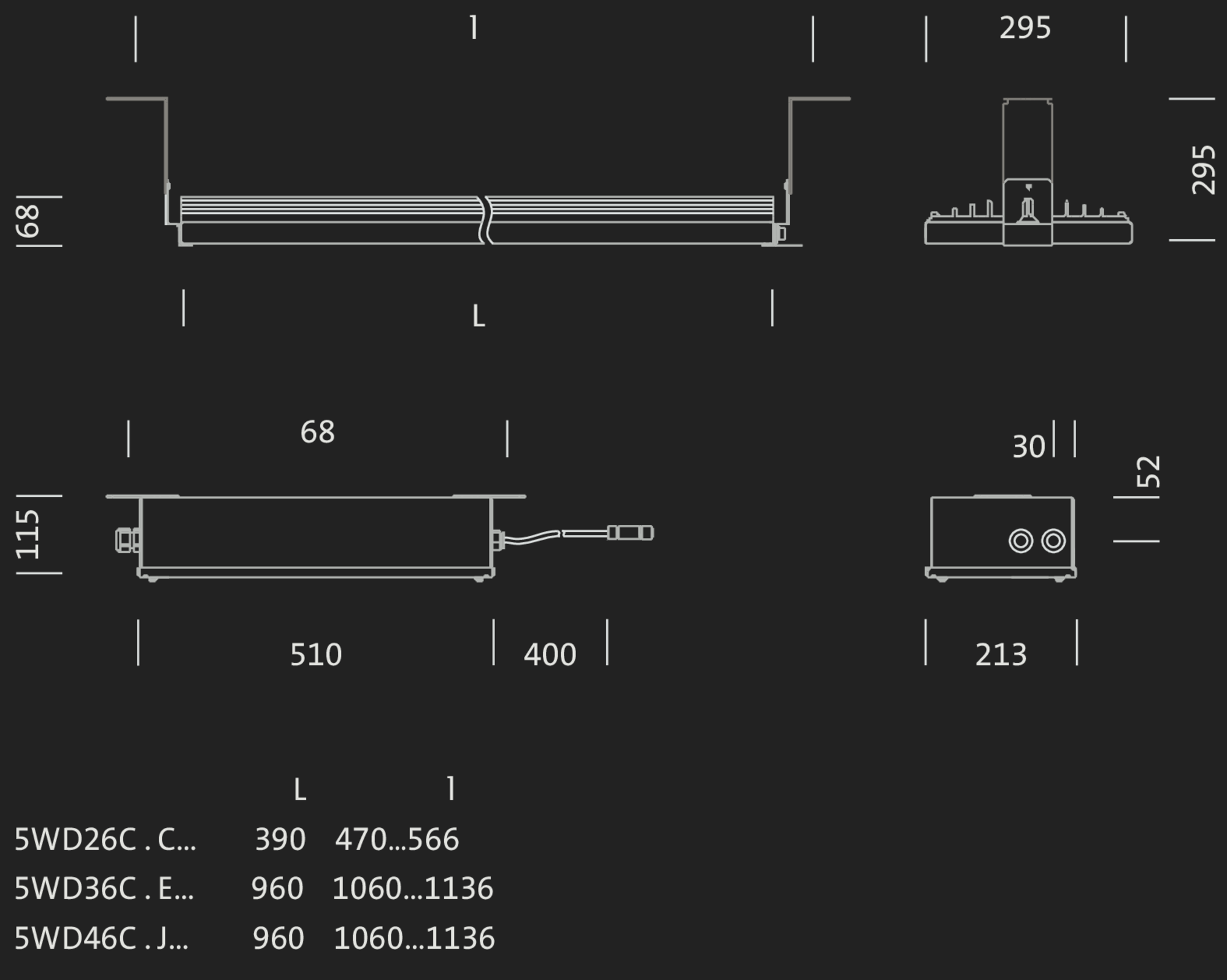

The compact luminaire with extremely minimal construction sizes and symmetric lenses for very large light point spacings of up to 18m to reduce investment costs. The low construction height offers maximum flexibility for headroom. The variant as an entrance luminaire (TL 33C) offers a special, asymmetric light distribution based on the reverse beam principle. This enables a particularly pleasant adaptation to the low level of light in the tunnel passage zone.
Our basic solution: Tunnellight TL 33 is our practical tunnel luminaire as a perfect addition with high efficiency and quality
Tunnellight TL 33C (entrance zone, asymmetric distribution)
Intro to Productfamily
Data
Article tunnel luminaire
Lighting effect direct asymmetric distribution
Net luminous flux 18300lm to 60390lm
Colour temperature 4000K; 5000K
Control DALI; 10StepDIM
Specials
Configuration & Datasheets
Results
TL 33C mini, 10StepDIM
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 18300lm | 136W | 135lm/W | 10StepDIM | 10.6 |
TL 33C mini, DALI
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 18300lm | 129W | 142lm/W | DALI | 10.8 |
TL 33C mini, 10StepDIM
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 18400lm | 136W | 135lm/W | 10StepDIM | 10.6 |
TL 33C mini, DALI
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 18400lm | 129W | 143lm/W | DALI | 10.8 |
TL 33C midi, 10StepDIM
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 43770lm | 287W | 153lm/W | 10StepDIM | 17.6 |
TL 33C midi, DALI
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 43770lm | 287W | 153lm/W | DALI | 17.6 |
TL 33C midi, 10StepDIM
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 44020lm | 287W | 153lm/W | 10StepDIM | 17.6 |
TL 33C midi, DALI
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 44020lm | 287W | 153lm/W | DALI | 17.6 |
TL 33C maxi, 10StepDIM
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 60020lm | 432W | 139lm/W | 10StepDIM | 17.6 |
TL 33C maxi, DALI
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 60020lm | 432W | 139lm/W | DALI | 17.6 |
TL 33C maxi, 10StepDIM
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 60390lm | 432W | 140lm/W | 10StepDIM | 17.6 |
TL 33C maxi, DALI
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 60390lm | 432W | 140lm/W | DALI | 17.6 |
TL 33C mini, 10StepDIM
Order No.: 5WD26C8C2CN3GTIN (EAN): 4058352315774
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 18300lm |
| Connected load | 136W |
| Luminous efficacy | 135lm/W |
| Control | 10StepDIM |
| Wt. (kg) | 10.6 |
TL 33C mini, DALI
Order No.: 5WD26CDC2CN3GTIN (EAN): 4058352315798
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 18300lm |
| Connected load | 129W |
| Luminous efficacy | 142lm/W |
| Control | DALI |
| Wt. (kg) | 10.8 |
TL 33C mini, 10StepDIM
Order No.: 5WD26C8C3CN3GTIN (EAN): 4058352315781
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 18400lm |
| Connected load | 136W |
| Luminous efficacy | 135lm/W |
| Control | 10StepDIM |
| Wt. (kg) | 10.6 |
TL 33C mini, DALI
Order No.: 5WD26CDC3CN3GTIN (EAN): 4058352315804
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 18400lm |
| Connected load | 129W |
| Luminous efficacy | 143lm/W |
| Control | DALI |
| Wt. (kg) | 10.8 |
TL 33C midi, 10StepDIM
Order No.: 5WD36C8E2CN3GTIN (EAN): 4058352315811
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 43770lm |
| Connected load | 287W |
| Luminous efficacy | 153lm/W |
| Control | 10StepDIM |
| Wt. (kg) | 17.6 |
TL 33C midi, DALI
Order No.: 5WD36CDE2CN3GTIN (EAN): 4058352315835
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 43770lm |
| Connected load | 287W |
| Luminous efficacy | 153lm/W |
| Control | DALI |
| Wt. (kg) | 17.6 |
TL 33C midi, 10StepDIM
Order No.: 5WD36C8E3CN3GTIN (EAN): 4058352315828
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 44020lm |
| Connected load | 287W |
| Luminous efficacy | 153lm/W |
| Control | 10StepDIM |
| Wt. (kg) | 17.6 |
TL 33C midi, DALI
Order No.: 5WD36CDE3CN3GTIN (EAN): 4058352315842
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 44020lm |
| Connected load | 287W |
| Luminous efficacy | 153lm/W |
| Control | DALI |
| Wt. (kg) | 17.6 |
TL 33C maxi, 10StepDIM
Order No.: 5WD46C8J2CN3GTIN (EAN): 4058352315859
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 60020lm |
| Connected load | 432W |
| Luminous efficacy | 139lm/W |
| Control | 10StepDIM |
| Wt. (kg) | 17.6 |
TL 33C maxi, DALI
Order No.: 5WD46CDJ2CN3GTIN (EAN): 4058352315873
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 60020lm |
| Connected load | 432W |
| Luminous efficacy | 139lm/W |
| Control | DALI |
| Wt. (kg) | 17.6 |
TL 33C maxi, 10StepDIM
Order No.: 5WD46C8J3CN3GTIN (EAN): 4058352315866
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 60390lm |
| Connected load | 432W |
| Luminous efficacy | 140lm/W |
| Control | 10StepDIM |
| Wt. (kg) | 17.6 |
TL 33C maxi, DALI
Order No.: 5WD46CDJ3CN3GTIN (EAN): 4058352281109
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 60390lm |
| Connected load | 432W |
| Luminous efficacy | 140lm/W |
| Control | DALI |
| Wt. (kg) | 17.6 |
Mandatory accessory
| Order No.: 5WD95GTIN (EAN): 4058352276112 | Show details |
