Modario® 31 sensors for local control
Simple standalone solution
pour rayonnages et stockage en hauteur
Intro to ProductfamilyData
Équipement maître; esclave
Désignation Sensor-Head PR2-M; Sensor-Head PR2-S; Interface MD; Interface S
Specials

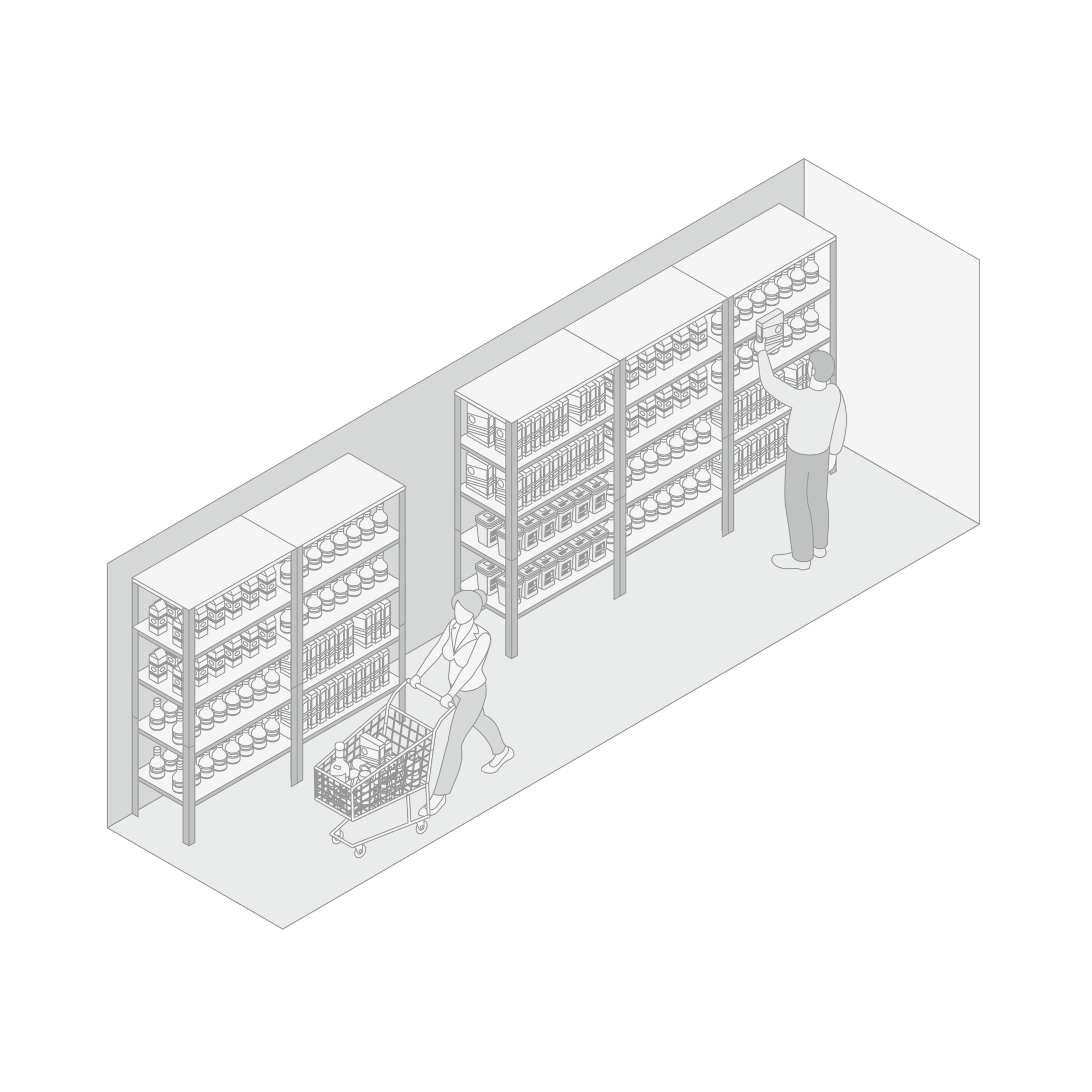

Multi-sensor for use in shelf and high-bay warehouses
Multi-sensor with very high detection quality guarantees reliable detection of large areas with few sensors. With one sensor, up to 800m² can be detected depending on presence
Sensor specially developed for the application. Square detection area
Master already contains the complete intelligence for room-related lighting control. This reduces complexity and saves space
Basic energy-saving functions such as motion detection, daylight threshold value and fully automatic operation reduce energy costs and CO2 consumption
Inventory light deactivates the sensor function during the inventory period and controls the lights to 100% illuminance
Sensor planning in Relux saves time and gives you the security of planning sensor detection correctly
Configuration & Datasheets
- only suitable for 7 or 10-wire rails and in combination with DALI luminaire inserts
- chaque capteur d’extension fait diminuer de 3 pièces le nombre de BE pouvant être commandés
- une unité de détection est composée d’une tête de capteur et d’une interface
Results

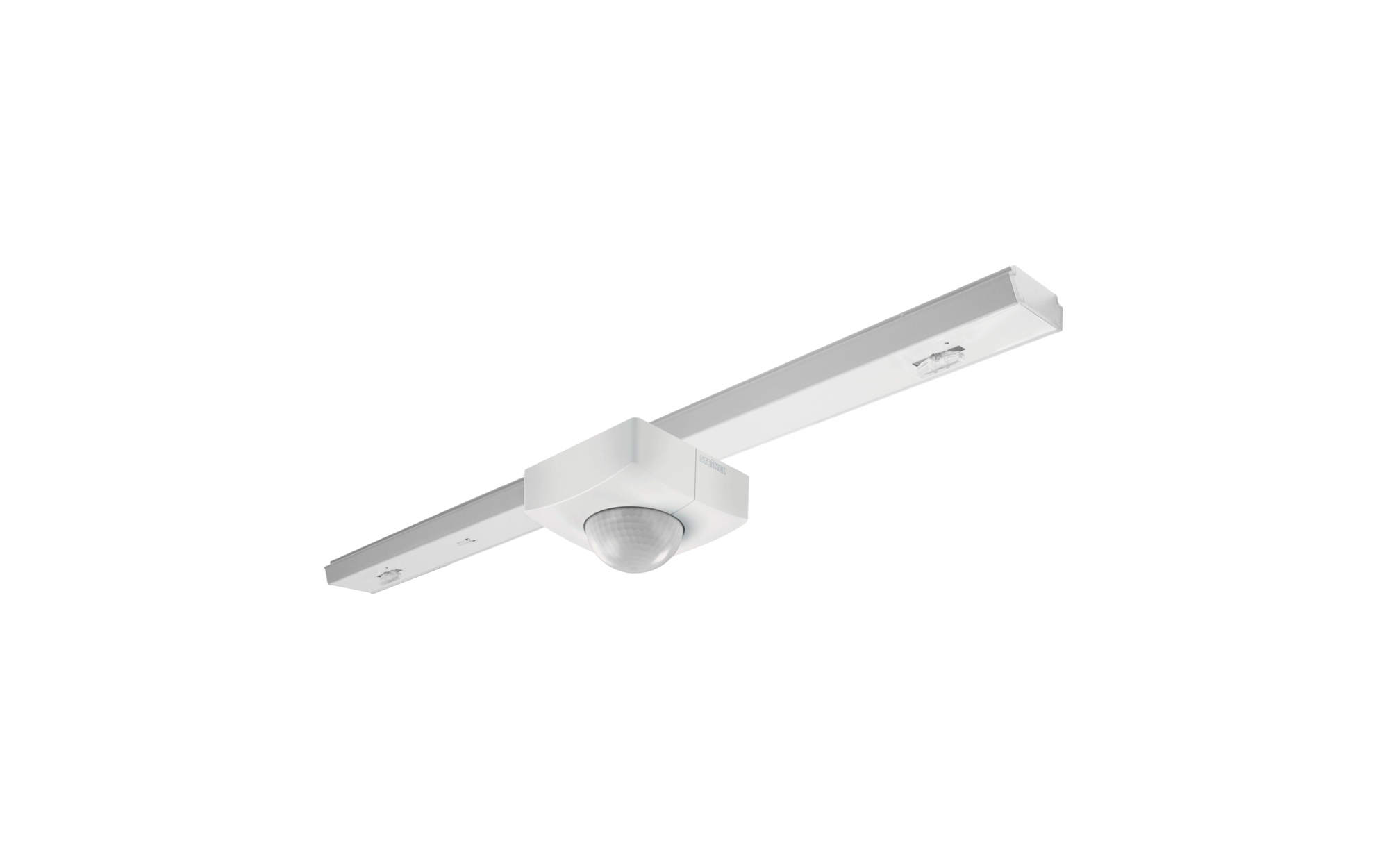

Modario® 31 Interface, maître, gradable
N° de commande: 5TR305FCMA GTIN (EAN): 4058352635704
Désignation | Domaine d'application | Commande | Hauteur de pose | Champ de détection de mouvement | Dimension (mm) | ta | Pds (kg) | Prix (CHF) |
---|---|---|---|---|---|---|---|---|
Interface MD | DALI | 500x96 | -20..+50°C | 0,4 | 250,00 |
Modario® 31 Interface, esclave, gradable
N° de commande: 5TR305FCSA GTIN (EAN): 4058352635711
Désignation | Domaine d'application | Commande | Hauteur de pose | Champ de détection de mouvement | Dimension (mm) | ta | Pds (kg) | Prix (CHF) |
---|---|---|---|---|---|---|---|---|
Interface S | DALI 2 | 500x96 | -20..+50°C | 0,4 | 220,00 |
SITECO Connect, esclave, gradable
N° de commande: 59US1HXSPR2A GTIN (EAN): 4058352361979
Désignation | Domaine d'application | Commande | Hauteur de pose | Champ de détection de mouvement | Dimension (mm) | ta | Pds (kg) | Prix (CHF) |
---|---|---|---|---|---|---|---|---|
Sensor-Head PR2-S | pour rayonnages et stockage en hauteur | DALI 2 | 4..14m | tangentiel max. 40x4m | 95x95 | -20..+50°C | 0,1 | 115,00 |
SITECO Connect, maître, commutable, gradable
N° de commande: 59US1HXMPR2A GTIN (EAN): 4058352363881
Désignation | Domaine d'application | Commande | Hauteur de pose | Champ de détection de mouvement | Dimension (mm) | ta | Pds (kg) | Prix (CHF) |
---|---|---|---|---|---|---|---|---|
Sensor-Head PR2-M | pour rayonnages et stockage en hauteur | 4..14m | 30x4m max. | 95x95 | -20..+50°C | 0,1 | 136,00 |
Modario® 31 Interface, maître, gradable
N° de commande: 5TR305FCMAGTIN (EAN): 4058352635704
Désignation | Interface MD |
---|---|
Domaine d'application | |
Commande | DALI |
Hauteur de pose | |
Champ de détection de mouvement | |
Dimension (mm) | 500x96 |
ta | -20..+50°C |
Pds (kg) | 0,4 |
Prix (CHF) | 250,00 |
Modario® 31 Interface, esclave, gradable
N° de commande: 5TR305FCSAGTIN (EAN): 4058352635711
Désignation | Interface S |
---|---|
Domaine d'application | |
Commande | DALI 2 |
Hauteur de pose | |
Champ de détection de mouvement | |
Dimension (mm) | 500x96 |
ta | -20..+50°C |
Pds (kg) | 0,4 |
Prix (CHF) | 220,00 |
SITECO Connect, esclave, gradable
N° de commande: 59US1HXSPR2AGTIN (EAN): 4058352361979
Désignation | Sensor-Head PR2-S |
---|---|
Domaine d'application | pour rayonnages et stockage en hauteur |
Commande | DALI 2 |
Hauteur de pose | 4..14m |
Champ de détection de mouvement | tangentiel max. 40x4m |
Dimension (mm) | 95x95 |
ta | -20..+50°C |
Pds (kg) | 0,1 |
Prix (CHF) | 115,00 |
SITECO Connect, maître, commutable, gradable
N° de commande: 59US1HXMPR2AGTIN (EAN): 4058352363881
Désignation | Sensor-Head PR2-M |
---|---|
Domaine d'application | pour rayonnages et stockage en hauteur |
Commande | |
Hauteur de pose | 4..14m |
Champ de détection de mouvement | 30x4m max. |
Dimension (mm) | 95x95 |
ta | -20..+50°C |
Pds (kg) | 0,1 |
Prix (CHF) | 136,00 |
Mandatory accessory
N° de commande: 59UC3RCAGTIN (EAN): 4058352363713 | Show details |
Optional accessory
N° de commande: 5LZ904002GTIN (EAN): 4008321292599 | Show details |
