Silica® 21
The Silica® 21 offers maximum flexibility in use and is suitable for all mounting situations thanks to its modular design. It is the ideal basis for a smart office through flexible expansion with intelligent sensors, for example for room data acquisition with an open interface. As a sustainable luminaire thanks to easily exchangeable components, the Silica® 21 is the perfect solution for individual projects thanks to the modular principle.
Our open solution: modular, networked, adaptable and open in design

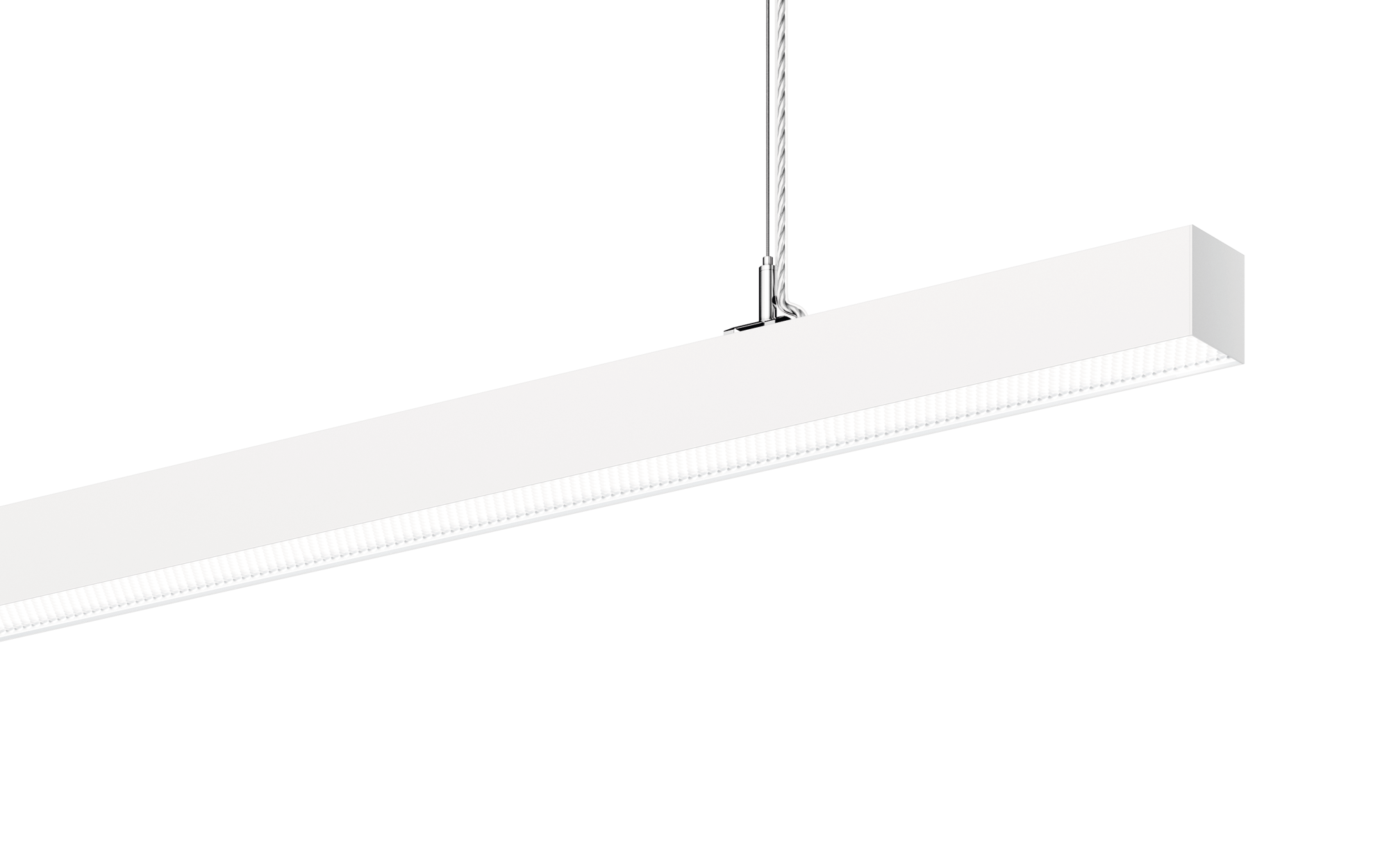

ELDACON® P - with prismatic optics
Intro product family
Key data
Article office luminaire
Light emission direct/indirect distribution
Beam angle extremely wide distribution
Net luminous flux 4440lm to 16260lm
Colour temperature 2700…6500K; 3000K; 4000K
Control DALI DT8; DALI 2
Protection rating IP20
Insulation class insulation class I (protective earthing)
Special features
ELDACON® P - progressive prism system: with excellent glare control at high luminous flux levels thanks to a new and patented micro-lens/shield structure: only requires half the luminous area and creates twice as much light
High design freedom thanks to a variety of lengths, colours and optics
Configuration & data sheets
- for luminaire lengths greater than 1600mm, the prism cover consists of 2 or 3 photometric sections
- please order wire suspension and connecting cable separately (wire suspension in pairs, 1 set required per luminaire); wire suspension with height adjustment, 1x per set with ceiling canopy and 1x with ceiling sleeve
- for suspension height > 1.2m: please order the corresponding number of connecting cables and supplementary wires separately
- for continuous row: please order the required number of luminaire connectors and through-wiring kits separately
Results
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, matt jet black (RAL 9005)
Order No.: 51MX33DA37BB GTIN (EAN): 4058352888865
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 5910lm | 41.3W | 143lm/W | DALI 2 | 1204 | 3.0 | 465.60 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DA37SB GTIN (EAN): 4058352888896
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 5910lm | 41.3W | 143lm/W | DALI 2 | 1204 | 3.0 | 465.60 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DA37WB GTIN (EAN): 4058352888902
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 5910lm | 41.3W | 143lm/W | DALI 2 | 1204 | 3.0 | 465.60 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, matt jet black (RAL 9005)
Order No.: 51MX33DA47BB GTIN (EAN): 4058352888926
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5910lm | 38.4W | 154lm/W | DALI 2 | 1204 | 3.0 | 465.60 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DA47SB GTIN (EAN): 4058352888940
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5910lm | 38.4W | 154lm/W | DALI 2 | 1204 | 3.0 | 465.60 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DA47WB GTIN (EAN): 4058352888964
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5910lm | 38.4W | 154lm/W | DALI 2 | 1204 | 3.0 | 465.60 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, matt jet black (RAL 9005)
Order No.: 51MX33DB39BB GTIN (EAN): 4058352888988
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 7390lm | 51.6W | 143lm/W | DALI 2 | 1504 | 3.5 | 536.20 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DB39SB GTIN (EAN): 4058352889015
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 7390lm | 51.6W | 143lm/W | DALI 2 | 1504 | 3.5 | 536.20 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DB39WB GTIN (EAN): 4058352889022
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 7390lm | 51.6W | 143lm/W | DALI 2 | 1504 | 3.2 | 536.20 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, matt jet black (RAL 9005)
Order No.: 51MX33DB49BB GTIN (EAN): 4058352915226
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 7390lm | 48.3W | 153lm/W | DALI 2 | 1504 | 3.5 | 536.20 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DB49SB GTIN (EAN): 4058352889046
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 7390lm | 48.3W | 153lm/W | DALI 2 | 1504 | 3.5 | 536.20 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DB49WB GTIN (EAN): 4058352889060
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 7390lm | 48.3W | 153lm/W | DALI 2 | 1504 | 3.5 | 536.20 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, matt jet black (RAL 9005)
Order No.: 51MX33DC3DBB GTIN (EAN): 4058352893562
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14780lm | 99.5W | 149lm/W | DALI 2 | 3004 | 5.5 | 960.40 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DC3DSB GTIN (EAN): 4058352893586
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14780lm | 99.5W | 149lm/W | DALI 2 | 3004 | 5.5 | 960.40 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DC3DWB GTIN (EAN): 4058352893609
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14780lm | 99.5W | 149lm/W | DALI 2 | 3004 | 5.5 | 960.40 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, matt jet black (RAL 9005)
Order No.: 51MX33DC4DBB GTIN (EAN): 4058352893623
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 14790lm | 93.9W | 158lm/W | DALI 2 | 3004 | 5.5 | 960.40 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DC4DSB GTIN (EAN): 4058352893647
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 14790lm | 93.9W | 158lm/W | DALI 2 | 3004 | 5.5 | 960.40 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DC4DWB GTIN (EAN): 4058352893661
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 14790lm | 93.9W | 158lm/W | DALI 2 | 3004 | 5.5 | 960.40 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, matt jet black (RAL 9005)
Order No.: 51MX33TAT7B GTIN (EAN): 4058352685563
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 80 | 5740lm | 56.5W | 102lm/W | DALI DT8 | 1204 | 3.0 | 605.20 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, metallic grey (RAL 9006)
Order No.: 51MX33TAT7S GTIN (EAN): 4058352685587
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 80 | 5740lm | 56.5W | 102lm/W | DALI DT8 | 1204 | 3.0 | 605.20 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, traffic white (RAL 9016)
Order No.: 51MX33TAT7W GTIN (EAN): 4058352685600
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 80 | 5740lm | 56.5W | 102lm/W | DALI DT8 | 1204 | 3.0 | 605.20 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, matt jet black (RAL 9005)
Order No.: 51MX33TBT9B GTIN (EAN): 4058352685624
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 80 | 7170lm | 70.8W | 101lm/W | DALI DT8 | 1504 | 3.5 | 695.70 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, metallic grey (RAL 9006)
Order No.: 51MX33TBT9S GTIN (EAN): 4058352685648
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 80 | 7170lm | 70.8W | 101lm/W | DALI DT8 | 1504 | 3.5 | 695.70 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, traffic white (RAL 9016)
Order No.: 51MX33TBT9W GTIN (EAN): 4058352685679
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 80 | 7170lm | 70.8W | 101lm/W | DALI DT8 | 1504 | 3.5 | 695.70 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, matt jet black (RAL 9005)
Order No.: 51MX33TCTDB GTIN (EAN): 4058352795934
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 80 | 14340lm | 141.4W | 101lm/W | DALI DT8 | 3004 | 5.5 | 1252.10 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, metallic grey (RAL 9006)
Order No.: 51MX33TCTDS GTIN (EAN): 4058352796733
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 80 | 14340lm | 141.4W | 101lm/W | DALI DT8 | 3004 | 5.5 | 1252.10 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, traffic white (RAL 9016)
Order No.: 51MX33TCTDW GTIN (EAN): 4058352795958
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 80 | 14340lm | 141.4W | 101lm/W | DALI DT8 | 3004 | 5.5 | 1252.10 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, matt jet black (RAL 9005)
Order No.: 51MX33DJ34BB GTIN (EAN): 4069025204301
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4440lm | 31.6W | 141lm/W | DALI 2 | 900 | 2.5 | 411.80 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, matt jet black (RAL 9005)
Order No.: 51MX33DK38BB GTIN (EAN): 4058352033906
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 8870lm | 61.9W | 143lm/W | DALI 2 | 1800 | 4.0 | 745.10 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, matt jet black (RAL 9005)
Order No.: 51MX33DL3ABB GTIN (EAN): 4069025001726
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 10340lm | 70.9W | 146lm/W | DALI 2 | 2100 | 4.3 | 813.70 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, matt jet black (RAL 9005)
Order No.: 51MX33DN3BBB GTIN (EAN): 4069025109392
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 13300lm | 89.3W | 149lm/W | DALI 2 | 2700 | 5.0 | 921.60 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, matt jet black (RAL 9005)
Order No.: 51MX33DP3CBB GTIN (EAN): 4069025130150
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 16260lm | 109.1W | 149lm/W | DALI 2 | 3300 | 6.0 | 1137.30 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, matt jet black (RAL 9005)
Order No.: 51MX33DA37BBGTIN (EAN): 4058352888865
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5910lm |
| Connected load | 41.3W |
| Luminous efficacy | 143lm/W |
| Control | DALI 2 |
| L (mm) | 1204 |
| Wt. (kg) | 3.0 |
| Price (EUR) | 465.60 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DA37SBGTIN (EAN): 4058352888896
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5910lm |
| Connected load | 41.3W |
| Luminous efficacy | 143lm/W |
| Control | DALI 2 |
| L (mm) | 1204 |
| Wt. (kg) | 3.0 |
| Price (EUR) | 465.60 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DA37WBGTIN (EAN): 4058352888902
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5910lm |
| Connected load | 41.3W |
| Luminous efficacy | 143lm/W |
| Control | DALI 2 |
| L (mm) | 1204 |
| Wt. (kg) | 3.0 |
| Price (EUR) | 465.60 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, matt jet black (RAL 9005)
Order No.: 51MX33DA47BBGTIN (EAN): 4058352888926
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5910lm |
| Connected load | 38.4W |
| Luminous efficacy | 154lm/W |
| Control | DALI 2 |
| L (mm) | 1204 |
| Wt. (kg) | 3.0 |
| Price (EUR) | 465.60 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DA47SBGTIN (EAN): 4058352888940
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5910lm |
| Connected load | 38.4W |
| Luminous efficacy | 154lm/W |
| Control | DALI 2 |
| L (mm) | 1204 |
| Wt. (kg) | 3.0 |
| Price (EUR) | 465.60 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DA47WBGTIN (EAN): 4058352888964
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5910lm |
| Connected load | 38.4W |
| Luminous efficacy | 154lm/W |
| Control | DALI 2 |
| L (mm) | 1204 |
| Wt. (kg) | 3.0 |
| Price (EUR) | 465.60 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, matt jet black (RAL 9005)
Order No.: 51MX33DB39BBGTIN (EAN): 4058352888988
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7390lm |
| Connected load | 51.6W |
| Luminous efficacy | 143lm/W |
| Control | DALI 2 |
| L (mm) | 1504 |
| Wt. (kg) | 3.5 |
| Price (EUR) | 536.20 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DB39SBGTIN (EAN): 4058352889015
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7390lm |
| Connected load | 51.6W |
| Luminous efficacy | 143lm/W |
| Control | DALI 2 |
| L (mm) | 1504 |
| Wt. (kg) | 3.5 |
| Price (EUR) | 536.20 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DB39WBGTIN (EAN): 4058352889022
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7390lm |
| Connected load | 51.6W |
| Luminous efficacy | 143lm/W |
| Control | DALI 2 |
| L (mm) | 1504 |
| Wt. (kg) | 3.2 |
| Price (EUR) | 536.20 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, matt jet black (RAL 9005)
Order No.: 51MX33DB49BBGTIN (EAN): 4058352915226
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7390lm |
| Connected load | 48.3W |
| Luminous efficacy | 153lm/W |
| Control | DALI 2 |
| L (mm) | 1504 |
| Wt. (kg) | 3.5 |
| Price (EUR) | 536.20 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DB49SBGTIN (EAN): 4058352889046
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7390lm |
| Connected load | 48.3W |
| Luminous efficacy | 153lm/W |
| Control | DALI 2 |
| L (mm) | 1504 |
| Wt. (kg) | 3.5 |
| Price (EUR) | 536.20 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DB49WBGTIN (EAN): 4058352889060
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7390lm |
| Connected load | 48.3W |
| Luminous efficacy | 153lm/W |
| Control | DALI 2 |
| L (mm) | 1504 |
| Wt. (kg) | 3.5 |
| Price (EUR) | 536.20 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, matt jet black (RAL 9005)
Order No.: 51MX33DC3DBBGTIN (EAN): 4058352893562
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14780lm |
| Connected load | 99.5W |
| Luminous efficacy | 149lm/W |
| Control | DALI 2 |
| L (mm) | 3004 |
| Wt. (kg) | 5.5 |
| Price (EUR) | 960.40 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DC3DSBGTIN (EAN): 4058352893586
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14780lm |
| Connected load | 99.5W |
| Luminous efficacy | 149lm/W |
| Control | DALI 2 |
| L (mm) | 3004 |
| Wt. (kg) | 5.5 |
| Price (EUR) | 960.40 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DC3DWBGTIN (EAN): 4058352893609
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14780lm |
| Connected load | 99.5W |
| Luminous efficacy | 149lm/W |
| Control | DALI 2 |
| L (mm) | 3004 |
| Wt. (kg) | 5.5 |
| Price (EUR) | 960.40 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, matt jet black (RAL 9005)
Order No.: 51MX33DC4DBBGTIN (EAN): 4058352893623
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14790lm |
| Connected load | 93.9W |
| Luminous efficacy | 158lm/W |
| Control | DALI 2 |
| L (mm) | 3004 |
| Wt. (kg) | 5.5 |
| Price (EUR) | 960.40 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DC4DSBGTIN (EAN): 4058352893647
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14790lm |
| Connected load | 93.9W |
| Luminous efficacy | 158lm/W |
| Control | DALI 2 |
| L (mm) | 3004 |
| Wt. (kg) | 5.5 |
| Price (EUR) | 960.40 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DC4DWBGTIN (EAN): 4058352893661
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14790lm |
| Connected load | 93.9W |
| Luminous efficacy | 158lm/W |
| Control | DALI 2 |
| L (mm) | 3004 |
| Wt. (kg) | 5.5 |
| Price (EUR) | 960.40 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, matt jet black (RAL 9005)
Order No.: 51MX33TAT7BGTIN (EAN): 4058352685563
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5740lm |
| Connected load | 56.5W |
| Luminous efficacy | 102lm/W |
| Control | DALI DT8 |
| L (mm) | 1204 |
| Wt. (kg) | 3.0 |
| Price (EUR) | 605.20 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, metallic grey (RAL 9006)
Order No.: 51MX33TAT7SGTIN (EAN): 4058352685587
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5740lm |
| Connected load | 56.5W |
| Luminous efficacy | 102lm/W |
| Control | DALI DT8 |
| L (mm) | 1204 |
| Wt. (kg) | 3.0 |
| Price (EUR) | 605.20 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, traffic white (RAL 9016)
Order No.: 51MX33TAT7WGTIN (EAN): 4058352685600
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5740lm |
| Connected load | 56.5W |
| Luminous efficacy | 102lm/W |
| Control | DALI DT8 |
| L (mm) | 1204 |
| Wt. (kg) | 3.0 |
| Price (EUR) | 605.20 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, matt jet black (RAL 9005)
Order No.: 51MX33TBT9BGTIN (EAN): 4058352685624
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7170lm |
| Connected load | 70.8W |
| Luminous efficacy | 101lm/W |
| Control | DALI DT8 |
| L (mm) | 1504 |
| Wt. (kg) | 3.5 |
| Price (EUR) | 695.70 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, metallic grey (RAL 9006)
Order No.: 51MX33TBT9SGTIN (EAN): 4058352685648
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7170lm |
| Connected load | 70.8W |
| Luminous efficacy | 101lm/W |
| Control | DALI DT8 |
| L (mm) | 1504 |
| Wt. (kg) | 3.5 |
| Price (EUR) | 695.70 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, traffic white (RAL 9016)
Order No.: 51MX33TBT9WGTIN (EAN): 4058352685679
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7170lm |
| Connected load | 70.8W |
| Luminous efficacy | 101lm/W |
| Control | DALI DT8 |
| L (mm) | 1504 |
| Wt. (kg) | 3.5 |
| Price (EUR) | 695.70 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, matt jet black (RAL 9005)
Order No.: 51MX33TCTDBGTIN (EAN): 4058352795934
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14340lm |
| Connected load | 141.4W |
| Luminous efficacy | 101lm/W |
| Control | DALI DT8 |
| L (mm) | 3004 |
| Wt. (kg) | 5.5 |
| Price (EUR) | 1252.10 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, metallic grey (RAL 9006)
Order No.: 51MX33TCTDSGTIN (EAN): 4058352796733
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14340lm |
| Connected load | 141.4W |
| Luminous efficacy | 101lm/W |
| Control | DALI DT8 |
| L (mm) | 3004 |
| Wt. (kg) | 5.5 |
| Price (EUR) | 1252.10 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, traffic white (RAL 9016)
Order No.: 51MX33TCTDWGTIN (EAN): 4058352795958
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14340lm |
| Connected load | 141.4W |
| Luminous efficacy | 101lm/W |
| Control | DALI DT8 |
| L (mm) | 3004 |
| Wt. (kg) | 5.5 |
| Price (EUR) | 1252.10 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, matt jet black (RAL 9005)
Order No.: 51MX33DJ34BBGTIN (EAN): 4069025204301
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4440lm |
| Connected load | 31.6W |
| Luminous efficacy | 141lm/W |
| Control | DALI 2 |
| L (mm) | 900 |
| Wt. (kg) | 2.5 |
| Price (EUR) | 411.80 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, matt jet black (RAL 9005)
Order No.: 51MX33DK38BBGTIN (EAN): 4058352033906
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 8870lm |
| Connected load | 61.9W |
| Luminous efficacy | 143lm/W |
| Control | DALI 2 |
| L (mm) | 1800 |
| Wt. (kg) | 4.0 |
| Price (EUR) | 745.10 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, matt jet black (RAL 9005)
Order No.: 51MX33DL3ABBGTIN (EAN): 4069025001726
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 10340lm |
| Connected load | 70.9W |
| Luminous efficacy | 146lm/W |
| Control | DALI 2 |
| L (mm) | 2100 |
| Wt. (kg) | 4.3 |
| Price (EUR) | 813.70 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, matt jet black (RAL 9005)
Order No.: 51MX33DN3BBBGTIN (EAN): 4069025109392
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 13300lm |
| Connected load | 89.3W |
| Luminous efficacy | 149lm/W |
| Control | DALI 2 |
| L (mm) | 2700 |
| Wt. (kg) | 5.0 |
| Price (EUR) | 921.60 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, matt jet black (RAL 9005)
Order No.: 51MX33DP3CBBGTIN (EAN): 4069025130150
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 16260lm |
| Connected load | 109.1W |
| Luminous efficacy | 149lm/W |
| Control | DALI 2 |
| L (mm) | 3300 |
| Wt. (kg) | 6.0 |
| Price (EUR) | 1137.30 |
Mandatory accessories
| Order No.: 59MX30DH20WGTIN (EAN): 4058352606032 | Show all details |
| Order No.: 59MX30DJ20WGTIN (EAN): 4058352606056 | Show all details |
| Order No.: 59MX30DH20SGTIN (EAN): 4058352606025 | Show all details |
| Order No.: 59MX30DJ20SGTIN (EAN): 4058352606049 | Show all details |
| Order No.: 59MX300020XGTIN (EAN): 4058352606001 | Show all details |
| Order No.: 59MX300040XGTIN (EAN): 4058352606018 | Show all details |
| Order No.: 59MX30DL20XGTIN (EAN): 4058352606063 | Show all details |
| Order No.: 59MX30DL40XGTIN (EAN): 4058352606070 | Show all details |
Optional accessories
| Order No.: 59MX700V40XGTIN (EAN): 4058352606087 | Show all details |
| Order No.: 59MX70DL10XGTIN (EAN): 4058352606094 | Show all details |
| Order No.: 59MX70DL20XGTIN (EAN): 4058352606100 | Show all details |
| Order No.: 59MX70DL30XGTIN (EAN): 4058352606117 | Show all details |
| Order No.: 59MX70000ZV00873XXGTIN (EAN): 4069025276308 | Show all details |
| Order No.: 59MX70000ZV00874XXGTIN (EAN): 4069025276322 | Show all details |
| Order No.: 59MX70000ZV00876XXGTIN (EAN): 4069025276360 | Show all details |
| Order No.: 59MX70000ZV00875XXGTIN (EAN): 4069025276353 | Show all details |
