51DB14MA15B1D

Order No.: 51DB14MA15B1D
Remember articleRemember article

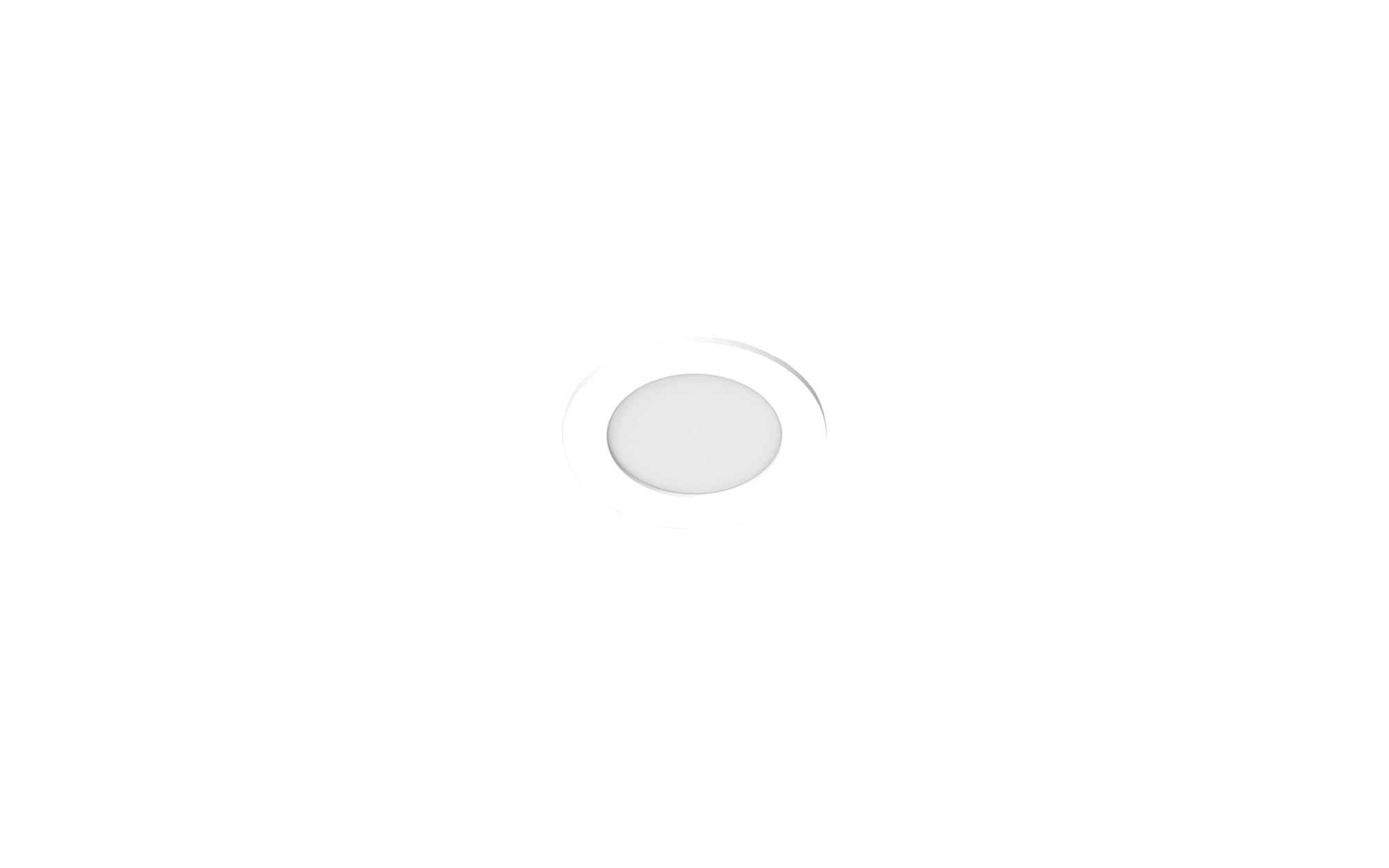

Article downlight
Product name Lunis 21 S
Lamp LED
Rated luminous flux 600lm
Luminous efficacy 102lm/W
Colour temperature 3000K
Colour rendering CRI > 90
Rated input power 5.9W
Service life 50000h (L90/B10) at AT = 25°C, 100000h (L80/B10) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 0.3kg

Lunis 21 S, downlight, opal, beam angle: extremely wide distribution, light emission: direct distribution, LED rated luminous flux: 600lm, light colour: 930, with terminal, 3-pole, mains connection: 220..240V, AC/DC, 0/50..60Hz, housing, round, of diecast aluminium, powder-coated, traffic white (RAL 9016), diameter: 84mm, clamping range: 1..40mm, protection rating (complete): IP20, protection rating (on room side): IP54, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, impact resistance: IK03, permissible ambient temperature for indoor applications: -20..+25°C, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type downlight
Product name Lunis 21 S
Order No. 51DB14MA15B1D

Lighting technology

Beam angle extremely wide distribution
Light emission direct distribution

Lamps

Lamps with LED
Rated luminous flux 600lm
Luminous efficacy 102lm/W
Colour temperature 3000K
Colour rendering index CRI > 90
Light colour 930
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 5.9W
Supplement with through-wiring, luminous flux at DC operation 100%, luminous flux adjustable on luminaire in 8 steps (600/.../1740lm), connected load according to luminous flux setting (5.9/.../17.5W)

Operating device

Control ON/OFF Multilumen

Certificates, Standards

Protection rating IP20
Protection rating (on room side) IP54
Insulation class insulation class II (safety insulation)
Impact resistance IK03
Temperature range (operation) -20..+25°C
Certification, designation CE, ENEC

Material, Colour

housing diecast aluminium, powder-coated, traffic white (RAL 9016), round

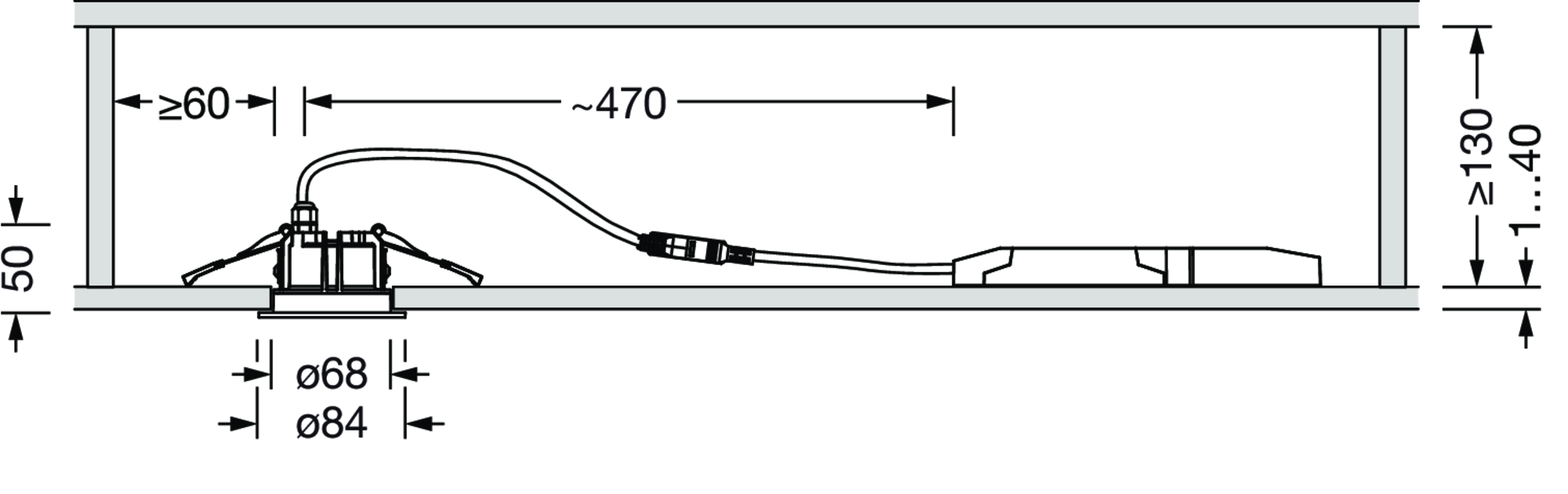

Mounting

Mounting method, mounting location recessed, in the ceiling
Ø of ceiling cut-out 68mm
Clamping range 1..40mm
Arrangement single arrangement

Electrical connection

Connection terminal, 3-pole
Nominal voltage 220..240V, 0/50..60Hz, AC/DC

Dimensions, Weight

Diameter 84mm
Height 60mm
Weight 0.3kg

Service life

Rated service life 100000h (L80/B10) at AT = 25°C, 50000h (L90/B10) at AT = 25°C

Product type
downlight

Product name
Lunis 21 S

Order No.
51DB14MA15B1D

Beam angle
extremely wide distribution

Light emission
direct distribution

Lamps
with LED

Rated luminous flux
600lm

Luminous efficacy
102lm/W

Colour temperature
3000K

Colour rendering index
CRI > 90

Light colour
930

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
5.9W

Supplement
with through-wiring, luminous flux at DC operation 100%, luminous flux adjustable on luminaire in 8 steps (600/.../1740lm), connected load according to luminous flux setting (5.9/.../17.5W)

Control
ON/OFF Multilumen

Protection rating
IP20

Protection rating (on room side)
IP54

Insulation class
insulation class II (safety insulation)

Impact resistance
IK03

Temperature range (operation)
-20..+25°C

Certification, designation
CE, ENEC

housing
diecast aluminium, powder-coated, traffic white (RAL 9016), round

Mounting method, mounting location
recessed, in the ceiling

Ø of ceiling cut-out
68mm

Clamping range
1..40mm

Arrangement
single arrangement

Connection
terminal, 3-pole

Nominal voltage
220..240V, 0/50..60Hz, AC/DC

Diameter
84mm

Height
60mm

Weight
0.3kg

Rated service life
100000h (L80/B10) at AT = 25°C, 50000h (L90/B10) at AT = 25°C

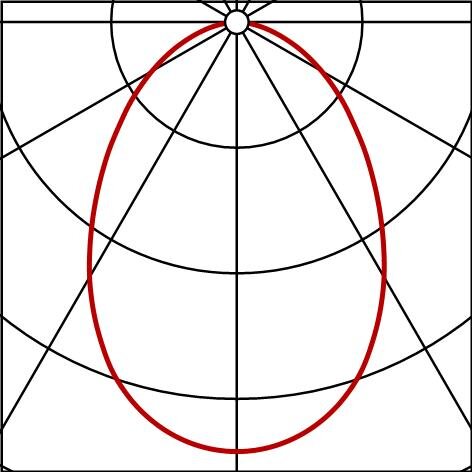

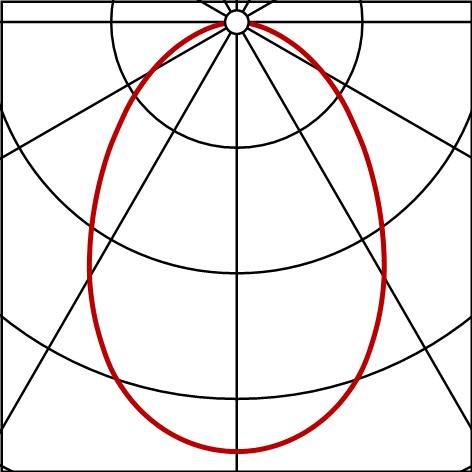

Photometric report / planning data

Lunis 21
LED, opal, direct extremely wide distribution, single arrangement, recessed, in the ceiling, ø= 84mm
Lamps: LED 3000K / CRI >= 90
Order No.: 51DB14MA15B1D
