51DB35MF14D1D

Order No.: 51DB35MF14D1D
Remember articleRemember article

Article downlight

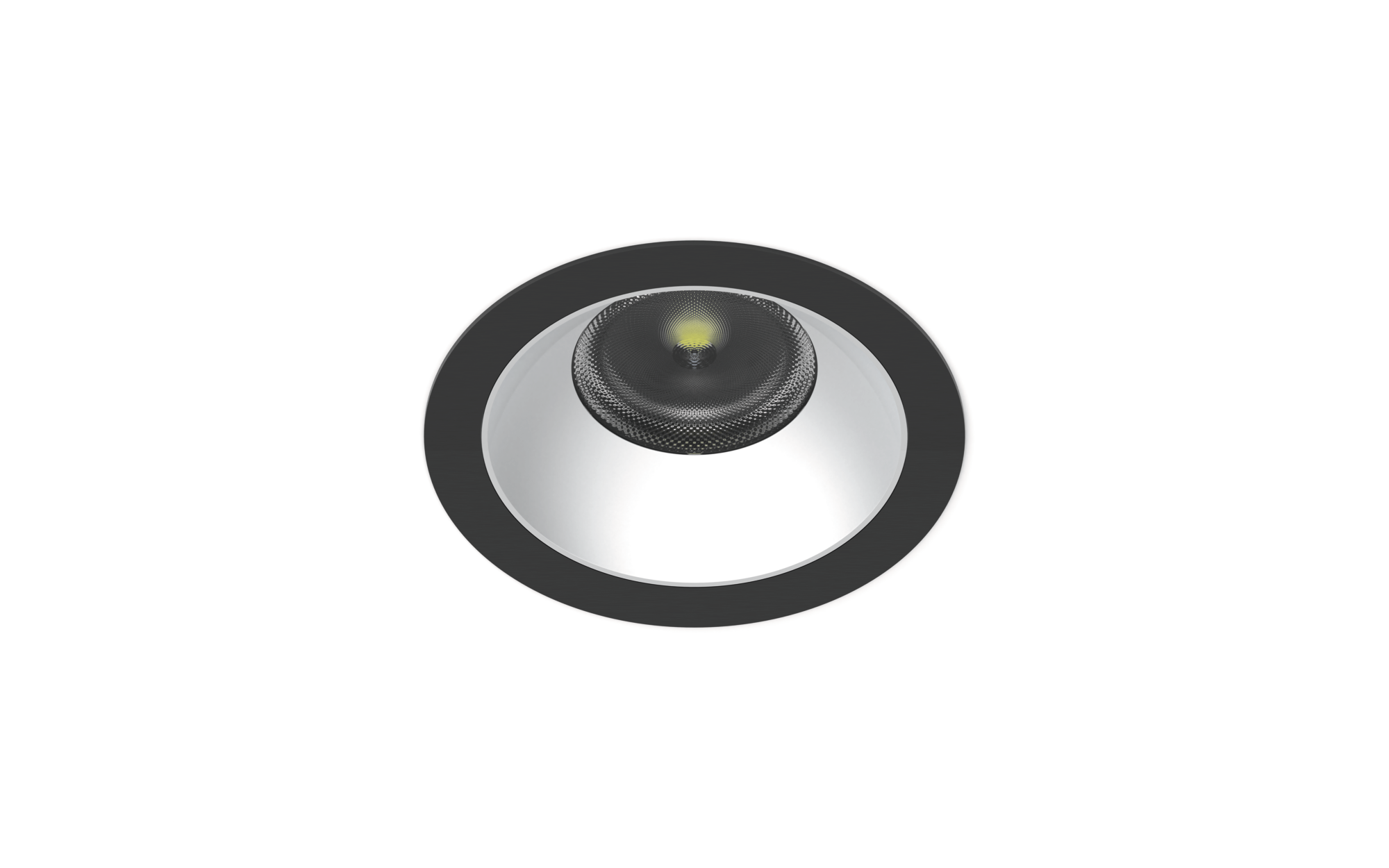

Product name Lunis 21 XL
Lamp LED
Rated luminous flux 2000lm
Luminous efficacy 132lm/W
Colour temperature 4000K
Colour rendering CRI > 90
Rated input power 15.1W
Service life 50000h (L90/B10) at AT = 25°C, 100000h (L80/B10) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 1.0kg

Lunis 21 XL, downlight, anti glare with reflector, matt, UGR of luminaire ≤ 22 (X = 4H | Y = 8H | S = 0.25H | reflection values 70/50/20), beam angle: diffuse distribution, light emission: direct distribution, LED rated luminous flux: 2.000lm, light colour: 940, with terminal, 3-pole, mains connection: 220..240V, AC/DC, 0/50..60Hz, housing, round, of diecast aluminium, powder-coated, jet black (RAL 9005), diameter: 230mm, clamping range: 1..40mm, protection rating (complete): IP20, protection rating (on room side): IP54, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, impact resistance: IK03, permissible ambient temperature for indoor applications: -20..+25°C, standard: EN 60598-2-22, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type downlight
Product name Lunis 21 XL
Order No. 51DB35MF14D1D

Lighting technology

Glare reduction reflector, matt
Beam angle diffuse distribution
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 22
UGR viewing direction along lateral luminaire axis ≤ 22

Lamps

Lamps with LED
Rated luminous flux 2000lm
Luminous efficacy 132lm/W
Colour temperature 4000K
Colour rendering index CRI > 90
Light colour 940
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 15.1W
Supplement with through-wiring, luminous flux at DC operation 100%, luminous flux adjustable on luminaire in 8 steps (1750/.../3390lm), connected load according to luminous flux setting (13.3/.../26.4W)

Operating device

Control ON/OFF Multilumen

Certificates, Standards

Protection rating IP20
Protection rating (on room side) IP54
Insulation class insulation class II (safety insulation)
Impact resistance IK03
Temperature range (operation) -20..+25°C
Standard EN 60598-2-22
Certification, designation CE, ENEC

Material, Colour

housing diecast aluminium, powder-coated, jet black (RAL 9005), round

Mounting

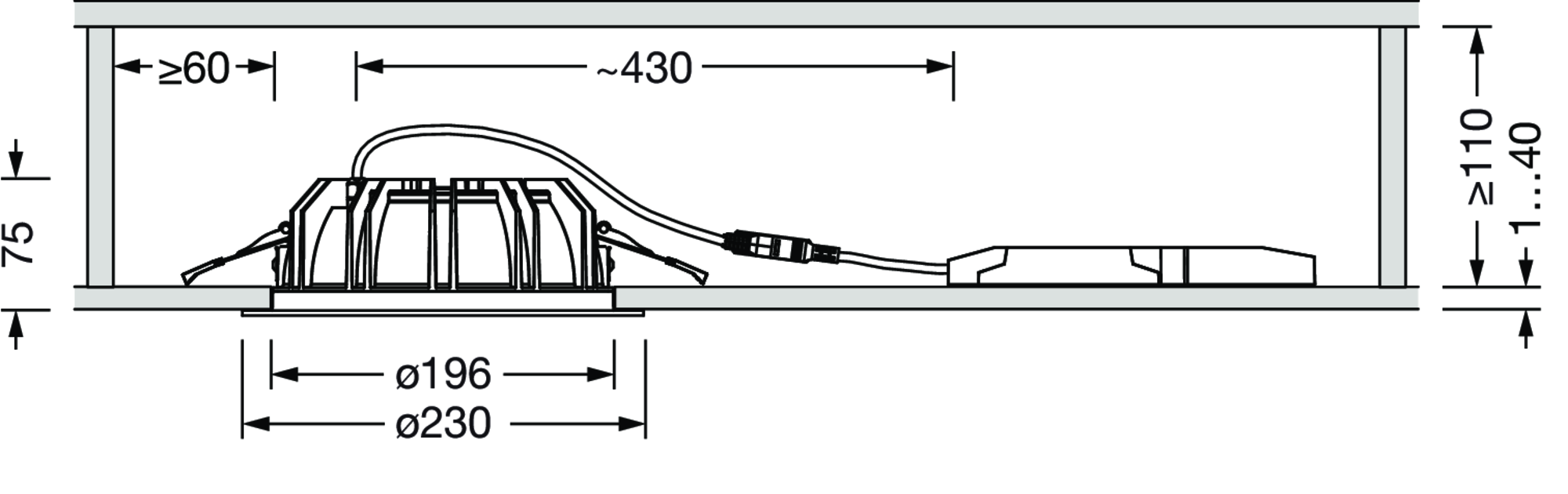

Mounting method, mounting location recessed, in the ceiling
Ø of ceiling cut-out 200mm
Clamping range 1..40mm
Arrangement single arrangement

Electrical connection

Connection terminal, 3-pole
Nominal voltage 220..240V, 0/50..60Hz, AC/DC

Dimensions, Weight

Diameter 230mm
Height 77mm
Weight 1.0kg

Service life

Rated service life 100000h (L80/B10) at AT = 25°C, 50000h (L90/B10) at AT = 25°C

Product type
downlight

Product name
Lunis 21 XL

Order No.
51DB35MF14D1D

Glare reduction
reflector, matt

Beam angle
diffuse distribution

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 22

UGR viewing direction along lateral luminaire axis
≤ 22

Lamps
with LED

Rated luminous flux
2000lm

Luminous efficacy
132lm/W

Colour temperature
4000K

Colour rendering index
CRI > 90

Light colour
940

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
15.1W

Supplement
with through-wiring, luminous flux at DC operation 100%, luminous flux adjustable on luminaire in 8 steps (1750/.../3390lm), connected load according to luminous flux setting (13.3/.../26.4W)

Control
ON/OFF Multilumen

Protection rating
IP20

Protection rating (on room side)
IP54

Insulation class
insulation class II (safety insulation)

Impact resistance
IK03

Temperature range (operation)
-20..+25°C

Standard
EN 60598-2-22

Certification, designation
CE, ENEC

housing
diecast aluminium, powder-coated, jet black (RAL 9005), round

Mounting method, mounting location
recessed, in the ceiling

Ø of ceiling cut-out
200mm

Clamping range
1..40mm

Arrangement
single arrangement

Connection
terminal, 3-pole

Nominal voltage
220..240V, 0/50..60Hz, AC/DC

Diameter
230mm

Height
77mm

Weight
1.0kg

Rated service life
100000h (L80/B10) at AT = 25°C, 50000h (L90/B10) at AT = 25°C
