Key data

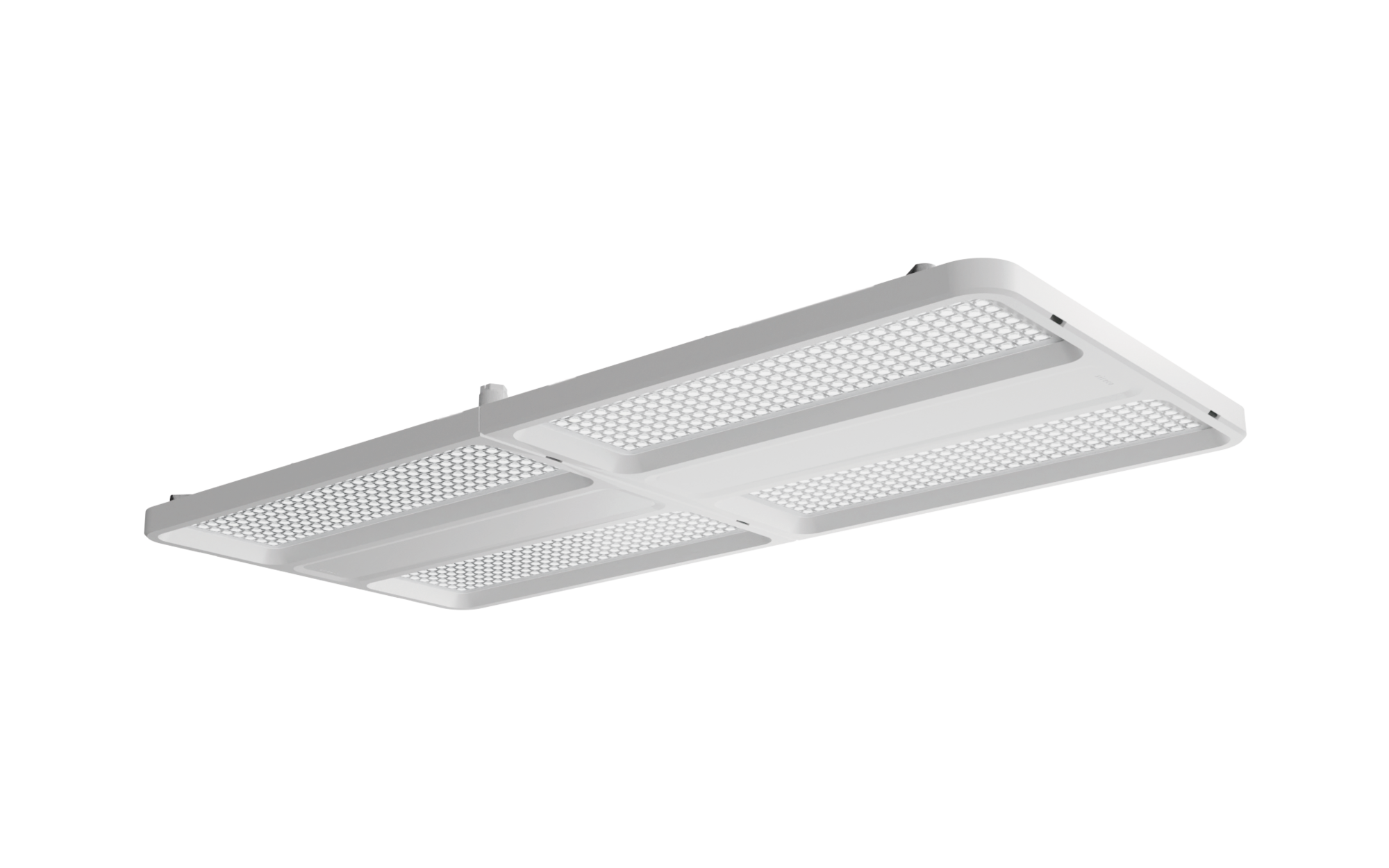

Product type high bay luminaire
Product name Highbay 11 maxi
Order No. 51HN11DB4MDA3C

Component 1

Lighting technology
Light control lens of PMMA
Cover cover

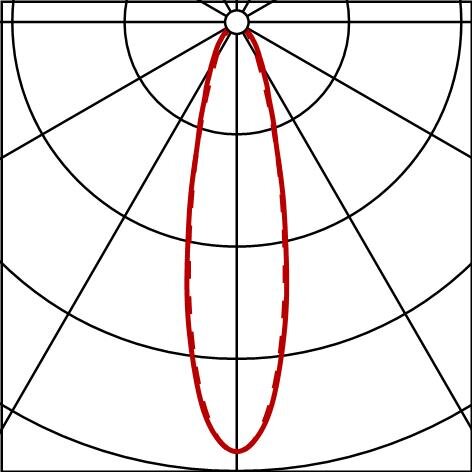

Beam angle narrow distribution
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 22
UGR viewing direction along lateral luminaire axis ≤ 22

Lamps
Lamps with LED
Rated luminous flux 30000lm
Luminous efficacy 200lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 2 SDCM (initial)
Rated input power 150.3W
Supplement internal wiring halogen-free

Operating device
Control DALI 2

Component 2

Operating device
Switching method with self-contained emergency lighting element for central self-test function according to EN 60598-2-22
Battery LiFePO4
Nominal operating time 3h

Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK08
Protection symbol D
Temperature range (operation) +5..+35°C
Supplement LABS conformity tested according to VDMA 24364:2018-05, Suitable for use in the food industry according to the specifications of IFS-Food, HACCP and/or BRC
Standard EN 60598-2-22
Certification, designation CE, UKCA

Material, Colour

housing frame high-performance plastic PA6, matt traffic white (RAL 9016)
Cover cover of PMMA

Mounting

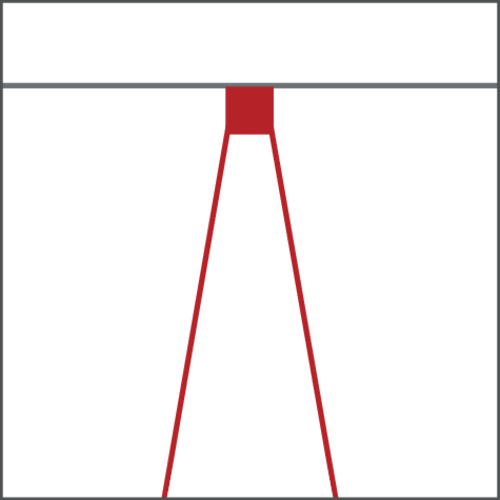

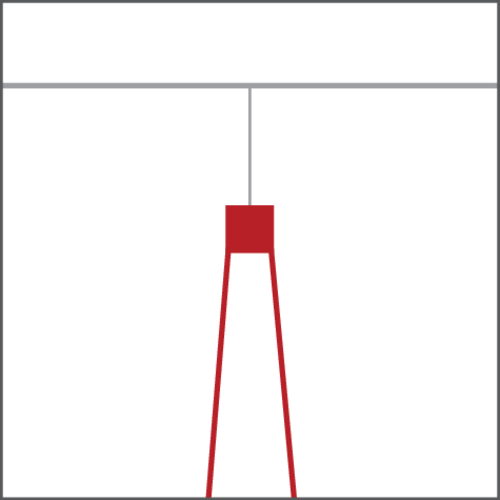

Mounting method, mounting location suspended mounting, surface-mounted, to wire, to the ceiling, to the wall, to the chain
Arrangement single arrangement

Electrical connection

Connection terminal, 5+1-pole, max. 2.5mm²
Nominal voltage 230..240V, 50/60Hz, AC

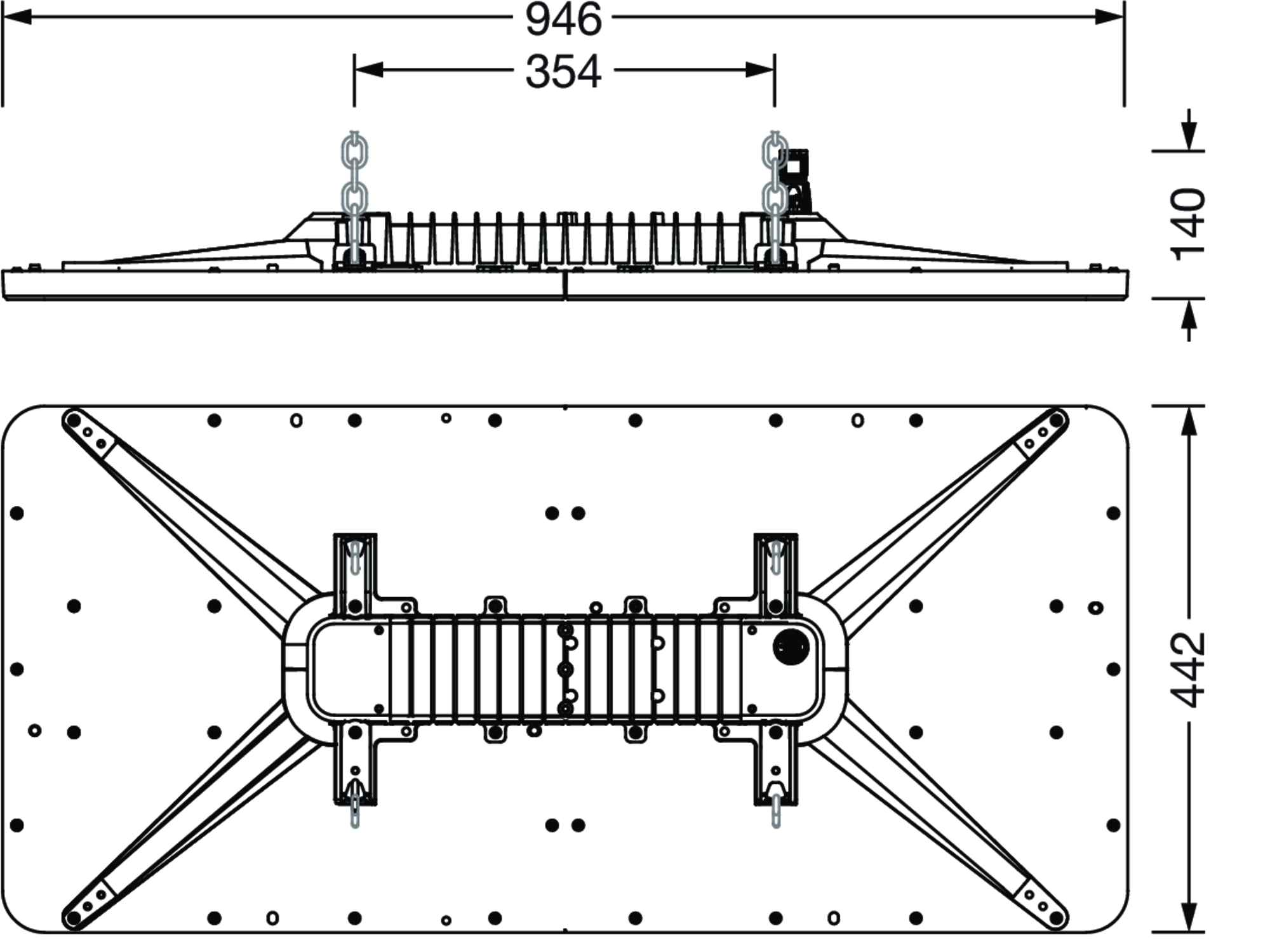

Dimensions, Weight

Length 946mm
Width 442mm
Height 72mm
Weight 7.6kg

Service life

Rated service life 100000h (L95) at AT = 25°C, 100000h (L90) at AT = ta max
