51MP25WM2441WA

Order No.: 51MP25WM2441WA
Remember articleRemember article

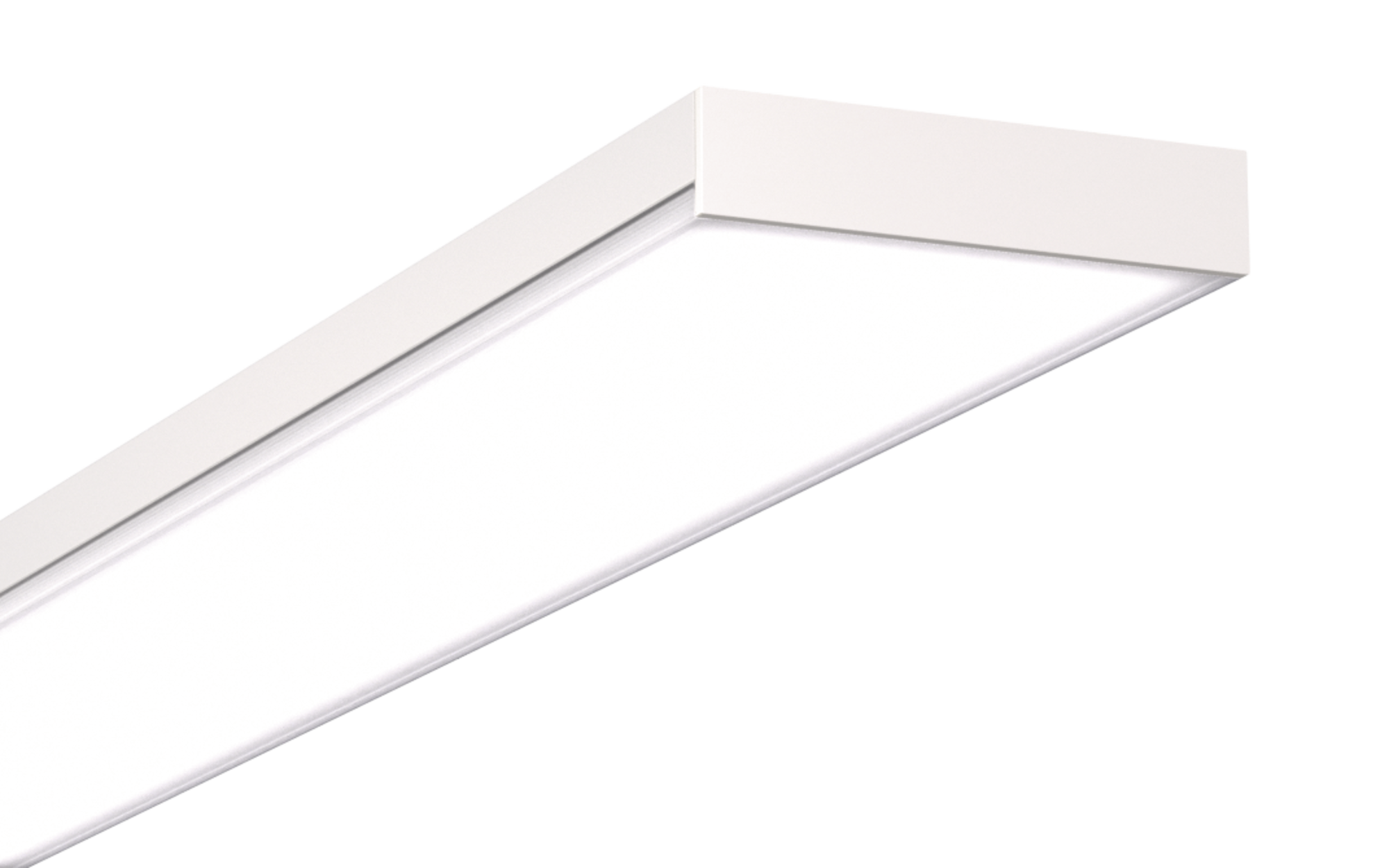

Article office luminaire
Product name Apollon 31 Surface
Lamp LED
Rated luminous flux 3800lm
Luminous efficacy 139lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 27W
Service life 50000h (L80) at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 3.4kg

Apollon 31 Surface, office luminaire, primary optical cover: micro prismatic cover, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 3.800lm, luminous efficacy: 139lm/W, light colour: 840, colour temperature: 4000K, control gear: ON/OFF Multilumen, with terminal, 3-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 27W, housing, of sheet steel, coated, traffic white (RAL 9016), length: 1.245mm, width: 200mm, height: 44mm, protection rating (complete): IP20, protection rating (on room side): IP40, protection rating (lamp compartment, on room side): IP40, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, UKCA, impact resistance: IK02, permissible operating ambient temperature: -20..+40°C, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type office luminaire
Product name Apollon 31 Surface
Order No. 51MP25WM2441WA

Lighting technology

Cover micro prismatic cover
Beam angle wide distribution, 90°
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps

Lamps with LED
Rated luminous flux 3800lm
Luminous efficacy 139lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 27W
Supplement with through-wiring, luminous flux adjustable on luminaire in four steps (2900/3600/4100/4700lm), connected load according to luminous flux setting (23/27/33/38W)

Operating device

Control ON/OFF Multilumen

Certificates, Standards

Protection rating IP20
Protection rating (on room side) IP40
Protection rating (lamp compartment, on room side) IP40
Insulation class insulation class I (protective earthing)
Impact resistance IK02
Temperature range (operation) -20..+40°C
Certification, designation CE, ENEC, UKCA

Material, Colour

housing sheet steel, coated, traffic white (RAL 9016)
Cover micro prismatic cover of PMMA

Mounting

Mounting method, mounting location surface-mounted, to the ceiling
Arrangement single arrangement
Supplement mounting accessories required, please order separately

Electrical connection

Connection terminal, 3-pole
Nominal voltage 220..240V, 50/60Hz, AC

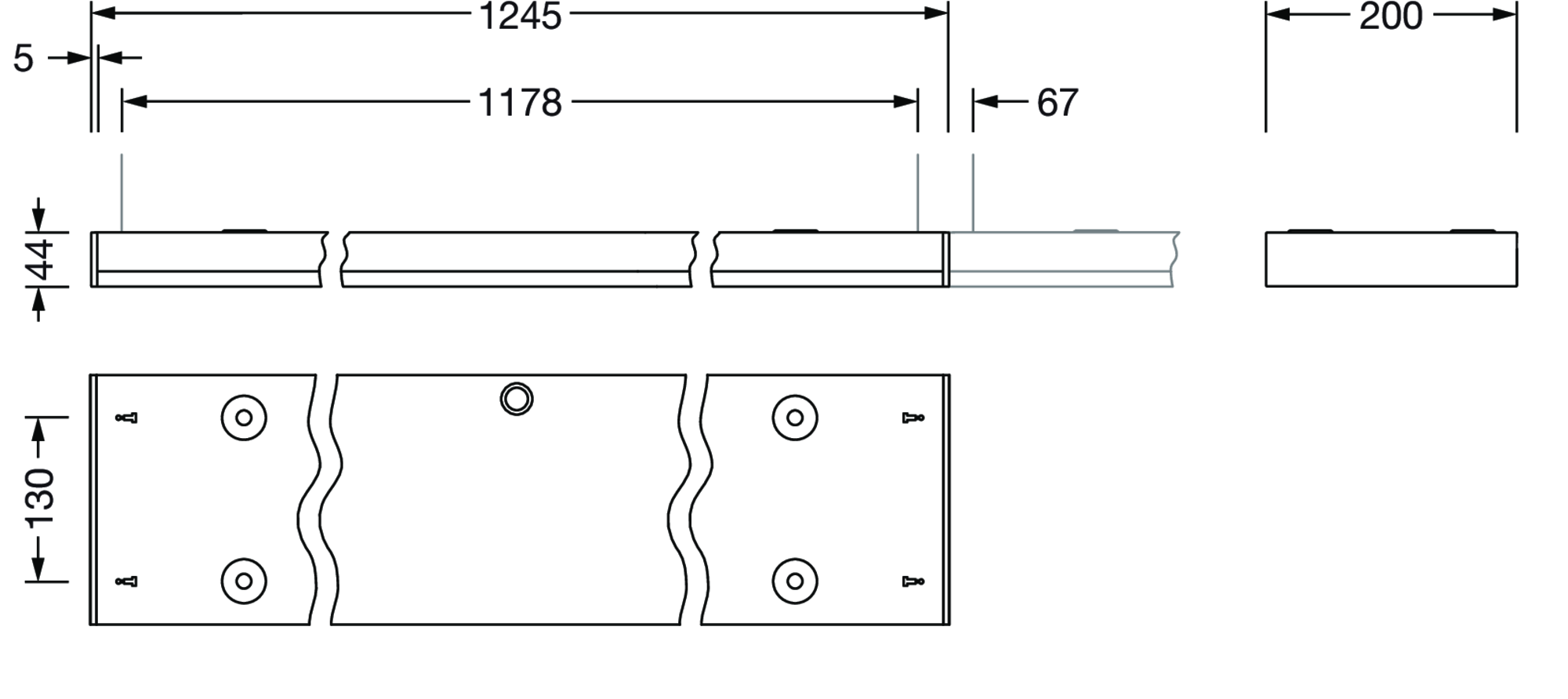

Dimensions, Weight

Length 1245mm
Width 200mm
Height 44mm
Weight 3.4kg

Service life

Rated service life 50000h (L80) at AT = 25°C

Product type
office luminaire

Product name
Apollon 31 Surface

Order No.
51MP25WM2441WA

Cover
micro prismatic cover

Beam angle
wide distribution, 90°

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps
with LED

Rated luminous flux
3800lm

Luminous efficacy
139lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
27W

Supplement
with through-wiring, luminous flux adjustable on luminaire in four steps (2900/3600/4100/4700lm), connected load according to luminous flux setting (23/27/33/38W)

Control
ON/OFF Multilumen

Protection rating
IP20

Protection rating (on room side)
IP40

Protection rating (lamp compartment, on room side)
IP40

Insulation class
insulation class I (protective earthing)

Impact resistance
IK02

Temperature range (operation)
-20..+40°C

Certification, designation
CE, ENEC, UKCA

housing
sheet steel, coated, traffic white (RAL 9016)

Cover
micro prismatic cover of PMMA

Mounting method, mounting location
surface-mounted, to the ceiling

Arrangement
single arrangement

Supplement
mounting accessories required, please order separately

Connection
terminal, 3-pole

Nominal voltage
220..240V, 50/60Hz, AC

Length
1245mm

Width
200mm

Height
44mm

Weight
3.4kg

Rated service life
50000h (L80) at AT = 25°C

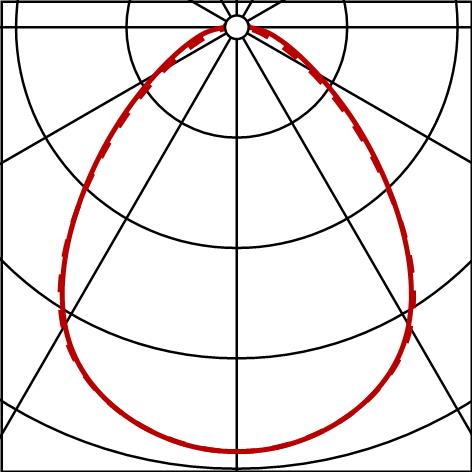

Photometric report / planning data

Apollon 31 Surface
office luminaire, traffic white (RAL 9016), ON/OFF Multilumen, 3800lm, 840, 1245x200mm, Connection: terminal
Lamps: 1x LED
Order No.: 51MP25WM2441WA

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
