51MX21TAT4S

Order No.: 51MX21TAT4S

Remember article Remember article

Article office luminaire
Product name Silica 21
Lamp LED
Rated luminous flux 3720lm
Luminous efficacy 110lm/W
Colour temperature 2700..6500K
Colour rendering CRI > 80
Rated input power 33.8W
Service life 50000h (L85) at AT = 25°C
Protection rating IP20
Weight 3.0kg

Silica 21, office luminaire, primary light control with darklight reflector, of PMMA, black, CAT 2 (L= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 3.720lm, luminous efficacy: 110lm/W, light colour: 8tw, colour temperature: 2700..6500K, control gear: DALI DT8, with terminal, 3+2-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 33.8W, luminaire housing, of aluminium, metallic grey (RAL 9006), length: 1.204mm, width: 53mm, height: 53mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, packaging unit: 1 piece

show moreshow less

Downloads

Technical product information

Data for applications

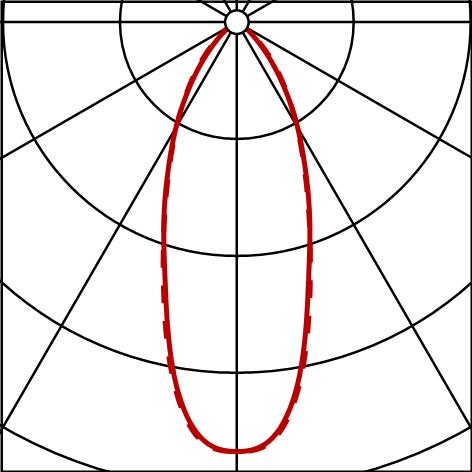

Photometric report / planning data

Silica 21
office luminaire, metallic grey (RAL 9006), DALI DT8, 3720lm, 8tw, 1204x53mm, Connection: terminal
Lamps: 1x LED, factory setting
Order No.: 51MX21TAT4S

Photometric report (PDF)

Product versions/accessory
