51MX30TAT4B

Order No.: 51MX30TAT4B

Remember article Remember article

Article office luminaire

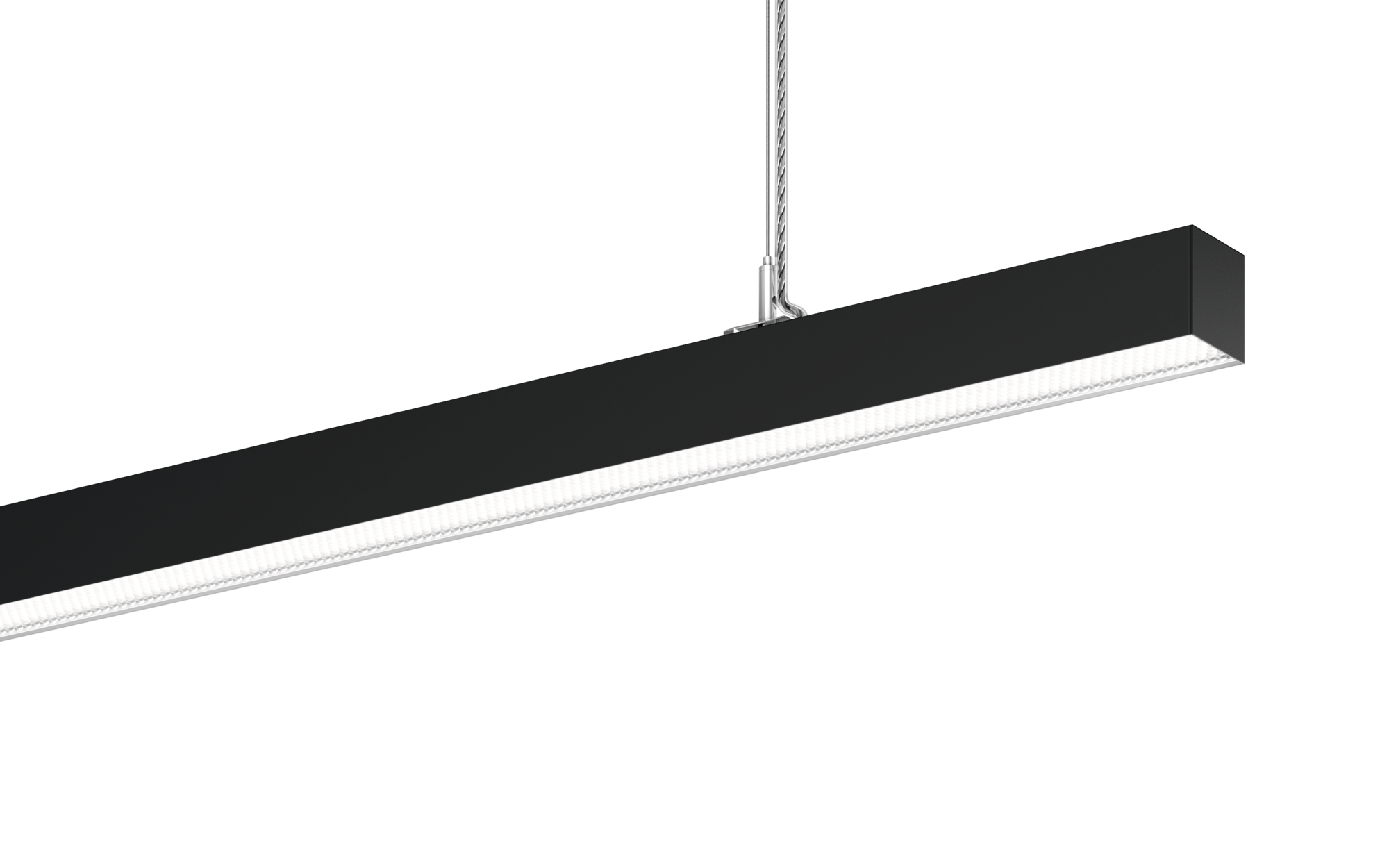

Product name Silica 21 Prismatic
Lamp LED
Rated luminous flux 4120lm
Luminous efficacy 116lm/W
Colour temperature 2700..6500K
Colour rendering CRI > 80
Rated input power 35.5W
Service life 50000h (L85/B50) at AT = 25°C
Protection rating IP20
Weight 3.0kg

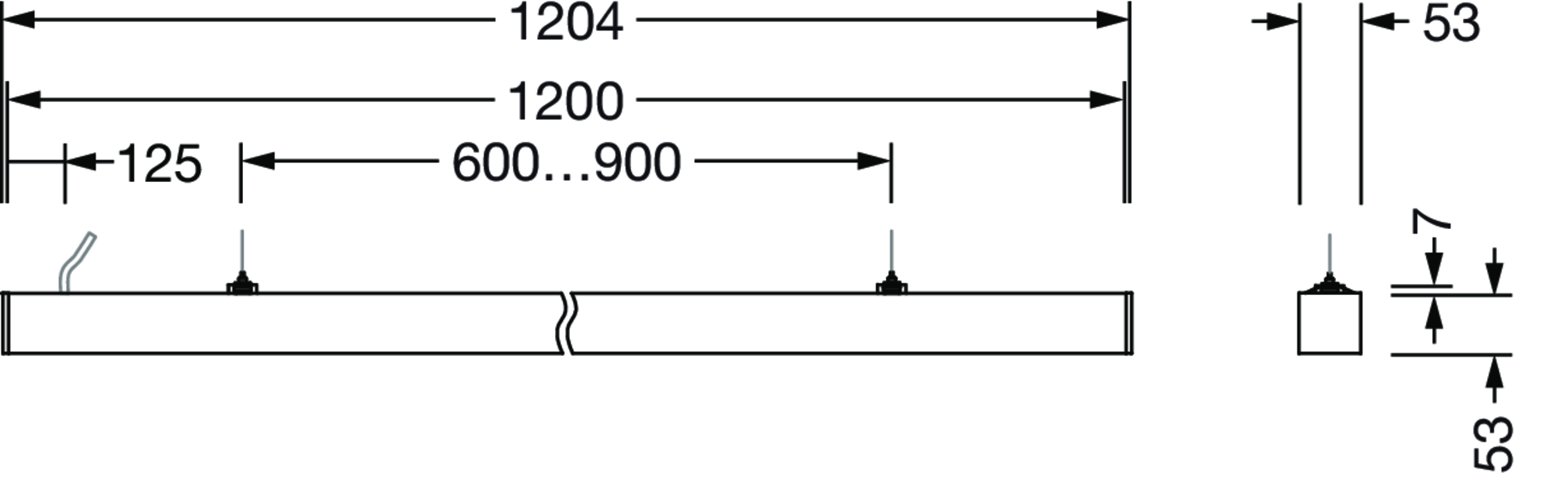

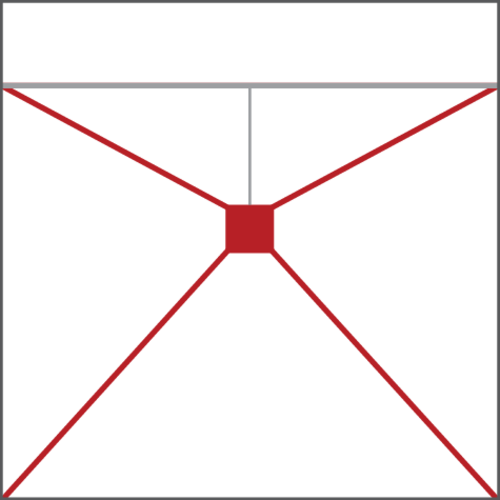

Silica 21 Prismatic, office luminaire, primary optical cover: cover, of PMMA, opal, light emission: direct/indirect distribution, primary light characteristic: symmetric, installation type: suspended mounting, LED, rated luminous flux: 4.120lm, luminous efficacy: 116lm/W, light colour: 8tw, colour temperature: 2700..6500K, control gear: DALI DT8, with terminal, 3+2-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 35.5W, luminaire housing, of aluminium, matt jet black (RAL 9005), length: 1.204mm, width: 53mm, height: 53mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, packaging unit: 1 piece

show moreshow less

Downloads

Technical product information

Data for applications

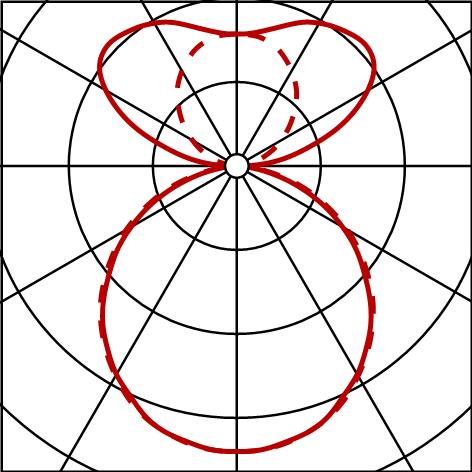

Photometric report / planning data

Silica 21 Prismatic
office luminaire, matt jet black (RAL 9005), DALI DT8, 4120lm, 8tw, 1204x53mm, Connection: terminal
Lamps: LED 4000K / CRI >= 80, factory setting
Order No.: 51MX30TAT4B

Photometric report (PDF)

Product versions/accessory
