51RY1TDB46C
Article luminaire insert
Product name Silica 31 for Modario 31
Lamp LED
Rated luminous flux 6610lm
Luminous efficacy 173lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 38W
Service life 70000h (L80) at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 1.6kg

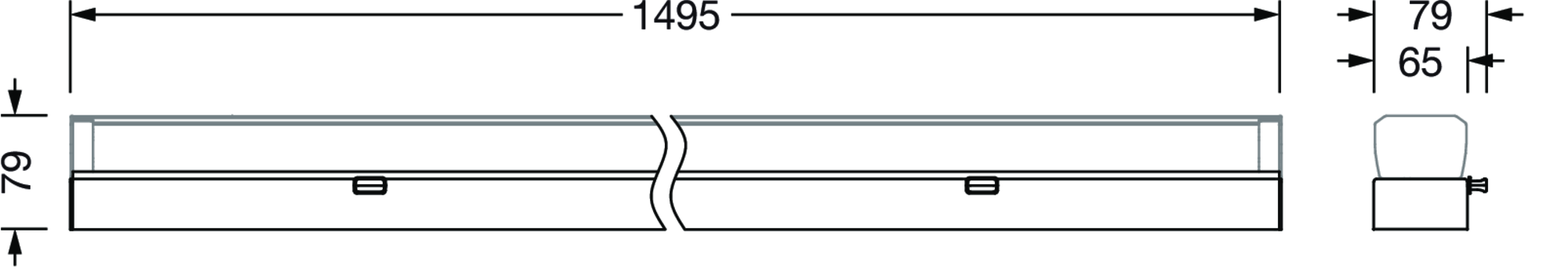

Silica 31 for Modario 31, luminaire insert, of aluminium, coated, traffic white (RAL 9016), length: 1.495mm, width: 79mm, height: 62mm, 5x system unit, system units: 299mm, LED rated luminous flux: 6.610lm, light colour: 840, SDCM (Standard Deviation of Colour Matching)MacAdam ≤ 3 SDCM (initial), control gear: DALI 2, with system connector: socket, mains connection: 220..240V, AC, 50/60Hz, rated input power: 38W, primary light control with lens, of PMMA, primary anti-glare with reflector, of PC, CAT 2 (L= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, impact resistance: IK02, permissible ambient temperature for indoor applications: -20..+40°C, The light source and the operating device comply with the requirements of the Ecodesign Regulation (EU) 2019/2020 and are replaceable in accordance with this regulation, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

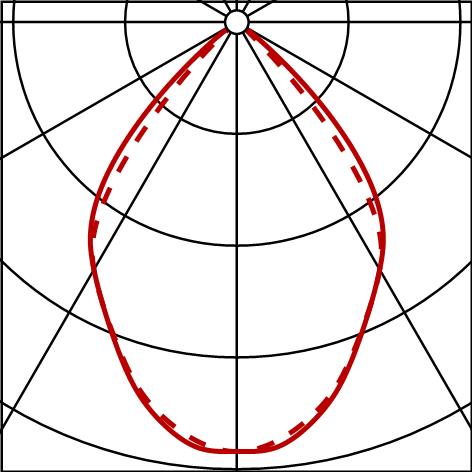

Photometric report / planning data
Sil31Mod
LI,med,6610lm840,DA2,wh,5su
Lamps: 1x LED
Order No.: 51RY1TDB46C
