51SE33DB11A2C

Order No.: 51SE33DB11A2C
Remember articleRemember article

Article directional spotlight
Product name Spot 21
Lamp LED
Rated luminous flux 2650lm
Luminous efficacy 134lm/W
Colour temperature 2700K
Colour rendering CRI > 90
Rated input power 19.8W
Service life 50000h (L90/B10) at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 0.6kg

Spot 21, directional spotlight, light control with reflector, of aluminium, optical cover: cover panel, of glass, beam angle: medium distribution, LED rated luminous flux: 2.650lm, light colour: 927, with 3-phase adapter, mains connection: 220..240V, AC, 50/60Hz, of aluminium, jet black (RAL 9005), length: 251mm, diameter: 90mm, decorative ring, of PC, jet black (RAL 9005), protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK02, permissible ambient temperature for indoor applications: -20..+25°C, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type directional spotlight
Product name Spot 21
Order No. 51SE33DB11A2C

Lighting technology

Light control reflector of aluminium
Cover cover panel
Beam angle medium distribution
Symmetry symmetric

Lamps

Lamps with LED
Rated luminous flux 2650lm
Luminous efficacy 134lm/W
Colour temperature 2700K
Colour rendering index CRI > 90
Light colour 927
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 2 SDCM (initial)
Rated input power 19.8W
Supplement luminous flux adjustable on luminaire in 12 steps (830/.../3570lm), connected load according to luminous flux setting (6/.../28.1W)

Operating device

Control DALI 2, Multilumen

Certificates, Standards

Protection rating IP20
Insulation class insulation class II (safety insulation)
Impact resistance IK02
Temperature range (operation) -20..+25°C
Certification, designation CE

Material, Colour

decorative ring PC, jet black (RAL 9005)
Cover cover panel of glass

Mounting

Mounting method, mounting location slip-in mounting, in a 3-phase track

Electrical connection

Connection 3-phase adapter
Nominal voltage 220..240V, 50/60Hz, AC

Dimensions, Weight

Length 251mm
Diameter 90mm
Weight 0.6kg

Service life

Rated service life 50000h (L90/B10) at AT = 25°C

Product type
directional spotlight

Product name
Spot 21

Order No.
51SE33DB11A2C

Light control
reflector of aluminium

Cover
cover panel

Beam angle
medium distribution

Symmetry
symmetric

Lamps
with LED

Rated luminous flux
2650lm

Luminous efficacy
134lm/W

Colour temperature
2700K

Colour rendering index
CRI > 90

Light colour
927

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 2 SDCM (initial)

Rated input power
19.8W

Supplement
luminous flux adjustable on luminaire in 12 steps (830/.../3570lm), connected load according to luminous flux setting (6/.../28.1W)

Control
DALI 2, Multilumen

Protection rating
IP20

Insulation class
insulation class II (safety insulation)

Impact resistance
IK02

Temperature range (operation)
-20..+25°C

Certification, designation
CE

decorative ring
PC, jet black (RAL 9005)

Cover
cover panel of glass

Mounting method, mounting location
slip-in mounting, in a 3-phase track

Connection
3-phase adapter

Nominal voltage
220..240V, 50/60Hz, AC

Length
251mm

Diameter
90mm

Weight
0.6kg

Rated service life
50000h (L90/B10) at AT = 25°C

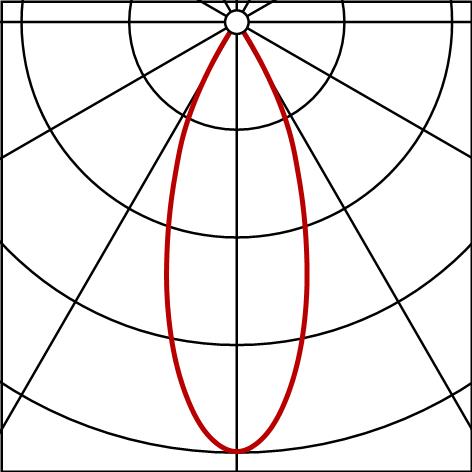

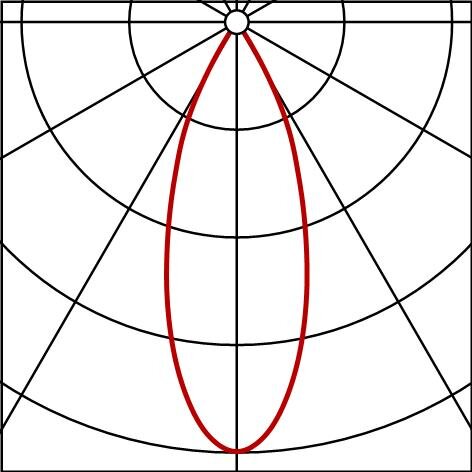

Photometric report / planning data

Spot21
med,2650lm927,DA2ML,90,bk
Lamps: LED 2700K / CRI >= 90
Order No.: 51SE33DB11A2C

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
IES

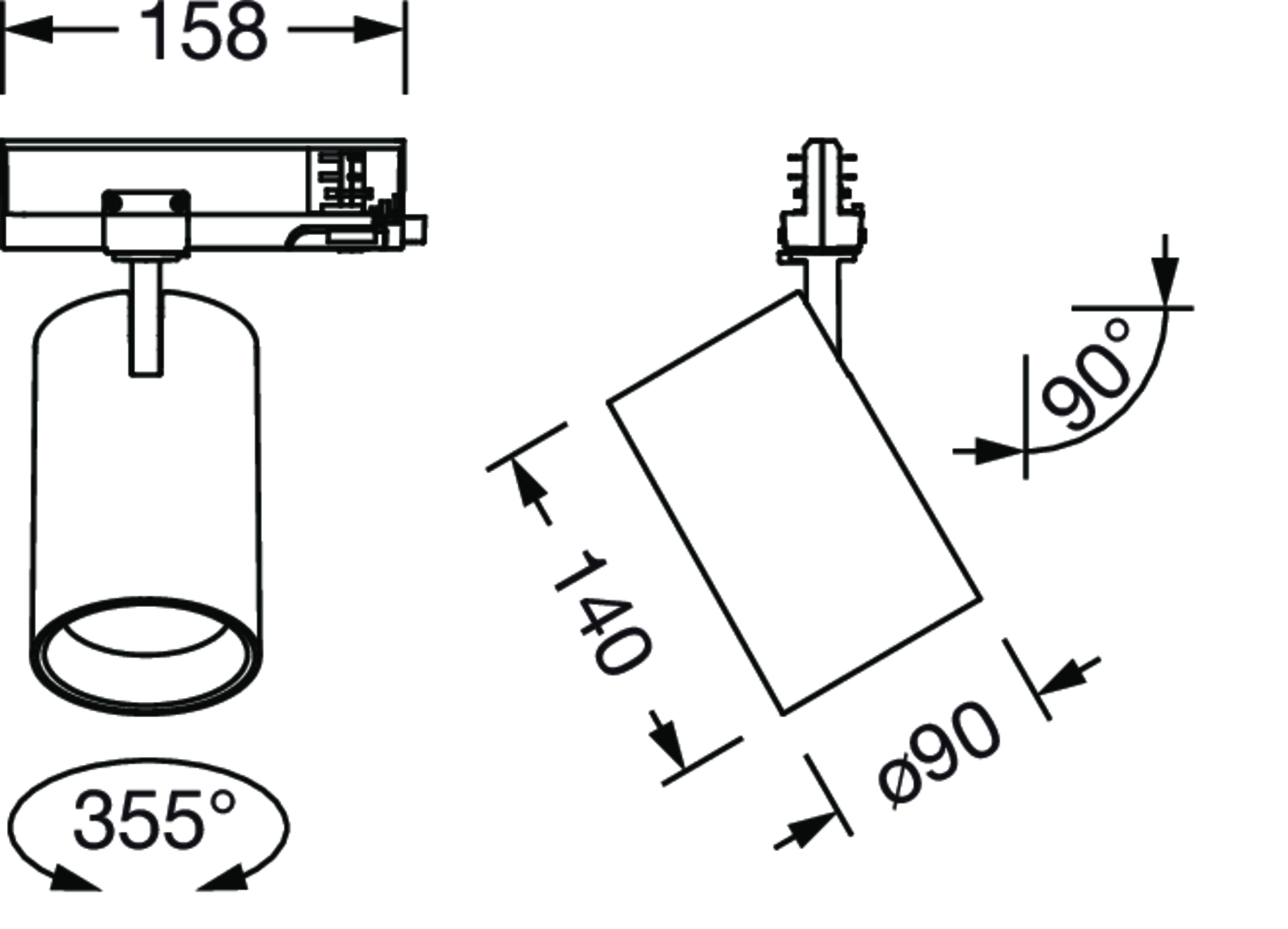

2D symbol (DXF)
