51SE61DA2EC2C

Order No.: 51SE61DA2EC2C
Remember articleRemember article

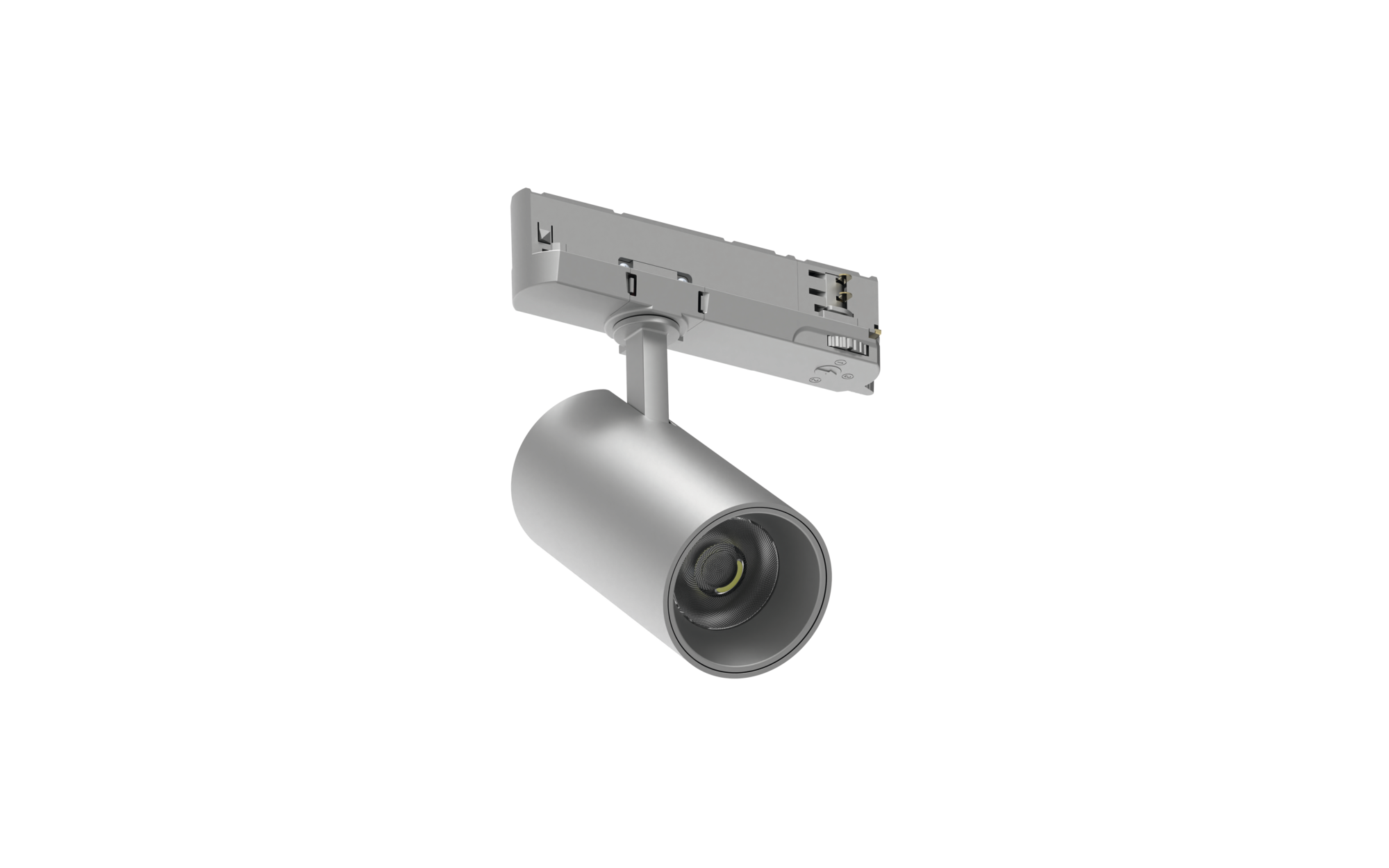

Article directional spotlight
Product name Spot 21
Lamp LED
Rated luminous flux 2200lm
Luminous efficacy 141lm/W
Colour temperature 3500K
Colour rendering CRI > 90
Rated input power 15.5W
Service life 50000h (L90/B10) at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 0.5kg

Spot 21, directional spotlight, light control with lens, of PMMA, beam angle: spotlight, LED rated luminous flux: 2.200lm, light colour: 935, with 3-phase adapter, mains connection: 220..240V, AC, 50/60Hz, of aluminium, metallic grey (RAL 9006), length: 251mm, diameter: 70mm, decorative ring, of PC, metallic grey (RAL 9006), protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK02, permissible ambient temperature for indoor applications: -20..+25°C, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type directional spotlight
Product name Spot 21
Order No. 51SE61DA2EC2C

Lighting technology

Light control lens of PMMA
Beam angle spotlight
Symmetry symmetric

Lamps

Lamps with LED
Rated luminous flux 2200lm
Luminous efficacy 141lm/W
Colour temperature 3500K
Colour rendering index CRI > 90
Light colour 935
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 2 SDCM (initial)
Rated input power 15.5W
Supplement luminous flux adjustable on luminaire in 12 steps (850/.../3630lm), connected load according to luminous flux setting (6/.../28W)

Operating device

Control DALI 2, Multilumen

Certificates, Standards

Protection rating IP20
Insulation class insulation class II (safety insulation)
Impact resistance IK02
Temperature range (operation) -20..+25°C
Certification, designation CE

Material, Colour

decorative ring PC, metallic grey (RAL 9006)

Mounting

Mounting method, mounting location slip-in mounting, in a 3-phase track

Electrical connection

Connection 3-phase adapter
Nominal voltage 220..240V, 50/60Hz, AC

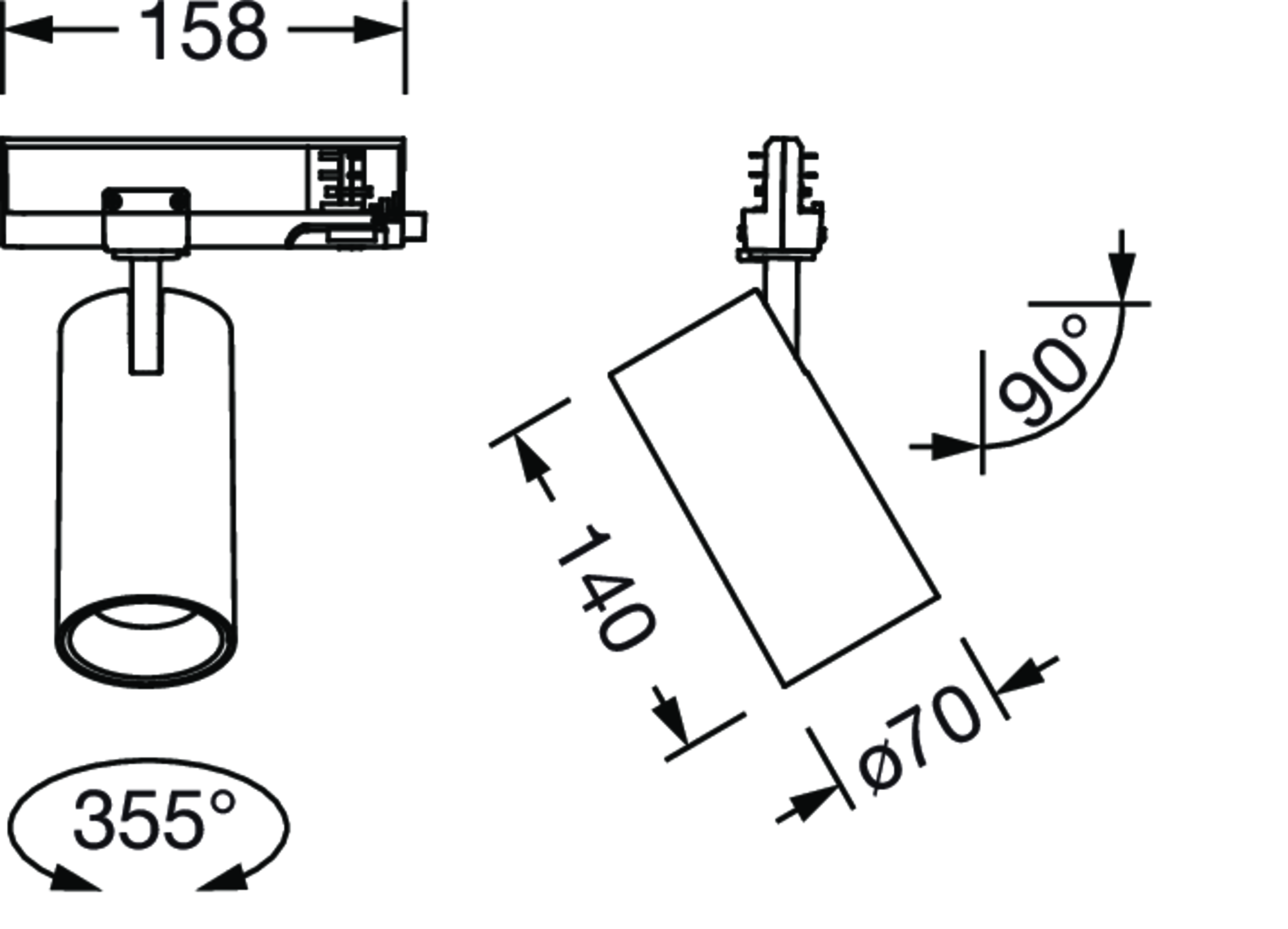

Dimensions, Weight

Length 251mm
Diameter 70mm
Weight 0.5kg

Service life

Rated service life 50000h (L90/B10) at AT = 25°C

Product type
directional spotlight

Product name
Spot 21

Order No.
51SE61DA2EC2C

Light control
lens of PMMA

Beam angle
spotlight

Symmetry
symmetric

Lamps
with LED

Rated luminous flux
2200lm

Luminous efficacy
141lm/W

Colour temperature
3500K

Colour rendering index
CRI > 90

Light colour
935

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 2 SDCM (initial)

Rated input power
15.5W

Supplement
luminous flux adjustable on luminaire in 12 steps (850/.../3630lm), connected load according to luminous flux setting (6/.../28W)

Control
DALI 2, Multilumen

Protection rating
IP20

Insulation class
insulation class II (safety insulation)

Impact resistance
IK02

Temperature range (operation)
-20..+25°C

Certification, designation
CE

decorative ring
PC, metallic grey (RAL 9006)

Mounting method, mounting location
slip-in mounting, in a 3-phase track

Connection
3-phase adapter

Nominal voltage
220..240V, 50/60Hz, AC

Length
251mm

Diameter
70mm

Weight
0.5kg

Rated service life
50000h (L90/B10) at AT = 25°C
