51WC10MA32AS

Order No.: 51WC10MA32AS

Article light sensor
Product name Round 31
Colour temperature 3000K
Colour rendering CRI > 80
Weight 1.9kg

Round 31, light sensor, installation type: surface-mounted, light colour: 830, colour temperature: 3000K, with terminal, 3-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, traffic white (RAL 9016), brightness and presence sensor, HF sensor, insulation class (complete): insulation class II (safety insulation), certification: CE, permissible operating ambient temperature: -20..+40°C, permissible storage temperature: -20..+60°C, packaging unit: 1 piece

show moreshow less

Downloads

Technical product information

Data for applications

Product details

Key data

Product type light sensor
Product name Round 31
Order No. 51WC10MA32AS

Colour temperature

Colour rendering index

Light colour

Certificates, Standards

Insulation class insulation class II (safety insulation)
Temperature range (operation) -20..+40°C
Certification, designation CE

Mounting

Mounting method, mounting location surface-mounted

Electrical connection

Connection terminal, 3-pole, max. 2.5mm²
Nominal voltage 220..240V, 50/60Hz, AC

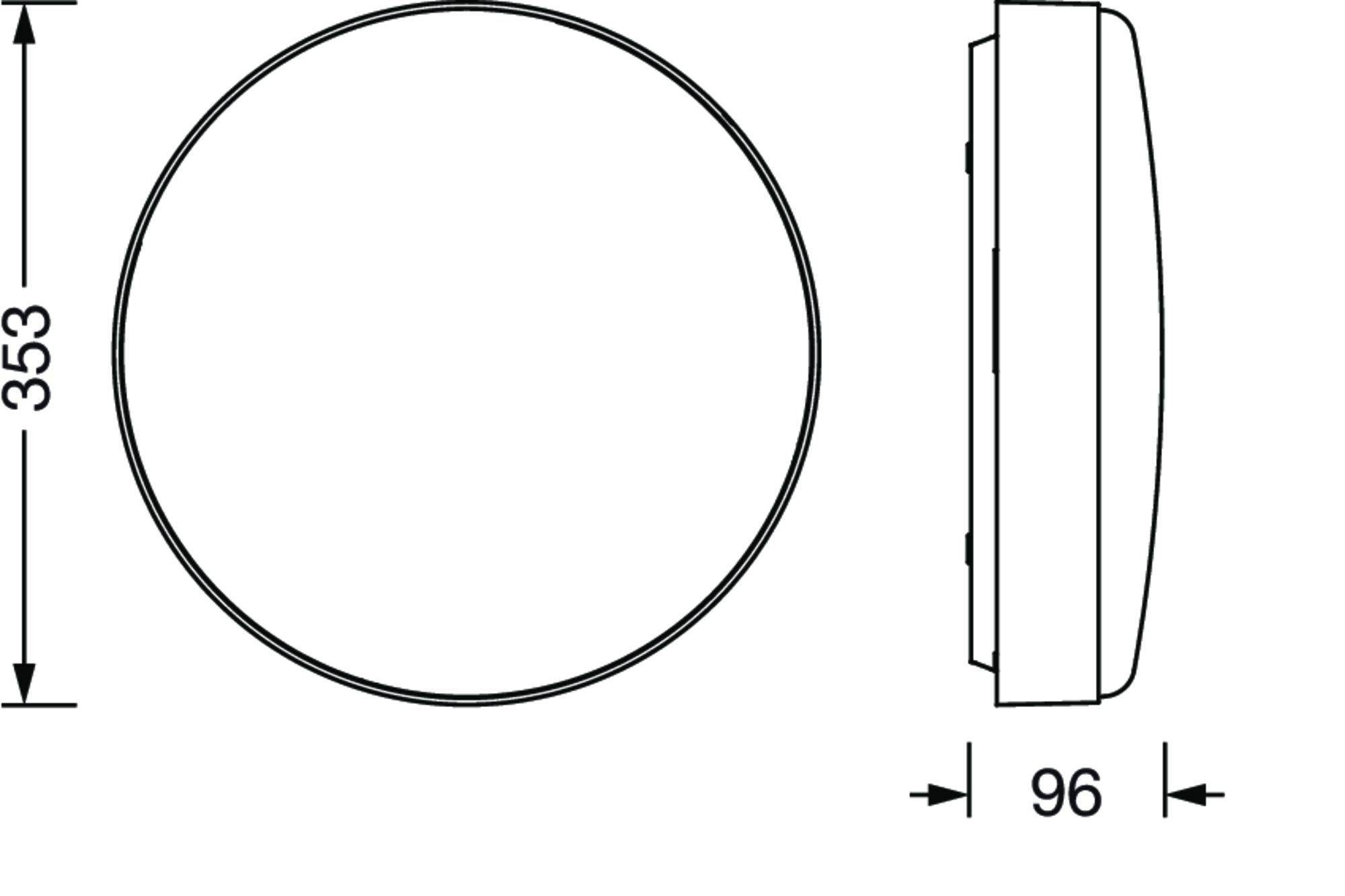

Dimensions, Weight

Weight 1.9kg

Key data

Product type
light sensor

Product name
Round 31

Order No.
51WC10MA32AS

Colour temperature

Colour rendering index

Light colour

Certificates, Standards

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
-20..+40°C

Certification, designation
CE

Mounting

Mounting method, mounting location
surface-mounted

Electrical connection

Connection
terminal, 3-pole, max. 2.5mm²

Nominal voltage
220..240V, 50/60Hz, AC

Dimensions, Weight

Weight
1.9kg

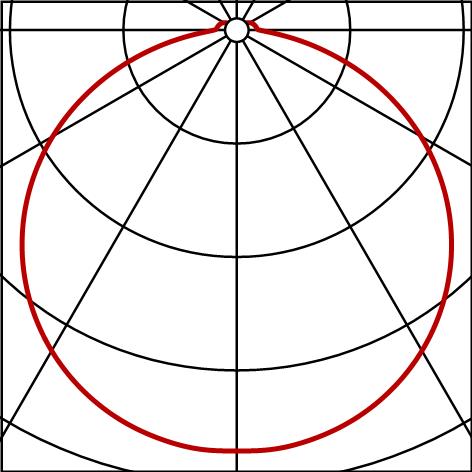

Photometric report / planning data

brightness and presence sensor
HF sensor
Lamps: LED 3000K / CRI >= 80
Order No.: 51WC10MA32AS

Photometric report (PDF)
