Key data

Product type luminaire insert

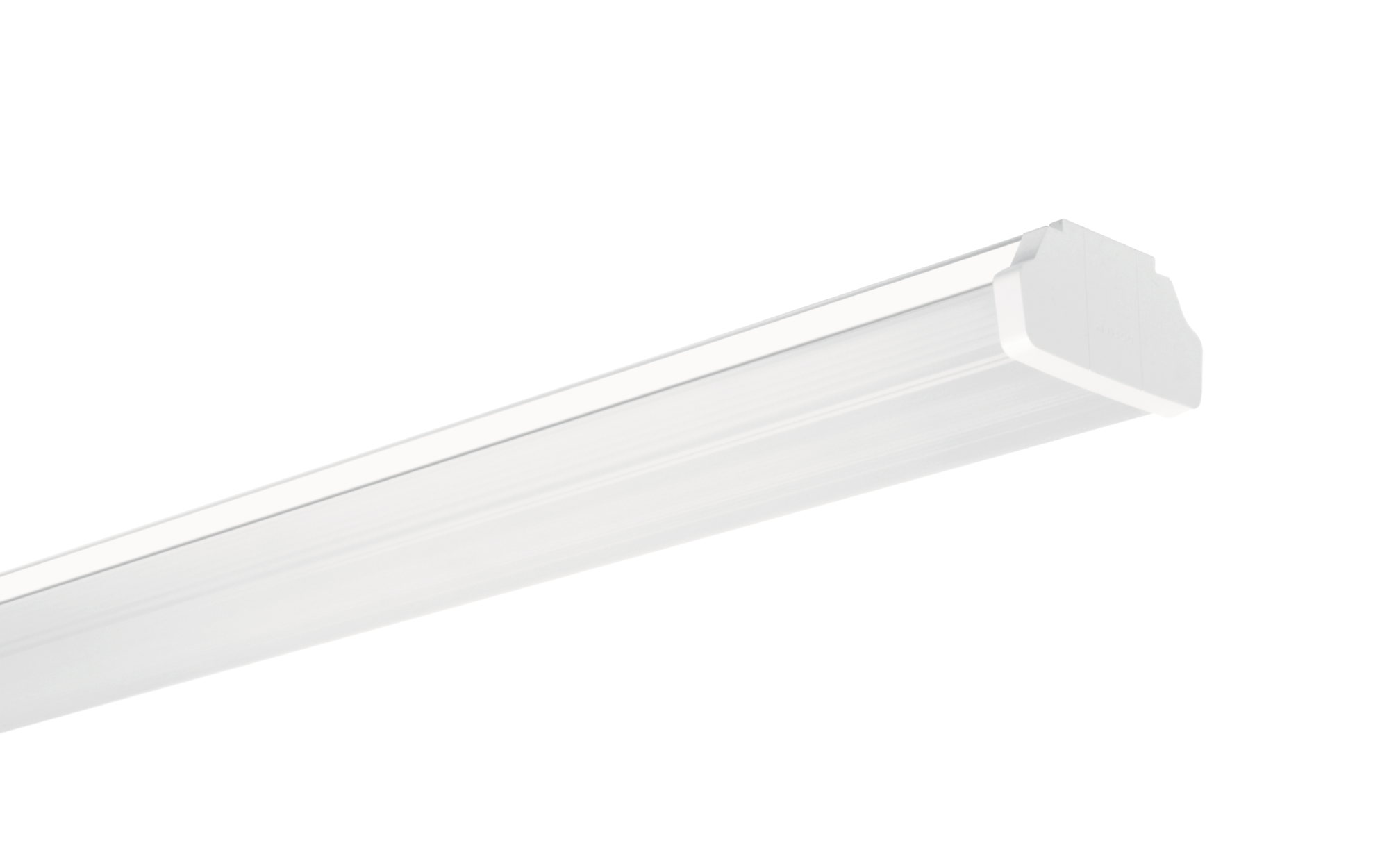

Product name Modario 31 Gen.2
Order No. 53BM812DV4A5C23S

Component 1

Lighting technology
Cover cover, prismatic structure, frosted

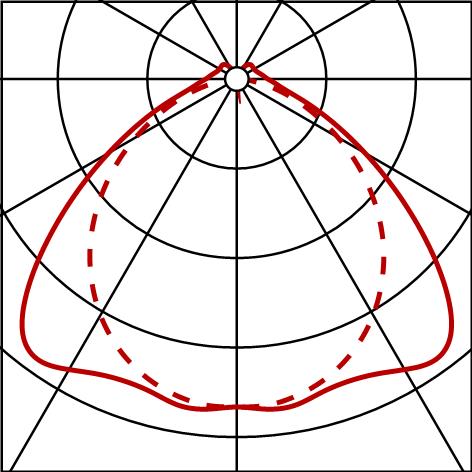

Beam angle wide distribution
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 28
UGR viewing direction along lateral luminaire axis ≤ 28

Lamps
Lamps with LED
Rated luminous flux 10860lm
Luminous efficacy 167lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 65W
Supplement for emergency light function

Operating device
Control DALI 2

Component 2

Lamps
Supplement with self-test function according to EN 60598-2-22, 2-rod battery

Operating device
Control gear single battery element
Battery LiFePO4
Nominal operating time 3h

Certificates, Standards

Protection rating IP20
Protection rating (lamp compartment) IP50
Insulation class insulation class I (protective earthing)
Impact resistance IK03
Temperature range (operation) +5..+35°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, IP40 when using the optional accessory 5TP9018
Standard EN 60598-2-22
Certification, designation CE, UKCA

Material, Colour

PS LED insert sheet steel, coil coated, white, 5x system unit, for tool-free mounting of luminaire in Modario trunking rail
Cover cover of PMMA

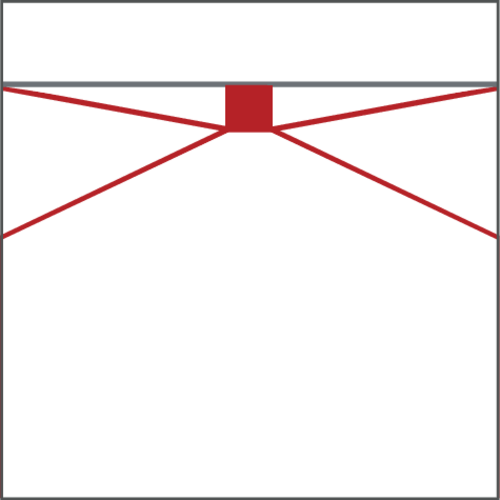

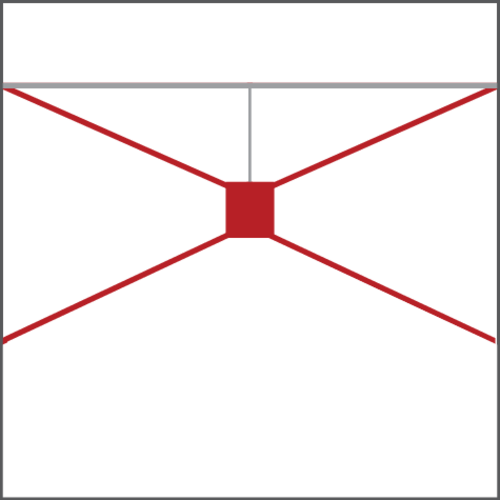

Mounting

Arrangement single/continuous arrangement
Supplement only suitable for use in indoor areas

Electrical connection

Connection plug, 6-pole, with phase selection
Nominal voltage 220..240V, 50/60Hz, AC

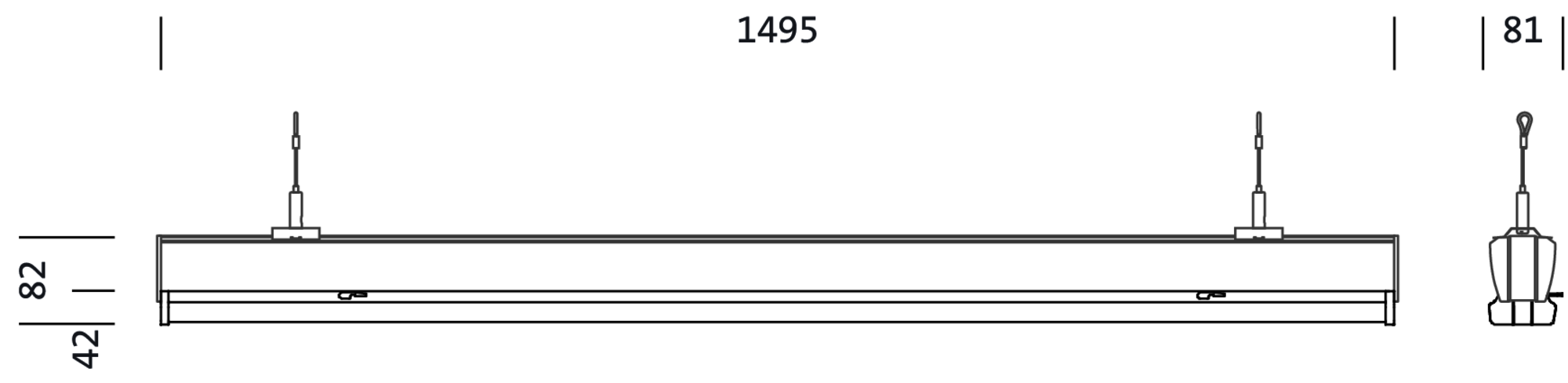

Dimensions, Weight

System units 5x SE
Length 1495mm
Width 81mm
Height 82mm
Weight 2.0kg

Service life

Rated service life 70000h (L80) at AT = 25°C, 70000h (L80) at AT = ta max
