5EA3EB03

Order No.: 5EA3EB03
Remember articleRemember article

Article operating unit
Product name SITECO Connect Wireless
Protection rating IP68
Weight 1.9kg

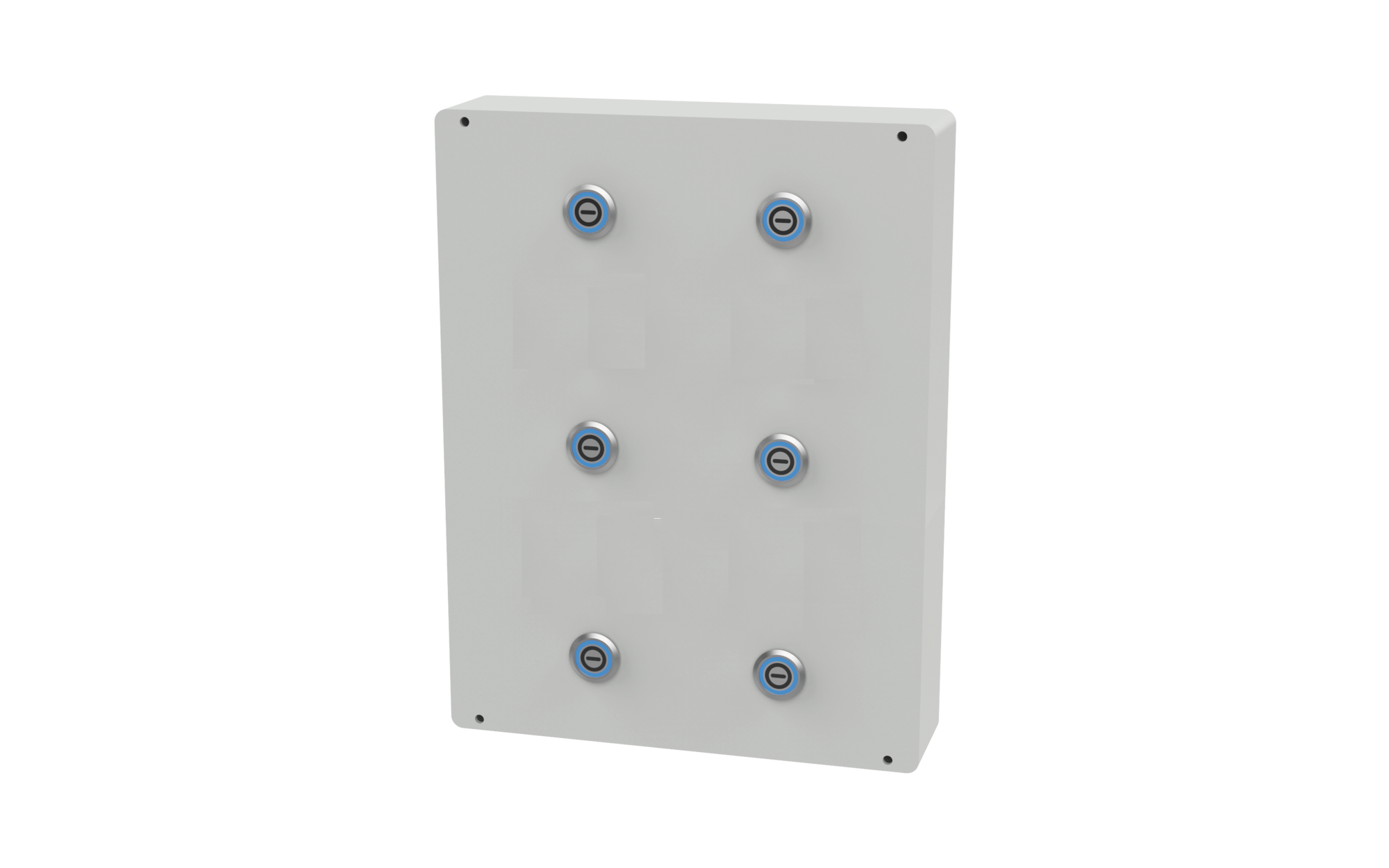

SITECO Connect WirelessButton 2x3, 6 push buttons, adjustable only with SL Configurator and wireless USB stick 5EAU0A000001, installation type: surface-mounted, installation location: to the wall, in an electrical distributor, in a switching cabinet, of plastic, protection rating (complete): IP68, certification: CE, voltage: 100..240V, voltage type: AC, 6 x push button, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family SITECO Connect 31 Wireless
Product type operating unit
Product name SITECO Connect Wireless
Order No. 5EA3EB03

Certificates, Standards

Protection rating IP68
Temperature range (operation) -10..+60°C
Certification, designation CE

Material, Colour

surface-mounted housing plastic, bright grey
Colour specification bright grey

Mounting

Mounting method, mounting location surface-mounted, to the wall, in an electrical distributor, in a switching cabinet

Electrical connection

Nominal voltage 100..240V, AC

Dimensions, Weight

Weight 1.9kg

System family
SITECO Connect 31 Wireless

Product type
operating unit

Product name
SITECO Connect Wireless

Order No.
5EA3EB03

Protection rating
IP68

Temperature range (operation)
-10..+60°C

Certification, designation
CE

surface-mounted housing
plastic, bright grey

Colour specification
bright grey

Mounting method, mounting location
surface-mounted, to the wall, in an electrical distributor, in a switching cabinet

Nominal voltage
100..240V, AC

Weight
1.9kg
