5SC33ACA9

Order No.: 5SC33ACA9
Remember articleRemember article

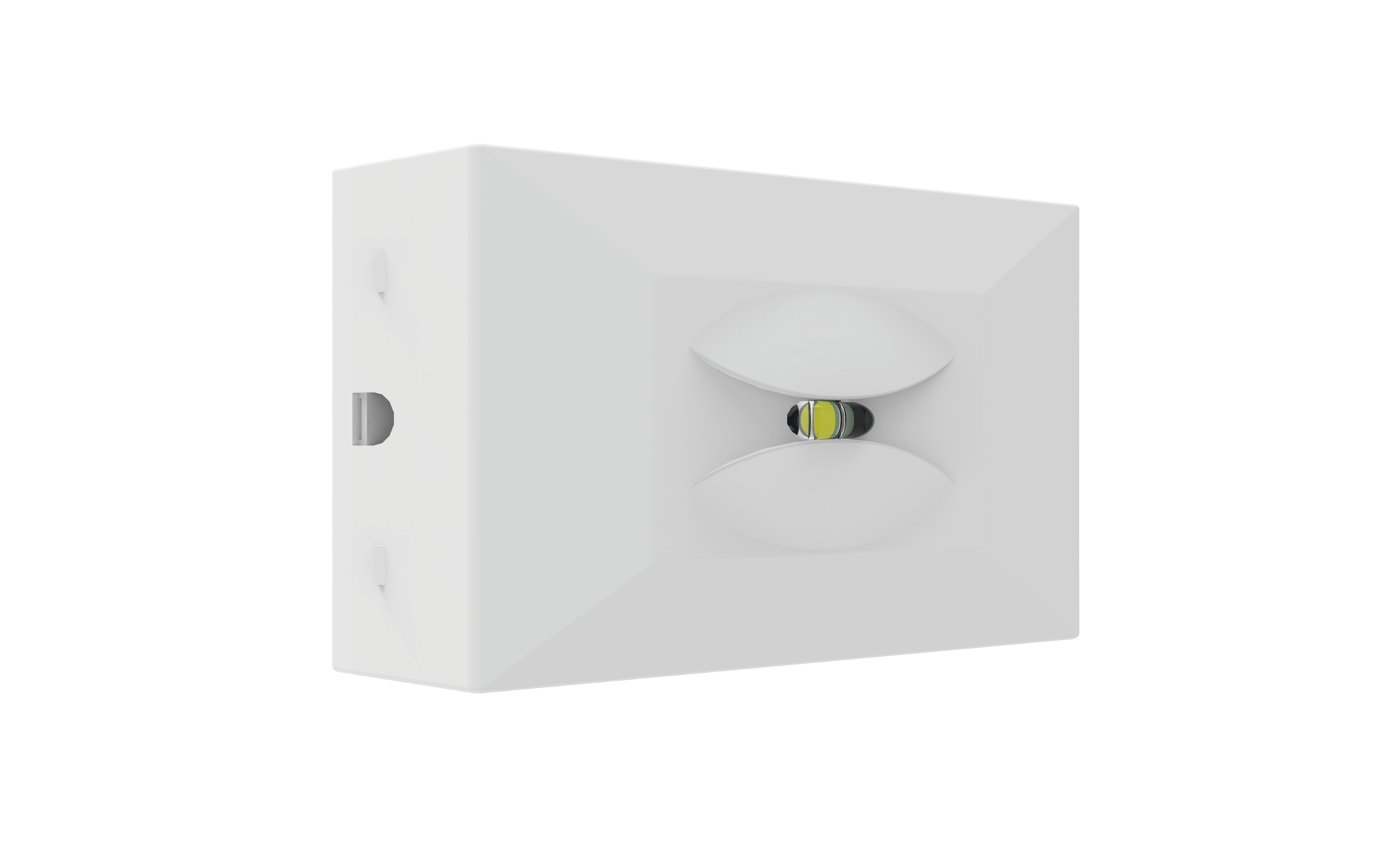

Article escape route luminaire
Product name Panik Route
Lamp LED
Rated luminous flux 310lm
Luminous efficacy 103lm/W
Colour temperature 6000K
Colour rendering CRI > 80
Rated input power 3W
Protection rating IP54
Weight 0.4kg

Panik Route, escape route luminaire, of PC, primary optical cover: cover, of PC, installation type: surface-mounted, LED, rated luminous flux: 310lm, luminous efficacy: 103lm/W, light colour: 860, colour temperature: 6000K, mains connection: 230V, AC, 50Hz, rated input power: 3W, battery,battery: NiMH, 1,6Ah, housing, of plastic, white, length: 136mm, width: 136mm, height: 51mm, conventional single battery, protection rating (complete): IP54, insulation class (complete): insulation class II (safety insulation), permissible operating ambient temperature: 0..+45°C, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type escape route luminaire
Product name Panik Route
Order No. 5SC33ACA9

Component 1

Lighting technology
Cover cover

Lamps
Lamps with LED
Rated luminous flux 310lm
Luminous efficacy 103lm/W
Colour temperature 6000K
Colour rendering index CRI > 80
Light colour 860
Rated input power 3W

Component 2

Lamps
Supplement 3 hours

Operating device
Battery NiMH

Certificates, Standards

Protection rating IP54
Insulation class insulation class II (safety insulation)
Temperature range (operation) 0..+45°C

Material, Colour

housing plastic, white
Cover cover of PC

Mounting

Mounting method, mounting location surface-mounted, to the ceiling

Electrical connection

Nominal voltage 230V, 120..240V, 50Hz, AC

Dimensions, Weight

Length 136mm
Width 136mm
Height 51mm
Weight 0.4kg

Product type
escape route luminaire

Product name
Panik Route

Order No.
5SC33ACA9

Lighting technology

Cover
cover

Lamps

Lamps
with LED

Rated luminous flux
310lm

Luminous efficacy
103lm/W

Colour temperature
6000K

Colour rendering index
CRI > 80

Light colour
860

Rated input power
3W

Lamps

Supplement
3 hours

Operating device

Battery
NiMH

Protection rating
IP54

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
0..+45°C

housing
plastic, white

Cover
cover of PC

Mounting method, mounting location
surface-mounted, to the ceiling

Nominal voltage
230V, 120..240V, 50Hz, AC

Length
136mm

Width
136mm

Height
51mm

Weight
0.4kg

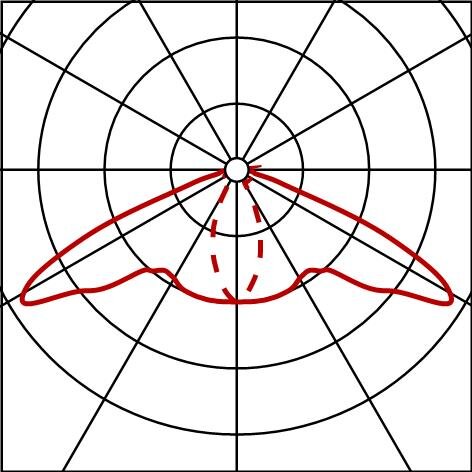

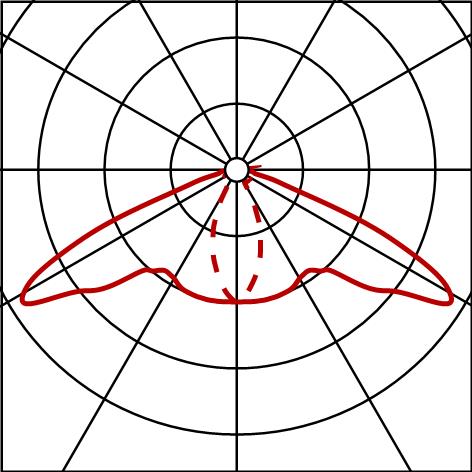

Photometric report / planning data

CL-313F/Slave/Con/MB/3hours
Lamps: LED 6000K / CRI >= 80
Order No.: 5SC33ACA9

Photometric report (PDF)
IES
