5XA7771C2E3A
Article floodlight
Product name Floodlight FL 21 iQ mini
Lamp LED
Rated luminous flux 11790lm
Luminous efficacy 135.2lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom 87.2W
Pnom end service life 92.1W
Pred at 50% lumin. flux 40.1W
Service life 100000h (L97/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 7.4kg
Floodlight FL 21 iQ mini, floodlight, primary light control with lens, of PMMA, primary optical cover: protective disc, of toughened safety glass, transparent, light distribution: A640002, light emission: direct distribution, installation type: surface-mounted, lamps: LED, rated values: 11.790lm | 87,2W | 135,2lm/W (begin service life); end service life: 11.790lm | 92,1W; at 50% lumin. flux: 5.895lm | 40,1W | 147lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 11.790lm | 87,2W | 135,2lm/W | 3.000K (begin service life); end service life: 92,1W, control gear: iQ Comfort/DALI, control: Auto-Match, Temp-Guard, Lumen-Switch, Night-Set, Smart-Wire, Light-Fading, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), pre-setting: linear dimming characteristic, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), electrical connection: terminal, 6-pole, max. 2.5mm², solid wire, fine wire, luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), corrosivity category C5 mid according to DIN EN ISO 12944, suitable for swimming pools, chlorine-resistant, sealing non-destructively replaceable, please order mast flange separately, mast bracket, of steel, galvanised, powder-coated, SITECO metallic grey (DB 702S), protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, protection symbol: D, impact resistance: IK08, permissible operating ambient temperature: -40..+40°C, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard: DIN EN 12944, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

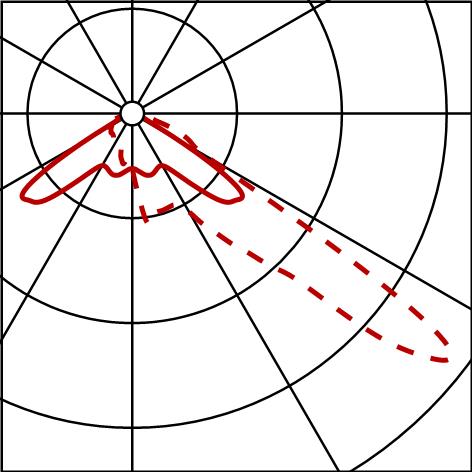

Photometric report / planning data

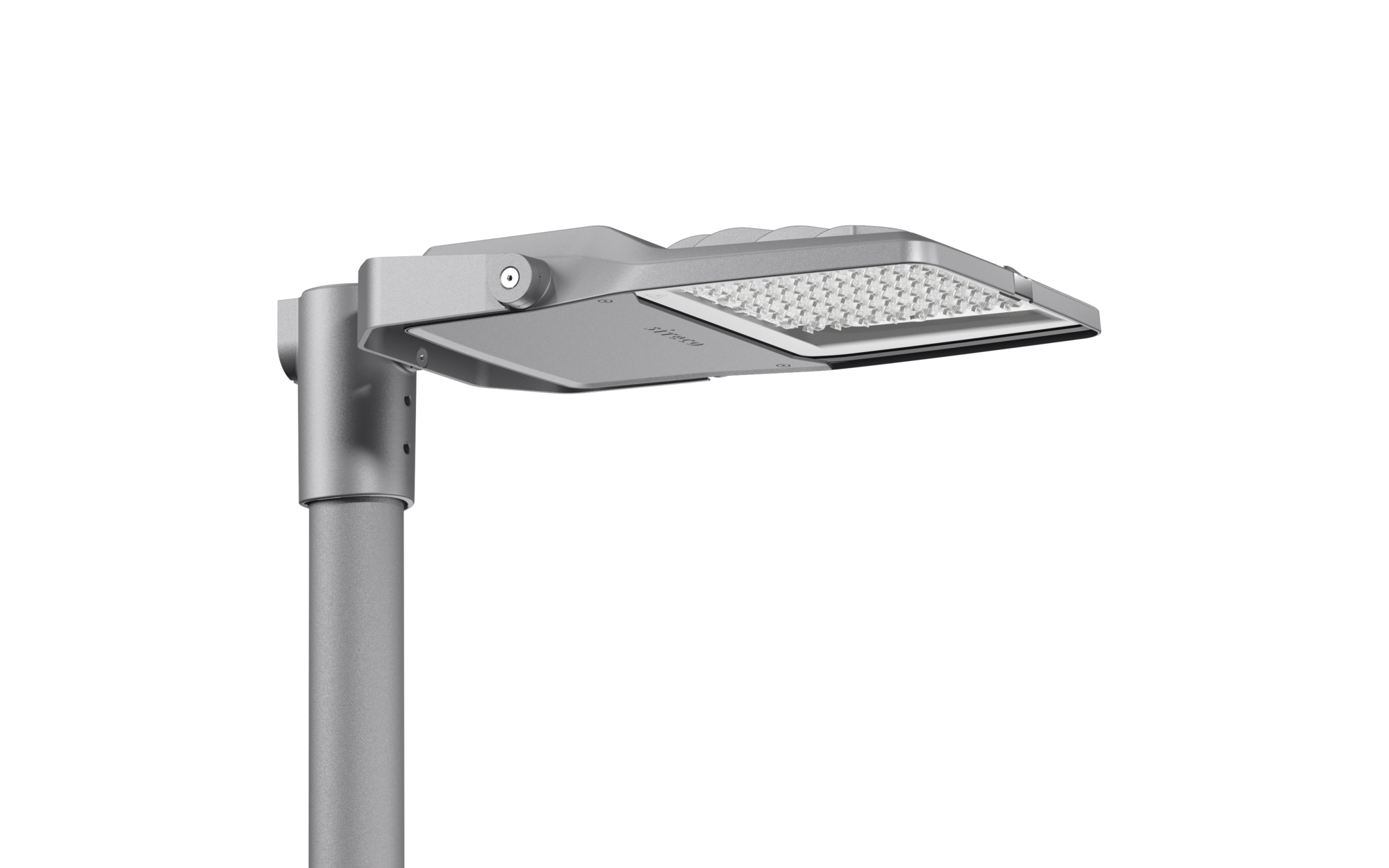

Floodlight FL 21 iQ mini

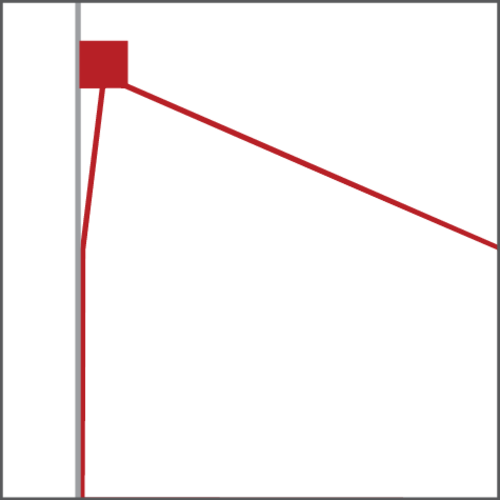

LED, direct distribution, surface-mounted, to mast
Lamps: LED 3000K / CRI >= 70
Order No.: 5XA7771C2E3A
