5XA779216W01AB
Article floodlight
Product name Floodlight FL 11 maxi
Lamp LED
Rated luminous flux 102250lm
Luminous efficacy 90lm/W
Colour temperature 4000K
Colour rendering CRI > 70
Rated input power 1140W
Protection rating IP66
Weight 24.4kg

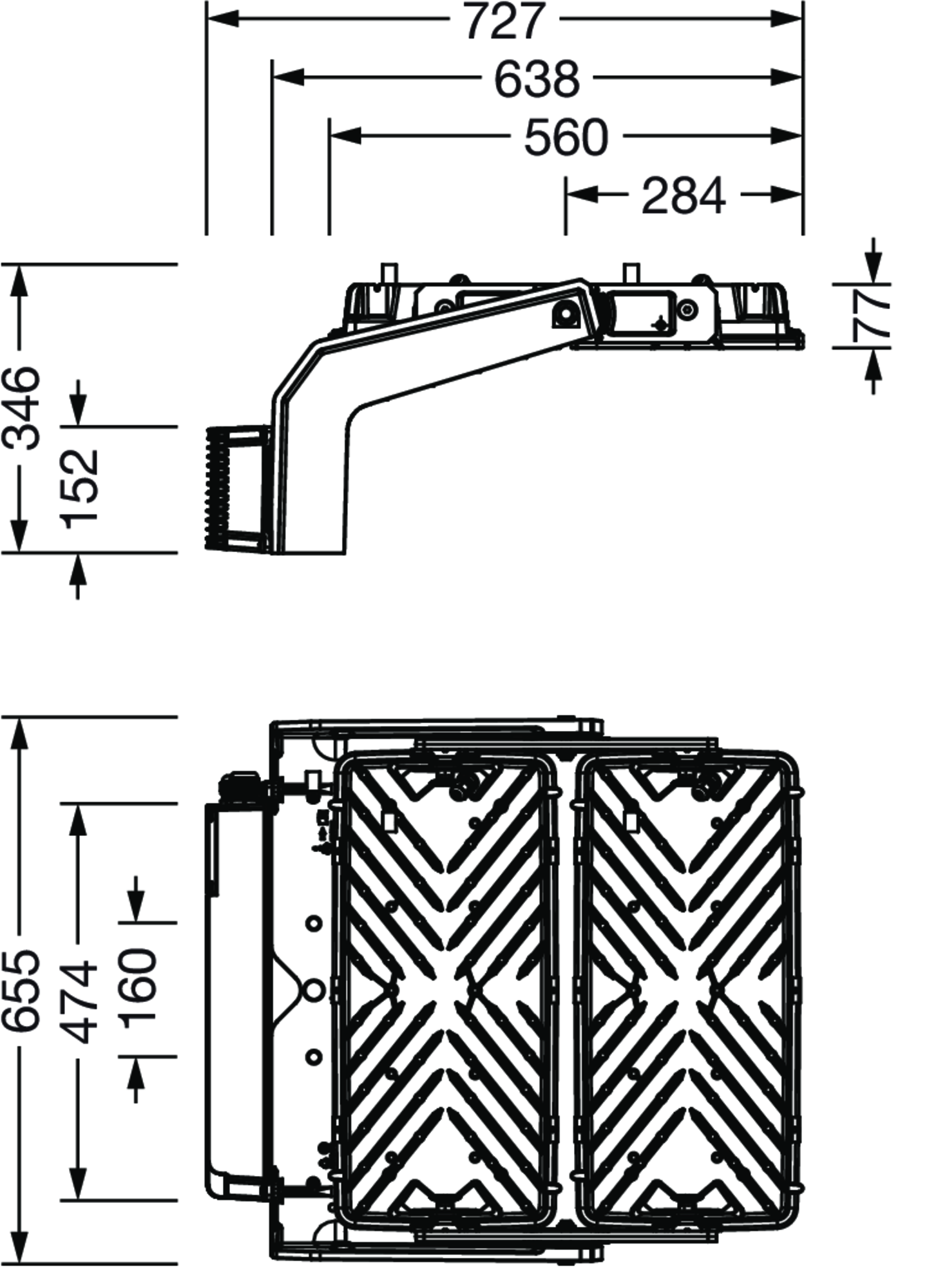

Floodlight FL 11 maxi floodlight; light control with lens of PMMA; cover panel of toughened safety glass, transparent; light distribution: PL64, asymmetric direct distribution, LED; colour temperature: 4000K, rated luminous flux: 102.250lm, colour rendering: CRI > 70, light colour: 740; luminous efficacy: 90lm/W; pre-setting: logarithmic dimming characteristic; brightness control: DMX+RDM; with terminal, 6-pole, max. 2.5mm², mains connection: 220..240V/380..400V AC, 50/60Hz, surge voltage resistance: line to ground: 10kV, LED service life up to 100,000h L90. Typical operating time: 1000h per year., ECG replaceable separately, LED unit replaceable without ESD environment, dustproof LED module, dimming range 10..100%; 1140W floodlight with 2x LED unit of diecast aluminium, natural; length: 713mm / width: 651mm / height: 338mm; mounting bracket, of diecast aluminium, uncoated, natural, equipment: Power, protection rating (complete): IP66; insulation class (complete): insulation class I (protective earthing); certification: CE, ENEC, VDE; ball protection: ball impact resistant, only for outdoor installations in the designated locations, permissible operating ambient temperature: -40..+55°C, permissible storage temperature: -40..+85°Cpackaging unit: 1 piece
Downloads
Technical product information
Data for applications
