5XA779724K01GB
Article floodlight

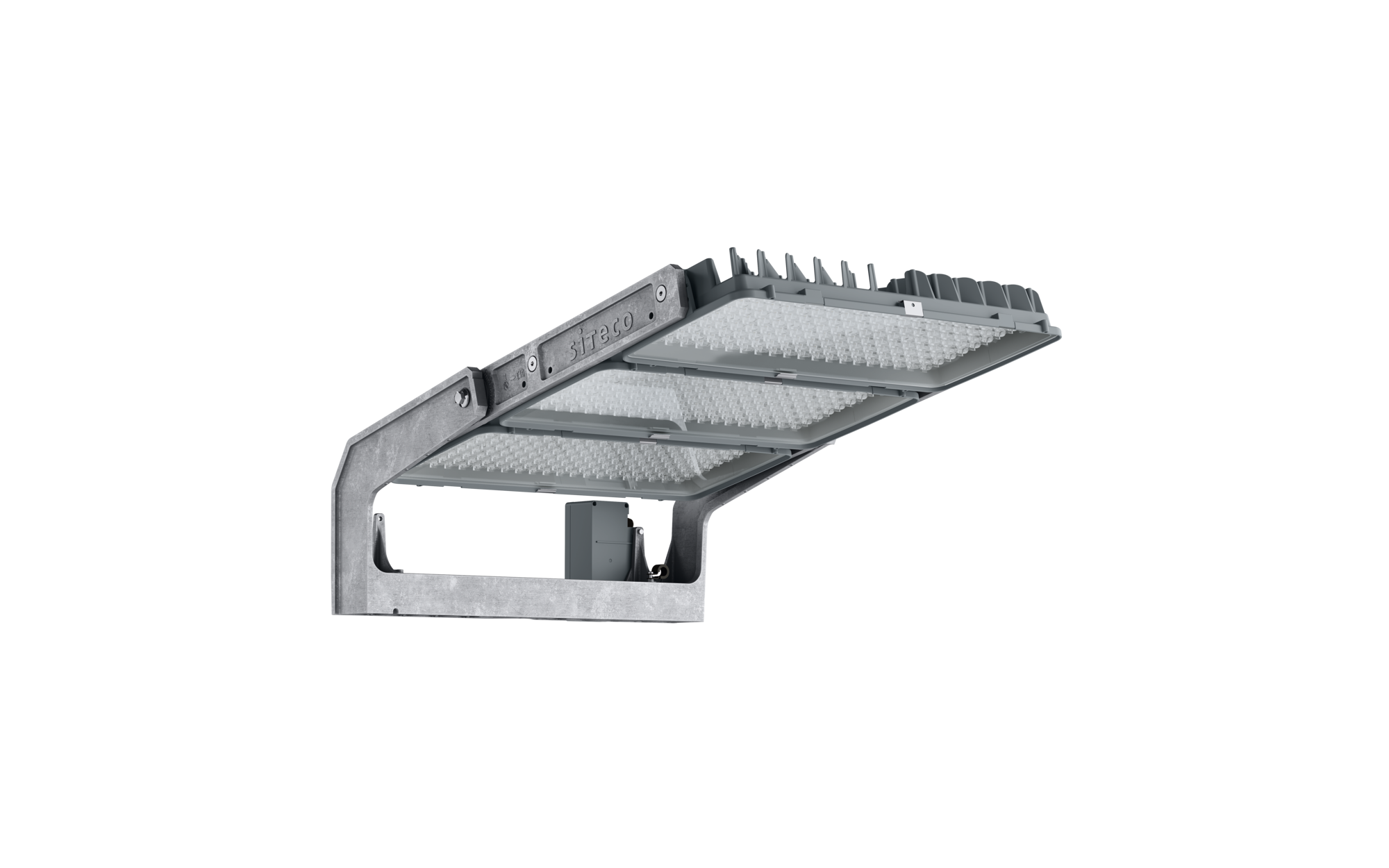

Product name Floodlight FL 11 maxi pro
Lamp LED
Rated luminous flux 123000lm
Luminous efficacy 100.2lm/W
Colour temperature 5700K
Colour rendering CRI > 90
Pnom 1227.1W
Protection rating IP66
Weight 30.6kg

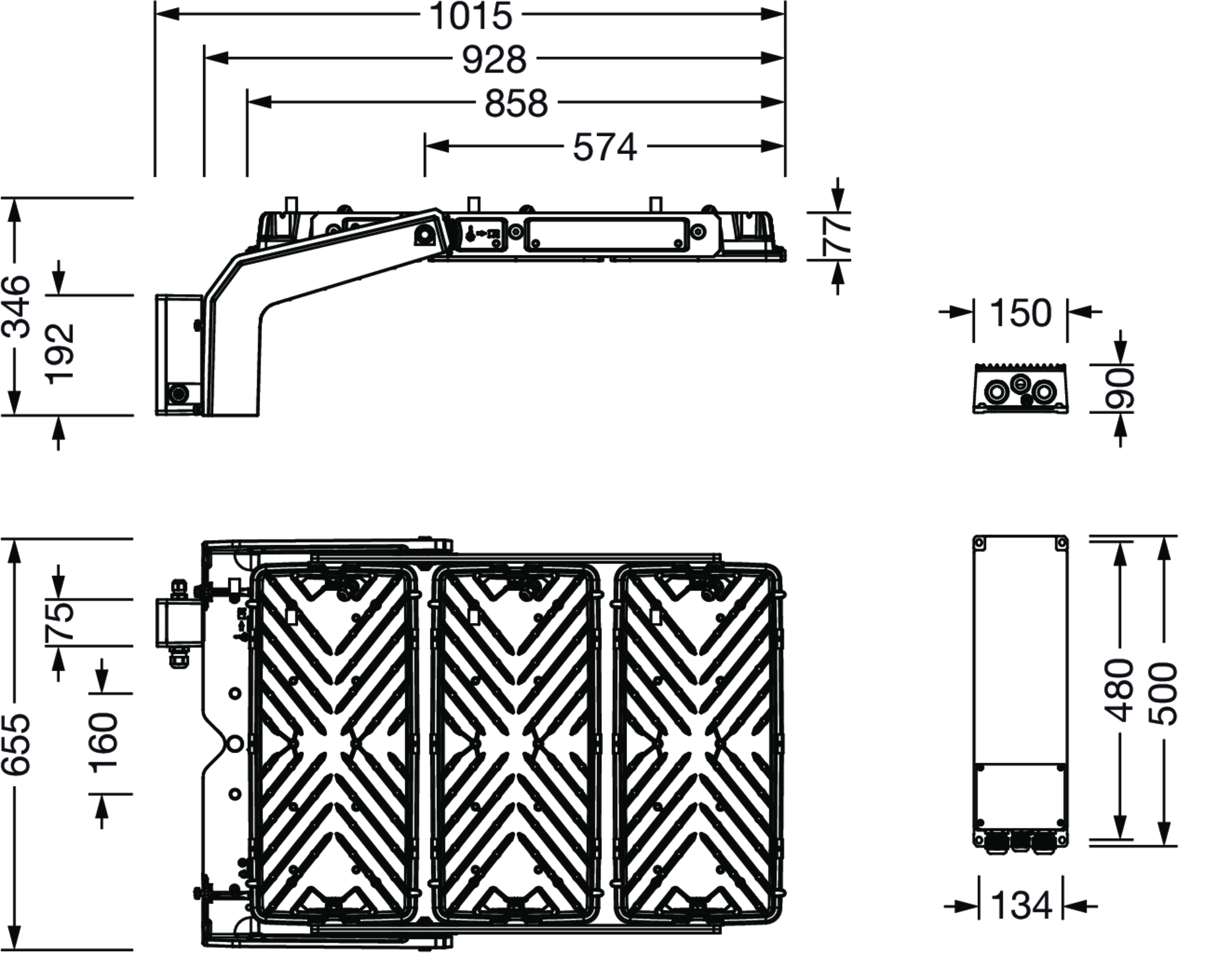

Floodlight FL 11 maxi pro floodlight; light control with lens of PMMA; cover panel of toughened safety glass, transparent; light distribution: R070001, rotationally symmetric direct distribution, rated values: 123.000lm | 1.227,1W | 100,2lm/W, colour temperature: 5700K, colour rendering: CRI > 90, light colour: 957, light setting 1 (further light settings possible): 100% | 123.000lm | 1.227,1W | 100,2lm/W | 5.700Kpre-setting: linear dimming characteristic; brightness control: DMX+RDM; mains connection: 220..240V/380..400V AC, 50/60Hz, surge voltage resistance: line to ground: 10kV, electrical connection: terminal, 5-pole, max. 2.5mm², solid wire, fine wire, ECG replaceable separately, LED unit replaceable without ESD environment, dustproof LED unit, dimming range 10..100%; floodlight with 3x LED unit of diecast aluminium, coated grey; length: 1.003mm / width: 651mm / height: 338mm; mounting bracket, of diecast aluminium, uncoated, natural, equipment: Power, protection rating (complete): IP66; insulation class (complete): insulation class I (protective earthing); certification: CE, ENEC, VDE; ball protection: ball impact resistant, only for outdoor installations in the designated locations, permissible operating ambient temperature: -45..+55°C, permissible storage temperature: -40..+85°Cpackaging unit: 1 piece
Downloads
Technical product information
- Installation sheet (PDF)
- Installation sheet (PDF)
- Data sheet (PDF)
- Environmental Product Declaration EPD (PDF)
Data for applications
