5XA779727X01AB
Article floodlight

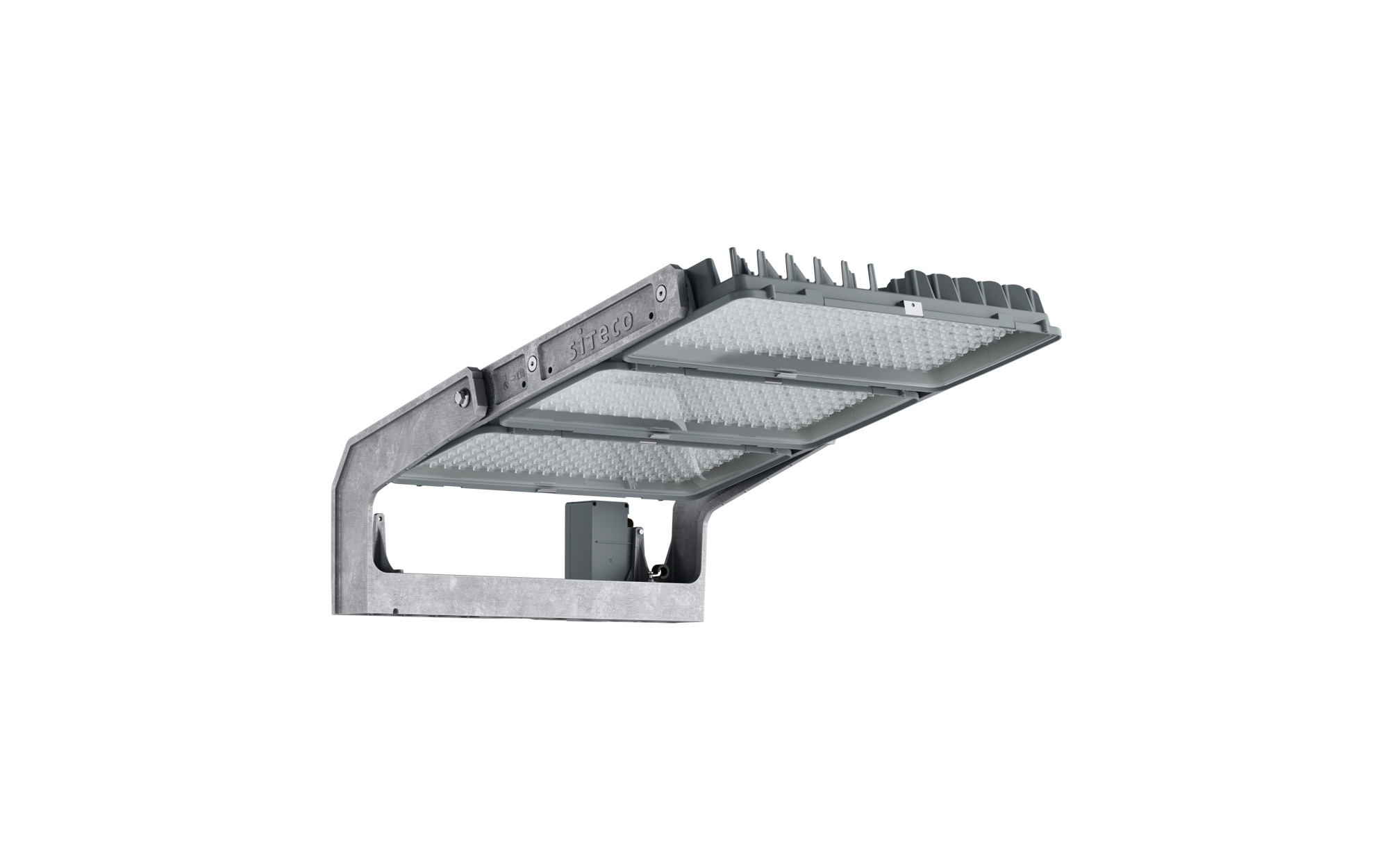

Product name Floodlight FL 11 maxi pro Remote
Lamp LED
Rated luminous flux 180530lm
Luminous efficacy 103.7lm/W
Colour temperature 5000K
Colour rendering CRI > 70
Pnom 1741.1W
Service life 10000h (L96/B10) at AT = 10°C, 75000h (L80/B10) at AT = 10°C
Protection rating IP66
Weight 30.6kg

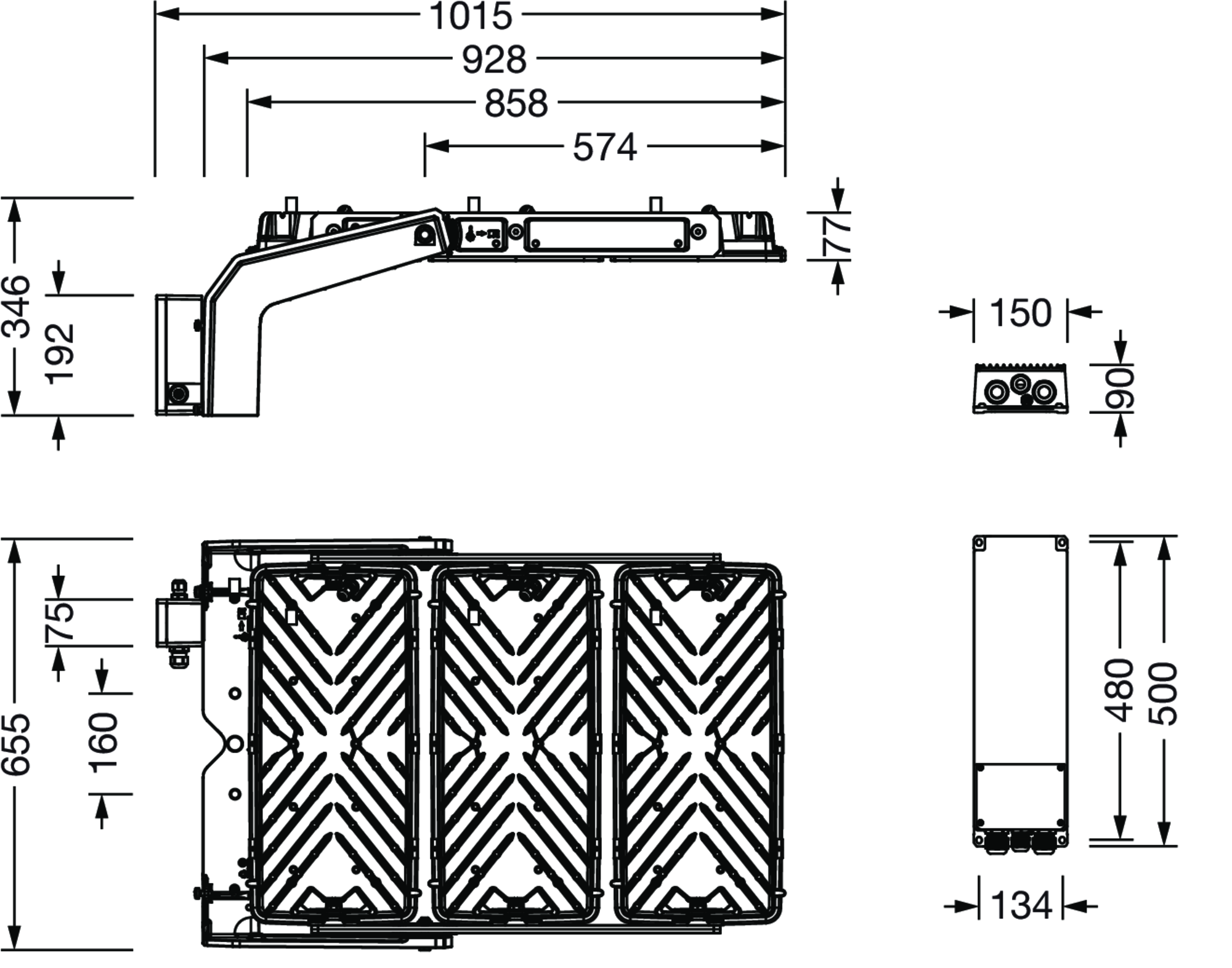

Floodlight FL 11 maxi pro Remote floodlight; light control with lens of PMMA; cover panel of toughened safety glass, transparent; light distribution: A33B001, asymmetric direct distribution, rated values: 180.530lm | 1.741,1W | 103,7lm/W, colour temperature: 5000K, colour rendering: CRI > 70, light colour: 750, light setting 1 (further light settings possible): 100% | 180.530lm | 1.741,1W | 103,7lm/W | 5.000Kpre-setting: linear dimming characteristic; brightness control: DMX+RDM; mains connection: 220..240V/380..400V AC, 50/60Hz, surge voltage resistance: line to ground: 10kV, electrical connection: terminal, 5-pole, max. 2.5mm², solid wire, fine wire, ECG replaceable separately, LED unit replaceable without ESD environment, dustproof LED unit, dimming range 10..100%; floodlight with 3x LED unit of diecast aluminium, natural; length: 1.003mm / width: 651mm / height: 338mm; mounting bracket, of diecast aluminium, uncoated, natural, equipment: Power, protection rating (complete): IP66; insulation class (complete): insulation class I (protective earthing); certification: CE, ENEC, VDE; ball protection: ball impact resistant, only for outdoor installations in the designated locations, permissible operating ambient temperature: -40..+30°C, permissible storage temperature: -40..+85°Cpackaging unit: 1 piece
