Key data

Product type mast luminaire
Product name Streetlight SL 21 mini
Order No. 5XE6C47N08HB

Lighting technology

Light control lens of PMMA
Cover cover, transparent
Light distribution ST0.8a
Beam angle wide distribution
Symmetry asymmetric distribution
Light emission direct distribution

Lamps

Lamps with High Power LED, LED
Rated luminous flux 9430lm
Luminous efficacy 143lm/W
Colour temperature 4000K
Colour rendering index CRI > 70
Light colour 740
Rated input power begin service life 66
Rated input power end service life 69
Rated input power at 50% lumin. flux 30

Operating device

Control NEMA (7pin)
Equipment overheat protection, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation, pre-setting: linear dimming characteristic

Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK10
Temperature range (operation) -40..+50°C
Supplement standard-compliant lighting for roads and squares
Corrosion protection corrosivity category C5 high according to DIN EN ISO 12944
Certification, designation CE, ENEC, ENEC+, VDE

Material, Colour

luminaire housing diecast aluminium (EN AC-44300), powder-coated, SITECO metallic grey (DB 702S), inclination adjustable: 0°, 5°, 10°, 15°, sealing non-destructively replaceable, multi-level sealing system
Colour specification SITECO metallic grey (DB 702S)
Cover cover of toughened safety glass

Mounting

Mounting method, mounting location side-entry, on mast
Supplement with pre-assembled mast flange

Electrical connection

Nominal voltage 230..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)
Connection cable pre-assembled, L= 8.5m

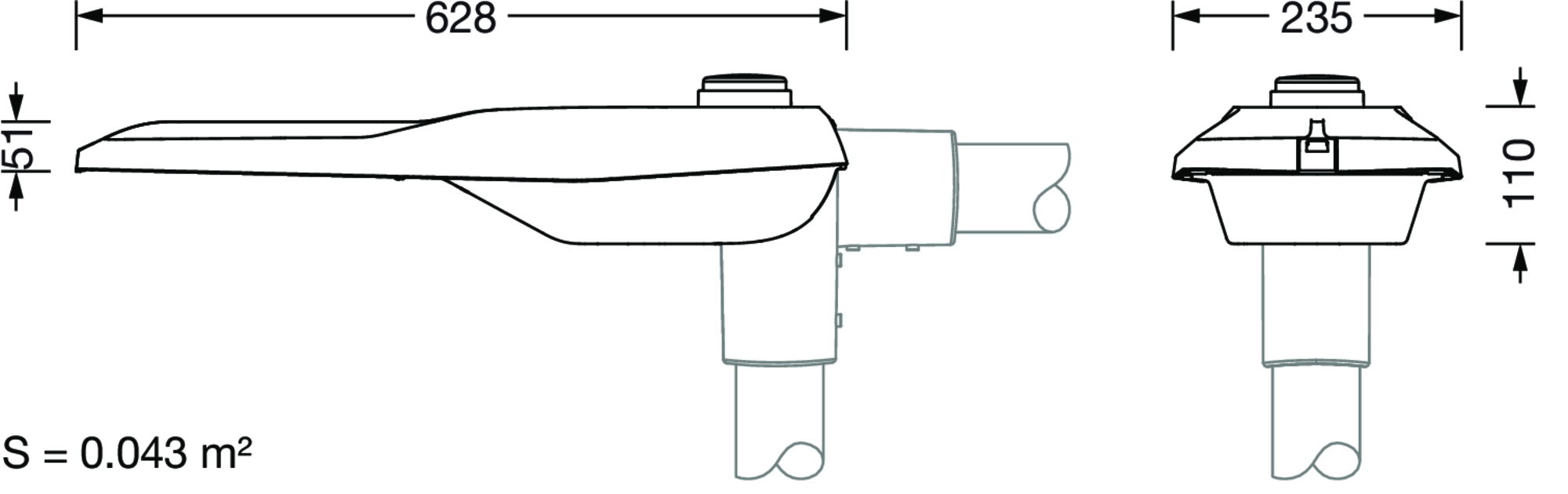

Dimensions, Weight

Length 628mm
Width 235mm
Height 110mm
Weight 7.1kg
Mast spigot spigot size: 42mm (side-entry)

Light emission

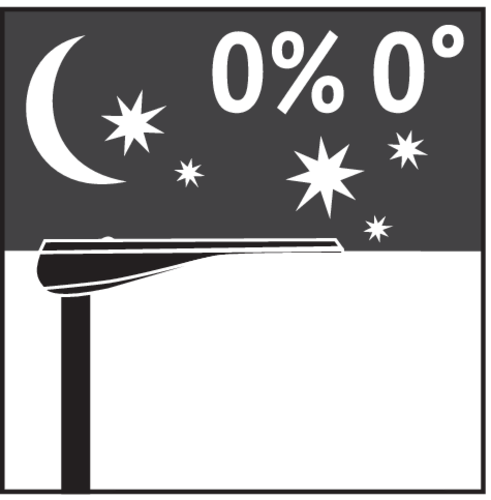

Light emission 0% at 0° inclination

Service life

Rated service life 100000h (L97/B10) at AT = 25°C
