Key data

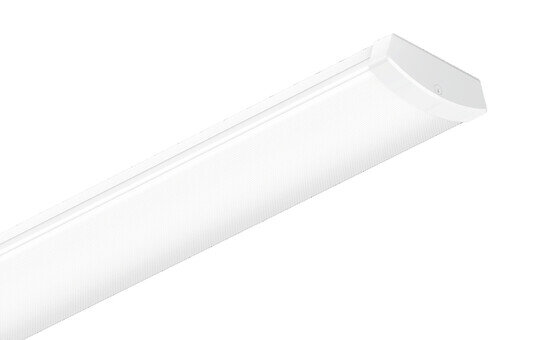

Product type office luminaire
Product name Siluette 21
Order No. 51LN12MNM70A3G

Component 1

Lighting technology
Cover enclosure, frosted

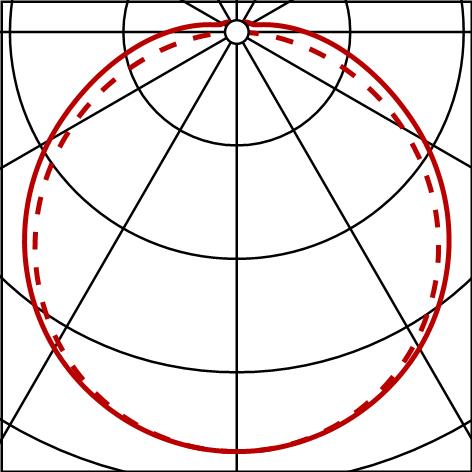

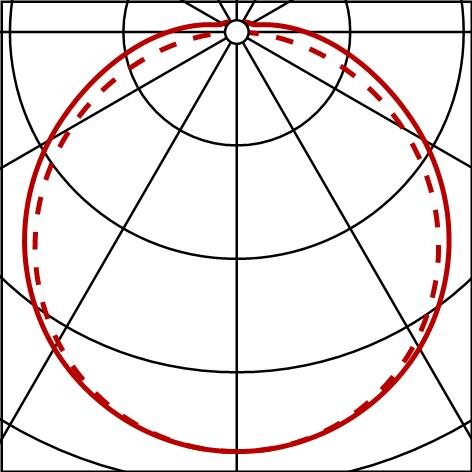

Beam angle wide distribution
Symmetry symmetric

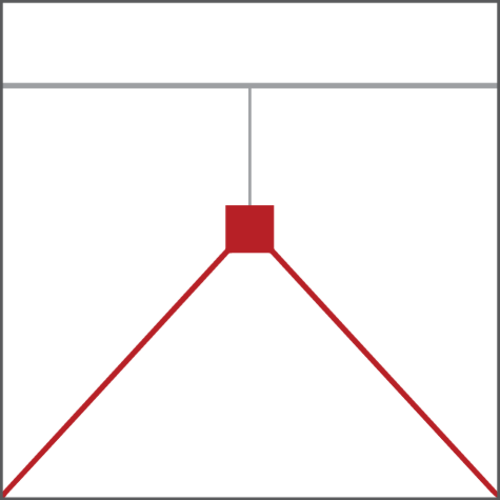

Light emission direct distribution

Lamps
Lamps with LED
Rated luminous flux 7150lm
Luminous efficacy 142lm/W
Colour temperature 3000/4000/5000K
Colour rendering index CRI > 80
Light colour 830/840/850
Rated input power 51W
Supplement suitable for emergency light operating devices according to EN 60598-2-22, luminous flux adjustable on luminaire in four steps (3800/4800/5900/7000lm), connected load according to luminous flux setting (27/34/42/50W)

Operating device
Control ON/OFF Multilumen

Component 2

Operating device
Control gear single battery element
Nominal operating time 3h

Certificates, Standards

Protection rating IP44
Insulation class insulation class I (protective earthing)
Impact resistance IK04
Protection symbol D
Temperature range (operation) +5..+40°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity
Standard EN 60598-2-22
Certification, designation CE, UKCA

Material, Colour

housing sheet steel, white
Colour specification white
end cap PMMA, white
Quantity 2 piece
Colour specification white
Cover enclosure of PC

Mounting

Mounting method, mounting location suspended mounting, surface-mounted, to wire, to the ceiling, to the wall
Arrangement single arrangement
Supplement only suitable for use in indoor areas

Electrical connection

Connection terminal, 4-pole
Nominal voltage 220..240V, 50/60Hz, AC

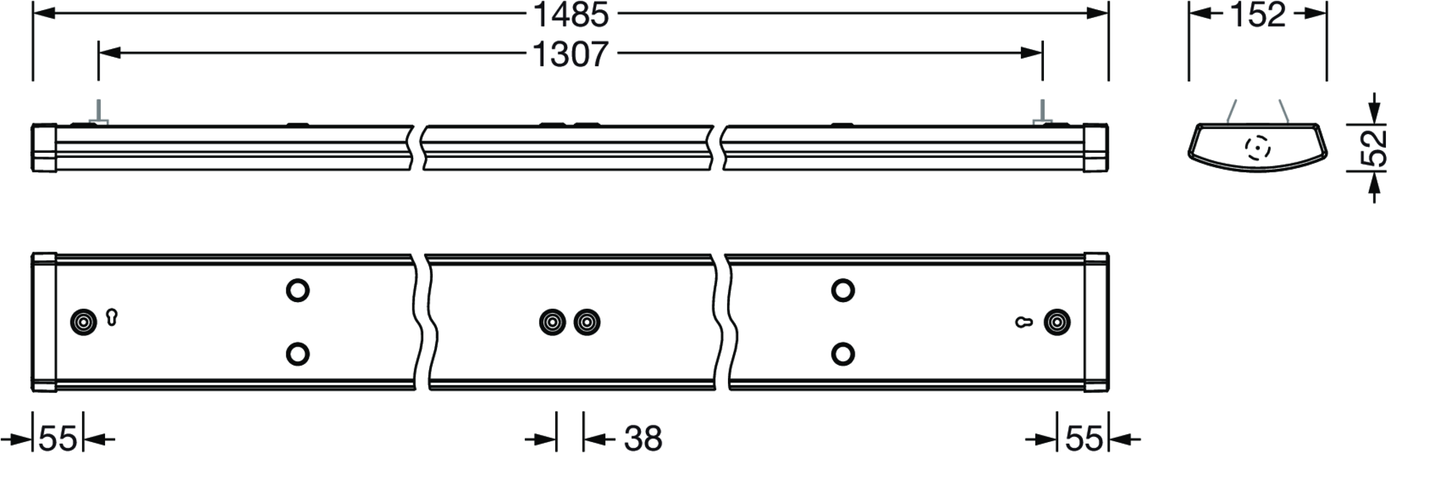

Dimensions, Weight

Length 1500mm
Width 152mm
Height 53mm
Weight 3.9kg

Service life

Rated service life 100000h (L80/B50) at AT = 25°C
