Modario® 31, narrow distribution, IP20, AC
Close
Article luminaire insert
Product name Modario® 31
Lamp LED
Rated luminous flux 11850lm
Luminous efficacy 175lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 68W
Service life 70000h (L80) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 1.7kg

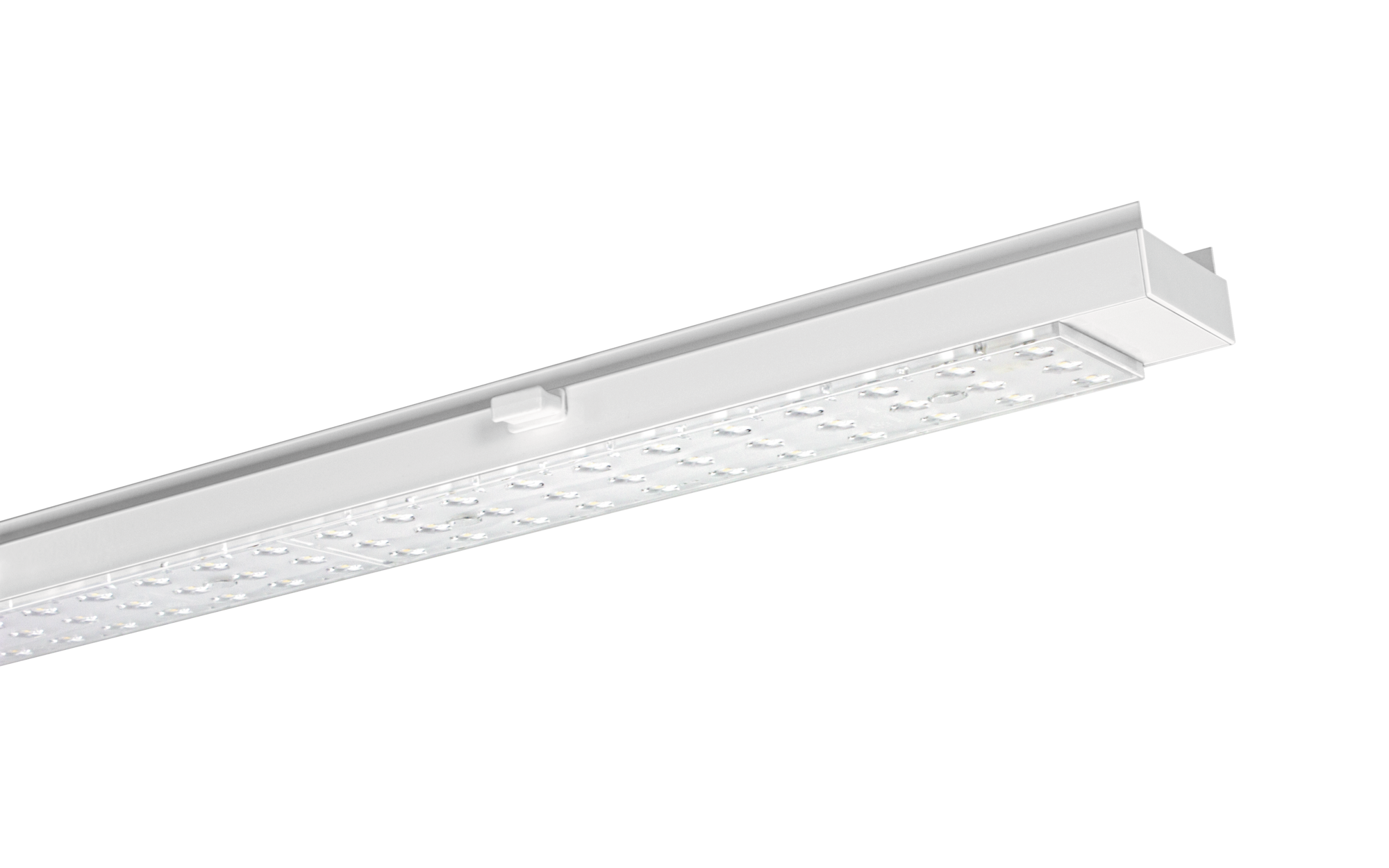

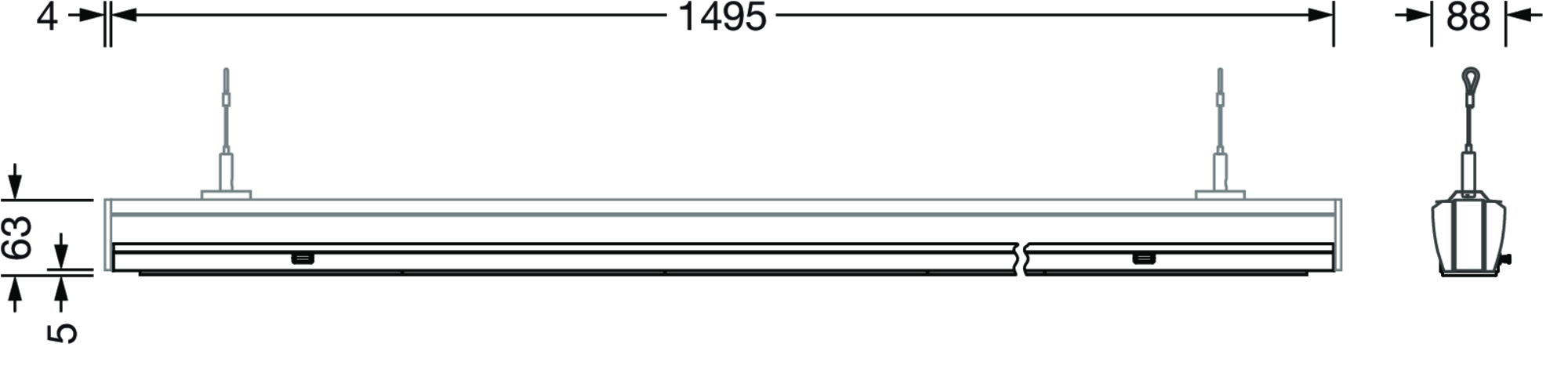

Modario® 31, luminaire insert, of aluminium, coated, traffic white (RAL 9016), length: 1.495mm, width: 78mm, height: 35mm, 5x system unit, system units: 299mm, LED rated luminous flux: 11.850lm, light colour: 840, SDCM (Standard Deviation of Colour Matching)MacAdam ≤ 3 SDCM (initial), control gear: ON/OFF Multilumen, with system connector: socket, mains connection: 220..240V, AC, 50/60Hz, rated input power: 68W, primary light control with lens, of plastic, primary optical cover: cover, of PMMA, light emission: direct distribution, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC 10, VDE, UKCA, impact resistance: IK03, permissible ambient temperature for indoor applications: -25..+35°C, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

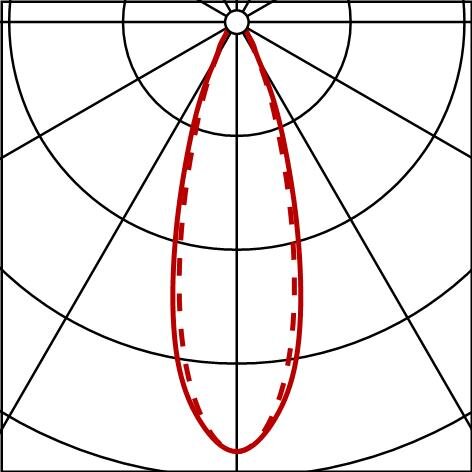

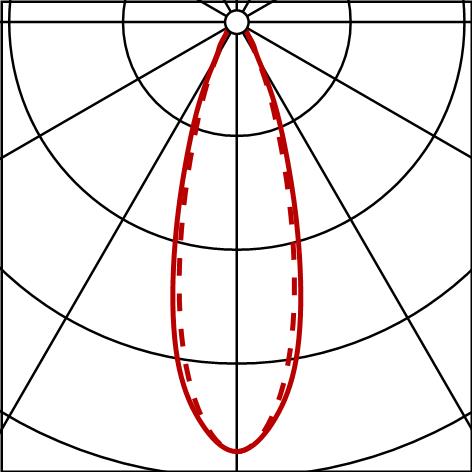

Photometric report / planning data
Mod31
LI,nrrw,11850lm840,ML,wh,5su
Lamps: 1x LED
Order No.: 51RN11MB4B5G5
