Product selection

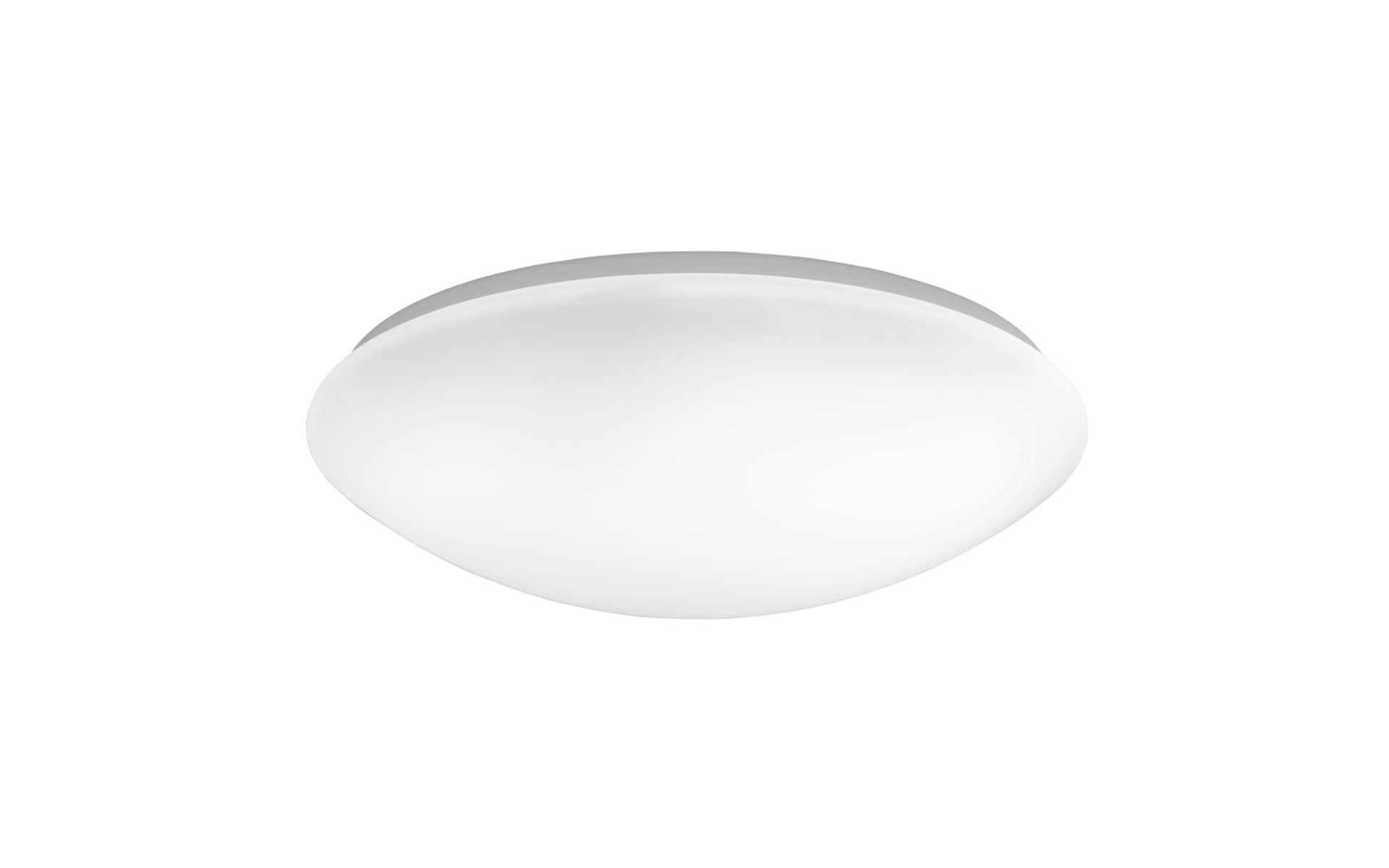

Rondel 41

Rondel 41

Key data

Article wall and ceiling luminaire
Lighting effect direct symmetric diffuse distribution
Net luminous flux 1350lm to 2300lm
Colour temperature 3000/4000K
Control ON/OFF
Cover PMMA
Protection rating IP44
Insulation class insulation class I (protective earthing)
Impact resistance IK02

Special features

Timeless design with familiar form factors
Pleasant room atmosphere and homogeneous illumination due to diffuse light distribution
Light according to needs with the version with presence and daylight sensor
Wide distribution UV-resistant diffuser
Also suitable for use in protected outdoor areas

Configuration & data sheets

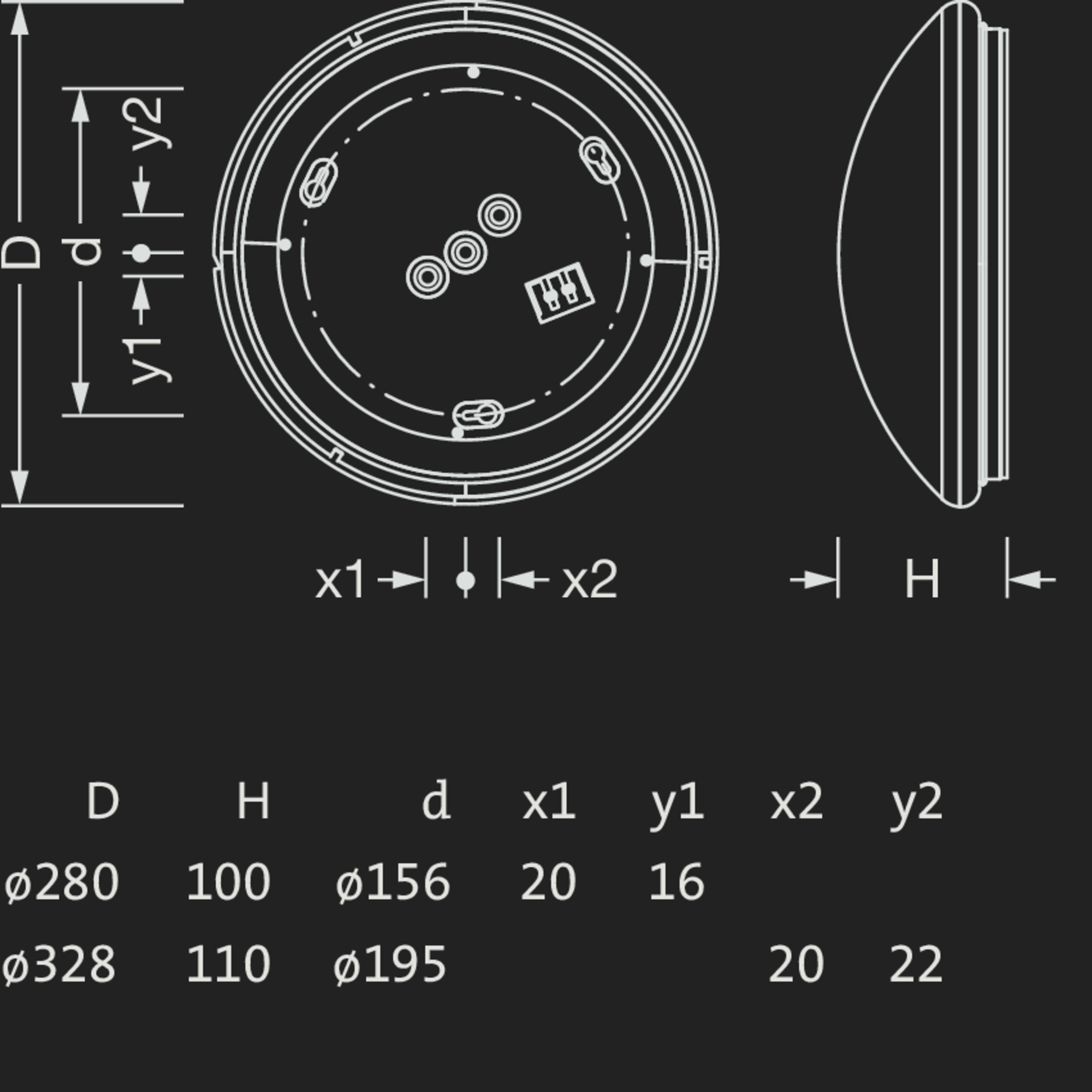

D (mm)

Rated luminous flux (lm)

Version

Operating ambient temperature

  • ceiling or wall installation without other luminaire-specific mounting accessories

Results

Rondel 41, direct distribution, diffuse distribution, Light colour 830/840, ON/OFF, white

Order No.: 51WD107AG1A GTIN (EAN): 4058352520949
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlD (mm)Wt. (kg)
3000/4000KCRI > 801350lm13W104lm/WON/OFF2800.6
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Rondel 41, direct distribution, diffuse distribution, Light colour 830/840, ON/OFF, HF sensor, white

Order No.: 51WD107AG1AS GTIN (EAN): 4058352520956
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlD (mm)Wt. (kg)
3000/4000KCRI > 801350lm14W96lm/WON/OFF2800.6
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Rondel 41, direct distribution, diffuse distribution, Light colour 830/840, ON/OFF, white

Order No.: 51WD107BG2A GTIN (EAN): 4058352520963
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlD (mm)Wt. (kg)
3000/4000KCRI > 802300lm21W105lm/WON/OFF3300.7
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Rondel 41, direct distribution, diffuse distribution, Light colour 830/840, ON/OFF, HF sensor, white

Order No.: 51WD107BG2AS GTIN (EAN): 4058352520970
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlD (mm)Wt. (kg)
3000/4000KCRI > 802300lm22W100lm/WON/OFF3300.8
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Rondel 41, direct distribution, diffuse distribution, Light colour 830/840, ON/OFF, white

Order No.: 51WD107AG1AGTIN (EAN): 4058352520949

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux1350lm
Connected load13W
Luminous efficacy104lm/W
ControlON/OFF
D (mm)280
Wt. (kg)0.6
Show all details

Rondel 41, direct distribution, diffuse distribution, Light colour 830/840, ON/OFF, HF sensor, white

Order No.: 51WD107AG1ASGTIN (EAN): 4058352520956

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux1350lm
Connected load14W
Luminous efficacy96lm/W
ControlON/OFF
D (mm)280
Wt. (kg)0.6
Show all details

Rondel 41, direct distribution, diffuse distribution, Light colour 830/840, ON/OFF, white

Order No.: 51WD107BG2AGTIN (EAN): 4058352520963

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux2300lm
Connected load21W
Luminous efficacy105lm/W
ControlON/OFF
D (mm)330
Wt. (kg)0.7
Show all details

Rondel 41, direct distribution, diffuse distribution, Light colour 830/840, ON/OFF, HF sensor, white

Order No.: 51WD107BG2ASGTIN (EAN): 4058352520970

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux2300lm
Connected load22W
Luminous efficacy100lm/W
ControlON/OFF
D (mm)330
Wt. (kg)0.8
Show all details
