Lunis R refurbishment kit
The refurbishment kit for your conventional Lunis R
Product types
Lunis R refurbishment kit
Intro product familyKey data
Article luminaire insert
Lighting effect direct wide distribution
Net luminous flux 4100lm to 4400lm
Colour temperature 3000K; 4000K
Control ON/OFF Multilumen; DALI 2
Special features
100% easy to install: The refurbishment kit is clipped into the existing luminaire without tools – no screws required, for installation with minimal effort
Excellent efficiency: Up to 174lm/W – for reduced operating costs and an optimized payback period
Resource-saving refurbishment: Existing optical accessories can be reused, and replacement is only necessary if required. The existing ceilings remain untouched – no opening, no damage. Minimal intervention, maximum benefit.
Infinite flexibility: Available in various light colours, with DALI and On/Off multi-lumen drivers – for optimal lighting results and customized solutions
Configuration & data sheets
Results

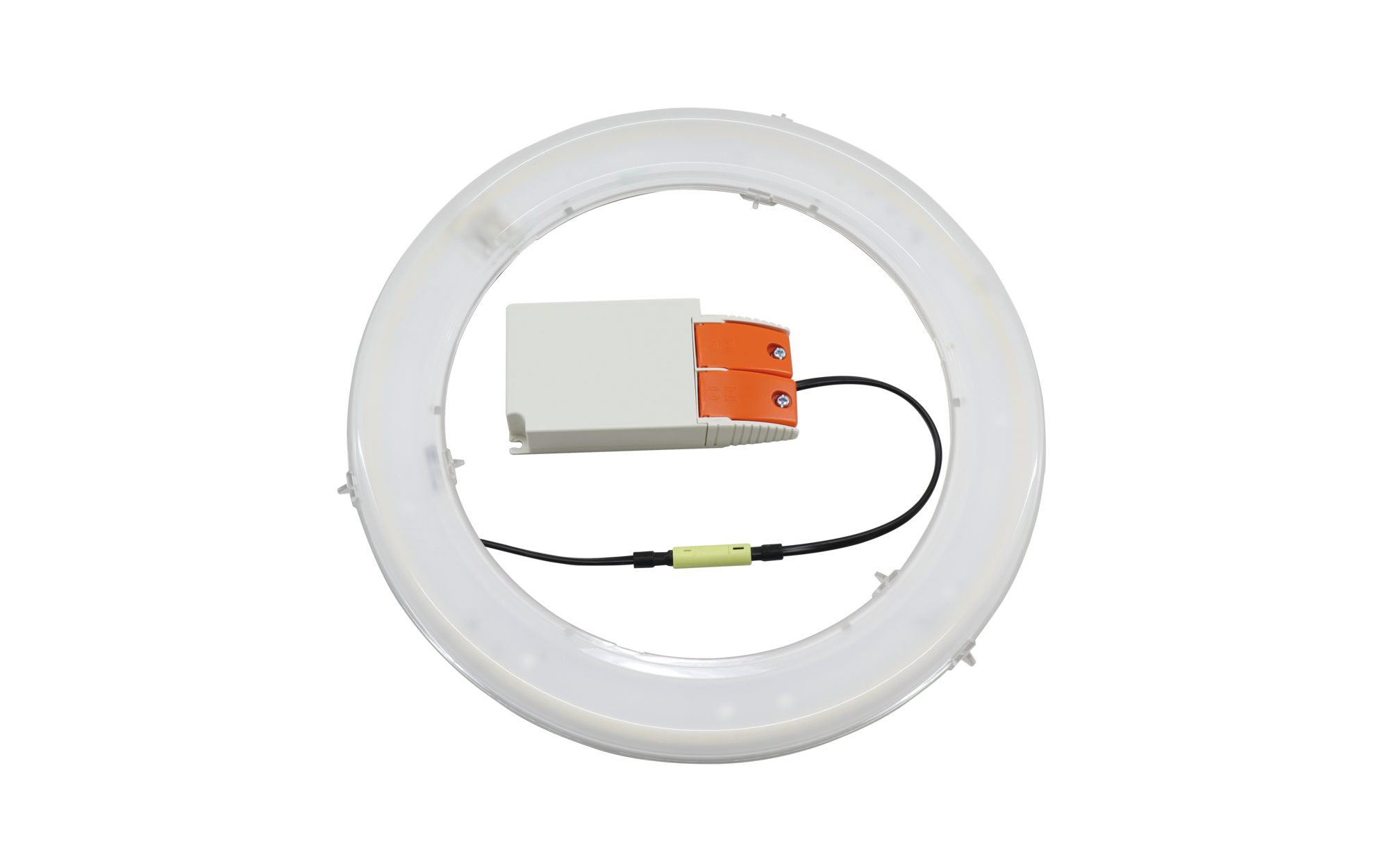

Lunis R, refurbishment insert, direct wide distribution, DALI 2
Order No.: 58DC011D02300A GTIN (EAN): 4069025391612
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4400lm | 27W | 164lm/W | DALI 2 | 0.5 | 196.10 |
Lunis R, refurbishment insert, direct wide distribution, DALI 2
Order No.: 58DC011D04300A GTIN (EAN): 4069025391636
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4400lm | 25W | 174lm/W | DALI 2 | 0.5 | 196.10 |
Lunis R, refurbishment insert, direct wide distribution, ON/OFF Multilumen
Order No.: 58DC011M02400A GTIN (EAN): 4069025314154
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4100lm | 25.9W | 158lm/W | ON/OFF Multilumen | 0.5 | 176.50 |
Lunis R, refurbishment insert, direct wide distribution, ON/OFF Multilumen
Order No.: 58DC011M04400A GTIN (EAN): 4069025314178
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4310lm | 25.9W | 166lm/W | ON/OFF Multilumen | 0.5 | 176.50 |
Lunis R, refurbishment insert, direct wide distribution, DALI 2
Order No.: 58DC011D02300AGTIN (EAN): 4069025391612
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4400lm |
| Connected load | 27W |
| Luminous efficacy | 164lm/W |
| Control | DALI 2 |
| Wt. (kg) | 0.5 |
| Price (EUR) | 196.10 |
Lunis R, refurbishment insert, direct wide distribution, DALI 2
Order No.: 58DC011D04300AGTIN (EAN): 4069025391636
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4400lm |
| Connected load | 25W |
| Luminous efficacy | 174lm/W |
| Control | DALI 2 |
| Wt. (kg) | 0.5 |
| Price (EUR) | 196.10 |
Lunis R, refurbishment insert, direct wide distribution, ON/OFF Multilumen
Order No.: 58DC011M02400AGTIN (EAN): 4069025314154
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4100lm |
| Connected load | 25.9W |
| Luminous efficacy | 158lm/W |
| Control | ON/OFF Multilumen |
| Wt. (kg) | 0.5 |
| Price (EUR) | 176.50 |
Lunis R, refurbishment insert, direct wide distribution, ON/OFF Multilumen
Order No.: 58DC011M04400AGTIN (EAN): 4069025314178
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4310lm |
| Connected load | 25.9W |
| Luminous efficacy | 166lm/W |
| Control | ON/OFF Multilumen |
| Wt. (kg) | 0.5 |
| Price (EUR) | 176.50 |
