SITECO
Monsun
Family

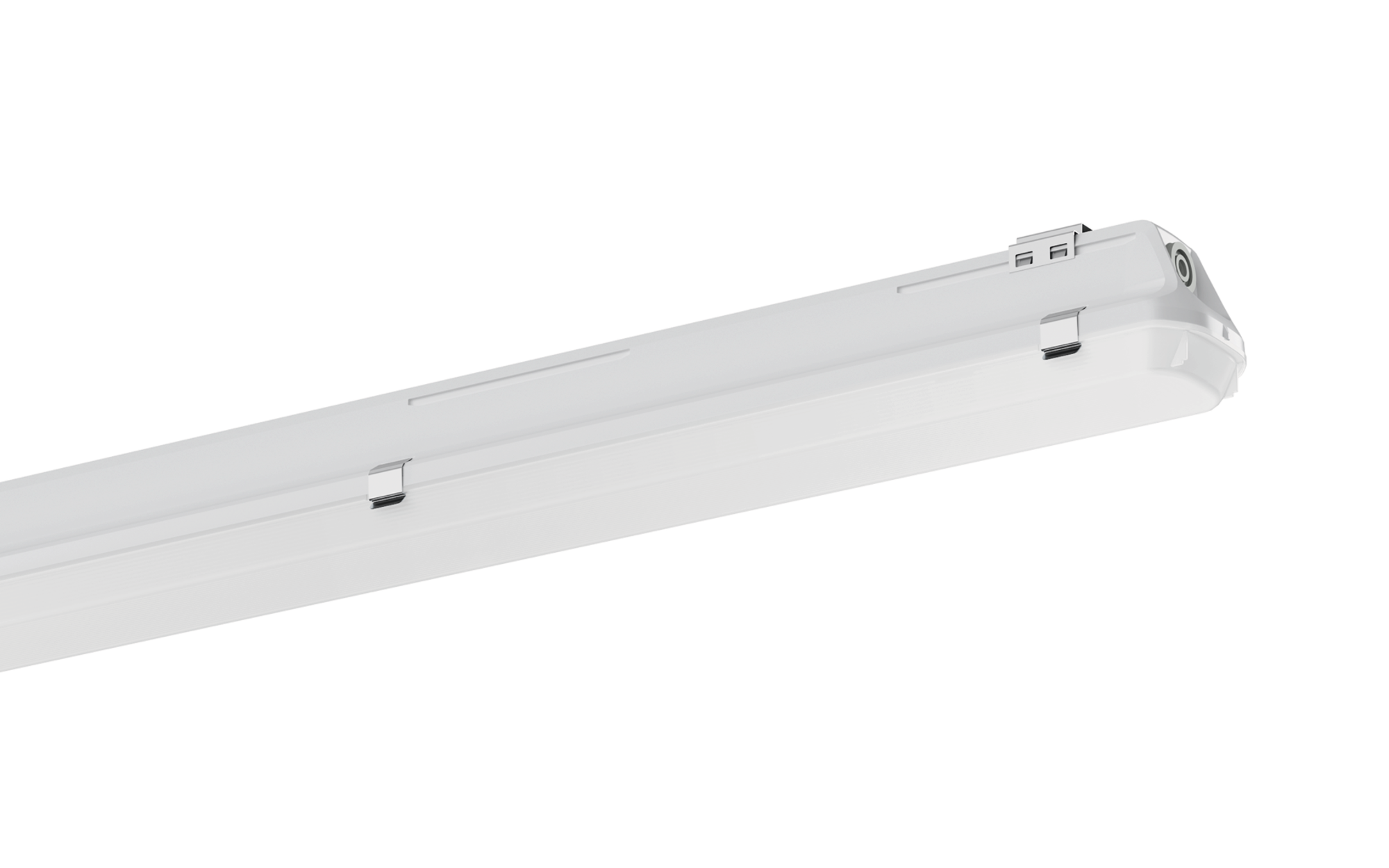

Monsun 11 High-end. Outstanding lighting technology and high-quality design meet maximum variability, efficiency (up to 200lm/W) and lifespan (100,000h)

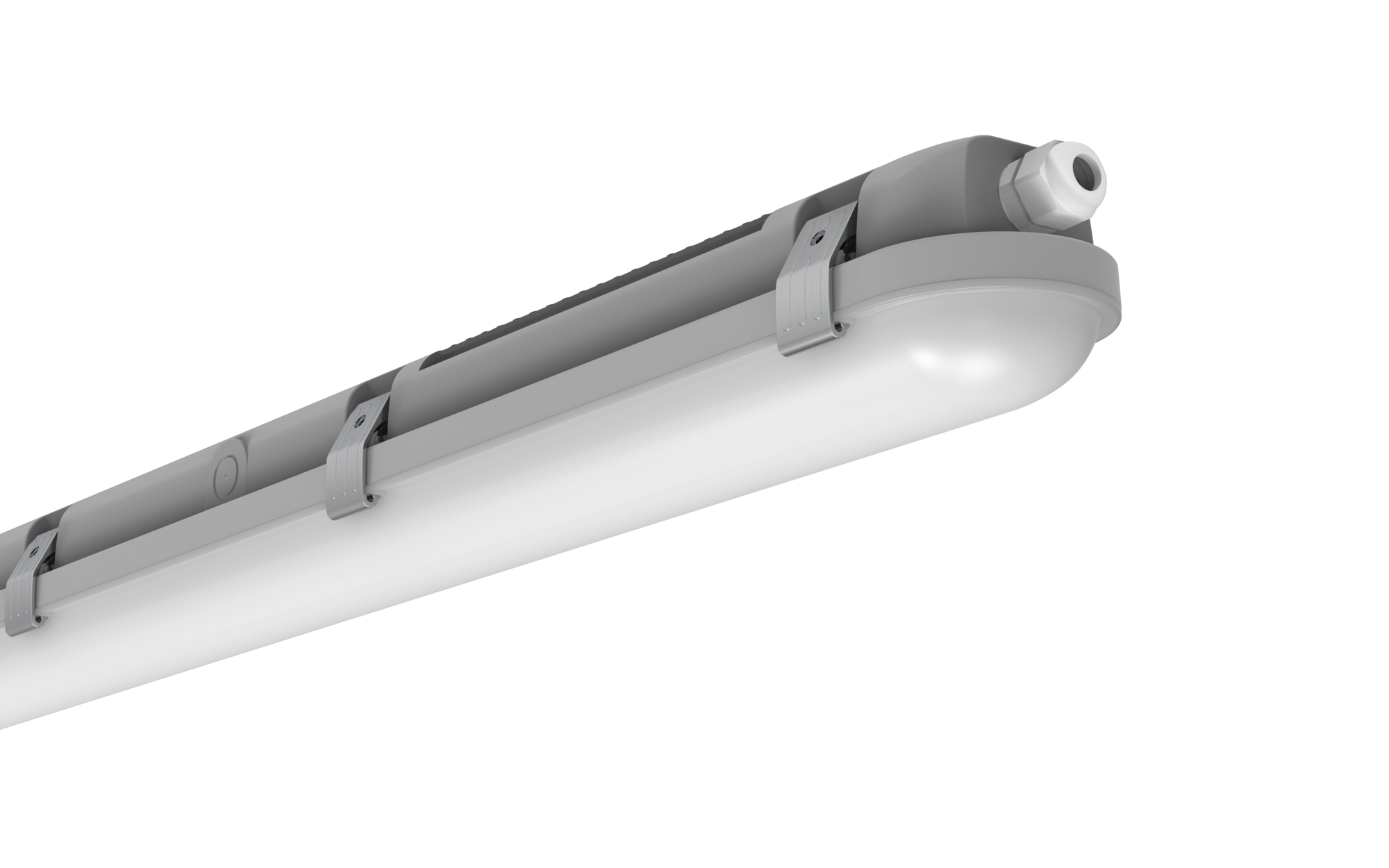

Monsun 21 Performance. Wide range of colours. Excellent efficiency (188lm/W) and service life (75,000h)
Monsun 31 Standard. Proven technology for standard applications with excellent efficiency (165lm/W) and service life (70,000 hours)

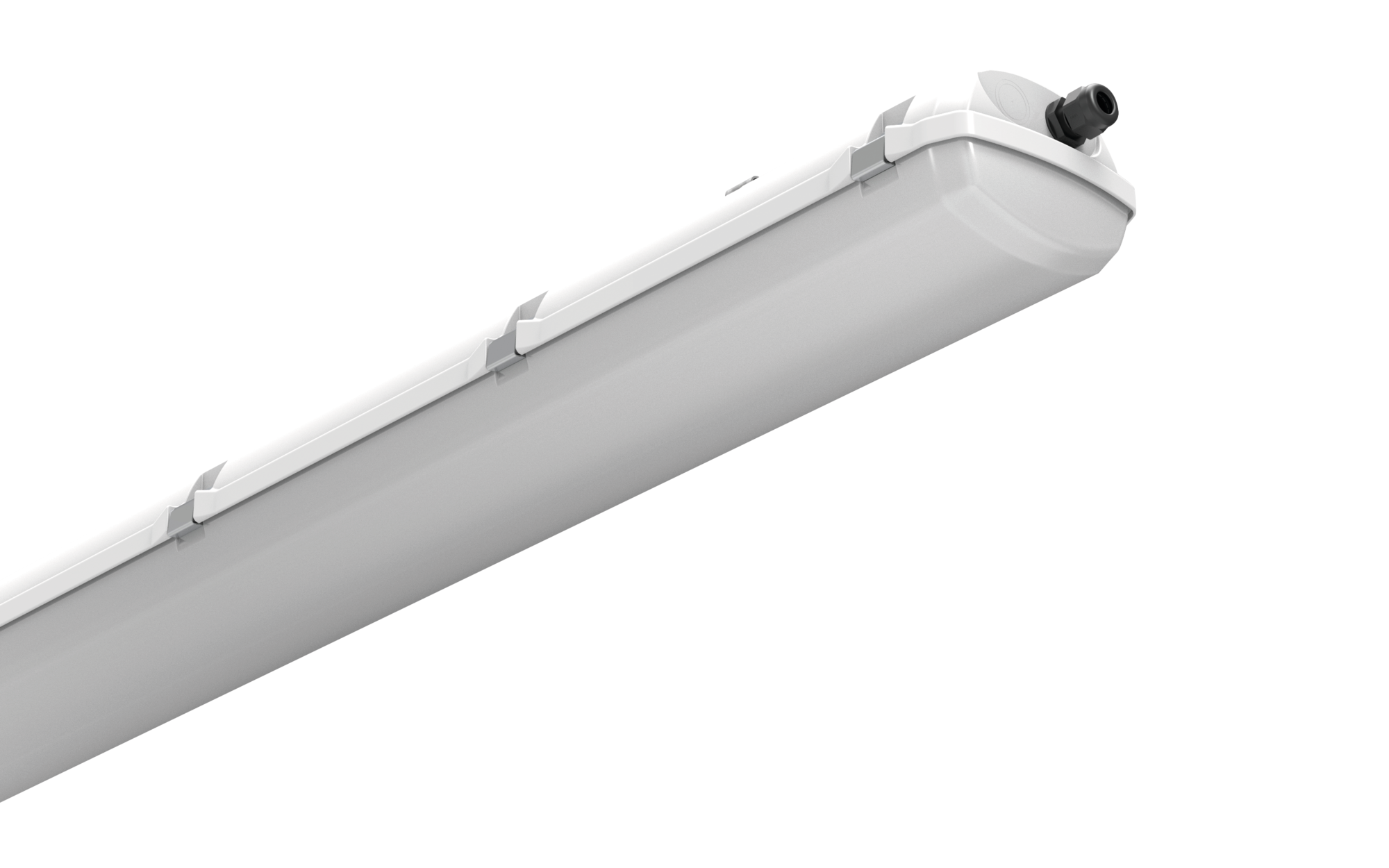

Monsun 31 Tube Tube solution. Highest protection class IP67/IP69K with excellent efficiency (160lm/W) and service life (50,000 hours)
Monsun 41 Basic. Practical, efficient (150lm/W) and durable (50,000 hours)
Monsun Ex Ex solution. For use in EX zones 1/21 and 2/22
Monsun enclosures
Product selection

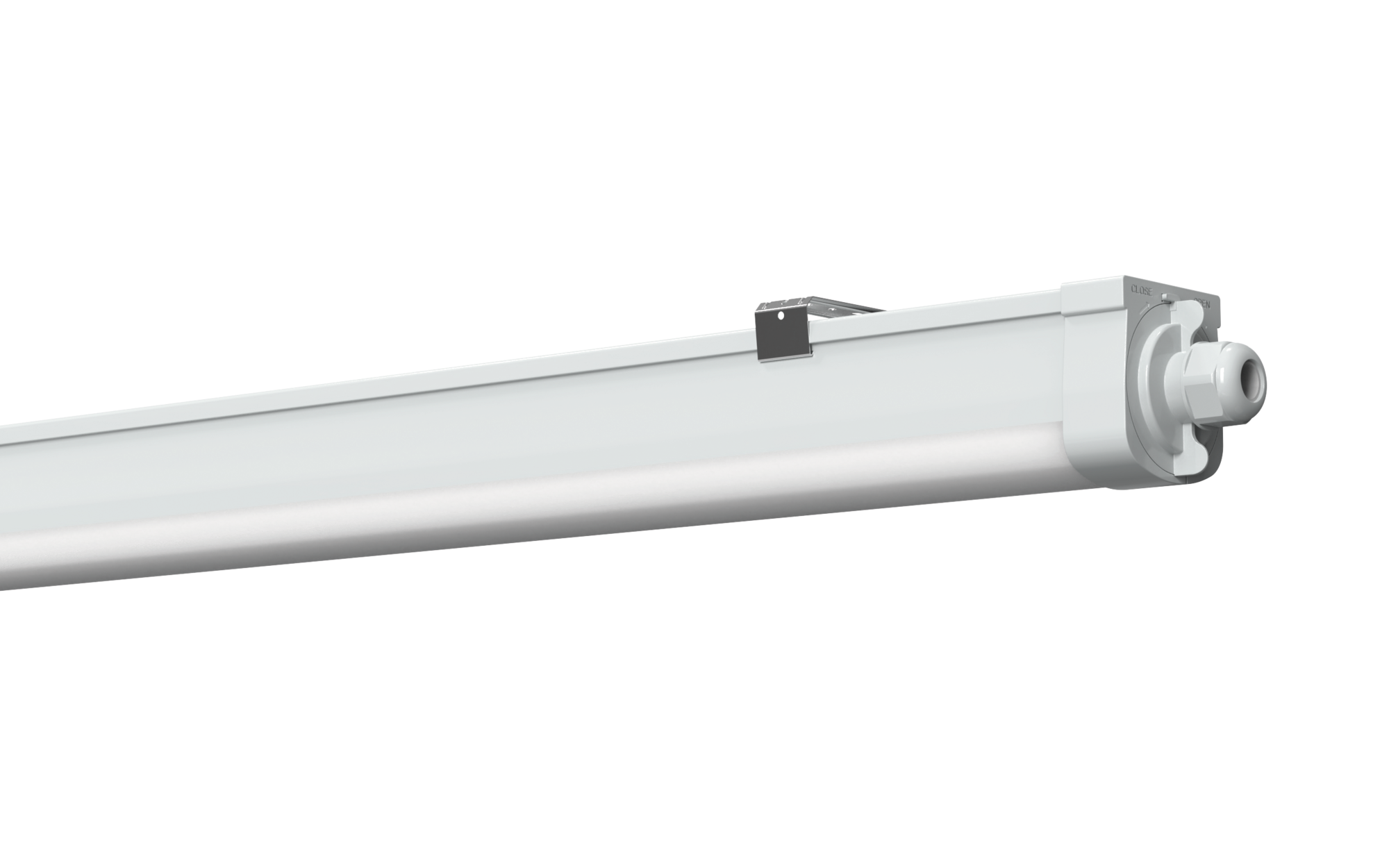

Monsun 41 with Multilumen
Key data
Article damp-proof luminaire
Lighting effect direct symmetric wide distribution
Net luminous flux 2630lm to 6750lm
Colour temperature 4000K
Control ON/OFF Multilumen; DALI 2
Cover PC
Protection rating IP65
Insulation class insulation class I (protective earthing)
Protection symbol D
Impact resistance IK08
IFS corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry
Special features
Configuration & data sheets
- includes ceiling/wall fixing element and chain hanger of V2A; ceiling or wall installation without other luminaire-specific mounting accessories; for further installation methods: please order mounting accessory separately
- for chain suspension: please order chain separately
Results
Monsun 41, wide distribution, , DALI 2
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 2630lm | 17.5W | 150lm/W | DALI 2 | 5x 1.5mm² | 651 | 0.9 |
Monsun 41, wide distribution, , DALI 2
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5100lm | 34W | 150lm/W | DALI 2 | 5x 1.5mm² | 1251 | 1.5 |
Monsun 41, wide distribution, , DALI 2
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 6750lm | 45W | 150lm/W | DALI 2 | 5x 1.5mm² | 1551 | 1.8 |
Monsun 41, wide distribution, , ON/OFF Multilumen
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 2630lm | 17.5W | 150lm/W | ON/OFF Multilumen | 3x 1.5mm² | 651 | 0.9 |
Monsun 41, wide distribution, , ON/OFF Multilumen
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5100lm | 34W | 150lm/W | ON/OFF Multilumen | 3x 1.5mm² | 1251 | 1.4 |
Monsun 41, wide distribution, , ON/OFF Multilumen
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 6700lm | 45W | 149lm/W | ON/OFF Multilumen | 3x 1.5mm² | 1551 | 1.7 |
Monsun 41, wide distribution, , DALI 2
Order No.: 51FK20DD420BGTIN (EAN): 4069025570765
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2630lm |
| Connected load | 17.5W |
| Luminous efficacy | 150lm/W |
| Control | DALI 2 |
| Through-wiring | 5x 1.5mm² |
| L (mm) | 651 |
| Wt. (kg) | 0.9 |
Monsun 41, wide distribution, , DALI 2
Order No.: 51FK20DK450BGTIN (EAN): 4069025570772
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5100lm |
| Connected load | 34W |
| Luminous efficacy | 150lm/W |
| Control | DALI 2 |
| Through-wiring | 5x 1.5mm² |
| L (mm) | 1251 |
| Wt. (kg) | 1.5 |
Monsun 41, wide distribution, , DALI 2
Order No.: 51FK20DN460BGTIN (EAN): 4069025570789
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6750lm |
| Connected load | 45W |
| Luminous efficacy | 150lm/W |
| Control | DALI 2 |
| Through-wiring | 5x 1.5mm² |
| L (mm) | 1551 |
| Wt. (kg) | 1.8 |
Monsun 41, wide distribution, , ON/OFF Multilumen
Order No.: 51FK20MD420BGTIN (EAN): 4069025570796
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2630lm |
| Connected load | 17.5W |
| Luminous efficacy | 150lm/W |
| Control | ON/OFF Multilumen |
| Through-wiring | 3x 1.5mm² |
| L (mm) | 651 |
| Wt. (kg) | 0.9 |
Monsun 41, wide distribution, , ON/OFF Multilumen
Order No.: 51FK20MK450BGTIN (EAN): 4069025570802
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5100lm |
| Connected load | 34W |
| Luminous efficacy | 150lm/W |
| Control | ON/OFF Multilumen |
| Through-wiring | 3x 1.5mm² |
| L (mm) | 1251 |
| Wt. (kg) | 1.4 |
Monsun 41, wide distribution, , ON/OFF Multilumen
Order No.: 51FK20MN460BGTIN (EAN): 4069025570819
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6700lm |
| Connected load | 45W |
| Luminous efficacy | 149lm/W |
| Control | ON/OFF Multilumen |
| Through-wiring | 3x 1.5mm² |
| L (mm) | 1551 |
| Wt. (kg) | 1.7 |

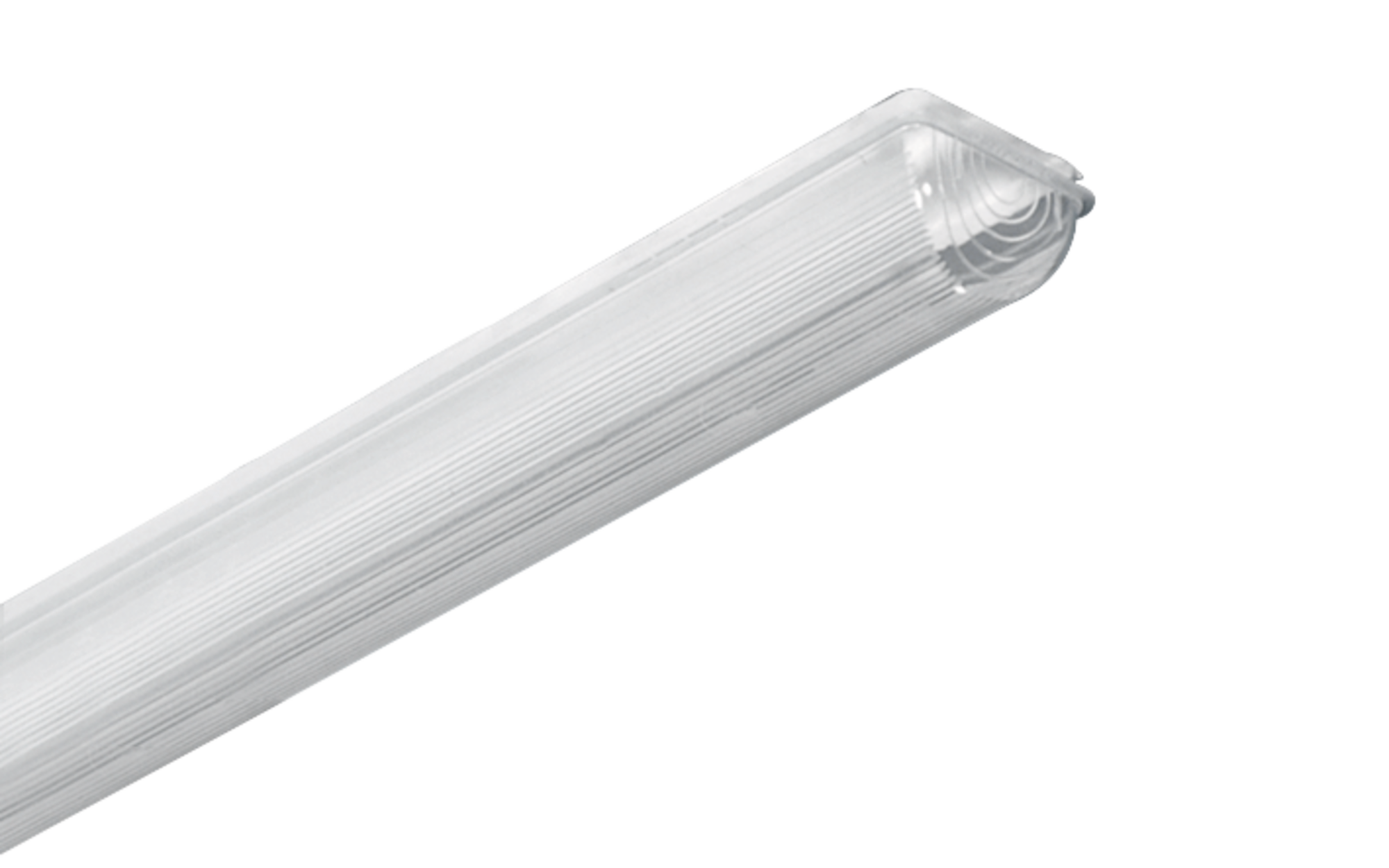

Optional accessories
| Order No.: 5LY9001GTIN (EAN): 4039806184290 | Show all details |
| Order No.: 5LY9002GTIN (EAN): 4039806184313 | Show all details |
| Order No.: 5LY9004GTIN (EAN): 4039806184368 | Show all details |
