Complete your road and city lighting with high-quality design masts or design brackets as well as standard masts in various designs and heights. You will also find important accessories such as cable junction boxes and reducers here.

The extra for road and city lighting

wall bracket for side-entry mounting of luminaires

Intro to Productfamily

Data

Article wall flange; corner flange

Configuration & Datasheets

Article

Bracket spigot size

Colour

  • both the ‘wall bracket’ and the ‘corner bracket’ are two-piece brackets comprising the individual components ‘wall flange’ or ‘corner flange’ and ‘mounting tube’. please order the mounting tube with the appropriate dimensions in addition to the wall or corner flange

Results

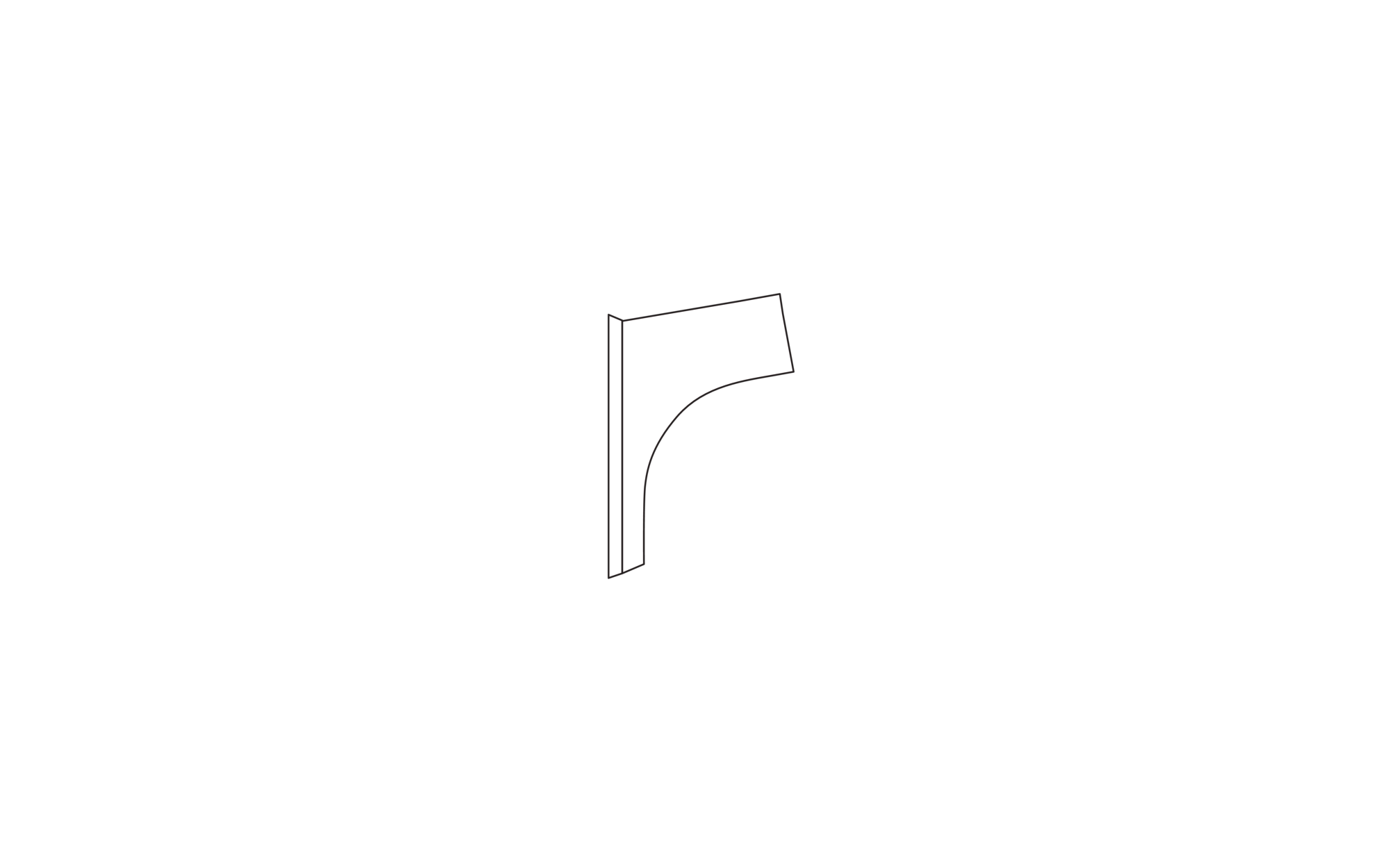

wall flange, light grey (RAL 7035)

Order No.: 5NY51001GTIN (EAN): 4039806199898
ArticleBracket spigot sizeColourWt. (kg)
wall flangespigot size: 42mmlight grey (RAL 7035)0.9

wall flange, light grey (RAL 7035)

Order No.: 5NY51021GTIN (EAN): 4039806199652
ArticleBracket spigot sizeColourWt. (kg)
wall flangespigot size: 60mmlight grey (RAL 7035)0.8

wall flange, Siteco® metallic grey (DB 702S)

Order No.: 5NY5100108GTIN (EAN): 4050737722856
ArticleBracket spigot sizeColourWt. (kg)
wall flangespigot size: 42mmSiteco® metallic grey (DB 702S)0.9

wall flange, Siteco® metallic grey (DB 702S)

Order No.: 5NY5102108GTIN (EAN): 4050737722894
ArticleBracket spigot sizeColourWt. (kg)
wall flangespigot size: 60mmSiteco® metallic grey (DB 702S)0.8

corner flange, light grey (RAL 7035)

Order No.: 5NY51011GTIN (EAN): 4039806199614
ArticleBracket spigot sizeColourWt. (kg)
corner flangespigot size: 42mmlight grey (RAL 7035)0.9

corner flange, light grey (RAL 7035)

Order No.: 5NY51031GTIN (EAN): 4039806199676
ArticleBracket spigot sizeColourWt. (kg)
corner flangespigot size: 60mmlight grey (RAL 7035)0.9

corner flange, Siteco® metallic grey (DB 702S)

Order No.: 5NY5101108GTIN (EAN): 4050737722887
ArticleBracket spigot sizeColourWt. (kg)
corner flangespigot size: 42mmSiteco® metallic grey (DB 702S)0.9

corner flange, Siteco® metallic grey (DB 702S)

Order No.: 5NY5103108GTIN (EAN): 4050737722917
ArticleBracket spigot sizeColourWt. (kg)
corner flangespigot size: 60mmSiteco® metallic grey (DB 702S)1.0

wall flange, light grey (RAL 7035)

Order No.: 5NY51001GTIN (EAN): 4039806199898

Articlewall flange
Bracket spigot sizespigot size: 42mm
Colourlight grey (RAL 7035)
Wt. (kg)0.9

wall flange, light grey (RAL 7035)

Order No.: 5NY51021GTIN (EAN): 4039806199652

Articlewall flange
Bracket spigot sizespigot size: 60mm
Colourlight grey (RAL 7035)
Wt. (kg)0.8

wall flange, Siteco® metallic grey (DB 702S)

Order No.: 5NY5100108GTIN (EAN): 4050737722856

Articlewall flange
Bracket spigot sizespigot size: 42mm
ColourSiteco® metallic grey (DB 702S)
Wt. (kg)0.9

wall flange, Siteco® metallic grey (DB 702S)

Order No.: 5NY5102108GTIN (EAN): 4050737722894

Articlewall flange
Bracket spigot sizespigot size: 60mm
ColourSiteco® metallic grey (DB 702S)
Wt. (kg)0.8

corner flange, light grey (RAL 7035)

Order No.: 5NY51011GTIN (EAN): 4039806199614

Articlecorner flange
Bracket spigot sizespigot size: 42mm
Colourlight grey (RAL 7035)
Wt. (kg)0.9

corner flange, light grey (RAL 7035)

Order No.: 5NY51031GTIN (EAN): 4039806199676

Articlecorner flange
Bracket spigot sizespigot size: 60mm
Colourlight grey (RAL 7035)
Wt. (kg)0.9

corner flange, Siteco® metallic grey (DB 702S)

Order No.: 5NY5101108GTIN (EAN): 4050737722887

Articlecorner flange
Bracket spigot sizespigot size: 42mm
ColourSiteco® metallic grey (DB 702S)
Wt. (kg)0.9

corner flange, Siteco® metallic grey (DB 702S)

Order No.: 5NY5103108GTIN (EAN): 4050737722917

Articlecorner flange
Bracket spigot sizespigot size: 60mm
ColourSiteco® metallic grey (DB 702S)
Wt. (kg)1.0

Mandatory accessory

Articlesupporting tube, galvanised, d_a= 42mm, arm length 225mmPU1 pc.Wt. (kg)0.3Order No.: 5NY51000XDGTIN (EAN): 4039806199553Show details
Articlesupporting tube, galvanised, d_a= 42mm, arm length 375mmPU1 pc.Wt. (kg)0.6Order No.: 5NY51001XDGTIN (EAN): 4039806199089Show details
Articlesupporting tube, galvanised, d_a= 42mm, arm length 525mmPU1 pc.Wt. (kg)0.9Order No.: 5NY51002XDGTIN (EAN): 4039806199577Show details
Articlesupporting tube, Siteco® metallic grey (DB 702S), d_a= 42mm, arm length 225mmPU1 pc.Wt. (kg)0.3Order No.: 5NY51000XD08GTIN (EAN): 4050737723389Show details
Articlesupporting tube, Siteco® metallic grey (DB 702S), d_a= 42mm, arm length 375mmPU1 pc.Wt. (kg)0.6Order No.: 5NY51001XD08GTIN (EAN): 4050737723402Show details
Articlesupporting tube, Siteco® metallic grey (DB 702S), d_a= 42mm, arm length 525mmPU1 pc.Wt. (kg)0.9Order No.: 5NY51002XD08GTIN (EAN): 4050737723426Show details
Articlesupporting tube, galvanised, d_a= 60mm, arm length 225mmPU1 pc.Wt. (kg)0.5Order No.: 5NY51011XDGTIN (EAN): 4039806199072Show details
Articlesupporting tube, galvanised, d_a= 60mm, arm length 375mmPU1 pc.Wt. (kg)0.9Order No.: 5NY51010XDGTIN (EAN): 4039806199591Show details
Articlesupporting tube, galvanised, d_a= 60mm, arm length 525mmPU1 pc.Wt. (kg)1.3Order No.: 5NY51020XDGTIN (EAN): 4039806199638Show details
Articlesupporting tube, Siteco® metallic grey (DB 702S), d_a= 60mm, arm length 225mmPU1 pc.Wt. (kg)0.5Order No.: 5NY51011XD08GTIN (EAN): 4050737723464Show details
Articlesupporting tube, Siteco® metallic grey (DB 702S), d_a= 60mm, arm length 375mmPU1 pc.Wt. (kg)0.9Order No.: 5NY51010XD08GTIN (EAN): 4050737723440Show details
Articlesupporting tube, Siteco® metallic grey (DB 702S), d_a= 60mm, arm length 525mmPU1 pc.Wt. (kg)1.3Order No.: 5NY51020XD08GTIN (EAN): 4050737723488Show details
