Licross® 11/21 for local control

ProducttypesConfiguration & Datasheets

Stay flexible: The modular system of Licross® enables any configuration of the sensors according to your individual requirements. Changes in use are also easy for the Licross® sensors, so today's high-bay warehouse can already be a free logistics space tomorrow. Regardless of the application, you will always receive the optimal, economical solution thanks to specialized sensors. At the same time, Licross® sensors are true energy saving miracles: with daylight-dependent control you save up to 20%, with movement-dependent control even up to 80% in energy costs. 45 years of experience – trunking Made in Germany perfected in our Licross® trunking system. The one-for-all concept offers a variety of luminaire inserts and functional expansion options for maximum flexibility and future compatibility. With its unique 14 cores, the rail system becomes the backbone of the building infrastructure and is ready for a wide range of applications - today and tomorrow. The luminaire inserts offer outstanding lighting technology with up to 200lm/W for low operating costs as well as SITECO-typical optics technology for the best viewing conditions. Various extensions from sensor to UVC air disinfection device open up a broad horizon of applications far from lighting, which create additional added value.

Simple standalone solution

Siteco Connect 31 Logistic - for magazines and corridors

Intro to Productfamily

Data

Equipamiento maestro; esclava
Descripción Sensor-Head PR1-M; Sensor-Head PR1-S; Interface MS; Interface MD; Interface S

Specials

Multi-sensor for use in magazines and corridors
Multi-sensor with very high detection quality guarantees reliable detection of large areas with few sensors. With one sensor, up to 800m² can be detected depending on presence
Sensor specially developed for the application. Circular detection area
Master already contains the complete intelligence for room-related lighting control. This reduces complexity and saves space
Basic energy-saving functions such as motion detection, daylight threshold value and fully automatic operation reduce energy costs and CO2 consumption
Inventory light deactivates the sensor function during the inventory period and controls the lights to 100% illuminance
Sensor planning in Relux saves time and gives you the security of planning sensor detection correctly

Configuration & Datasheets

Equipamiento

Adicional

  • en caso de contacto de línea DALI 1 apto a partir de cableado de 7 conductores
  • with 14-core wiring, tapping between DALI line 1 and DALI line 2 can be slided tool-free
  • adaptación a las condiciones del lugar a través de una interfaz de sensor giratoria de 90°
  • por cada sensor de expansión, la cantidad de balastos electrónicos controlables se reduce en 3 unidades
  • una unidad de sensor consta de Sensor Head y Interface

Results

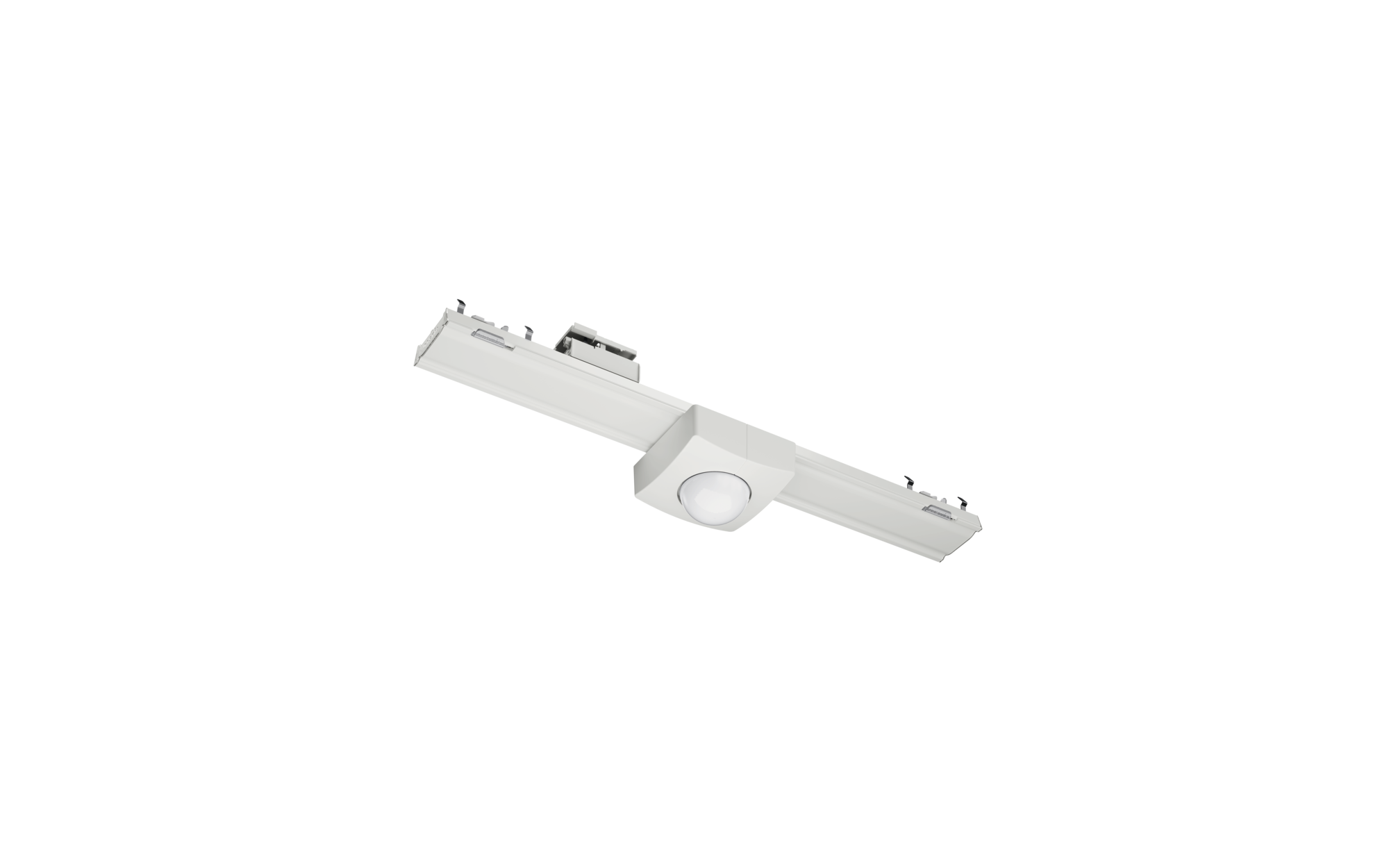

Licross® Interface, maestro, conmutable

Referencia: 56TL1FAMA GTIN (EAN): 4058352400524
DescripciónÁmbito de aplicaciónControlAltura de montajeIntervalo de detección de movimientoDimensión (mm)ta
Interface MS ON/OFF 500x96-20..+50°C

Licross® Interface, maestro, regulable

Referencia: 56TL1FCMA GTIN (EAN): 4058352373873
DescripciónÁmbito de aplicaciónControlAltura de montajeIntervalo de detección de movimientoDimensión (mm)ta
Interface MD DALI 500x96-20..+50°C

Licross® Interface, esclava, regulable

Referencia: 56TL1FCSA GTIN (EAN): 4058352373880
DescripciónÁmbito de aplicaciónControlAltura de montajeIntervalo de detección de movimientoDimensión (mm)ta
Interface S DALI 2 500x96-20..+50°C

SITECO Connect, esclava, regulable

Referencia: 59US1HXSPR1A GTIN (EAN): 4058352363997
DescripciónÁmbito de aplicaciónControlAltura de montajeIntervalo de detección de movimientoDimensión (mm)ta
Sensor-Head PR1-Scorredor y revistaDALI 22,5..5mtangential máx. 23x6m95x95-20..+50°C

SITECO Connect, maestro, conmutable, regulable

Referencia: 59US1HXMPR1A GTIN (EAN): 4058352363850
DescripciónÁmbito de aplicaciónControlAltura de montajeIntervalo de detección de movimientoDimensión (mm)ta
Sensor-Head PR1-Mcorredor y revista 2,5..5mmáx. 23x6m95x95-20..+50°C

Licross® Interface, maestro, conmutable

Referencia: 56TL1FAMAGTIN (EAN): 4058352400524

DescripciónInterface MS
Ámbito de aplicación
ControlON/OFF
Altura de montaje
Intervalo de detección de movimiento
Dimensión (mm)500x96
ta-20..+50°C

Licross® Interface, maestro, regulable

Referencia: 56TL1FCMAGTIN (EAN): 4058352373873

DescripciónInterface MD
Ámbito de aplicación
ControlDALI
Altura de montaje
Intervalo de detección de movimiento
Dimensión (mm)500x96
ta-20..+50°C

Licross® Interface, esclava, regulable

Referencia: 56TL1FCSAGTIN (EAN): 4058352373880

DescripciónInterface S
Ámbito de aplicación
ControlDALI 2
Altura de montaje
Intervalo de detección de movimiento
Dimensión (mm)500x96
ta-20..+50°C

SITECO Connect, esclava, regulable

Referencia: 59US1HXSPR1AGTIN (EAN): 4058352363997

DescripciónSensor-Head PR1-S
Ámbito de aplicacióncorredor y revista
ControlDALI 2
Altura de montaje2,5..5m
Intervalo de detección de movimientotangential máx. 23x6m
Dimensión (mm)95x95
ta-20..+50°C

SITECO Connect, maestro, conmutable, regulable

Referencia: 59US1HXMPR1AGTIN (EAN): 4058352363850

DescripciónSensor-Head PR1-M
Ámbito de aplicacióncorredor y revista
Control
Altura de montaje2,5..5m
Intervalo de detección de movimientomáx. 23x6m
Dimensión (mm)95x95
ta-20..+50°C
