SITECO
tunnel luminaires
References
Kaisermühlentunnel Vienna, Austria
Products: Tunnellight TL23
learn more
Eyholz Tunnel, Visp, Switzerland
Products: Tunnellight TL13
learn more
Katzensee Tunnel, Zurich, Switzerland
Products: Tunnellight TL13
learn more
Bindermichl Tunnel Linz, Austria
learn more

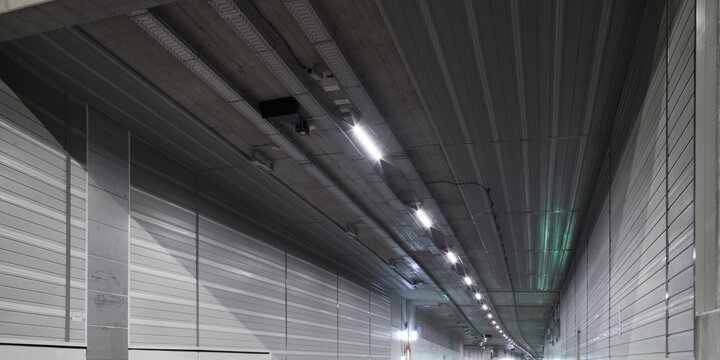

Karoline-Luise-Tunnel, Karlsruhe, Germany
Products: Tunnellight TL23, Tunnellight TL13, Tunnellight TL 33 / TL 33C / TL 33S
learn more
Product selection

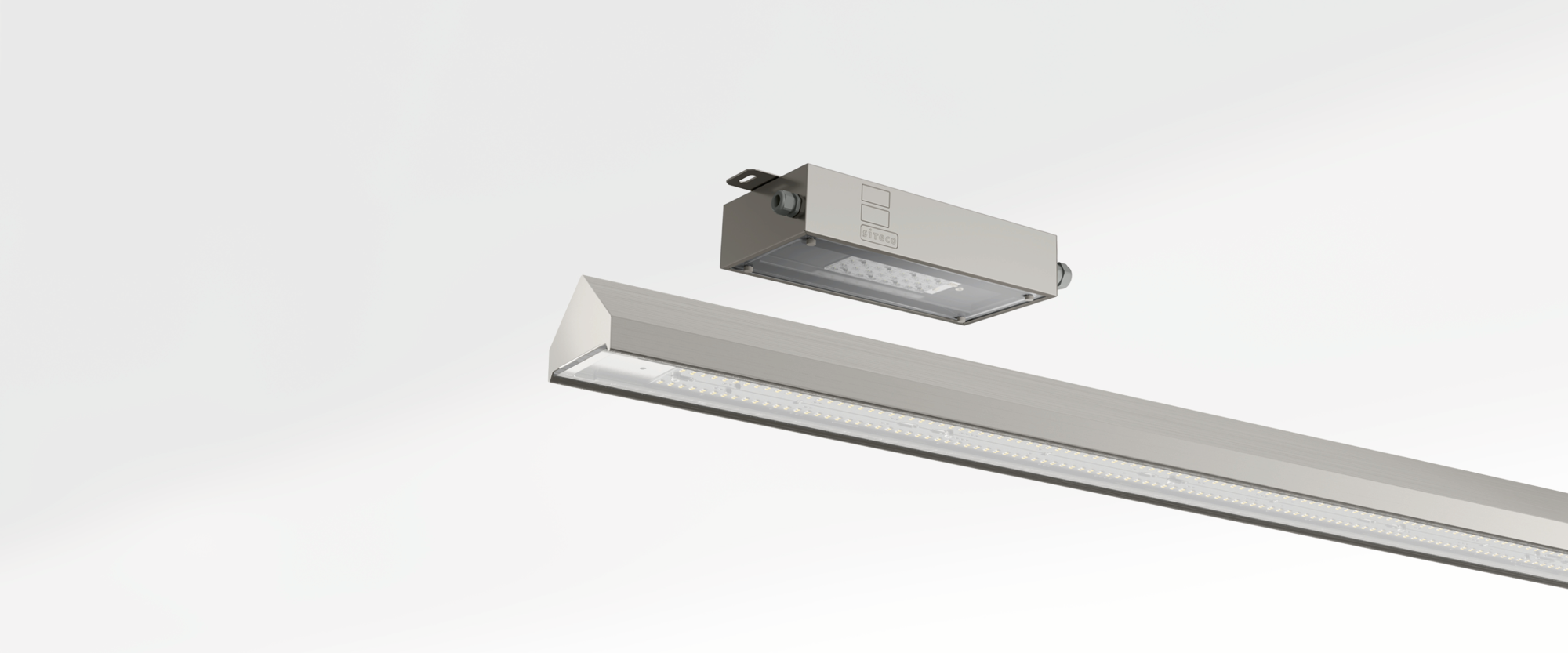

TV 20
Special features
Vandal-proof luminaire of diecast aluminium with high impact resistance of 2x IK10 (50J) and polycarbonate cover - especially rugged for reliable operation
Made for harsh environments thanks to corrosion-resistant materials such as stainless steel or special aluminum alloys and increased resistance to damage
One-man mounting with variable mounting distances using click-in stainless steel fasteners for quick, flexible mounting
Integrated cable routing channel and concealed fixing points for visually clean mounting and protection against vandalism
Form-fit corner mounting brackets allow installation between the wall and ceiling in tunnels and underpasses
Links
Configuration & data sheets
Interested? Then contact us. Your local SITECO partner is eager to hear your ideas
- luminaire incl. mounting brackets
Results
TV 20, Light colour 840, ON/OFF, 2x IK10
Order No.: 5XA86172N0A GTIN (EAN): 4050737978284
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 2130lm | 21W | 101lm/W | ON/OFF | 705 | 4.8 |
TV 20, Light colour 840, ON/OFF, 2x IK10
Order No.: 5XA86174N0J GTIN (EAN): 4069025029034
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3960lm | 37W | 107lm/W | ON/OFF | 1261 | 7.9 |
TV 20, Light colour 840, ON/OFF, 2x IK10
Order No.: 5XA86174N0X GTIN (EAN): 4069025029058
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5120lm | 50W | 102lm/W | ON/OFF | 1561 | 9.4 |
TV 20, Light colour 840, DALI, 2x IK10
Order No.: 5XA861D2N0A GTIN (EAN): 4050737978314
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 2130lm | 21W | 101lm/W | DALI | 705 | 4.1 |
TV 20, Light colour 840, DALI, 2x IK10
Order No.: 5XA861D4N0J GTIN (EAN): 4050737978321
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3960lm | 37W | 107lm/W | DALI | 1261 | 6.9 |
TV 20, Light colour 840, DALI, 2x IK10
Order No.: 5XA861D4N0X GTIN (EAN): 4069025029072
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5120lm | 50W | 102lm/W | DALI | 1561 | 8.9 |
TV 20, Light colour 840, ON/OFF, 2x IK10
Order No.: 5XA86172N0AGTIN (EAN): 4050737978284
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2130lm |
| Connected load | 21W |
| Luminous efficacy | 101lm/W |
| Control | ON/OFF |
| L (mm) | 705 |
| Wt. (kg) | 4.8 |
TV 20, Light colour 840, ON/OFF, 2x IK10
Order No.: 5XA86174N0JGTIN (EAN): 4069025029034
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3960lm |
| Connected load | 37W |
| Luminous efficacy | 107lm/W |
| Control | ON/OFF |
| L (mm) | 1261 |
| Wt. (kg) | 7.9 |
TV 20, Light colour 840, ON/OFF, 2x IK10
Order No.: 5XA86174N0XGTIN (EAN): 4069025029058
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5120lm |
| Connected load | 50W |
| Luminous efficacy | 102lm/W |
| Control | ON/OFF |
| L (mm) | 1561 |
| Wt. (kg) | 9.4 |
TV 20, Light colour 840, DALI, 2x IK10
Order No.: 5XA861D2N0AGTIN (EAN): 4050737978314
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2130lm |
| Connected load | 21W |
| Luminous efficacy | 101lm/W |
| Control | DALI |
| L (mm) | 705 |
| Wt. (kg) | 4.1 |
TV 20, Light colour 840, DALI, 2x IK10
Order No.: 5XA861D4N0JGTIN (EAN): 4050737978321
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3960lm |
| Connected load | 37W |
| Luminous efficacy | 107lm/W |
| Control | DALI |
| L (mm) | 1261 |
| Wt. (kg) | 6.9 |
TV 20, Light colour 840, DALI, 2x IK10
Order No.: 5XA861D4N0XGTIN (EAN): 4069025029072
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5120lm |
| Connected load | 50W |
| Luminous efficacy | 102lm/W |
| Control | DALI |
| L (mm) | 1561 |
| Wt. (kg) | 8.9 |
