SiCompact® 31

ProducttypesConfiguration & Datasheets

SiCompact® stands for high reliability, robustness, ease of assembly and quality. High-quality workmanship, modern lighting technology and the high degree of protection IP66 make the floodlight family the first choice for standard outdoor lighting tasks and present it as an economical, low-maintenance, energy-efficient lighting solution.

Industrial-look design meets state of the art technology

SiCompact® 31 maxi

Intro to Productfamily

Data

Article floodlight
Lighting effect direct asymmetric distribution
Net luminous flux 65000lm to 70000lm
Colour temperature 3000K; 4000K
Control DALI

Specials

Easy and quick installation thanks to mounting bracket and preassembled connection cable (2m)
High efficient operation with up to 170lm/W and asymmetric narrow light distribution (PL32)
Robust housing and ESD-protected LED module, IP66, IK08, dustproof, vibration stability tested with 250,000 strokes, ENEC certified
High flexibility for all requirements with four construction sizes and rated luminous fluxes of 4,400–70,000lm

Configuration & Datasheets

Results

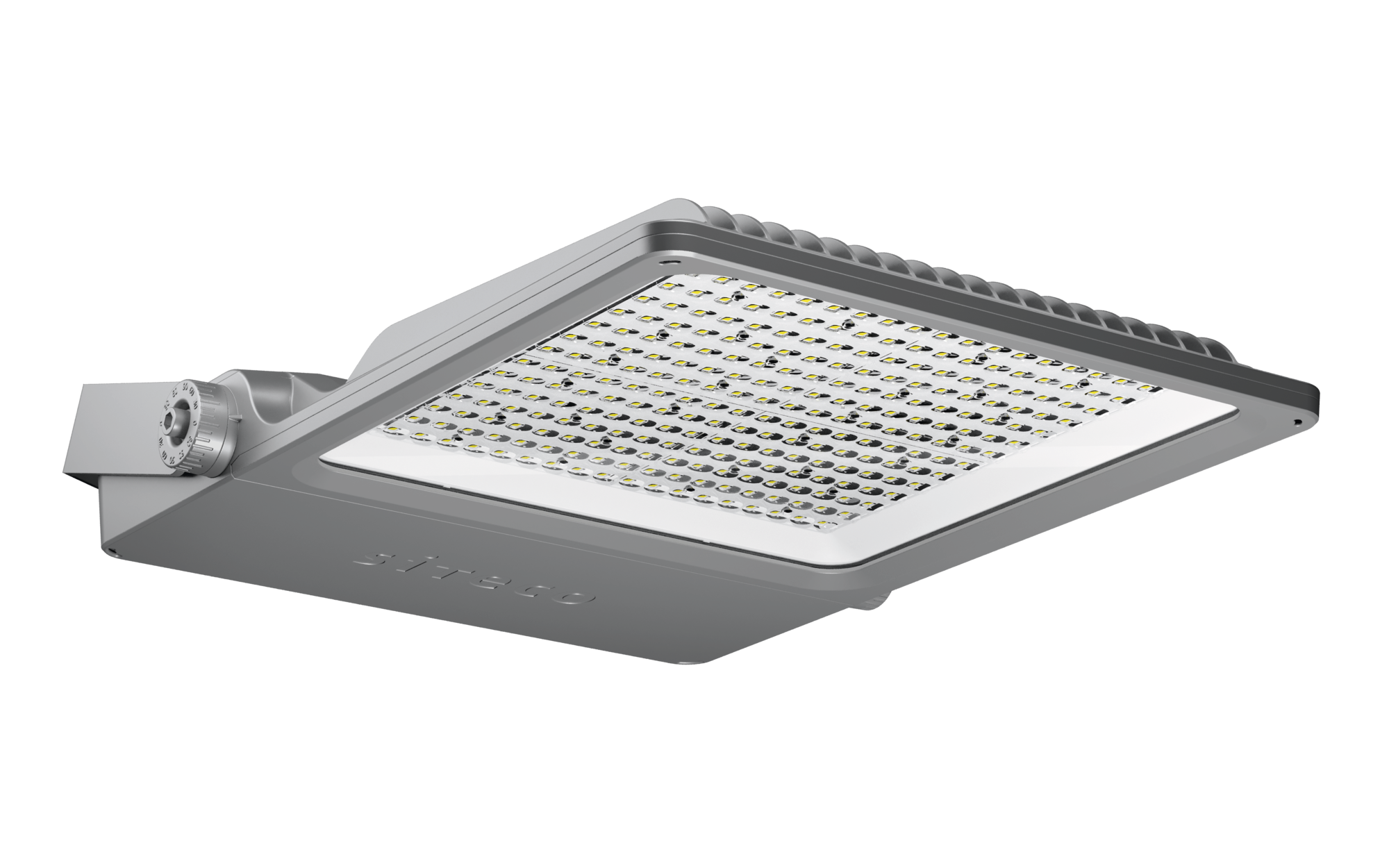

SiCompact® 31 maxi, PL32, asymmetric distribution

Order No.: 5XA7592E2K22GTIN (EAN): 4058352490082
Colour temperatureColour renderingLuminous fluxLight distributionConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 7070000lmPL32490W143lm/WDALI17.0

SiCompact® 31 maxi, PL32, asymmetric distribution

Order No.: 5XA7592E1K22GTIN (EAN): 4058352501344
Colour temperatureColour renderingLuminous fluxLight distributionConnected loadLuminous efficacyControlWt. (kg)
3000KCRI > 7065000lmPL32490W133lm/WDALI17.0

SiCompact® 31 maxi, PL32, asymmetric distribution

Order No.: 5XA7592E2K22GTIN (EAN): 4058352490082

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux70000lm
Light distributionPL32
Connected load490W
Luminous efficacy143lm/W
ControlDALI
Wt. (kg)17.0

SiCompact® 31 maxi, PL32, asymmetric distribution

Order No.: 5XA7592E1K22GTIN (EAN): 4058352501344

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux65000lm
Light distributionPL32
Connected load490W
Luminous efficacy133lm/W
ControlDALI
Wt. (kg)17.0

Optional accessory

Articlecross-arm, single, galvanised, d_a= 76mmPU1 pc.Wt. (kg)2.2Order No.: 5NY74701XA11GTIN (EAN): 4039806199522Show details
Articlecross-arm, single, galvanised, d_a= 89mmPU1 pc.Wt. (kg)2.3Order No.: 5NY74701XA21GTIN (EAN): 4039806199546Show details
Articlecross-arm, twin, galvanised, d_a= 76mmPU1 pc.Wt. (kg)4.4Order No.: 5NY74802XA11GTIN (EAN): 4039806199447Show details
Articlecross-arm, twin, galvanised, d_a= 89mmPU1 pc.Wt. (kg)4.5Order No.: 5NY74802XA21GTIN (EAN): 4039806199454Show details
Articlecross-arm, single, DB 702S, d_a= 76mmPU1 pc.Wt. (kg)2.2Order No.: 5NY74701XA1108GTIN (EAN): 4050737956107Show details
Articlecross-arm, single, DB 702S, d_a= 89mmPU1 pc.Wt. (kg)2.3Order No.: 5NY74701XA2108GTIN (EAN): 4050737956138Show details
Articlecross-arm, twin, DB 702S, d_a= 76mmPU1 pc.Wt. (kg)4.2Order No.: 5NY74802XA1108GTIN (EAN): 4050737956183Show details
Articlecross-arm, twin, DB 702S, d_a= 89mmPU1 pc.Wt. (kg)4.5Order No.: 5NY74802XA2108GTIN (EAN): 4050737956206Show details
