Scriptus® 11

ProducttypesConfiguration & Datasheets

The Scriptus® product series, designed by the Berlin design studio Aisslinger, stands for quality design paired with innovative technology. Thanks to the three-stage optical technology for maximum glare control, the luminaire offers the best visual comfort, especially at VDU workstations. Scriptus® 11 relies on reduced elegance, clear lines and maximum system flexibility and is therefore ideally suited for modern working environments.

Progressive, contemporary design with outstanding efficiency and quality of light

Scriptus® 11 nadgradna svetilka

Intro to Productfamily

Data

Opis pisarniška svetilka
Svetlobni učinek direktna simetrična porazdelitev
Neto svetlobni tok 4390lm do 7230lm
Barvna temperatura 3000…6500K; 3000K; 4000K
Upravljanje DALI

Specials

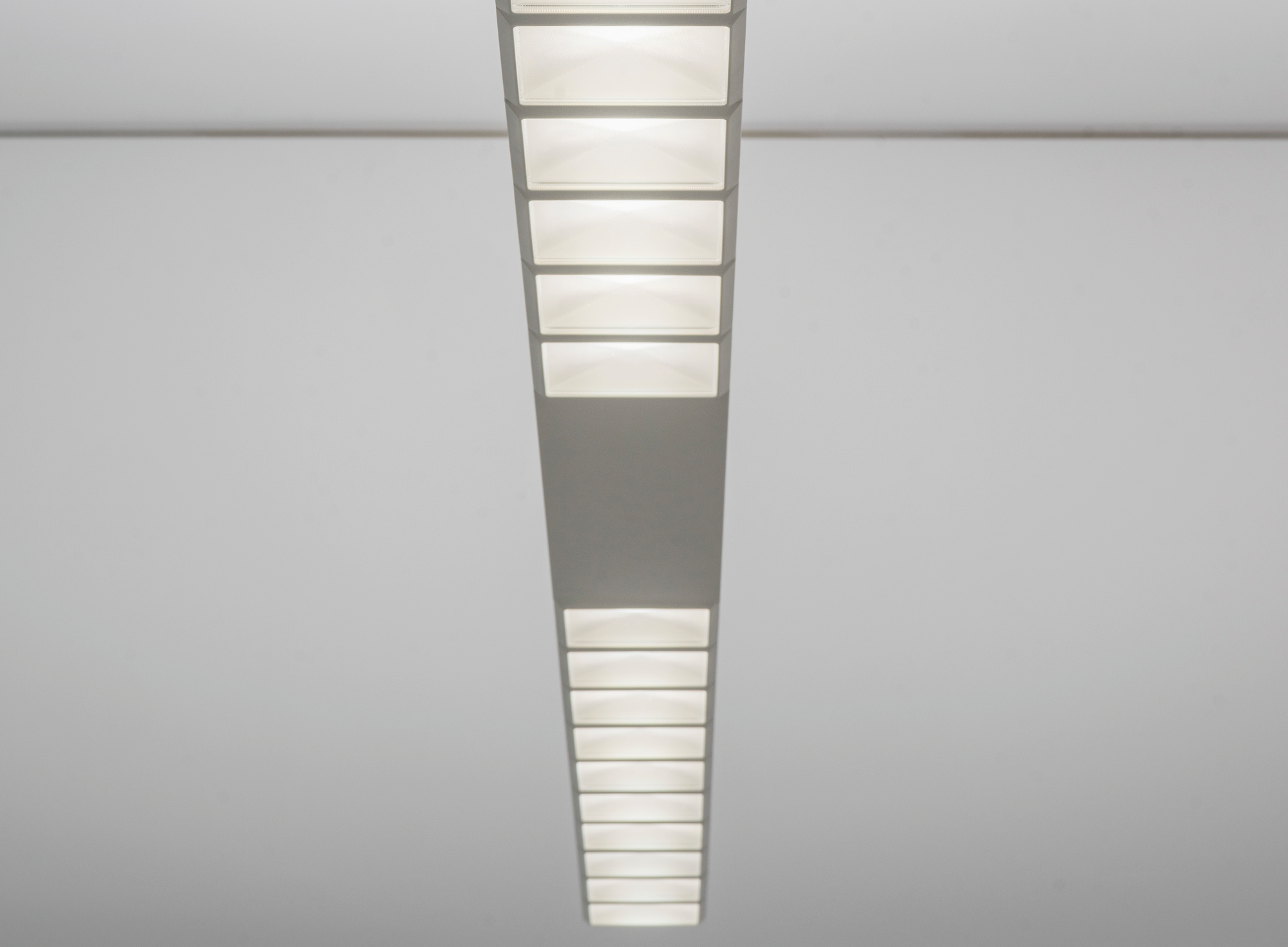

Luminaire range for ceiling surface mounting or suspended mounting as well as individual ceiling recessed variants – with a sophisticated appearance due to discreetly integrated ECG
High quality lighting technology with new, multi-step optic system for maximum visual comfort due to very good glare control (UGR ≤ 16) and uniform illumination
Available with Tunable White function as suspended version with indirect light component as the ideal basis for HCLlive applications – for greater well-being and motivation
Maximum planning flexibility due to various lengths, luminous intensities and configurations as well as extensive control options

Configuration & Datasheets

Barvna temperatura

Barva svetlobe

Nazivni svetlobni tok (lm)

Dolžina (mm)

  • luminaire for integration in light management concepts suitable both for building environments with local control and those with central control
  • for light management with local control: master luminaire (with light and motion sensor) and slave luminaire (with motion sensor) can be used; the light sensor of the slave luminaire is inactive in this application
  • with light management concept with local control: manual control of lighting installation is possible via push button interface and commercial push buttons; for commissioning and parameterizing the installation, a commissioning remote control is required
  • for light management with central control: slave luminaire (with light and motion sensor) can be used
  • with light management concept with central control: manual control of lighting installation via push button interface only possible in combination with controller
  • please order push button interface, controller, commissioning remote control and further Siteco Connect components separately if required

Results

Scriptus® 11, direktna porazdelitev, Barva svetlobe 830, DALI

Oznaka za naročilo: 5MZ212D03WAGTIN (EAN): 4058352066362
Barvna temperaturaBarvni videzUpravljanje razsvetljavePriključna močSvetlobni izkoristekUpravljanjeL (mm)Masa (kg)
3000KCRI > 804390lm35W127lm/WDALI16585,3

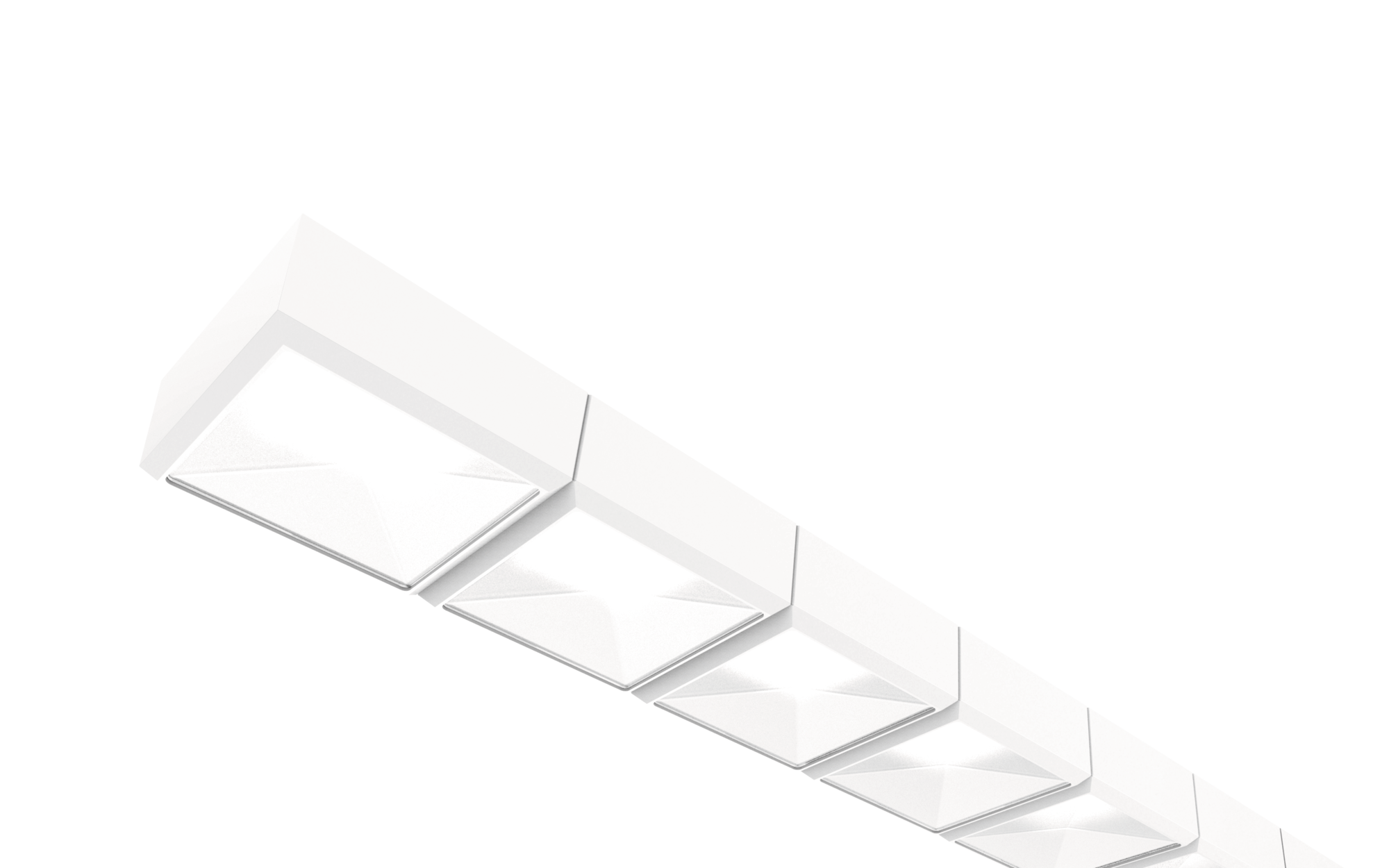

Scriptus® 11, direktna porazdelitev, Barva svetlobe 840, DALI

Oznaka za naročilo: 5MZ212D04WAGTIN (EAN): 4058352065105
Barvna temperaturaBarvni videzUpravljanje razsvetljavePriključna močSvetlobni izkoristekUpravljanjeL (mm)Masa (kg)
4000KCRI > 804810lm35W139lm/WDALI16585,3

Scriptus® 11, direktna porazdelitev, 3000..6500K, DALI

Oznaka za naročilo: 5MZ214D0TWAGTIN (EAN): 4058352124062
Barvna temperaturaBarvni videzUpravljanje razsvetljavePriključna močSvetlobni izkoristekUpravljanjeL (mm)Masa (kg)
3000..6500KCRI > 807190lm53W137lm/WDALI30889,8

Scriptus® 11, direktna porazdelitev, Barva svetlobe 840, DALI

Oznaka za naročilo: 5MZ223D04WAGTIN (EAN): 4058352124338
Barvna temperaturaBarvni videzUpravljanje razsvetljavePriključna močSvetlobni izkoristekUpravljanjeL (mm)Masa (kg)
4000KCRI > 807230lm51W143lm/WDALI24267,6

Scriptus® 11, direktna porazdelitev, Barva svetlobe 830, DALI

Oznaka za naročilo: 5MZ212D03WAGTIN (EAN): 4058352066362

Barvna temperatura3000K
Barvni videzCRI > 80
Upravljanje razsvetljave4390lm
Priključna moč35W
Svetlobni izkoristek127lm/W
UpravljanjeDALI
L (mm)1658
Masa (kg)5,3

Scriptus® 11, direktna porazdelitev, Barva svetlobe 840, DALI

Oznaka za naročilo: 5MZ212D04WAGTIN (EAN): 4058352065105

Barvna temperatura4000K
Barvni videzCRI > 80
Upravljanje razsvetljave4810lm
Priključna moč35W
Svetlobni izkoristek139lm/W
UpravljanjeDALI
L (mm)1658
Masa (kg)5,3

Scriptus® 11, direktna porazdelitev, 3000..6500K, DALI

Oznaka za naročilo: 5MZ214D0TWAGTIN (EAN): 4058352124062

Barvna temperatura3000..6500K
Barvni videzCRI > 80
Upravljanje razsvetljave7190lm
Priključna moč53W
Svetlobni izkoristek137lm/W
UpravljanjeDALI
L (mm)3088
Masa (kg)9,8

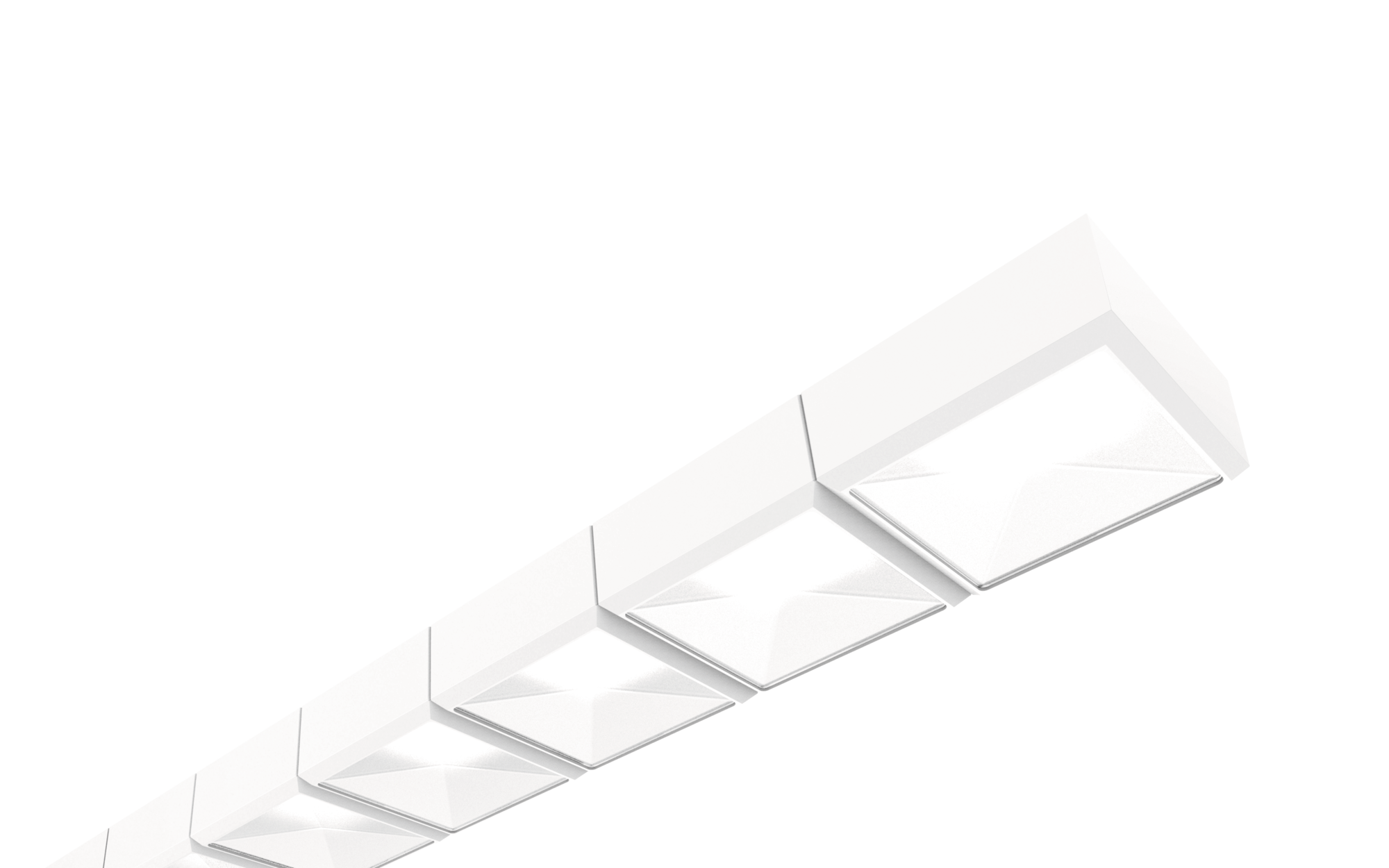

Scriptus® 11, direktna porazdelitev, Barva svetlobe 840, DALI

Oznaka za naročilo: 5MZ223D04WAGTIN (EAN): 4058352124338

Barvna temperatura4000K
Barvni videzCRI > 80
Upravljanje razsvetljave7230lm
Priključna moč51W
Svetlobni izkoristek143lm/W
UpravljanjeDALI
L (mm)2426
Masa (kg)7,6

Optional accessory

Opisdaljinski upravljalnik za zagon sistemaEP1 kosMasa (kg)0,2Oznaka za naročilo: 5LZ904307GTIN (EAN): 4052899195967Show details
