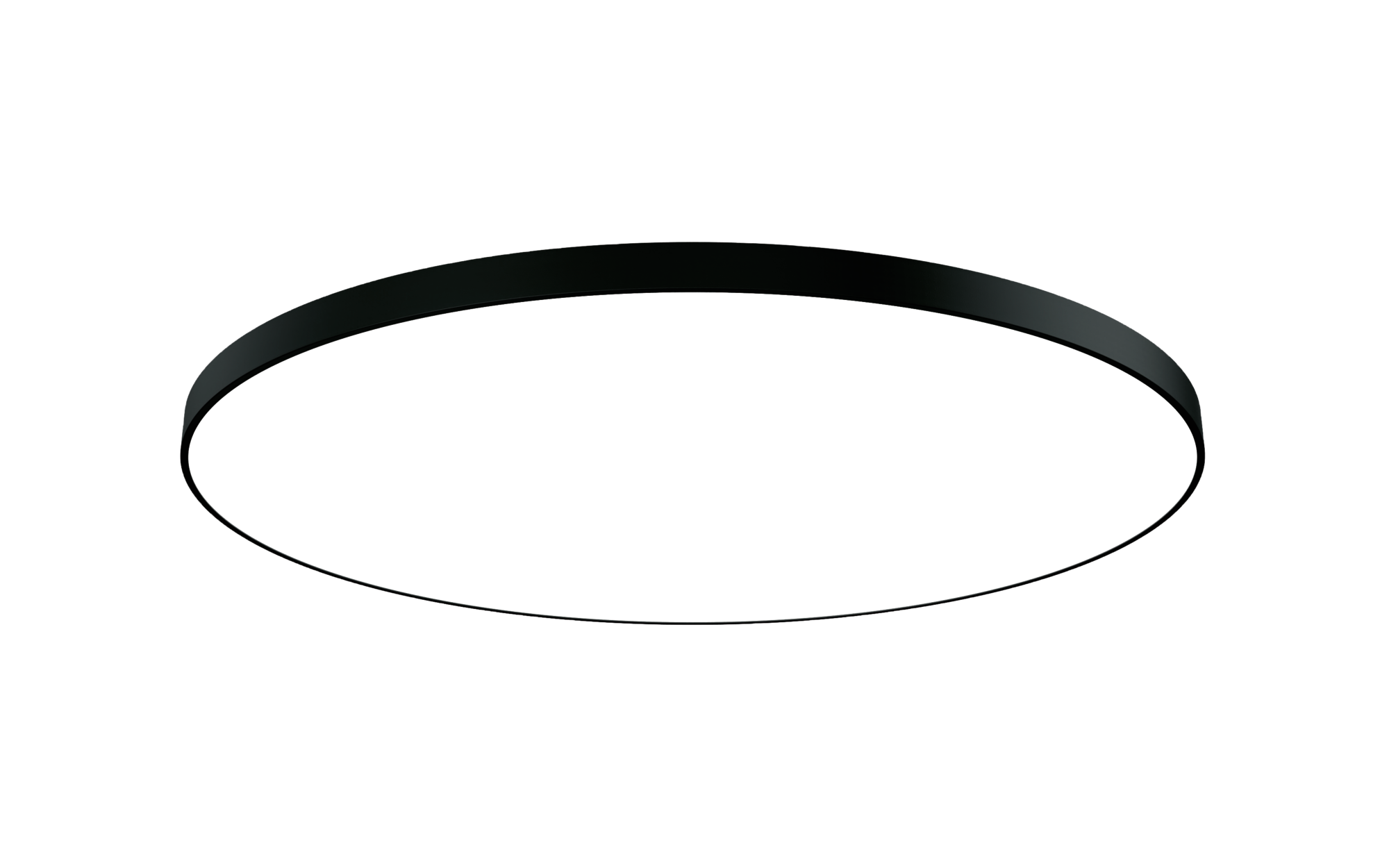

Silica 21 Round Prismatic X, Standard, direct symmetric extremely wide distribution, DALI 2, for surface-mounted
Article office luminaire
Product name Silica 21 Round Prismatic X
Lamp LED
Rated luminous flux 11550lm
Luminous efficacy 151lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 76.5W
Service life 75000h (L85) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 12.3kg

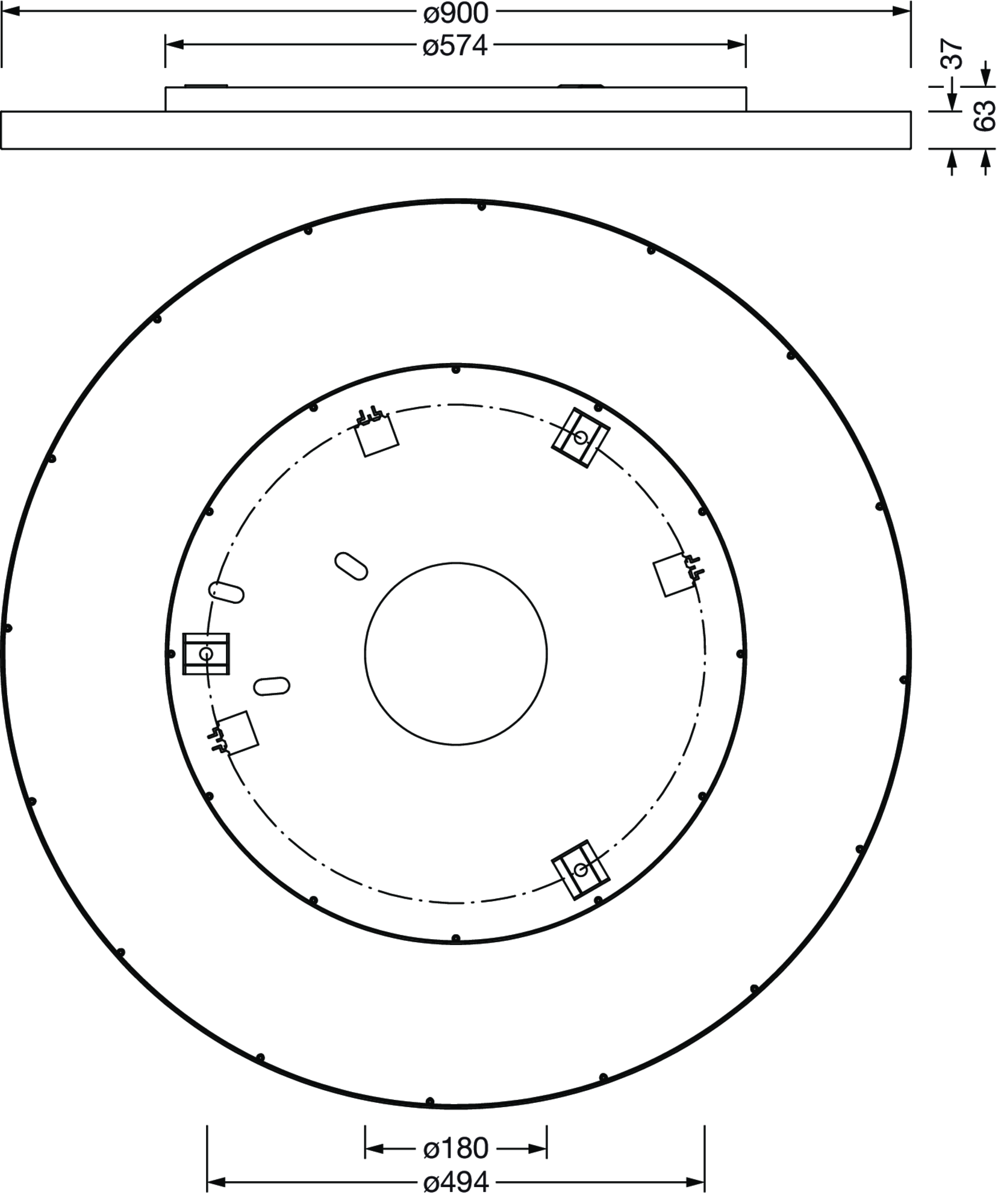

Silica 21 Round Prismatic X, office luminaire, primary optical cover: prismatic diffuser, of PMMA, CAT 2 (L= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 11.550lm, luminous efficacy: 151lm/W, light colour: 830, colour temperature: 3000K, control gear: DALI 2, with system connector, mains connection: 220..240V, AC, 50/60Hz, rated input power: 76.5W, luminaire housing, of aluminium section, matt jet black (RAL 9005), diameter: 900mm, height: 63mm, equipment: Standard, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK03, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details
Photometric report / planning data
Silica 21 Round Prismatic X
office luminaire, matt jet black (RAL 9005), DALI 2, 11550lm, 830, Ø900mm
Lamps: LED 3000K / CRI >= 80
Order No.: 51ME61DC3NBA
