Silica 21 Round Prismatic X, Performance, direct symmetric extremely wide distribution, DALI 2, for surface-mounted
Article office luminaire
Product name Silica 21 Round Prismatic X
Lamp LED
Rated luminous flux 11550lm
Luminous efficacy 163lm/W
Colour temperature 4000K
Colour rendering CRI > 90
Rated input power 70.8W
Service life 100000h (L85) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 12.3kg

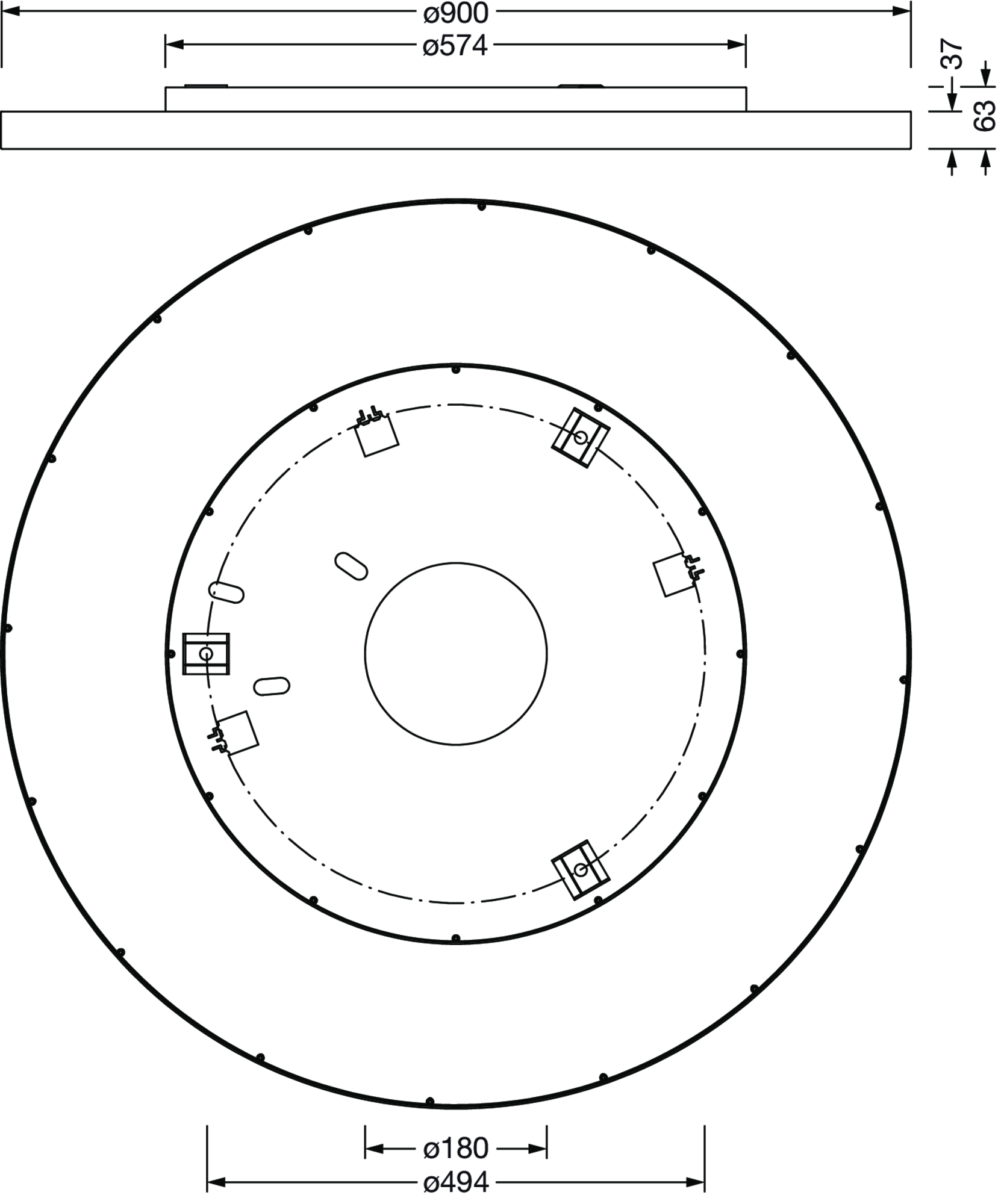

Silica 21 Round Prismatic X, office luminaire, primary optical cover: prismatic diffuser, of PMMA, CAT 2 (L= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 11.550lm, luminous efficacy: 163lm/W, light colour: 940, colour temperature: 4000K, control gear: DALI 2, with system connector, mains connection: 220..240V, AC, 50/60Hz, rated input power: 70.8W, luminaire housing, of aluminium section, traffic white (RAL 9016), diameter: 900mm, height: 63mm, equipment: Performance, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK03, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details
Photometric report / planning data

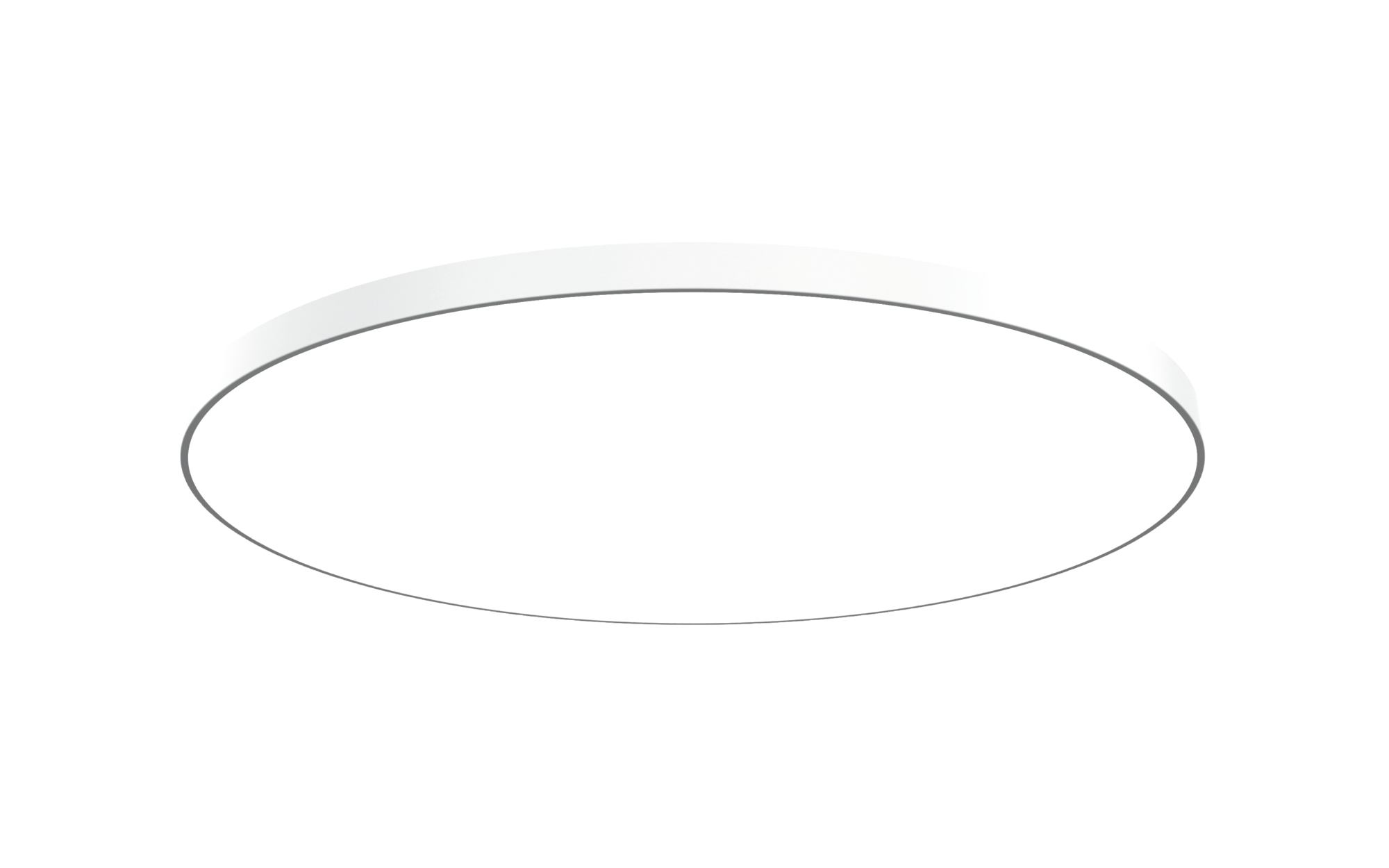

Silica 21 Round Prismatic X
office luminaire, traffic white (RAL 9016), DALI 2, 11550lm, 940, Ø900mm
Lamps: LED 4000K / CRI >= 90
Order No.: 51MF61DCENWA
