51MQ11WM2415
Article office luminaire
Product name Apollon 21 square
Lamp LED
Rated luminous flux 5000lm
Luminous efficacy 180lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 28W
Service life 100000h (L80) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 3.1kg
Apollon 21 square, office luminaire, primary light control with lens, of PMMA, primary optical cover: micro prismatic cover, of PS, CAT 2 (L= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, recessed, LED, rated luminous flux: 5.000lm, luminous efficacy: 180lm/W, light colour: 840, colour temperature: 4000K, control gear: ON/OFF Multilumen, with terminal, 3-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 28W, suitable for self-contained emergency lighting element 58DB00B013A with integrated self-test function according to EN 60598-2-22, housing, of aluminium, coated, traffic white (RAL 9016), module: M625, length: 620mm, width: 620mm, height: 34mm, housing upper side, of sheet steel, galvanised, protection rating (complete): IP20, protection rating (lamp compartment, on room side): IP50, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, UKCA, impact resistance: IK03, permissible operating ambient temperature: -20..+45°C, standard: EN 60598-2-22, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

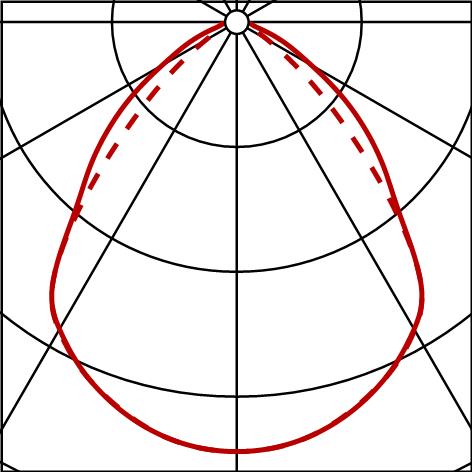

Photometric report / planning data
Apollon 21 square
office luminaire, traffic white (RAL 9016), ON/OFF Multilumen, 5000lm, 840, 620x620mm, for M625 and for cut ceiling aperture, Connection: terminal
Lamps: 1x LED
Order No.: 51MQ11WM2415
