51RF12MB4B5G52S

Order No.: 51RF12MB4B5G52S
Remember articleRemember article

Article luminaire insert
Product name Trunking Flex 31
Lamp LED
Rated luminous flux 11950lm
Luminous efficacy 169lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 71W
Service life 70000h (L80) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 2.0kg

Trunking Flex 31, luminaire insert, of aluminium, coated, traffic white (RAL 9016), length: 1.472mm, width: 91mm, height: 53mm, LED rated luminous flux: 11.950lm, light colour: 840, SDCM (Standard Deviation of Colour Matching)MacAdam ≤ 3 SDCM (initial), control gear: ON/OFF Multilumen, with system connector: socket, mains connection: 220..240V, AC, 50/60Hz, rated input power: 71W, suitable for emergency light operating devices according to EN 60598-2-22, control gear: single battery element, battery: LiFePO4, 4,5Ah, primary light control with lens, of plastic, primary optical cover: cover, of PMMA, light emission: direct distribution, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, impact resistance: IK03, permissible ambient temperature for indoor applications: +5..+35°C, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, standard: EN 60598-2-22, The light source and the operating device comply with the requirements of the Ecodesign Regulation (EU) 2019/2020 and are replaceable in accordance with this regulation, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type luminaire insert
Product name Trunking Flex 31
Order No. 51RF12MB4B5G52S

Component 1

Lighting technology
Light control lens of plastic
Cover cover
Beam angle wide distribution
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 25
UGR viewing direction along lateral luminaire axis ≤ 25

Lamps
Lamps with LED
Rated luminous flux 11950lm
Luminous efficacy 169lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 71W
Supplement suitable for emergency light operating devices according to EN 60598-2-22

Operating device
Control ON/OFF Multilumen

Component 2

Lamps
Supplement for emergency light function, with self-test function

Operating device
Control gear single battery element
Battery LiFePO4
Nominal operating time 3h

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Impact resistance IK03
Temperature range (operation) +5..+35°C
Standard EN 60598-2-22
Certification, designation CE, UKCA

Material, Colour

refurbishment insert aluminium, coated, traffic white (RAL 9016)
Quantity 1 piece
Cover cover of PMMA

Mounting

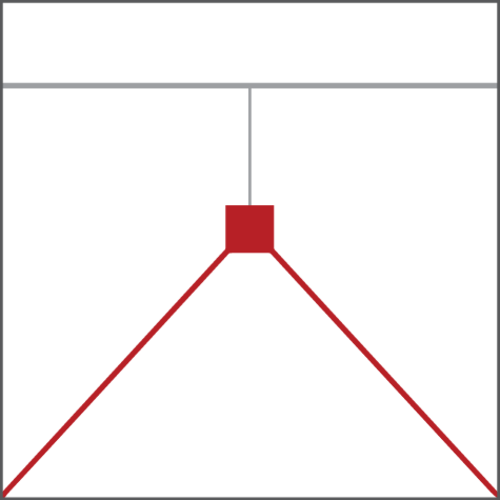

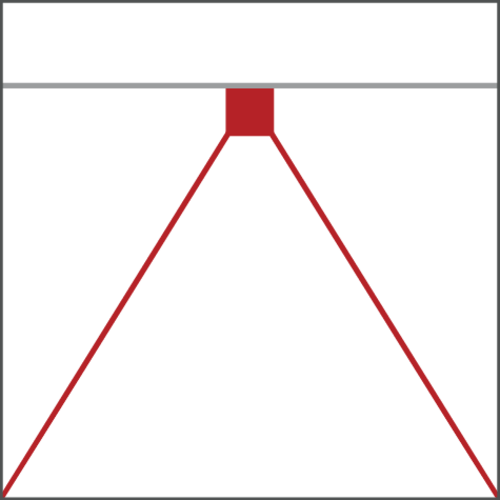

Mounting method, mounting location slip-in mounting, to the trunking rail
Arrangement single/continuous arrangement
Supplement only suitable for use in indoor areas

Electrical connection

Connection system connector: socket
Nominal voltage 220..240V, 50/60Hz, AC

Dimensions, Weight

Length 1472mm
Width 91mm
Height 53mm
Weight 2.0kg

Service life

Rated service life 70000h (L80) at AT = 25°C

Product type
luminaire insert

Product name
Trunking Flex 31

Order No.
51RF12MB4B5G52S

Lighting technology

Light control
lens of plastic

Cover
cover

Beam angle
wide distribution

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 25

UGR viewing direction along lateral luminaire axis
≤ 25

Lamps

Lamps
with LED

Rated luminous flux
11950lm

Luminous efficacy
169lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
71W

Supplement
suitable for emergency light operating devices according to EN 60598-2-22

Operating device

Control
ON/OFF Multilumen

Lamps

Supplement
for emergency light function, with self-test function

Operating device

Control gear
single battery element

Battery
LiFePO4

Nominal operating time
3h

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Impact resistance
IK03

Temperature range (operation)
+5..+35°C

Standard
EN 60598-2-22

Certification, designation
CE, UKCA

refurbishment insert
aluminium, coated, traffic white (RAL 9016)

Quantity
1 piece

Cover
cover of PMMA

Mounting method, mounting location
slip-in mounting, to the trunking rail

Arrangement
single/continuous arrangement

Supplement
only suitable for use in indoor areas

Connection
system connector: socket

Nominal voltage
220..240V, 50/60Hz, AC

Length
1472mm

Width
91mm

Height
53mm

Weight
2.0kg

Rated service life
70000h (L80) at AT = 25°C

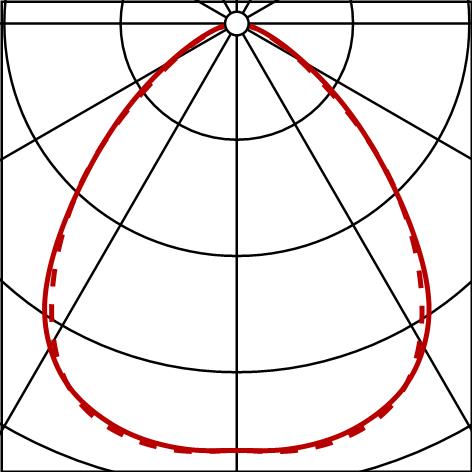

Photometric report / planning data

TrFl31
LI,wd,11950lm840,ML,wh
Lamps: LED 4000K / CRI >= 80, factory setting AC mode: AC-mode
Order No.: 51RF12MB4B5G52S

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
IES
2D symbol (DXF)
Product versions/accessory

TrFl31
Lamps: LED 4000K / CRI >= 80, emergency light operation rated luminous flux: 3 h
Order No.: 51RF12MB4B5G52S

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
IES
2D symbol (DXF)
