51RF18MB4BXG5
Article luminaire insert

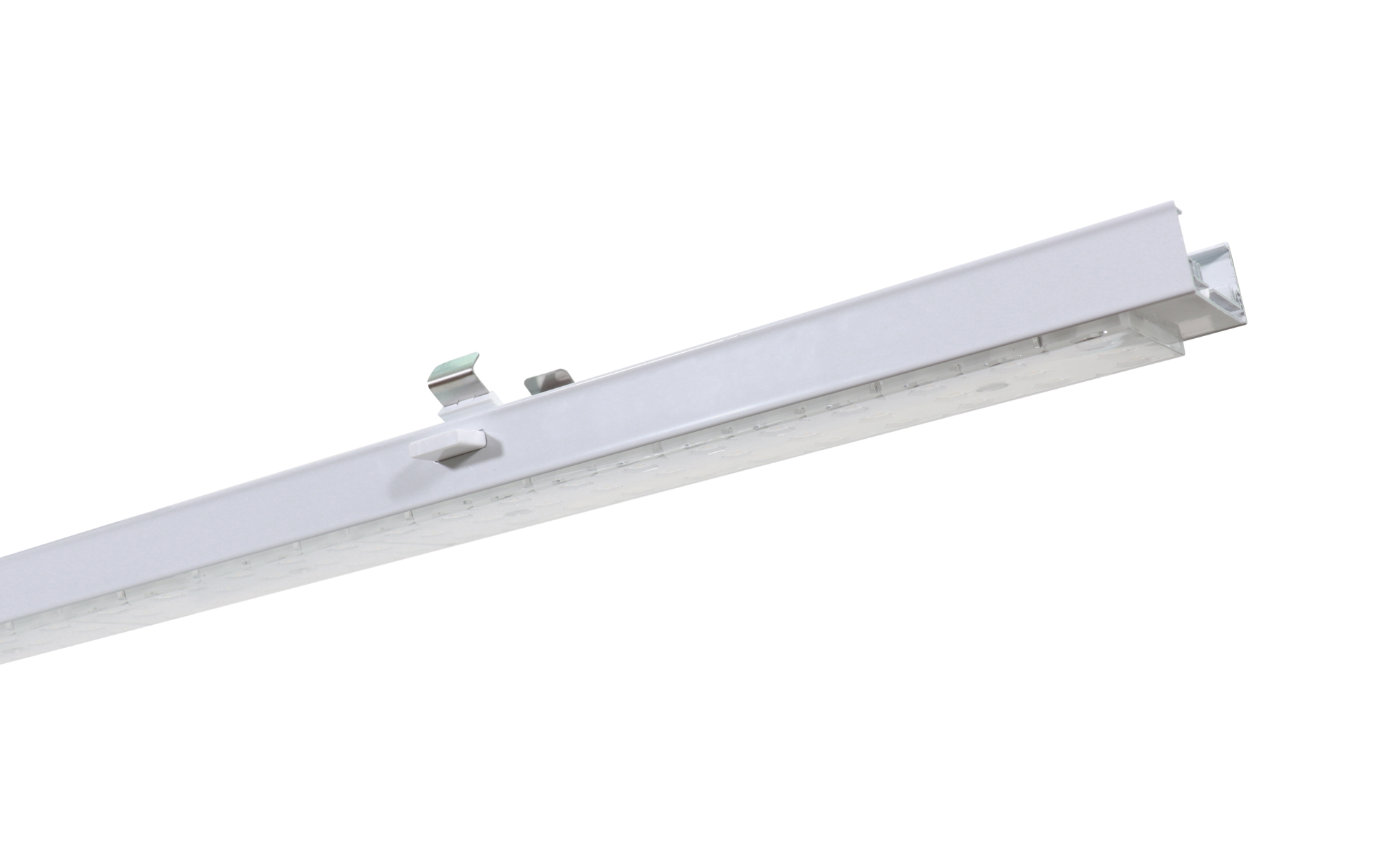

Product name Trunking Flex 31
Lamp LED
Rated luminous flux 11460lm
Luminous efficacy 176lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 65W
Service life 70000h (L80) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 1.7kg
Trunking Flex 31, luminaire insert, of aluminium, coated, traffic white (RAL 9016), length: 1.472mm, width: 91mm, height: 53mm, LED rated luminous flux: 11.460lm, light colour: 840, SDCM (Standard Deviation of Colour Matching)MacAdam ≤ 3 SDCM (initial), control gear: ON/OFF Multilumen, with system connector: socket, mains connection: 220..240V, AC, 50/60Hz, rated input power: 65W, primary light control with lens, of plastic, primary optical cover: cover, of PMMA, light emission: direct distribution, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, impact resistance: IK03, permissible ambient temperature for indoor applications: -25..+35°C, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, The light source and the operating device comply with the requirements of the Ecodesign Regulation (EU) 2019/2020 and are replaceable in accordance with this regulation, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

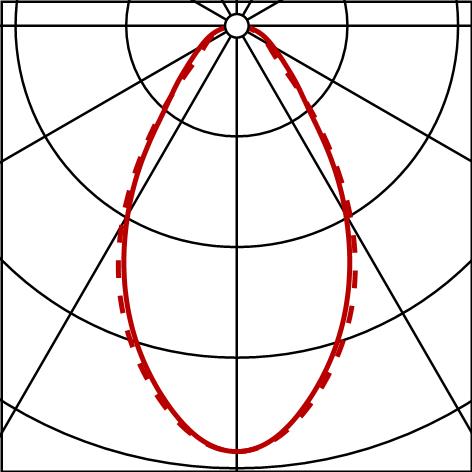

Photometric report / planning data
TrFl31
LI,med,11460lm840,ML,wh
Lamps: LED 4000K / CRI >= 80
Order No.: 51RF18MB4BXG5
