51TR3C7

Order No.: 51TR3C7
Remember articleRemember article

Article trunking components group (TS)
Product name Licross
Protection rating maximum IP64, depends on used inserts and accessories
Weight 2.5kg

Licross, trunking rail, of sheet steel, galvanised, coil coated, matt jet black (RAL 9005), length: 1.500 mm, width: 64 mm, height: 67mm, through-wiring: 7x 2.5mm², protection rating (complete): maximum IP64, depends on used inserts and accessories, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type trunking components group (TS)
Product name Licross
Order No. 51TR3C7

Supplement

Certificates, Standards

Protection rating maximum IP64, depends on used inserts and accessories
Insulation class insulation class I (protective earthing)
Supplement LABS conformity tested according to VDMA 24364:2018-05
Certification, designation CE, UKCA

Material, Colour

trunking rail sheet steel, galvanised, coil coated, matt jet black (RAL 9005)
Colour specification matt jet black (RAL 9005)

Mounting

Mounting method, mounting location suspended mounting, surface-mounted, to the ceiling
Arrangement single/continuous arrangement
Supplement only suitable for use in indoor areas

Electrical connection

Through-wiring 7x 2.5mm²

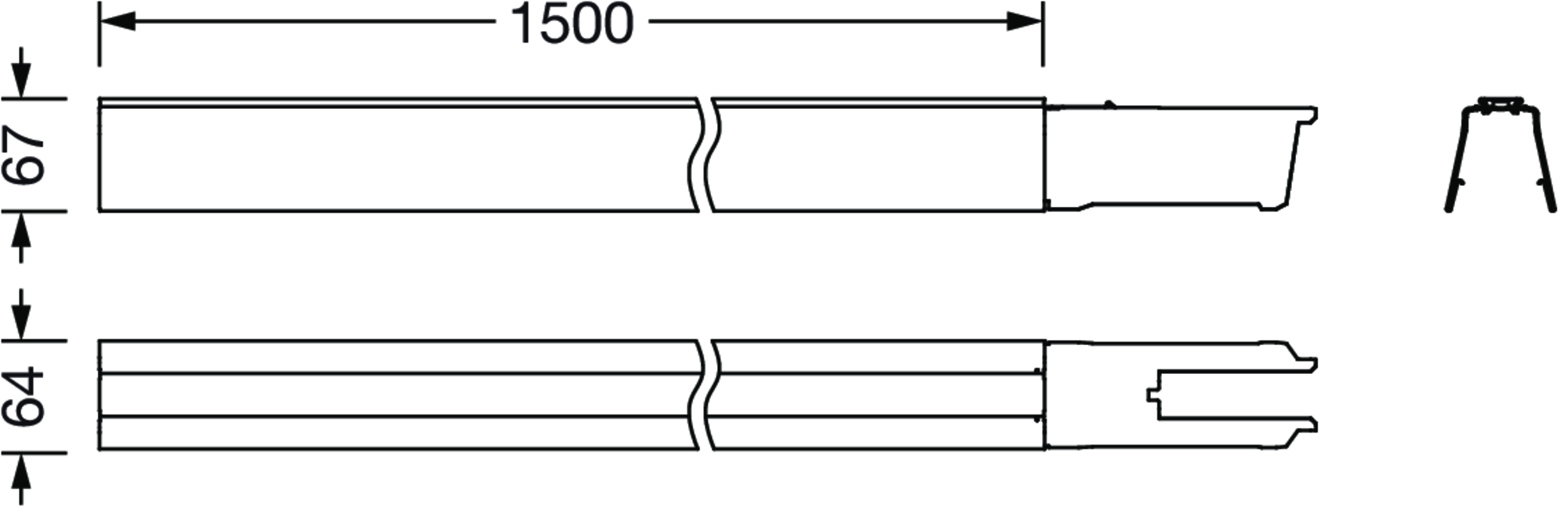

Dimensions, Weight

Length 1500mm
Width 64mm
Height 67mm
Weight 2.5kg

Product type
trunking components group (TS)

Product name
Licross

Order No.
51TR3C7

Protection rating
maximum IP64, depends on used inserts and accessories

Insulation class
insulation class I (protective earthing)

Supplement
LABS conformity tested according to VDMA 24364:2018-05

Certification, designation
CE, UKCA

trunking rail
sheet steel, galvanised, coil coated, matt jet black (RAL 9005)

Colour specification
matt jet black (RAL 9005)

Mounting method, mounting location
suspended mounting, surface-mounted, to the ceiling

Arrangement
single/continuous arrangement

Supplement
only suitable for use in indoor areas

Through-wiring
7x 2.5mm²

Length
1500mm

Width
64mm

Height
67mm

Weight
2.5kg
