5EA1EAT01

Order No.: 5EA1EAT01
Remember articleRemember article

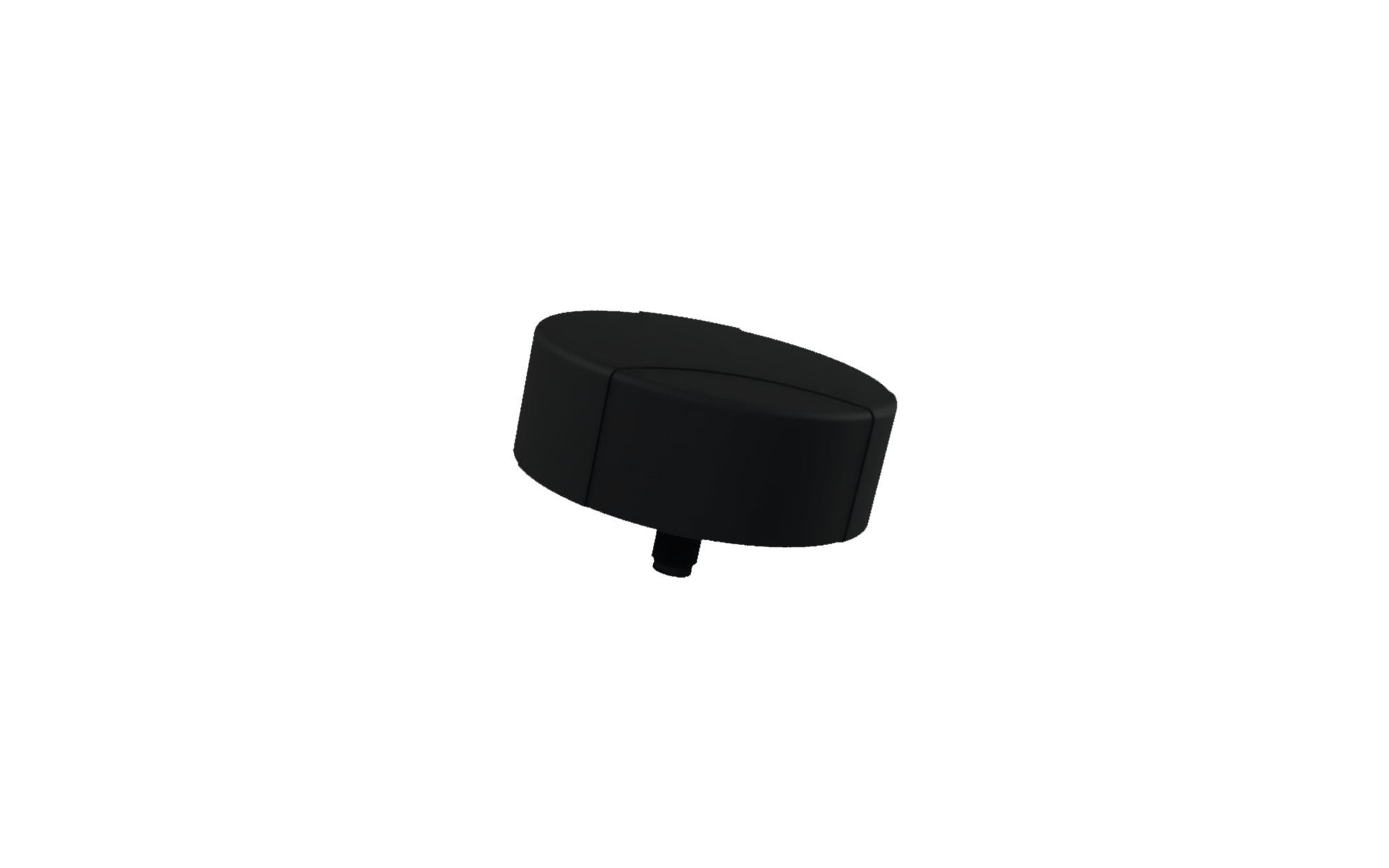

Article antenna
Product name SITECO Connect Group
Protection rating IP67
Weight 0.4kg

SITECO Connect Group, antenna, installation type: screw fastening, cable length: 0,5m, housing, black, diameter: 46,6mm, height: 15mm, 3 in 1 antenna, protection rating (complete): IP67, certification: CE, permissible operating ambient temperature for outdoor applications: -25..+80°C, permissible storage temperature: -40..+90°C, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family SITECO Connect
Product type antenna
Product name SITECO Connect Group
Order No. 5EA1EAT01

Certificates, Standards

Protection rating IP67
Temperature range (operation) -25..+80°C
Certification, designation CE

Material, Colour

housing black

Mounting

Mounting method, mounting location screw fastening, on a switching cabinet, in a switching cabinet

Dimensions, Weight

Diameter 46.6mm
Height 15mm
Weight 0.4kg

Inputs

GPS, mesh, cellular
Connection SMA male

System family
SITECO Connect

Product type
antenna

Product name
SITECO Connect Group

Order No.
5EA1EAT01

Protection rating
IP67

Temperature range (operation)
-25..+80°C

Certification, designation
CE

housing
black

Mounting method, mounting location
screw fastening, on a switching cabinet, in a switching cabinet

Diameter
46.6mm

Height
15mm

Weight
0.4kg

GPS, mesh, cellular

Connection
SMA male
