5MD5207L1040S

Order No.: 5MD5207L1040S
Remember articleRemember article

Article enclosure luminaire
Product name Rondel 40
Lamp LED
Rated luminous flux 1200lm
Luminous efficacy 100lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 12W
Service life 50000h (L70/B50) at AT = 25°C
Protection rating IP44
Impact resistance IK02
Weight 0.5kg

Rondel 40, enclosure luminaire, primary optical cover: enclosure, of PMMA, opal, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 1.200lm, luminous efficacy: 100lm/W, light colour: 840, colour temperature: 4000K, control gear: ON/OFF, with terminal, 3-pole, max. 1.5mm², mains connection: 230V, AC, 50/60Hz, rated input power: 12W, luminaire housing, luminaire housing, round, of steel, coated, signal white (RAL 9003), diameter: 267mm, height: 88mm, HF sensor, protection rating (complete): IP44, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK02, permissible operating ambient temperature for outdoor applications: -20..+40°C, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type enclosure luminaire
Product name Rondel 40
Order No. 5MD5207L1040S

Lighting technology

Cover enclosure, opal
Beam angle 120°
Symmetry symmetric distribution
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 25
UGR viewing direction along lateral luminaire axis ≤ 28

Lamps

Lamps with LED
Rated luminous flux 1200lm
Luminous efficacy 100lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)
Rated input power 12W

Operating device

Control gear ECG
Control ON/OFF

Certificates, Standards

Protection rating IP44
Insulation class insulation class I (protective earthing)
Impact resistance IK02
Temperature range (operation) -20..+40°C
Certification, designation CE

Material, Colour

luminaire housing steel, coated, signal white (RAL 9003), round
luminaire housing steel, coated, signal white (RAL 9003), round
Cover enclosure of PMMA

Mounting

Mounting method, mounting location surface-mounted, to the ceiling, to the wall
Arrangement single arrangement

Electrical connection

Connection terminal, 3-pole, max. 1.5mm²
Nominal voltage 230V, 220..240V, 50/60Hz, AC

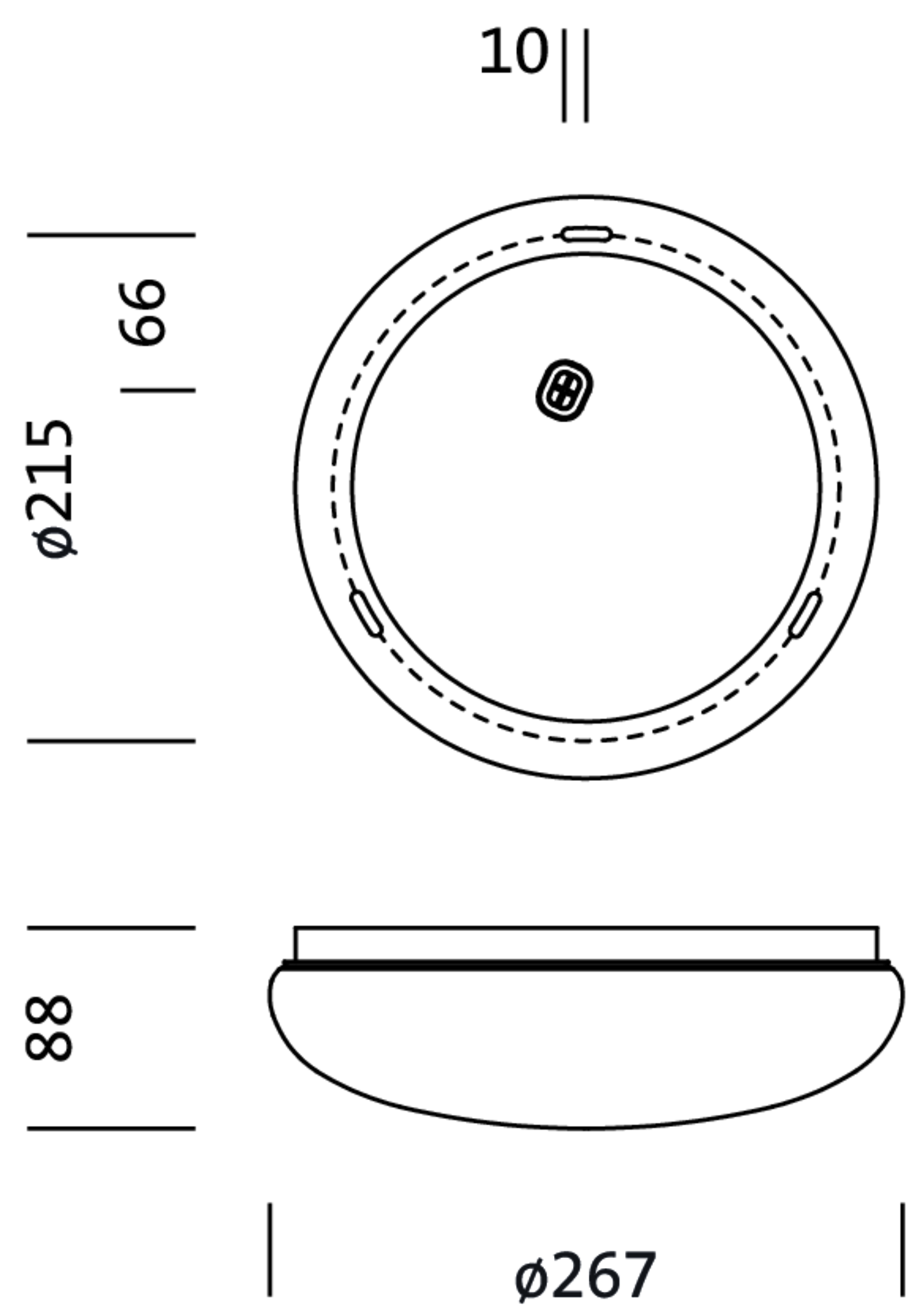

Dimensions, Weight

Diameter 267mm
Height 88mm
Weight 0.5kg

Service life

Rated service life 50000h (L70/B50) at AT = 25°C

Product type
enclosure luminaire

Product name
Rondel 40

Order No.
5MD5207L1040S

Cover
enclosure, opal

Beam angle
120°

Symmetry
symmetric distribution

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 25

UGR viewing direction along lateral luminaire axis
≤ 28

Lamps
with LED

Rated luminous flux
1200lm

Luminous efficacy
100lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 5 SDCM (initial)

Rated input power
12W

Control gear
ECG

Control
ON/OFF

Protection rating
IP44

Insulation class
insulation class I (protective earthing)

Impact resistance
IK02

Temperature range (operation)
-20..+40°C

Certification, designation
CE

luminaire housing
steel, coated, signal white (RAL 9003), round

luminaire housing
steel, coated, signal white (RAL 9003), round

Cover
enclosure of PMMA

Mounting method, mounting location
surface-mounted, to the ceiling, to the wall

Arrangement
single arrangement

Connection
terminal, 3-pole, max. 1.5mm²

Nominal voltage
230V, 220..240V, 50/60Hz, AC

Diameter
267mm

Height
88mm

Weight
0.5kg

Rated service life
50000h (L70/B50) at AT = 25°C
