5TS10150Q

Order No.: 5TS10150Q
Remember articleRemember article

Article trunking components group (TS)
Product name Modario IP64
Protection rating for IP64 protection rating
Weight 2.2kg

Modario IP64, trunking rail, of sheet steel, galvanised, coated, pure white, 1-length, length: 1.495 mm, width: 58 mm, height: 43mm, through-wiring: 5x 2.5mm², with terminal, 5-pole, max. 2.5mm², protection rating (complete): for IP64 protection rating, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, standard: EN 60598, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type trunking components group (TS)
Product name Modario IP64
Order No. 5TS10150Q

Supplement

Certificates, Standards

Protection rating for IP64 protection rating
Insulation class insulation class I (protective earthing)
Standard EN 60598
Certification, designation CE, ENEC, VDE

Material, Colour

trunking rail sheet steel, galvanised, coated, pure white, 1-length
Colour specification pure white

Mounting

Mounting method, mounting location suspended mounting, surface-mounted, to the ceiling
Arrangement single/continuous arrangement

Electrical connection

Connection terminal, 5-pole, max. 2.5mm²
Through-wiring 5x 2.5mm²

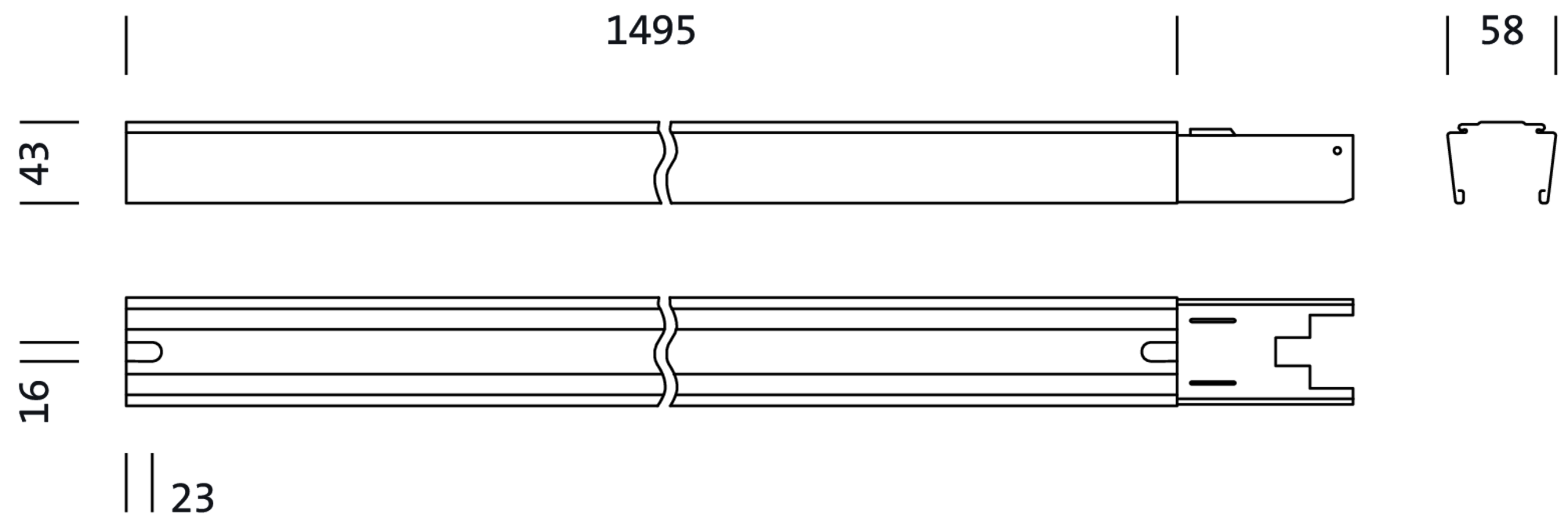

Dimensions, Weight

System units 5x SE
Length 1495mm
Width 58mm
Height 43mm
Mounting distance max. 3.5m
Weight 2.2kg

Product type
trunking components group (TS)

Product name
Modario IP64

Order No.
5TS10150Q

Protection rating
for IP64 protection rating

Insulation class
insulation class I (protective earthing)

Standard
EN 60598

Certification, designation
CE, ENEC, VDE

trunking rail
sheet steel, galvanised, coated, pure white, 1-length

Colour specification
pure white

Mounting method, mounting location
suspended mounting, surface-mounted, to the ceiling

Arrangement
single/continuous arrangement

Connection
terminal, 5-pole, max. 2.5mm²

Through-wiring
5x 2.5mm²

System units
5x SE

Length
1495mm

Width
58mm

Height
43mm

Mounting distance
max. 3.5m

Weight
2.2kg
