5XA7106W01000

Order No.: 5XA7106W01000
Remember articleRemember article

Article ECG unit
Product name Sirius
Protection rating IP66
Weight 10.0kg

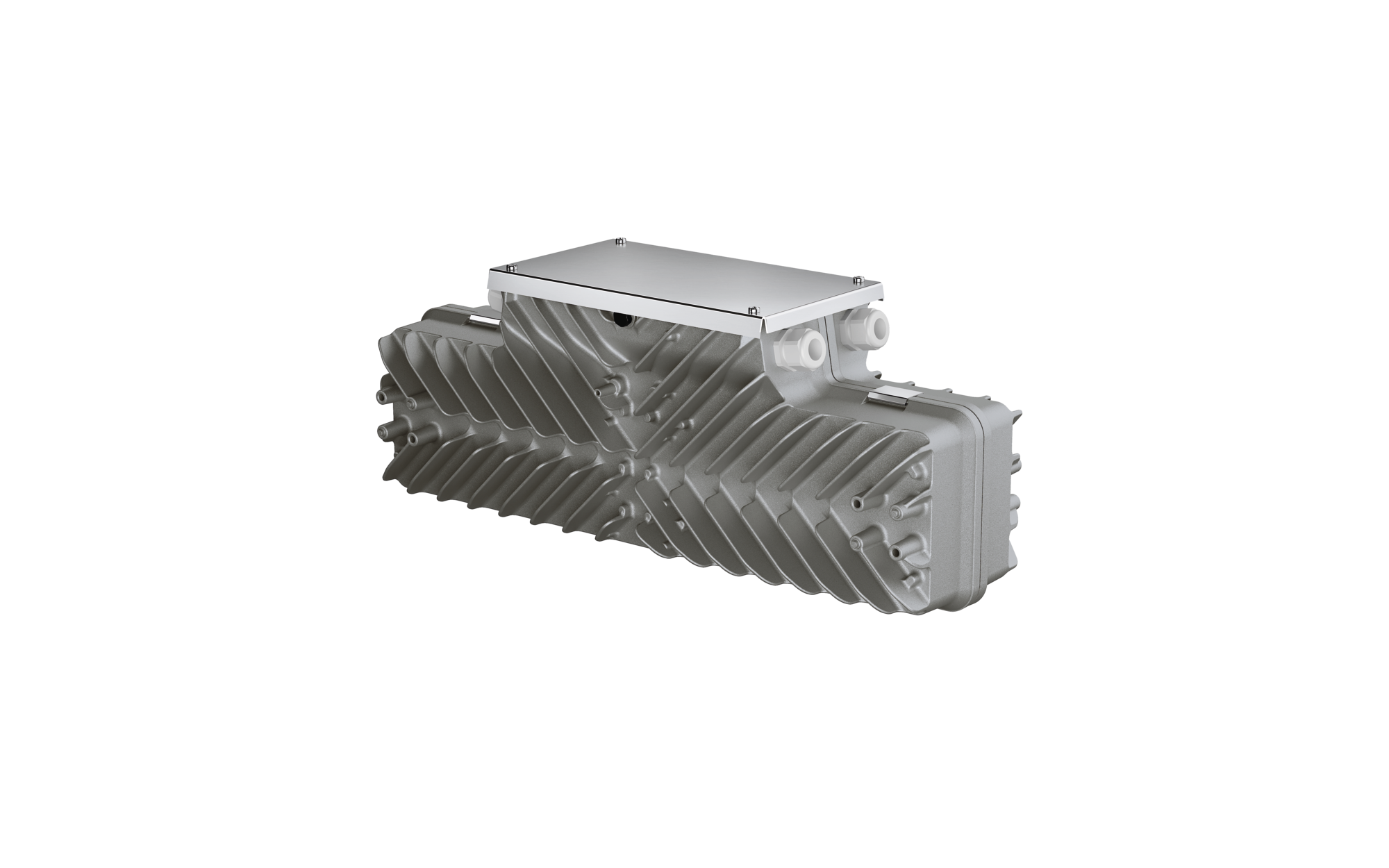

Sirius, ECG unit, 3/4-pole (3/4G), max. 2.5mm² + 2xRJ45 (DMX In/Out), control gear: DMX, with terminal, mains connection: 220..240V/380..415V, AC, 50/60Hz, with system connector or terminal, ECG unit, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), length: 635mm, width: 181mm, height: 247mm, protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type ECG unit
Product name Sirius
Order No. 5XA7106W01000

Lamps

Supplement operation only permissible with connected neutral conductor

Operating device

Control gear ECG
Control DMX

Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Certification, designation CE, ENEC

Material, Colour

ECG unit diecast aluminium, powder-coated, SITECO metallic grey (DB 702S)

Electrical connection

Connection terminal
Nominal voltage 220..240V/380..415V, 50/60Hz, AC

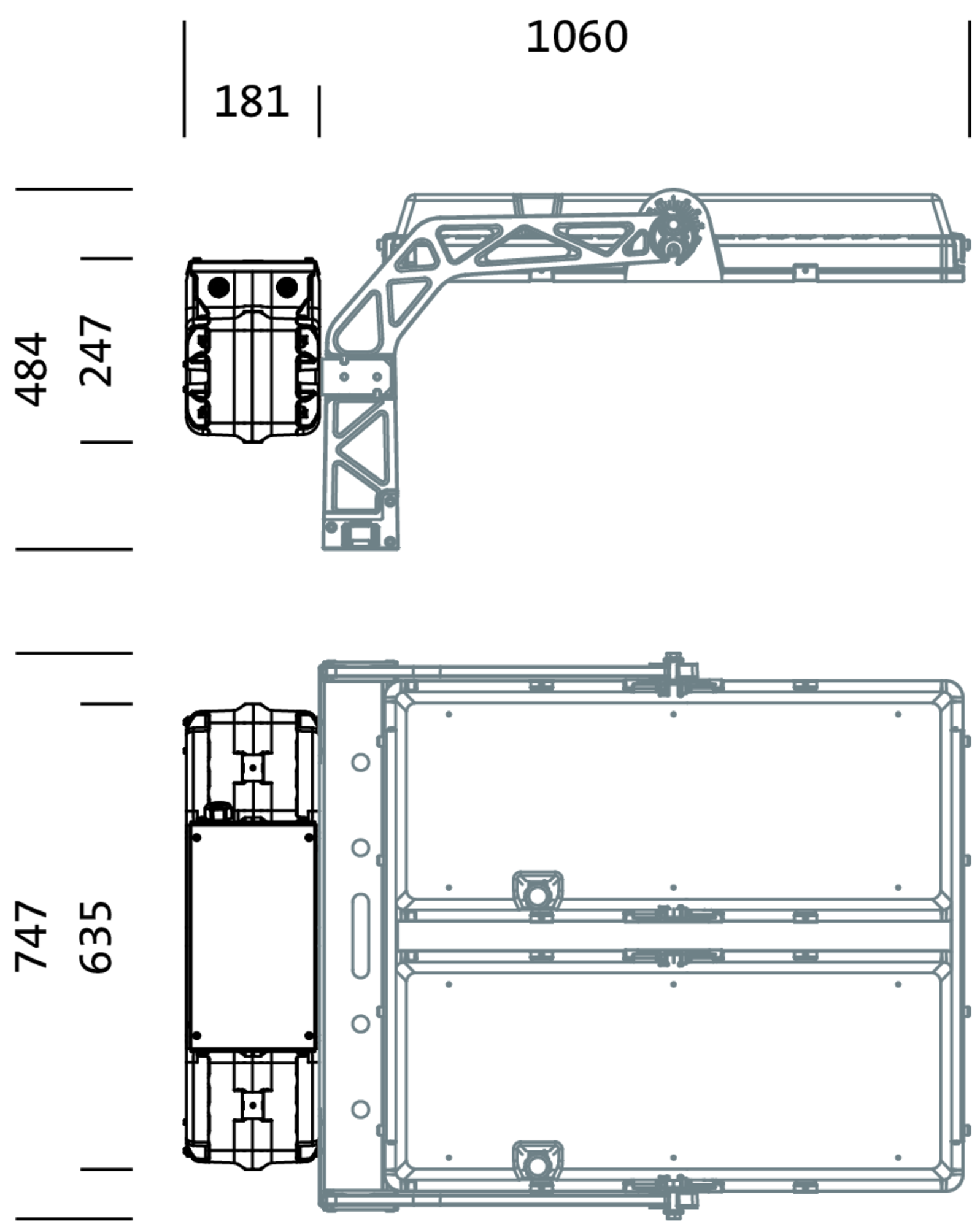

Dimensions, Weight

Length 635mm
Width 181mm
Height 247mm
Weight 10.0kg

Product type
ECG unit

Product name
Sirius

Order No.
5XA7106W01000

Supplement
operation only permissible with connected neutral conductor

Control gear
ECG

Control
DMX

Protection rating
IP66

Insulation class
insulation class I (protective earthing)

Certification, designation
CE, ENEC

ECG unit
diecast aluminium, powder-coated, SITECO metallic grey (DB 702S)

Connection
terminal

Nominal voltage
220..240V/380..415V, 50/60Hz, AC

Length
635mm

Width
181mm

Height
247mm

Weight
10.0kg
