5XA7783F2A1A

Order No.: 5XA7783F2A1A
Remember articleRemember article

Article floodlight

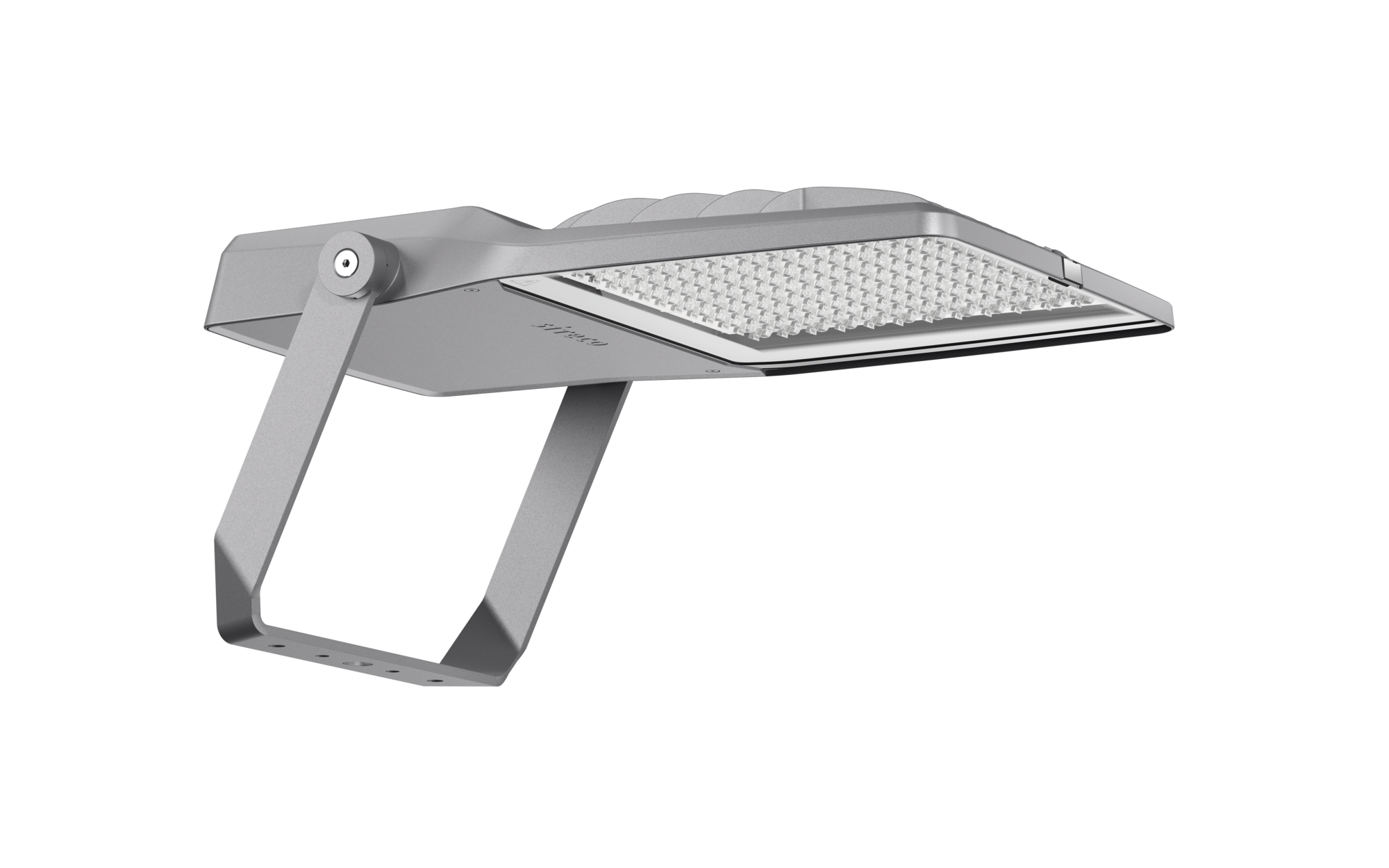

Product name Floodlight FL 21 midi
Lamp LED
Rated luminous flux 38270lm
Luminous efficacy 133.5lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom 286.6W
Service life 100000h (L94/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 13.5kg

Floodlight FL 21 midi, floodlight, primary light control with lens, of PMMA, primary optical cover: protective disc, of toughened safety glass, transparent, light distribution: A430002, light emission: direct distribution, installation type: surface-mounted, lamps: LED, rated values: 38.270lm | 286,6W | 133,5lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 38.270lm | 286,6W | 133,5lm/W | 3.000Kcontrol gear: ON/OFF Multilumen, control: pre-setting: linear dimming characteristic, Temp-Guard, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: 10kV 1.2/50µs, electrical connection: terminal, 6-pole, max. 2.5mm², solid wire, fine wire, luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), corrosivity category C5 mid according to DIN EN ISO 12944, chlorine-resistant, suitable for swimming pools, sealing non-destructively replaceable, mounting bracket, of steel, galvanised, powder-coated, SITECO metallic grey (DB 702S), ON/OFF, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, protection symbol: D, ball protection: ball impact resistant, impact resistance: IK08, permissible operating ambient temperature: -40..+40°C, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard: DIN EN 12944, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type floodlight
Product name Floodlight FL 21 midi
Order No. 5XA7783F2A1A

Lighting technology

Light control lens of PMMA
Cover protective disc, transparent
Light distribution A430002
Light emission direct distribution

Lamps

Lamps with LED
Rated values 38270lm | 286.6W | 133.5lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730
Supplement prepared for through-wiring, luminous flux adjustable on luminaire in eight steps

Factory light settings (LS)

LS 1 100% | 38270lm | 286.6W | 133.5lm/W | 3000K
further light settings possible

Operating device

Control ON/OFF Multilumen
Equipment Temp-Guard, pre-setting: linear dimming characteristic

Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK08
Protection symbol D
Temperature range (operation) -40..+40°C
Supplement LABS conformity tested according to VDMA 24364:2018-05
Standard DIN EN 12944
Corrosion protection corrosivity category C5 mid according to DIN EN ISO 12944, suitable for swimming pools, chlorine-resistant
Certification, designation CE, ENEC, VDE

Material, Colour

luminaire housing diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), sealing non-destructively replaceable
mounting bracket steel, galvanised, powder-coated, SITECO metallic grey (DB 702S)
Cover protective disc of toughened safety glass

Mounting

Mounting method, mounting location surface-mounted, to supporting structure, to the cross arm
Arrangement single arrangement
Supplement with mounting bracket

Electrical connection

Connection terminal, 6-pole, max. 2.5mm², solid wire, fine wire
Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance 10kV 1.2/50µs

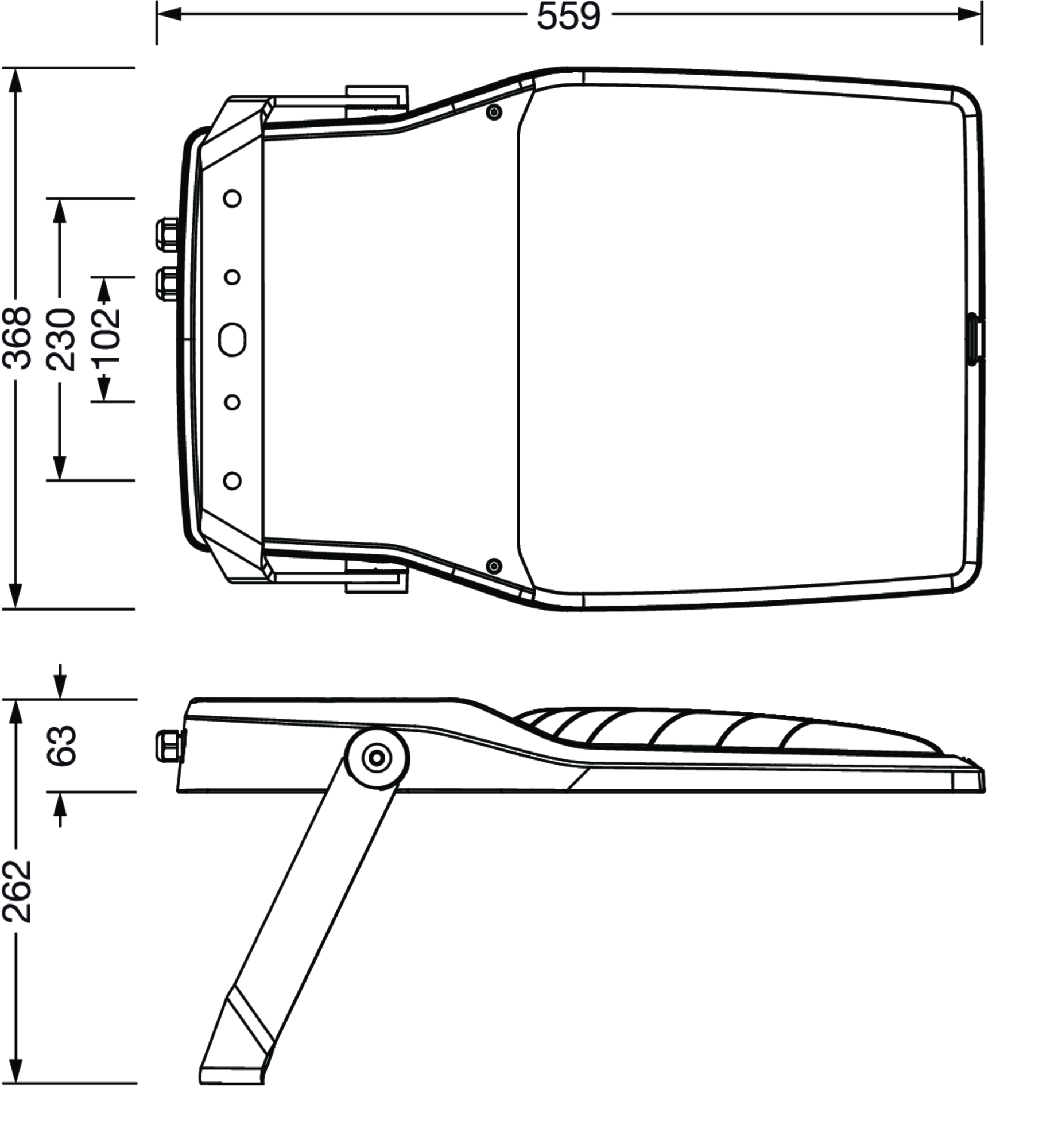

Dimensions, Weight

Weight 13.5kg

Service life

Rated service life 100000h (L94/B10) at AT = 25°C

Product type
floodlight

Product name
Floodlight FL 21 midi

Order No.
5XA7783F2A1A

Light control
lens of PMMA

Cover
protective disc, transparent

Light distribution
A430002

Light emission
direct distribution

Lamps
with LED

Rated values
38270lm | 286.6W | 133.5lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

Supplement
prepared for through-wiring, luminous flux adjustable on luminaire in eight steps

LS 1
100% | 38270lm | 286.6W | 133.5lm/W | 3000K


further light settings possible

Control
ON/OFF Multilumen

Equipment
Temp-Guard, pre-setting: linear dimming characteristic

Protection rating
IP66

Insulation class
insulation class II (safety insulation)

Impact resistance
IK08

Protection symbol
D

Temperature range (operation)
-40..+40°C

Supplement
LABS conformity tested according to VDMA 24364:2018-05

Standard
DIN EN 12944

Corrosion protection
corrosivity category C5 mid according to DIN EN ISO 12944, suitable for swimming pools, chlorine-resistant

Certification, designation
CE, ENEC, VDE

luminaire housing
diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), sealing non-destructively replaceable

mounting bracket
steel, galvanised, powder-coated, SITECO metallic grey (DB 702S)

Cover
protective disc of toughened safety glass

Mounting method, mounting location
surface-mounted, to supporting structure, to the cross arm

Arrangement
single arrangement

Supplement
with mounting bracket

Connection
terminal, 6-pole, max. 2.5mm², solid wire, fine wire

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
10kV 1.2/50µs

Weight
13.5kg

Rated service life
100000h (L94/B10) at AT = 25°C

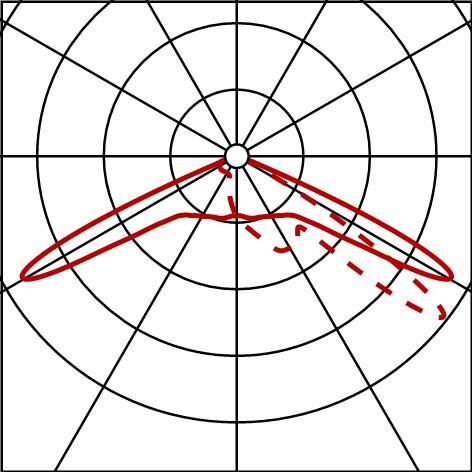

Photometric report / planning data

Floodlight FL 21 midi
LED, direct distribution, surface-mounted, to supporting structure, to the cross arm
Lamps: LED 3000K / CRI >= 70
Order No.: 5XA7783F2A1A

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
