5XA779616W01AB

Order No.: 5XA779616W01AB
Remember articleRemember article

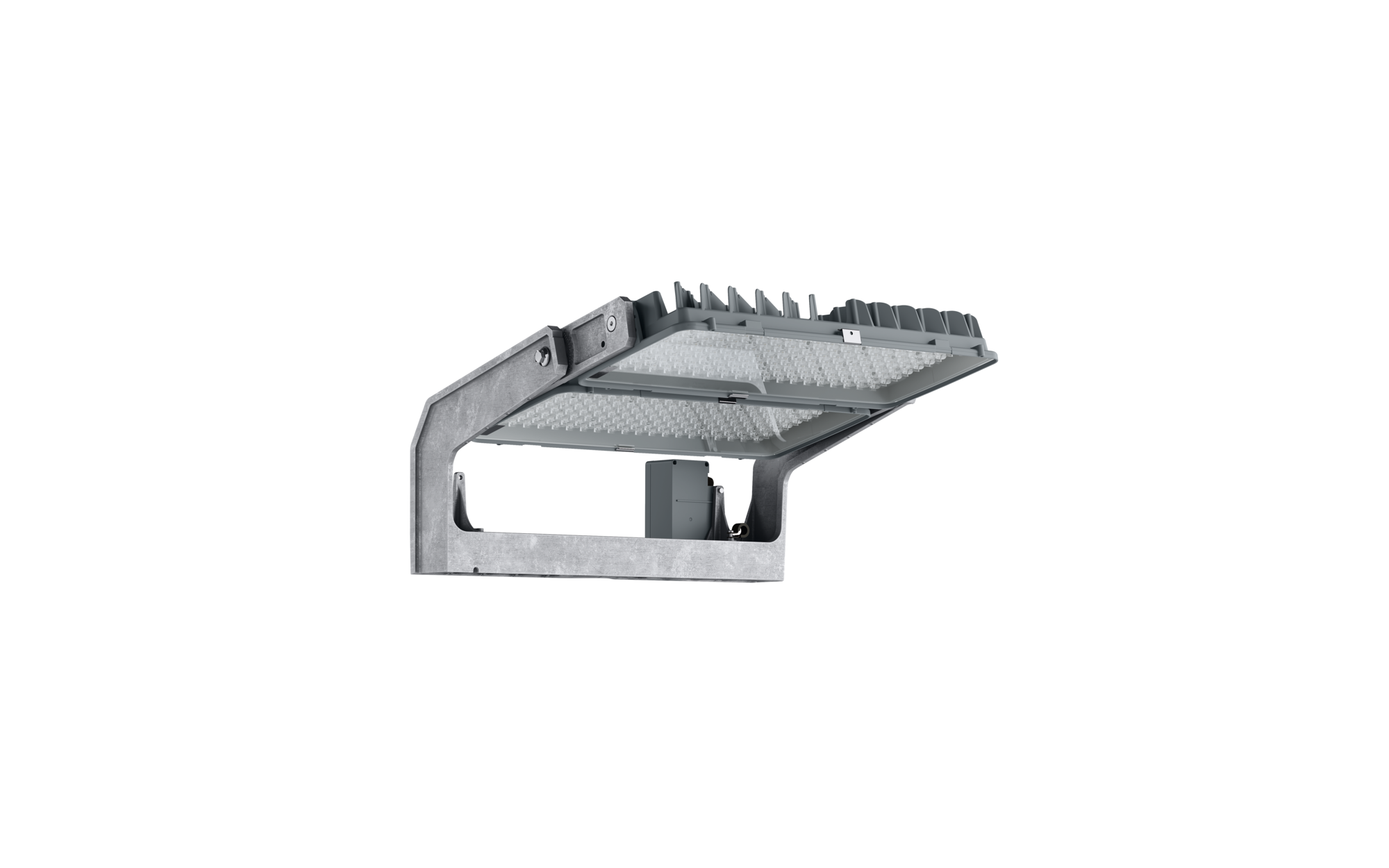

Article floodlight
Product name Floodlight FL 11 maxi Remote
Lamp LED
Rated luminous flux 102250lm
Luminous efficacy 89.7lm/W
Colour temperature 4000K
Colour rendering CRI > 70
Pnom 1140.4W
Protection rating IP66
Impact resistance IK07
Weight 24.6kg

Floodlight FL 11 maxi Remote floodlight; light control with lens of PMMA; cover panel of toughened safety glass, transparent; light distribution: A64B001, asymmetric direct distribution, rated values: 102.250lm | 1.140,4W | 89,7lm/W, colour temperature: 4000K, colour rendering: CRI > 70, light colour: 740, light setting 1 (further light settings possible): 100% | 102.250lm | 1.140,4W | 89,7lm/W | 4.000Kdimming curve linear; brightness control: DALI 2; mains connection: 200..400V AC, 50/60Hz, surge voltage resistance: line to ground: 10kV, electrical connection: terminal, 5-pole, max. 2.5mm², solid wire, fine wire, ECG replaceable separately, LED unit replaceable without ESD environment, dimming range 10..100%; floodlight with 2x LED unit of diecast aluminium, grey; length: 638mm / width: 655mm / height: 346mm; mounting bracket, of diecast aluminium, uncoated, junction box, of PA66, black, ECG unit, of diecast aluminium, coated, grey, equipment: Power, protection rating (complete): IP66; insulation class (complete): insulation class I (protective earthing); certification: CE, ENEC, VDE, UKCA; ball protection: ball impact resistance with accessories, impact resistance: IK07; only for outdoor installations in the designated locations, permissible operating ambient temperature: -40..+55°C, permissible storage temperature: -40..+85°Cpackaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type floodlight
Product name Floodlight FL 11 maxi Remote
Order No. 5XA779616W01AB

Lighting technology

Light control lens of PMMA
Cover cover panel, transparent
Light distribution A64B001
Symmetry asymmetric distribution
Light emission direct distribution

Lamps

Lamps with LED
Rated values 102250lm | 1140.4W | 89.7lm/W
Colour temperature 4000K
Colour rendering index CRI > 70
Light colour 740
Supplement LED service life up to 100,000h L90. Typical operating time: 1000h per year.

Factory light settings (LS)

LS 1 100% | 102250lm | 1140.4W | 89.7lm/W | 4000K
further light settings possible

Operating device

Control DALI 2
Equipment dimming curve linear

Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK07
Temperature range (operation) -40..+55°C
Supplement only for outdoor installations in the designated locations
Corrosion protection corrosivity category C3 according to DIN EN ISO 12944; fastening screws made of non-corrosive material, additionally with anti-corrosion coating, tested according to DIN EN ISO 9227 NSS:Jul17 (similar to DIN EN ISO 12944 for C5)
Certification, designation CE, ENEC, VDE, UKCA

Material, Colour

LED unit diecast aluminium, grey
Quantity 2 piece
mounting bracket diecast aluminium, uncoated
junction box PA66, black
ECG unit diecast aluminium, coated, grey
Cover cover panel of toughened safety glass

Mounting

Mounting method, mounting location surface-mounted, to supporting structure, to the ceiling, to the cross arm

Electrical connection

Connection terminal, 5-pole, max. 2.5mm², solid wire, fine wire
Nominal voltage 200..400V, 50/60Hz, AC
Surge voltage resistance line to ground: 10kV

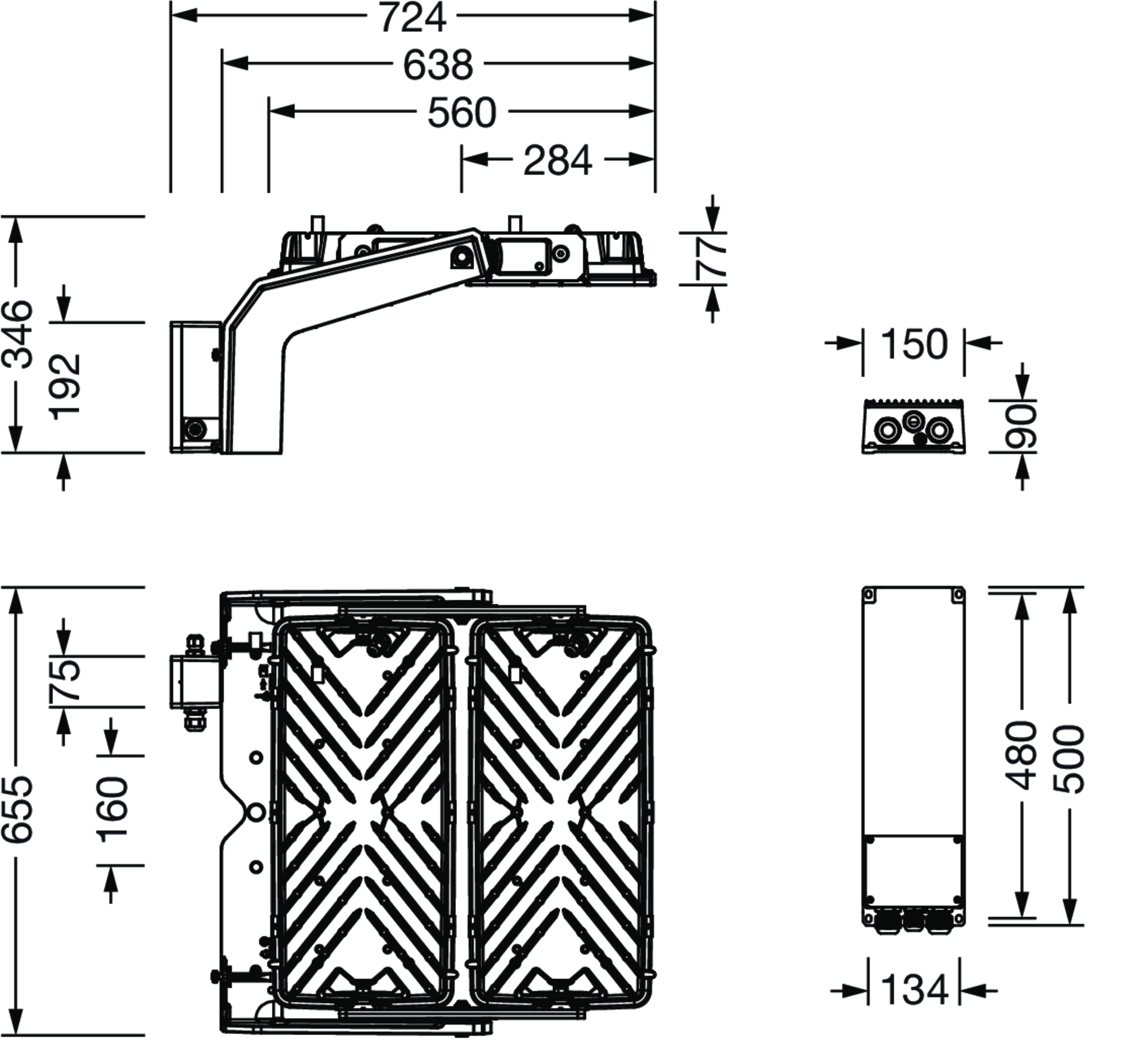

Dimensions, Weight

Length 638mm
Width 655mm
Height 346mm
Weight 24.6kg
Supplement luminaire head with bracket: 17.6kg, ECG unit: 6.8kg, luminaire head with bracket: 17.6kg, ECG unit: 7.0kg

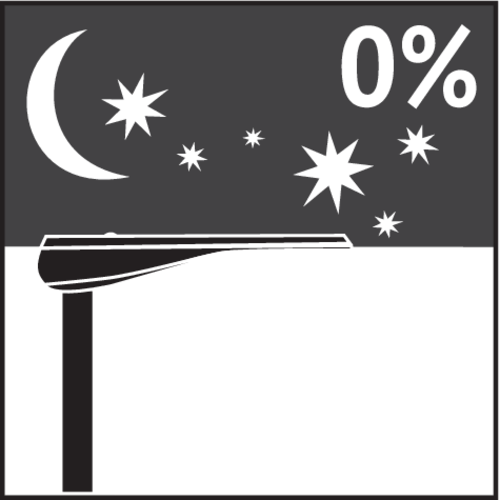

Light emission

Light emission 0%

Place of operation

Suitable for Austria, Belgium, Czech Republic, Denmark, France, Germany, Hungary, Italy (north), Luxembourg, Netherlands, New Zealand, Poland, Slovakia, Slovenia, Switzerland, United Kingdom
