Key data

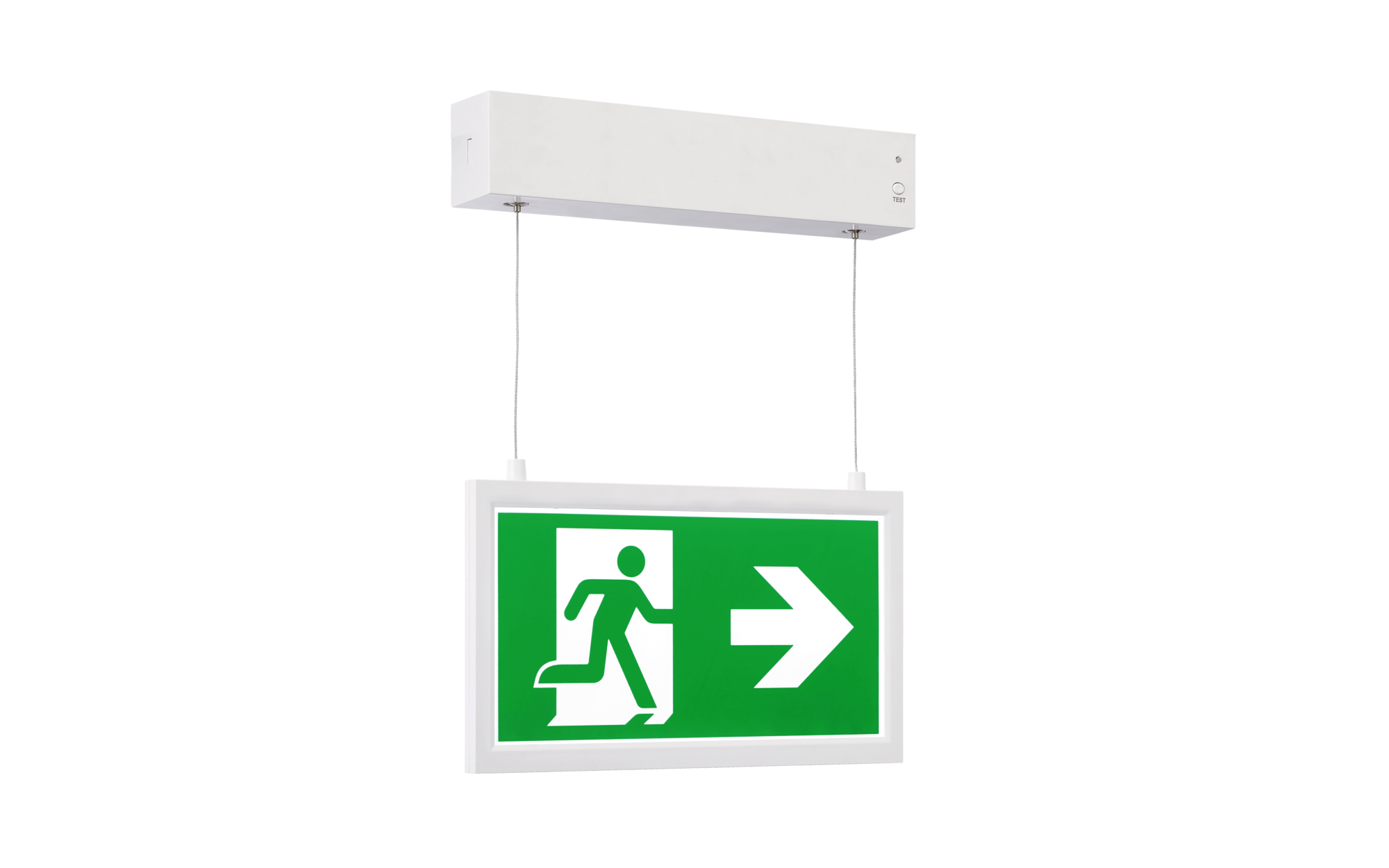

Product type signage/orientation luminaire
Product name MXL/ESA10
Order No. GB82470MXSUMNM4WED

Component 1

Lighting technology
Cover info panel

Lamps
Lamps with LED
Colour temperature 4500K
Colour rendering index CRI > 80
Light colour 845
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 4 SDCM (initial)
Rated input power 5.2W

Operating device
Control DALI

Component 2

Lamps
Supplement with self-test function, LED status display: green = system ok; red = failure

Operating device
Battery LiFePO4
Nominal operating time 3h

Certificates, Standards

Protection rating IP40
Insulation class insulation class II (safety insulation)
Temperature range (operation) 0..+45°C
Supplement manual test and automatic self-test according to BS EN 62034

Material, Colour

ceiling canopy PC, traffic white (RAL 9016), cable entry from the rear or from above
Cover info panel of PMMA

Mounting

Mounting method, mounting location suspended mounting, to the ceiling, to the wall

Electrical connection

Connection terminal, 5-pole, max. 2.5mm²
Nominal voltage 220..240V, 50/60Hz

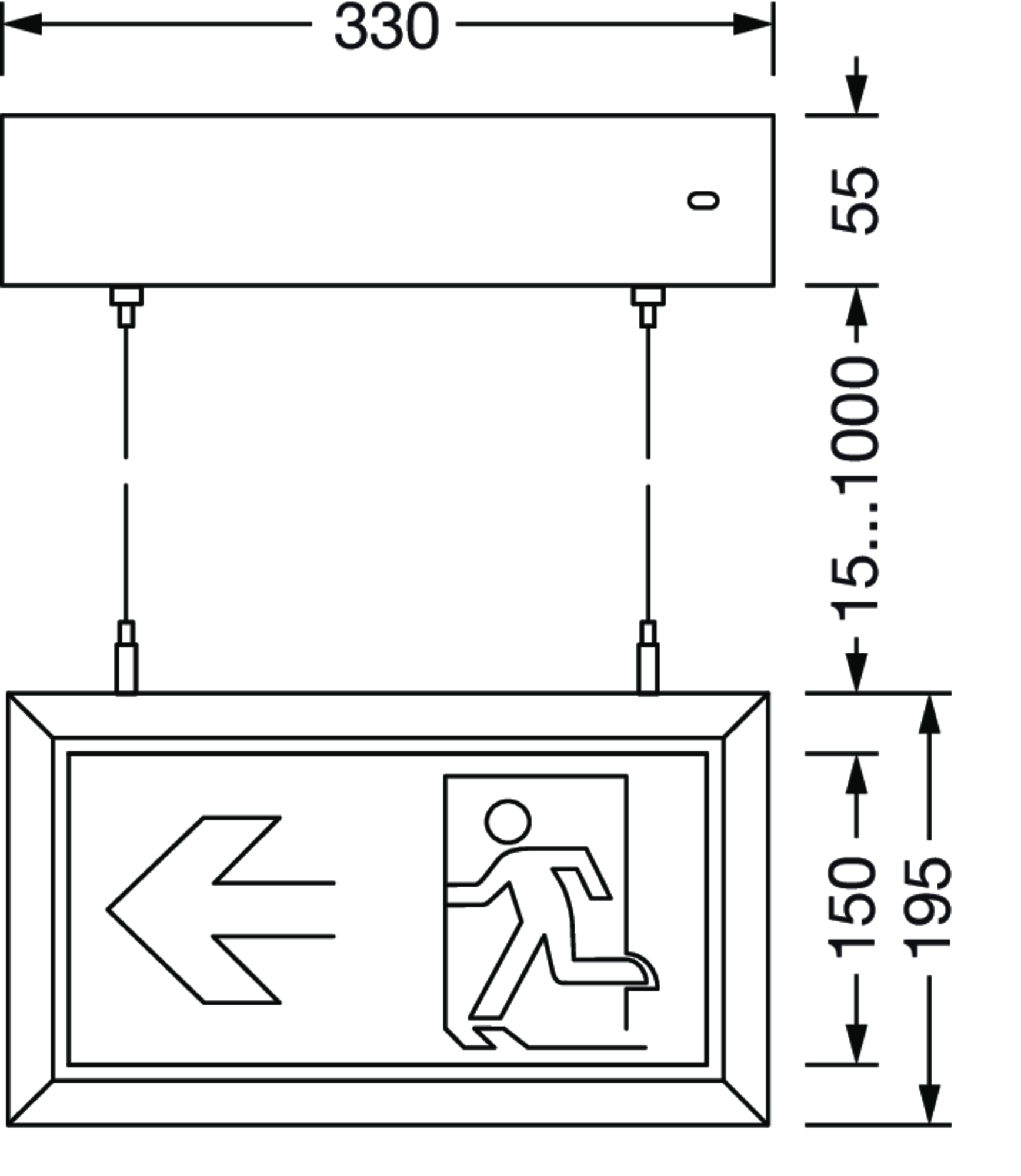

Dimensions, Weight

Length 330mm
Width 45mm
Height 265mm
Weight 1.2kg

Service life

Rated service life 50000h (L70/B50) at AT = 25°C
