Ordercode: 51HP32MB4MMA

Article LED high bay luminaire
Product name Highbay 42-L
Lamp LED
Rated luminous flux 28000lm
Luminous efficacy 160lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 175W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP65
Impact resistance IK08
Weight 2.4kg

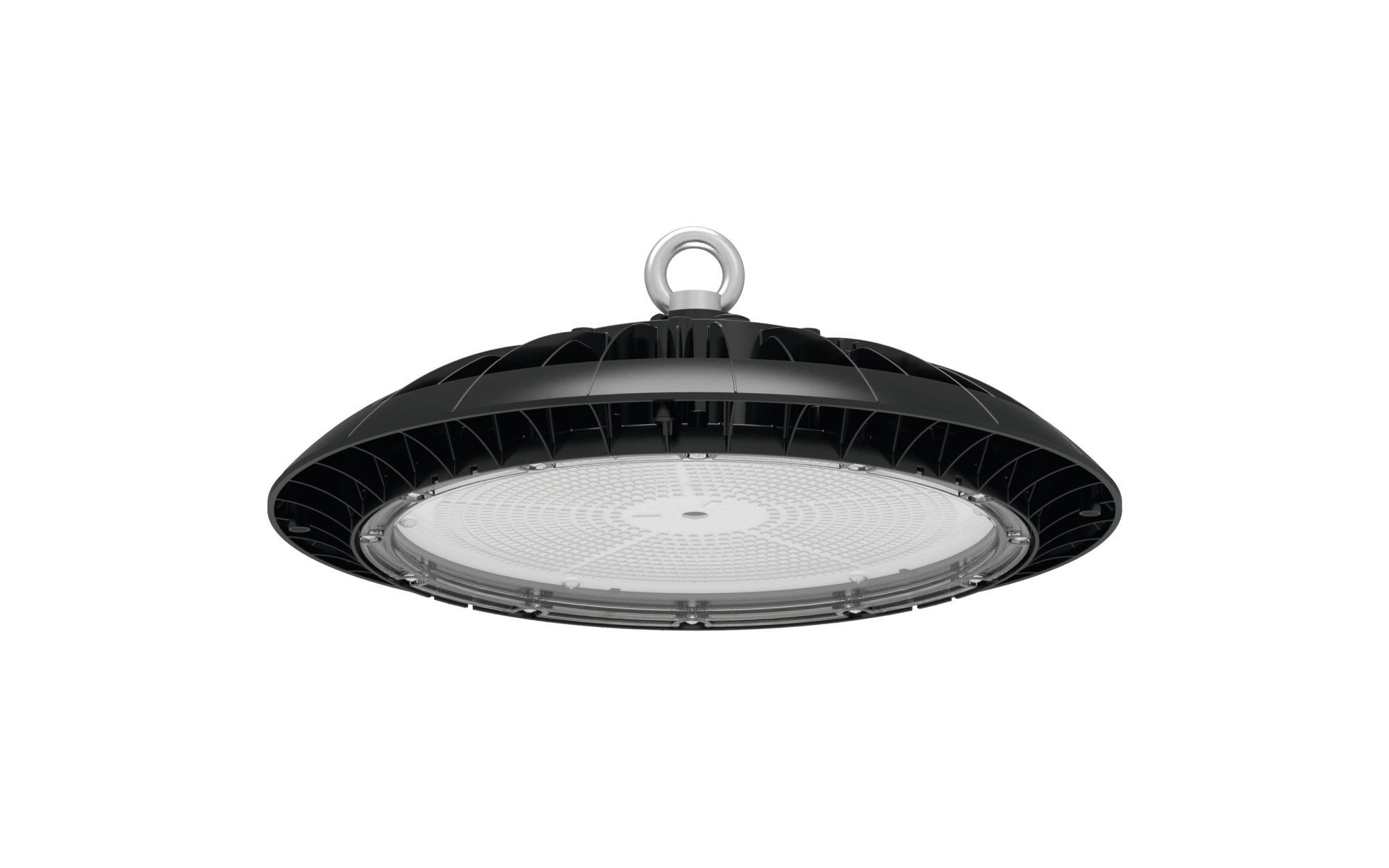

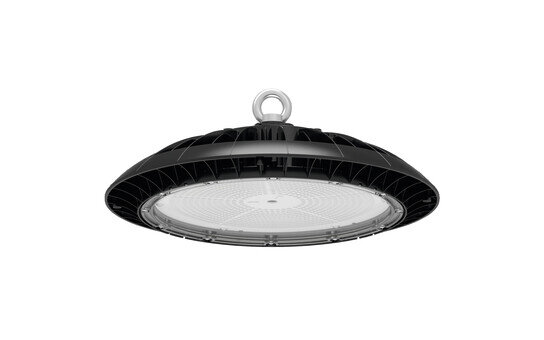

Highbay 42-L, LED high bay luminaire, primary light control with lens, of PC, primary optical cover: cover panel, of PC, transparent, light emission: direct distribution, primary light characteristic: rotationally symmetric, installation type: suspended mounting, surface-mounted, LED, rated luminous flux: 28.000lm, luminous efficacy: 160lm/W, light colour: 840, colour temperature: 4000K, control gear: ECG, with cable, 3x 1.0mm², free wire ends, mains connection: 230V, AC, 50Hz, cable length: 1,5m, rated input power: 175W, housing, rotationally symmetric, of diecast aluminium, black, with hook on luminaire side, diameter: 305mm, height: 117mm, protection rating (complete): IP65, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, protection symbol: D, impact resistance: IK08, permissible operating ambient temperature: -20..+40°C, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, packaging unit: 1 piece

Product details


Key data

Product type LED high bay luminaire
Product name Highbay 42-L
Order No. 51HP32MB4MMA


Lighting technology

Light control lens of PC
Cover cover panel, transparent
Beam angle wide distribution, 90°
Symmetry rotationally symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≥ 25
UGR viewing direction along lateral luminaire axis ≥ 25


Lamps

Lamps with LED
Rated luminous flux 28000lm
Luminous efficacy 160lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 6 SDCM (initial)
Rated input power 175W


Operating device

Control gear ECG
Control ON/OFF Multilumen


Certificates, Standards

Protection rating IP65
Insulation class insulation class I (protective earthing)
Impact resistance IK08
Protection symbol D
Temperature range (operation) -20..+40°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry
Certification, designation CE, UKCA


Material, Colour

housing diecast aluminium, black, rotationally symmetric, with hook on luminaire side
Quantity 1 piece
Colour specification black
Cover cover panel of PC


Mounting

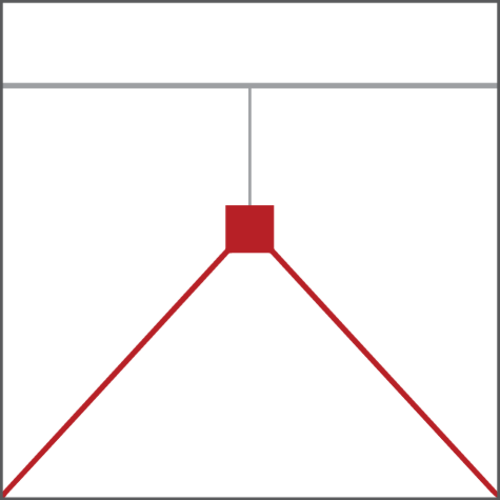

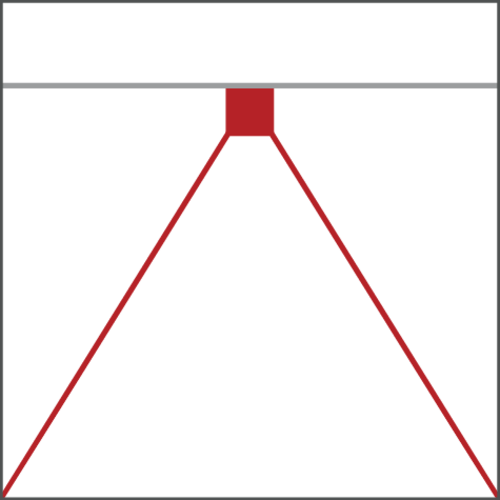

Mounting method, mounting location suspended mounting, surface-mounted, to the ceiling, to the chain
Arrangement single arrangement
Supplement only suitable for indoor use, mounting accessories required, please order separately


Electrical connection

Connection cable, 3x 1.0mm², free wire ends
Nominal voltage 230V, 50Hz, AC


Dimensions, Weight

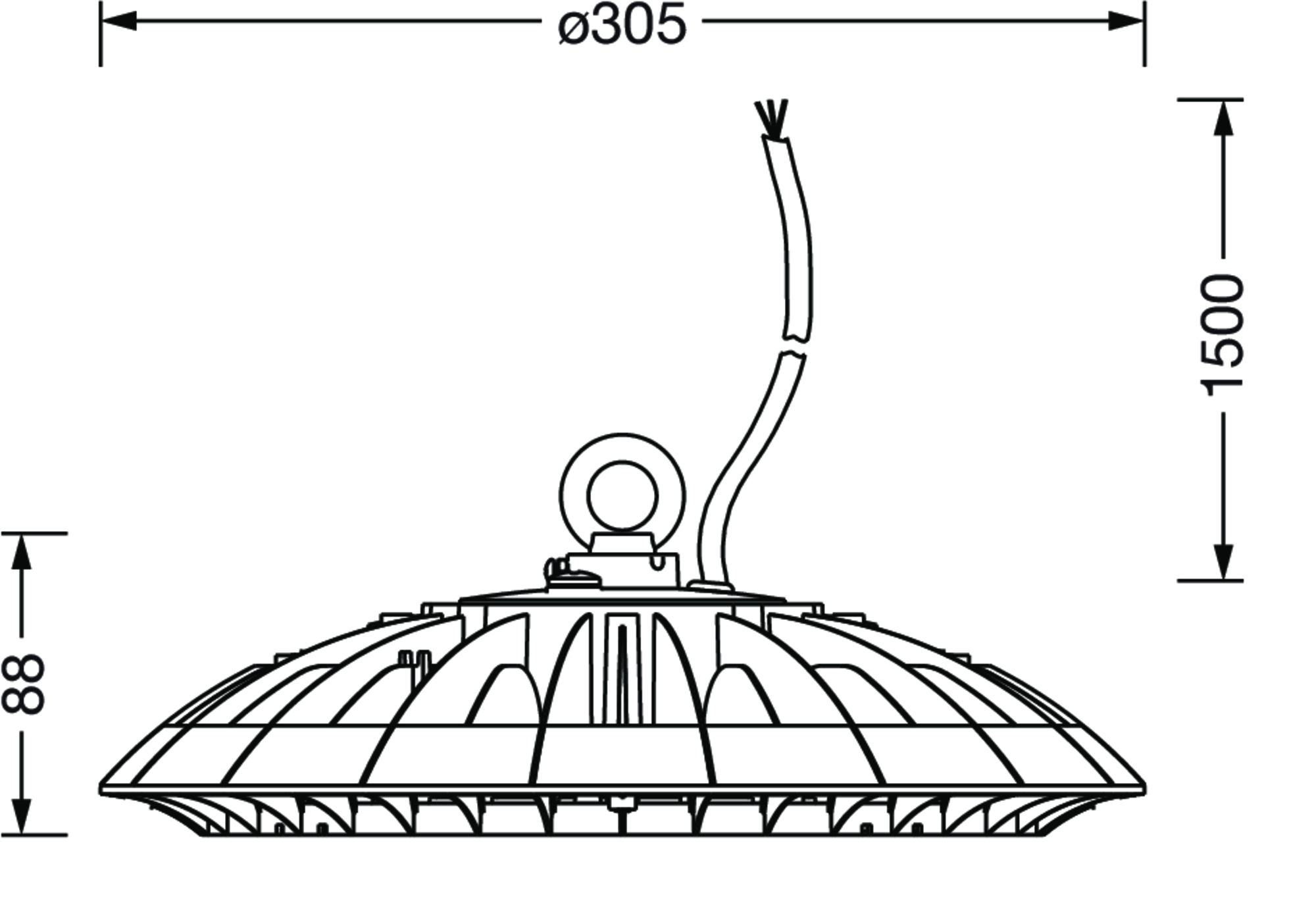

Diameter 305mm
Height 117mm
Weight 2.4kg


Service life

Rated service life 50000h (L80/B50) at AT = 25°C

Product type
LED high bay luminaire

Product name
Highbay 42-L

Order No.
51HP32MB4MMA

Light control
lens of PC

Cover
cover panel, transparent

Beam angle
wide distribution, 90°

Symmetry
rotationally symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≥ 25

UGR viewing direction along lateral luminaire axis
≥ 25

Lamps
with LED

Rated luminous flux
28000lm

Luminous efficacy
160lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 6 SDCM (initial)

Rated input power
175W

Control gear
ECG

Control
ON/OFF Multilumen

Protection rating
IP65

Insulation class
insulation class I (protective earthing)

Impact resistance
IK08

Protection symbol
D

Temperature range (operation)
-20..+40°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry

Certification, designation
CE, UKCA

housing
diecast aluminium, black, rotationally symmetric, with hook on luminaire side

Quantity
1 piece

Colour specification
black

Cover
cover panel of PC

Mounting method, mounting location
suspended mounting, surface-mounted, to the ceiling, to the chain

Arrangement
single arrangement

Supplement
only suitable for indoor use, mounting accessories required, please order separately

Connection
cable, 3x 1.0mm², free wire ends

Nominal voltage
230V, 50Hz, AC

Diameter
305mm

Height
117mm

Weight
2.4kg

Rated service life
50000h (L80/B50) at AT = 25°C

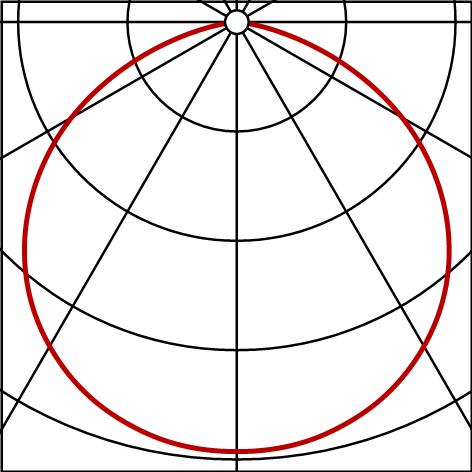

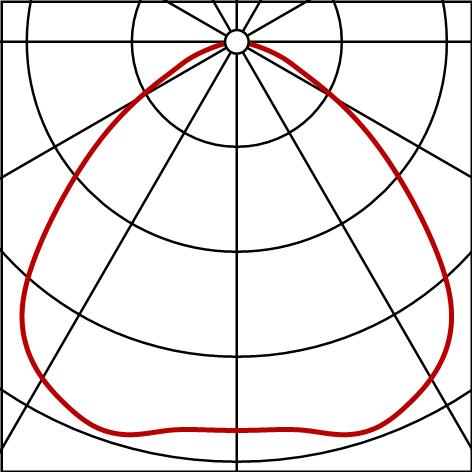

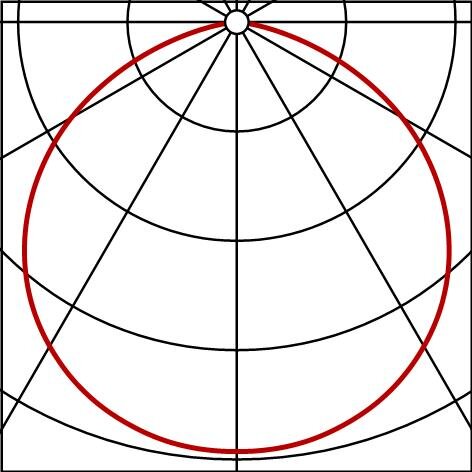

Photometric report / planning data

Photometric report / planning data

HB42L
rot.sym,wd,90°,28000lm840,ML
Ordercode: 51HP32MB4MMA
